RA-2000 Remote Annunciator

Installation Instruction

The RA-2000, an optional 4x40 Remote Annunciator,

is shown in Figure 1. The RA-2000 can be surface or

flush-mounted and is available in gray color as RA-

2000GRAY.

Figure 1: Model RA-2000GRAY Remote Annunciator

Compatibility

The RA-2000 is compatible with Honeywell’s

Farenhyt Series FACP's.

Note: For more information, see the FACP Installation manual.

Specifications

Mounting

Flush Mounting

Follow these steps to flush mount the RA-2000

1. The backbox measures 9-1/4” W x 8-3/8” H. The

backbox can be mounted prior to the complete

installation of the RA-2000 using any of the

mounting holes shown in Figure 2.

Figure 2: Backbox Mounting Holes

2. Remove knockout holes as needed for wires.

See Figure 3 for backbox knockout locations

Figure 3: Backbox Knockout Locations

3. Wire the annunciator board to the main control

panel. See Figure 7.

4. Attach the annunciator/door assembly to

backbox as shown in Figure 4 using the supplied

Parameter Value

Operating Voltage: 24VDC

Current Standby: 25mA

Alarm: 50mA

Operating

Temperature: 0° to 49° C (32° to 120° F)

Dimensions:

Flush

Mount:

Overall: 12¼” W x 11½” H x 7/8” D

(31.1 cm W x 29.2 cm H x 2.2 cm

D) See “Flush Mounting” for back-

box dimensions.

Surface

Mount:

Including trim ring:

12¼” W x 11½” H x 3” D

31.1 cm W x 29.2 cm H x 7.6 cm D

mounting holes

wire knockouts

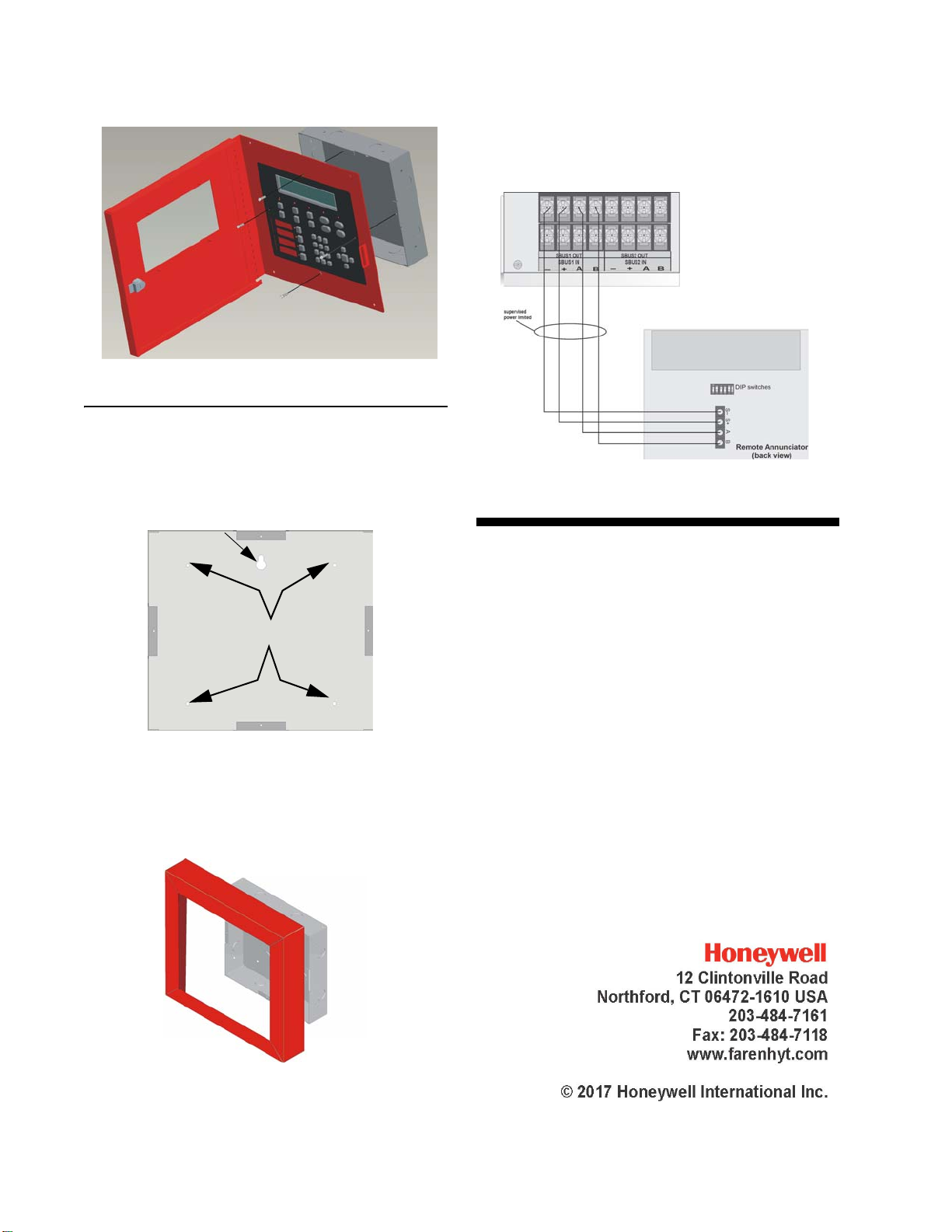

Model RA-2000 Installation Instructions

2P/N 151443 Rev C

ECN 16-0218

Farenhyt™is a trademark, JumpStart® and Honeywell®are registered trademark of Honeywell International, Inc.

screws.

Figure 4: Attaching Door Assembly to Backbox

Surface Mounting

1. Remove the desired knockout. See Figure 3.

2. To properly mount the backbox, insert a single

screw into the key shaped mounting hole. Do not

tighten all the way. See Figure 5.Place a level on

top of the backbox, with the backbox level insert

the rest of the mounting screws.

Figure 5: Backbox Surface Mount Holes

3. Connect wires from the RA-2000 to the SBUS

connectors on the FACP. See Figure 7.

4. The RA-2000TR or RA-2000GRAYTR ring trim

kits are available for use when surface mounting.

Place the trim ring over the backbox as shown in

Figure 6.

Figure 6: Installing Trim Ring

5. Attach the annunicator/door assembly to the

backbox using screws provided (see Figure 4).

6. Replace the electronic assembly in the backbox.

Wiring Connections

Wire the RA-2000 to the FACP as Shown in Figure 7.

Figure 7: SBUS Connections

Installation

1. Ensure power is turned off at the panel.

2. Mount the RA-2000 in the desired location.

3. Connect the RA-2000 to the panel (see Figure

7).

4. Use the DIP switches on the back of the RA-

2000 to assign an ID number. (See FACP

manual).

5. The RA-2000 module must be added to the

system through programming. JumpStart®will

add the module automatically. Refer to the FACP

manual for more information.

key shaped

mounting hole

backbox

mounting holes
