HOMCOM 824-051V90 Guía de instalación

ASSEMBLY & INSTRUCTION MANUAL

824-051V90

220-240V~50-60Hz 45W

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

INcjh024_IT

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL,

OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT

YOURSELF AND.OTHER BY OBSERVING ALL SAFETY INFORMATION.

FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN

PERSONAL INJURY AND/OR PROPERTY DAMAGE !

IMPORTANT SAFETY INFORMATION

1. Read all instructions carefully before using the FAN.

2. Use this FAN only as described in this manual. Any other

use not recommended by the manufacturer may cause fire,

electrical shock, or injury to persons.

3. Remove the package and ensure that the FAN is

undamaged. In case of doubt do not use FAN and contact

with your supplier.

4. Don not let children play parts of package.

5. Before use the FAN, check if the voltage marked on the

rating label corresponds to the mains in your home.

6. Extreme caution is necessary when the FAN is used by or

near children or Invalids and whenever the FAN is left

operating unattended.

7. Avoid using extension cord as the extension cord may

overheat and cause a risk of fire.

8. Do not pull the power cord to disconnect with power source.

Always grasp the plug to pull out.

9. Do not insert any objects into the FAN as it may cause an

electric shock or injure or damage to the FAN. Do not block

or tamper with the FAN in any manner while it is in

operation.

10. Do not leave the FAN unattended.

11. This FAN is not intended for use in wet or damp locations.

Never locate a FAN where it may fall into a bathtub or other

water container.

12. Do not use FAN outdoors.

13. Disconnect the fan from the mains power when not in use,

and before servicing or performing any maintenance.

14. Keep the fan clean and maintain in good condition (use an

authorized service agent).

15. Use recommended parts only (non genuine parts may be

dangerous, and will invalidate your warranty).

16. When not in use store in a safe, dry, childproof location.

17. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

18. The back housing shall not dismantle, removal will be

dangerous .

19. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their

safety.

20. Children should be supervised to ensure that they do not

play with the appliance.

WARNING :

The Main Power Switch and the On/Off

switch should not be used as the sole

means of disconnecting power. Always

unplug the power cord before servicing or

moving the unit.

WARNING : To avoid danger of electric shock, unplug

from outlet when not in use and before

cleaning. If the supply cord is damaged, it

must be replaced by the manufactory or it’s

service agent or a similarity qualified

person in order to avoid a hazard.

PARTS NAME

ASSEMBLY

1. Take out the two parts of the base from packing box. Then, align the

centers of the two parts of the base and place them in a crossed form.

Rotate one of the two bases to align its hole site and make it stuck

correctly (Fig 1).

Control Panel

Display Panel

Air Outlet

Base

(Fig 1)

2. Put the wire in the recess, then fix the base on the fan body with four

screws (included), and turn the screws clockwise (Fig 2).

(Fig 2)

REMOTE CONTROL

1. Included a button cell battery (the type of battery CR2025).

2. The Remote Control Power button is labeled as such. All the functions

performed with the Remote Control work identically to the Manual Controls.

( Fig 3).

( Fig 3) (Fig 4)

OPERATION

The FAN may be operated by the manual controls located on the FAN (as

shown in Fig 4 ) or by your remote control (shown in Fig 3) .

1. Place the FAN on a stable flat surface. Plug the cord set into a 220-240V~

electrical outlet. Plug on the FAN, existing room temperature will be

displayed at display panel.

2. POWER :Turn the FAN on by pressing the ‘POWER’ button; Turn the

FAN off by pressing the ‘POWER’ button again.

3. SPEED :You can adjust the fan speed to the desired level: low,

medium, or high by pressing ‘SPEED’ . The speed setting is displayed on

the LED panel (shown in Fig. 5) .

4. MODE : Pressing the ‘MODE’ button will set the FAN into NORMAL

mode, NATURAL mode,SLEEP mode and Child mode

- NORMAL Mode :Fan will start work at any speed you set up.

- NATURAL Mode :Fan will start work at low speed(5s)→

medium speed(5s)→high speed(5s)→medium speed(5s), it works as per

this recycle.

- SLEEP Mode : 1）If you set the mode at high speed, fan will work

at high speed at 30 mins, then transfer to medium speed at 30 mins and

transfer to low speed until fan stop working. 2）If you set the mode at

medium speed, fan will work at medium speed at 30 mins, then transfer to

low speed until fan stop working. 3）If you set the mode at low speed, fan

will work at low speed until fan stop working. The LED Display will turn off

if you don’t control the fan in 30 seconds, touch any button to turn on the

display.

- Child Mode : Fan will auto. Set up timer at 3 hours, oscillation

function will start. And it will work at high speed at 15 minutes, transfer to

medium speed at 15 minutes, then transfer to low speed until it take off.

You can take off oscillation function by manual. The LED Display will

turn off if you don’t control the fan in 30 seconds, touch any button to

turn on the display.

5. TIMER :The fan is equipped with a timer that allows you to set its

length of operation from 1 hour to 12 hours.The LED Display will turn off if

you don’t control the fan in 30 seconds, touch any button to turn on the

display.

6. OSCILLATION :Pressing the ‘OSC’ button will start and stop the

oscillation function. The symbol is displayed on the LED panel.(shown in

Fig 5)

(Fig 5)

7. DISPLAY :Can be switched off temporarily by press the LED

button on the remote or by pressing and holding the SPEED button on the

control panel for more than 3 seconds, the display will light up again once

any control button is activated.

8. Cable hook: The cable hook is packed in the user manual, take it out

and install on the back side of the fan. The power cord can be hanged at

SSPPEEEEDD

TTIIMMEERR

TTEEMMPP

SSPPEEEEDD

TTIIMMEERR

TTEEMMPP

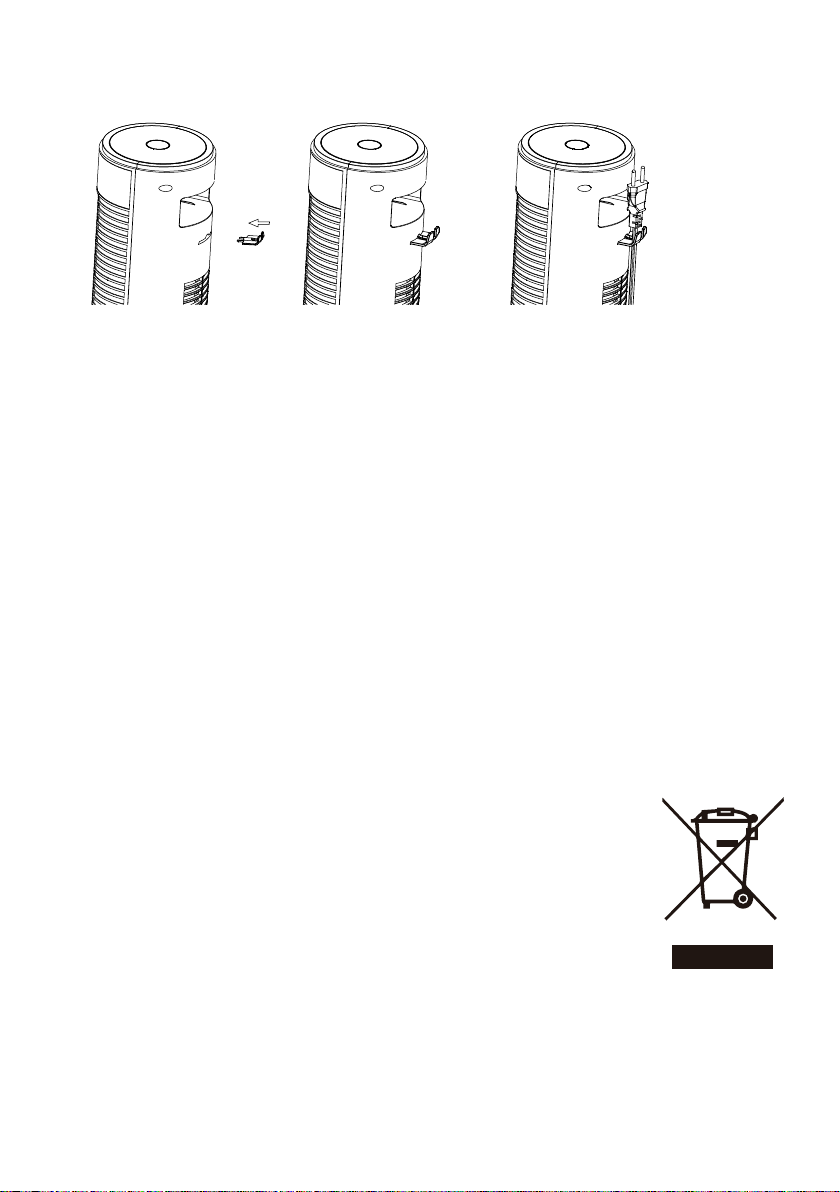

the cable hook when the fan is not in used.(Fig 6)

(Fig 6)

MAINTENANCE

1. This can only be done by an authorized service agent such as your local

Sealer dealer or any agent qualified to undertake electrical repairs.

2. If the unit requires external cleaning make sure it is switched off and

unplugged from the mains supply. Use a soft tissue or cloth for general

cleaning. To remove more persistent dirt or grime wipe down with a cloth that

has been dampened with warm soapy water. Do not use any solvents ( such

as thinners ) as these may damage the plastic casing.

DISPOSAL

WARNING!!!

Releasing refrigerant into atmosphere is strictly

forbidden!

According toEuropean Directive 2012/19 / EU on

waste electrical and electronic equipment and

transposition into national law, used electrical

appliances must be collected separately and

recycled in an environmentally sound manner.

LEGGERE ATTENTAMENTE PRIMA DI TENTARE DI ASSEMBLARE,

INSTALLARE, UTILIZZARE O MANUTENERE IL PRODOTTO COME

DESCRITTO. PROTEGGERE SÉ STESSI E GLI ALTRI OSSERVANDO TUTTE

LE PRECAUZIONI DI SICUREZZA. IL MANCATO RISPETTO DELLE

ISTRUZIONI POTREBBE PROVOCARE LESIONI PERSONALI E/O DANNI

ALLA PROPRIETA’ PRIVATA!

IMPORTANTI INFORMAZIONI DI SICUREZZA

1. Leggere attentamente tutte le istruzioni prima di utilizzare il

VENTILATORE.

2. Utilizzare questo VENTILATORE solo come descritto in questo

manuale. Qualsiasi altro uso non consigliato dal produttore può

causare incendi, scosse elettriche o lesioni personali.

3. Rimuovere dalla confezione e assicurarsi che il VENTILATORE

non sia danneggiato. In caso di dubbio non utilizzare il

VENTILATORE e contattare il proprio fornitore.

4. Non lasciare che i bambini giochino con parti della confezione.

5. Prima di utilizzare il VENTILATORE, verificare che il voltaggio

indicato sulla targhetta dei parametri corrisponda a quello della rete

elettrica domestica.

6. È necessaria estrema cautela quando il VENTILATORE viene

utilizzato da o vicino a bambini o invalidi e ogni volta che il

VENTILATORE viene lasciato in funzione incustodito.

7. Evitare di utilizzare una prolunga poiché essa potrebbe

surriscaldarsi e causare un incendio.

8. Non tirare il cavo di alimentazione per scollegarlo dalla presa.

Afferrare sempre dalla spina per estrarla.

9. Non inserire alcun oggetto nel VENTILATORE poiché potrebbe

causare scosse elettriche, lesioni personali o danni al

VENTILATORE. Non bloccare o manomettere in alcun modo il

VENTILATORE mentre è in funzione.

10. Non lasciare il VENTILATORE incustodito.

11. Questo VENTILATORE non è destinato all'uso in luoghi bagnati

o umidi. Non posizionare mai un VENTILATORE dove potrebbe

cadere in una vasca da bagno o in un altro contenitore d'acqua.

12. Non utilizzare il VENTILATORE all'aperto.

13. Scollegare il VENTILATORE dalla rete elettrica quando non è in

uso e prima di eseguire interventi di riparazione o manutenzione.

14. Mantenere il ventilatore pulito e mantenerlo in buone condizioni

(rivolgersi a un agente di servizio autorizzato).

15. Utilizzare solo parti consigliate (le parti non originali possono

essere pericolose e invalideranno la garanzia).

16. Quando non è in uso, riporlo in un luogo sicuro, asciutto e

lontano dai bambini.

17. Questo apparecchio può essere utilizzato da bambini di età pari o

superiore a 8 anni e da persone con capacità fisiche, sensoriali o

mentali ridotte o prive di esperienza e conoscenza tecnica, se sono

supervisionati o istruiti sull'uso dell'apparecchio in modo sicuro e

comprendono i pericoli coinvolti. I bambini non devono giocare con

l'apparecchio. La pulizia e la manutenzione non devono essere

eseguite da bambini senza supervisione di un adulto.

18. L'alloggiamento posteriore non deve essere smontato, la

rimozione è pericolosa.

19. Questo apparecchio non è destinato all'uso da parte di persone

(bambini compresi) con capacità fisiche, sensoriali o mentali ridotte,

o prive di esperienza e conoscenza tecnica, a meno che non siano

supervisionate o istruite sull'uso dell'apparecchio da una persona

responsabile della loro sicurezza.

AVVERTENZA:

L'interruttore di alimentazione principale e

l'interruttore di accensione/spegnimento non

devono essere utilizzati come unico mezzo per

interrompere l'alimentazione. Scollegare sempre

il cavo dalla presa di corrente prima di eseguire

interventi di manutenzione o spostare l'unità.

Tabla de contenidos

Idiomas:

Otros manuales de Calentador de HOMCOM

HOMCOM

HOMCOM 820-311V00 Manual de usuario

HOMCOM

HOMCOM 820-250V80 Guía de instalación

HOMCOM

HOMCOM 820-252V70 Guía de instalación

HOMCOM

HOMCOM YH15 Manual de usuario

HOMCOM

HOMCOM 820-244 Manual técnico

HOMCOM

HOMCOM 820-315V00 Manual de usuario

HOMCOM

HOMCOM 820-312V00 Manual de usuario

HOMCOM

HOMCOM 820-246V70 Guía de instalación

HOMCOM

HOMCOM KPT-2000B 4505L Guía de instalación

HOMCOM

HOMCOM 820-314V00 Manual de usuario

HOMCOM

HOMCOM 820-317V90 Manual de usuario

HOMCOM

HOMCOM 820-249V81 Guía de instalación

HOMCOM

HOMCOM 820-310V00 Manual de usuario

HOMCOM

HOMCOM TSH-RC Guía de instalación

HOMCOM

HOMCOM Hs93363 Manual de usuario

HOMCOM

HOMCOM 820-274 Manual técnico

HOMCOM

HOMCOM 820-278 Guía de instalación

HOMCOM

HOMCOM 850-225V00 Manual de usuario

HOMCOM

HOMCOM 820-333V90 Manual de usuario

HOMCOM

HOMCOM 820-247 Guía de instalación

HOMCOM

HOMCOM 820-248 Manual de usuario

HOMCOM

HOMCOM 820-336V70 Manual de usuario

HOMCOM

HOMCOM 820-250V70 Guía de instalación

HOMCOM

HOMCOM 820-296V90 Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
