Holz-Blech 91922093 Manual de usuario
× 40 × 30
× 30
4×40
4×50
6×140
Ø 3 mm
Ø 5 mm
1/13
ROBOT LAWN MOWER
GARAGE I 28
PREPARE THE GROUND, UNWRAP THE PACKAGE,
LAY OUT THE COMPONENTS, FIND THE TOOLS.
2/13
ROBOT LAWN MOWER
GARAGE I 28
MAKE SURE THAT THE FOUNDATION
IS INSTALLED ON A LEVEL SURFACE.
CHECKING ALL DIRECTIONS,
INCLUDING CORNER TO CORNER. 6%
LAY OUT THE FOUNDATION BEAMS
AND SQUARE IT BY MEASURING
FROM CORNER TO CORNER.
IFB1
AC
DB
AB=CD
0°
IFB2
× 2
6×140Ø 5 mm
3/13
ROBOT LAWN MOWER
GARAGE I 28

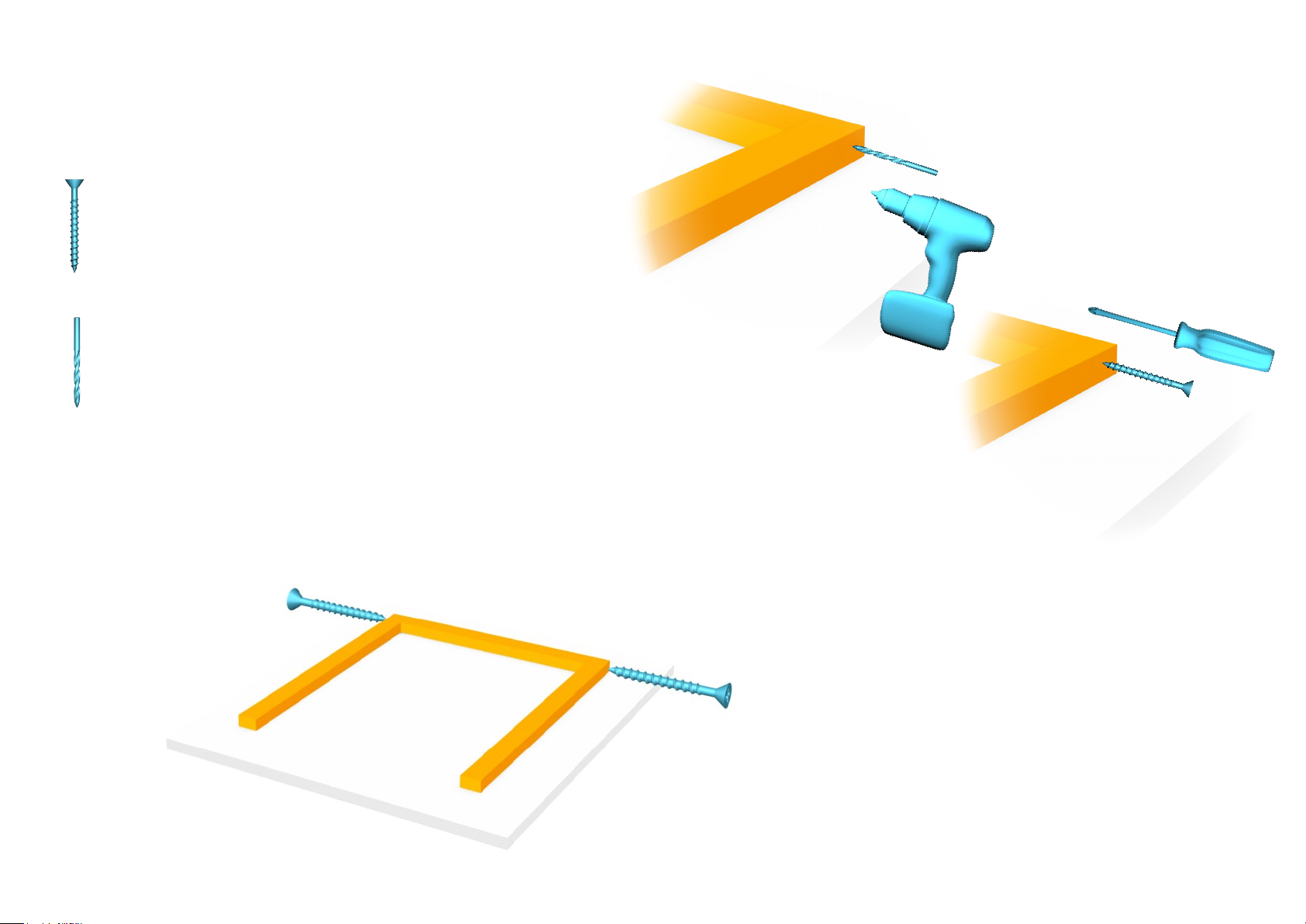

ASSEMBLE THE FOUNDATION
WITH SCREWS
7%
× 4
6×140Ø 5 mm
4/13
ROBOT LAWN MOWER
GARAGE I 28
LAY OUT THE BOTTOM LOGS,
ATTACH TO THE FOUNDATION.
THE WALL LOGS WILL HANG OVER
THE FOUNDATION BEAMS BY
APPROXIMATELY 5MM. THIS OVERHANG
IS DESIGNED AS A RAIN DRIP. 17%
2 BL-1
1 BL-1
1 BL-1
A LG-3
B LG-3
5mm
× 4
6×140Ø 5 mm
5/13
ROBOT LAWN MOWER
GARAGE I 28
28%
ATTACH THE NEXT ROWS OF
WALL LOGS WITH SCREWS.
2 LG-1
1 LG-1
1 LG-1
6/13
ROBOT LAWN MOWER
GARAGE I 28
38%
AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH
WALL LOG IN PLACE USING A HAMMER AND THE
HITBLOCK PROVIDED, TO TIGHTEN THE LOGS.
HITBLOCK
× 4
6×140Ø 5 mm
7/13
ROBOT LAWN MOWER
GARAGE I 28
39%
ATTACH THE NEXT ROWS OF
WALL LOGS WITH SCREWS.
× 4
6×140Ø 5 mm
8/13
ROBOT LAWN MOWER
GARAGE I 28
47%
3 LOGS IN PLACE
ATTACH THE NEXT ROWS OF
WALL LOGS WITH SCREWS.
2 TL-1
B LG-2
A LG-2
× 4
6×140Ø 5 mm
9/13
ROBOT LAWN MOWER
GARAGE I 28
54%
ATTACH THE NEXT ROWS OF
WALL LOGS WITH SCREWS.
1 TL-1
A LG-1
B LG-1
× 24
4×50
10/13
ROBOT LAWN MOWER
GARAGE I 28

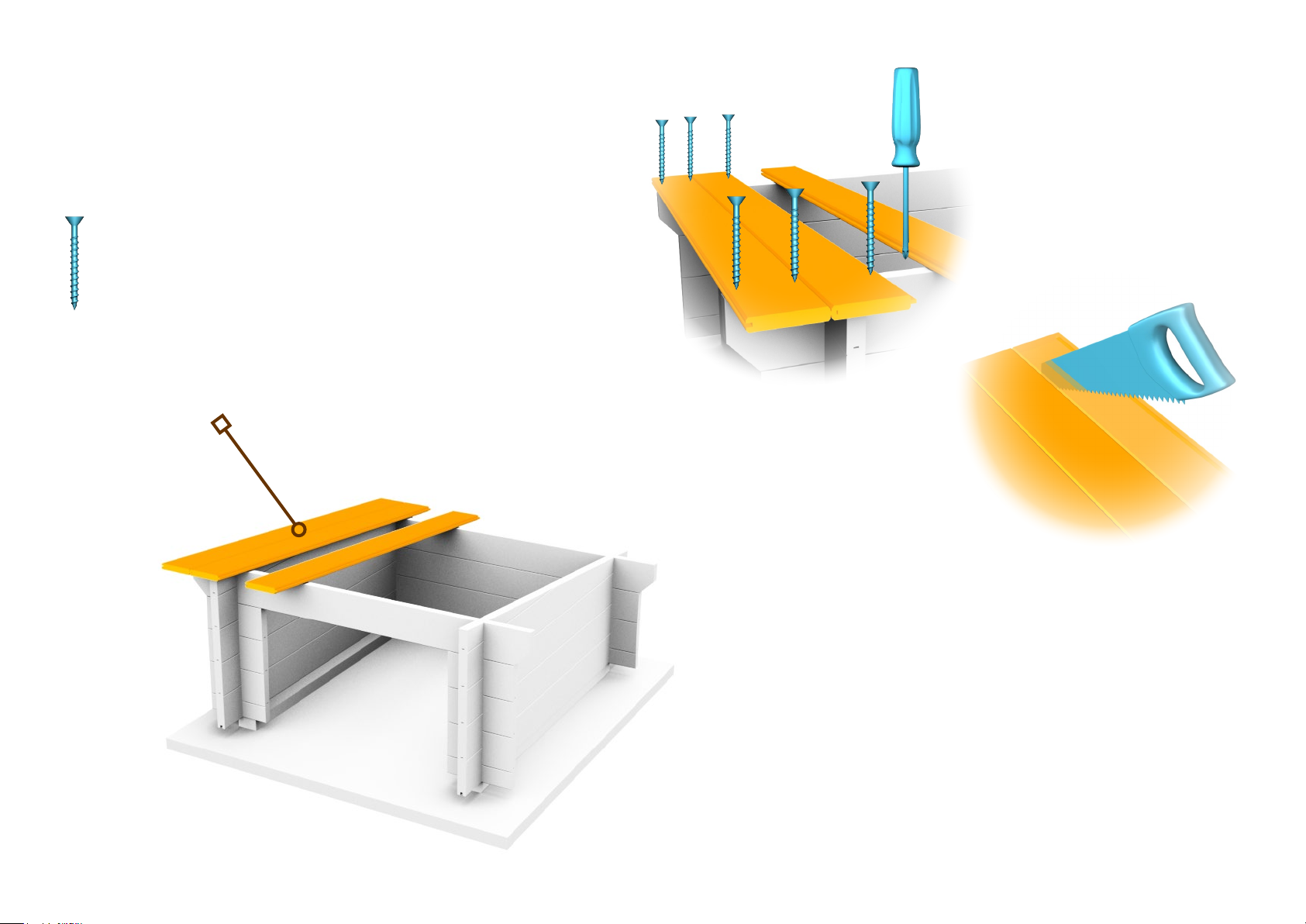

PLACE THE FIRST ROOFBOARD FLUSH WITH THE
END OF THE TOPLOGS AND ATTACH
WITH 4 SCREWS, 2 INTO EACH NEXT,
SAW THE LAST BOARD TO MAKE IT FIT.
63%
RB
