HMS Networks Ewon Netbiter EC300 Series Guía del usuario

NNeettbbiitteerr EECC330000 SSeerriieess

STARTUP GUIDE

SP2508 1.3 en-US ENGLISH

Important User Information

Liability

Every care has been taken in the preparation of this document. Please inform HMS Industrial Networks

of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We,

HMS Industrial Networks, reserve the right to modify our products in line with our policy of continuous

product development. The information in this document is subject to change without notice and should

not be considered as a commitment by HMS Industrial Networks. HMS Industrial Networks assumes no

responsibility for any errors that may appear in this document.

There are many applications of this product. Those responsible for the use of this device must ensure

that all the necessary steps have been taken to verify that the applications meet all performance and

safety requirements including any applicable laws, regulations, codes, and standards.

HMS Industrial Networks will under no circumstances assume liability or responsibility for any problems

that may arise as a result from the use of undocumented features, timing, or functional side effects

found outside the documented scope of this product. The effects caused by any direct or indirect use of

such aspects of the product are undefined, and may include e.g. compatibility issues and stability issues.

The examples and illustrations in this document are included solely for illustrative purposes. Because of

the many variables and requirements associated with any particular implementation, HMS Industrial

Networks cannot assume responsibility for actual use based on these examples and illustrations.

Intellectual Property Rights

HMS Industrial Networks has intellectual property rights relating to technology embodied in the product

described in this document. These intellectual property rights may include patents and pending patent

applications in the USA and other countries.

eWON®, Netbiter®, and Argos®are registered trademarks of HMS Industrial Networks AB. All other

trademarks mentioned in this document are the property of their respective holders.

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

Preparation 3 (20)

1 Preparation

1.1 About This Document

This document describes how to install a Netbiter EC300 Series gateway and set

up a basic configuration.

For additional documentation and software downloads, FAQs, troubleshooting

guides and technical support, please visit www.netbiter.com/support.

Document Conventions

The following formatting conventions are used in this document to indicate

safety information and other content of specific importance:

WARNING

This instruction must be followed to avoid a risk of death or serious injury.

Caution

This instruction must be followed to avoid a risk of personal injury.

This instruction must be followed to avoid a risk of reduced functionality

and/or damage to the equipment, or to avoid a network security risk.

This is additional information which may facilitate installation and/or operation.

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

Installation 4 (20)

2 Installation

This product contains parts that can be damaged by electrostatic

discharge (ESD). Use ESD prevention measures to avoid damage.

Make sure that you have all the necessary information about the capabilities

and restrictions of your local network environment before installation.

Basic Installation Steps

1. Mount the unit on a flat surface or on a DIN rail using the optional adapter

kit.

2. Connect the slave devices and Ethernet network as needed.

3. Connect a suitable power supply and apply power.

4. Mobile networking (EC350/EC360):

– Connect the 4G/3G/GPRS antenna and insert the SIM card.

5. Ethernet networking:

– Connect the Netbiter to a PC via the USB port and wait for the device

driver to install.

– Enter the IP address 169.254.200.200 in a web browser to access the

local configuration pages.The username is admin, and the password is

the activation code supplied with the unit.

– Open the Network Settings tab and configure the IP settings for the

WAN interface as needed.

6. Continue to Configuration, p. 14

The Modbus interfaces must be enabled in Argos before they can be used. See

the Argos documentation for more information.

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

Installation 5 (20)

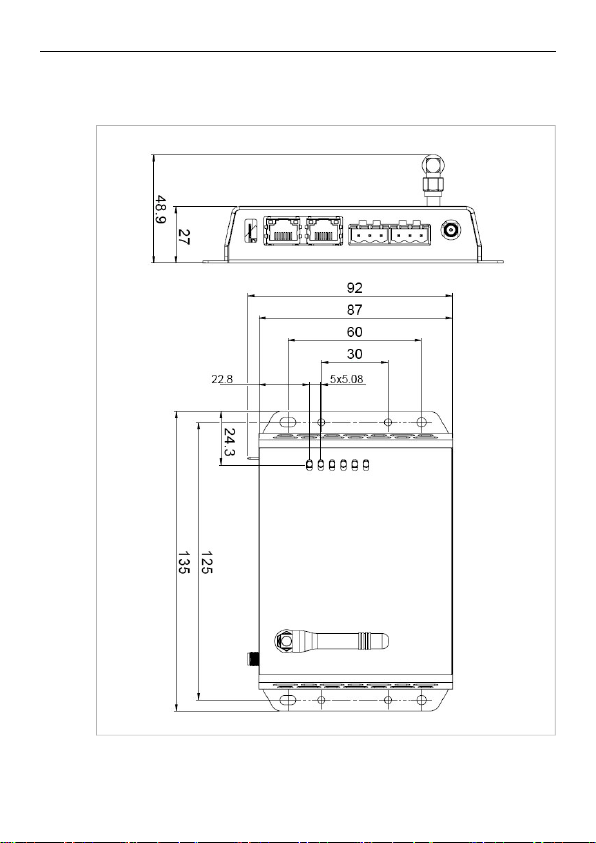

2.1 Dimensions

All measurements are in millimeters.

Dimensions are identical between models except for the antenna.

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

Installation 6 (20)

2.2 Connectors

2.2.1 I/O Terminal Block

Pin Label Function Note

15 HI CAN High

J1939

14 PE CAN Shield

13 LO CAN Low

12 GND CAN Ground

11 COM Analog Input common

10 AI4 Analog Input 4 0–20 mA or 0–10 VDC

9 AI3 Analog Input 3 0–20 mA or 0–10 VDC or PT100

8 AI2 Analog Input 2 0–20 mA or 0–10 VDC

7 AI1 Analog Input 1 0–20 mA or 0–10 VDC or PT100

6 DI2- Digital Input 2

Dry contact type – do not apply

power to these inputs

5 DI2+ Digital Input 2

4 DI1- Digital Input 1

3 DI1+ Digital Input 1

2 COM Relay output common Isolated inputs

Rated load: 1 A @ 24 VDC1 NO Relay output, NO

The analog inputs must be configured for voltage, current or PT100 input.

The digital inputs are of the dry contact type which require no control voltage.

Do not connect power to the digital inputs as this may damage the unit.

The relay output must be supplied from an isolating transformer using a

secondary listed fuse rated at maximum 3.3 A and minimum 30 VDC.

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

Installation 7 (20)

2.2.2 Power Supply

Connecting power with reverse polarity or using the wrong type of power

supply may damage the equipment. Make sure that the power supply is

connected correctly and of the recommended type.

Connect a DC power supply of the recommended type to the +(plus) -(minus)

terminals. See also Technical Data, p. 16.

2.2.3 USB Connector

The USB micro B connector can be used to connect a computer to the unit for

local configuration, firmware upgrades and troubleshooting.

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

Installation 8 (20)

2.2.4 SIM Card (EC320, EC350 & EC360)

The SIM card must have a mobile data plan and allow text messaging. PIN code

security must be disabled. Additional configuration in Argos or in the local web

interface is required.

Insert the SIM card carefully and push it firmly downwards until it clicks into

place. Observe the position of the cut-off corner and the contact surfaces.

Make sure that the SIM card does not slip behind the holder.

2.2.5 Antenna Connectors

A GPS antenna (not included) must be connected to the GPS antenna connector

to use the built-in GPS receiver. The GPS antenna connector also provides power

for active GPS antennas.

EC320 & EC350

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

Installation 9 (20)

An external 3G/GPRS stub antenna is included with the unit 1. Other antennas

are available from your supplier.

EC360

An external 4G antenna is available from your supplier.

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US

1. Antenna not included when sold in the U.S.

Installation 10 (20)

2.2.6 RS-485 Serial Interface (3-pin)

The RS-485 interface can be used for multiple Modbus RTU devices.

RS-485 connector pin layout

Pin Function

ARS-485 A line

BRS-485 B line

COM RS-485 common

2.2.7 RS-232 Serial Interface (3-pin)

The RS-232 interface can be used for a single Modbus RTU device.

RS-232 connector pin layout

Pin Function

Rx Receive (input)

Tx Transmit (output)

GND Signal ground

Netbiter EC300 Series Startup Guide SP2508 1.2 en-US
