Hisense WFH8014 Instrucciones de montaje

说明书

80g胶版纸

X08060017

版本号

设计

审核

工艺

标准化

更改单编号

会签

批准

图形识别符号

重量比例

第张共张

后附图纸55页

(语言顺序为英语、西班牙语、葡萄牙语、意大利语、德语)

技术要求

1.材料：80g双胶纸，正反面印刷；

2.印刷为黑白色单色印刷；

3.所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷；

4.幅面：（210 ）X（145 ），（单位：mm）；±3±3

5.未注公差按照GB1800(现行).IT15；

6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准；

7.符合RoHS现行标准要求和REACH指令。

WFH8014

1578147

张雪 2017.03.02

崔维明 2017.03.02

李帅民 2017.03.02

程木聪 2017.03.02 薛秀超 2017.03.02

刘松 2017.03.02

XECN001244

X08060017B

ensure

Ensure

Single inlet -

Dual inlet - and cold

only

Ensure that the ventilation openings in the base of the washing machine

(if available on your model) are not obstructed by a carpet or other material.

NOTE

The manufacturer reserves the right for any modifications on

the product which might be deemed necessary or useful

without informing about it in this IFU.

Thank you for choosing a Hisense washing machine.

Before operating your new washing machine, please read this

instruction carefully, and keep it for future reference. If you have

lost it accidentally, ask customer service for e-copy or hard copy.

Please make sure the socket is grounded securely, the water

source connection is reliable. The manufacturer declines all

liability and warranty for damage to property or injury to

persons or animals due to non-compliance with the directions

given in this instruction.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons

in order to avoid a hazard.

The new hose-sets supplied with the appliance are to be used

and that old hose-sets should not be reused.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical. Sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless

continuously supervised.

The maximum permissible inlet water pressure, 1 MPa, for

appliances intended to be connected to the water mains

The minimum permissible inlet water pressure, 0.1 MPa, if

this is necessary for the correct operation of the appliance

For washing machines with ventilation openings in the base,

that a carpet must not obstruct the openings.

The symbol on the product, or on the documents accompanying the product,

indicates that this appliance may not be treated as household waste. Instead it

shall be handed over to the applicable collection point for there cyclingof electrical

and electronic equipment. Disposal must be carried out in accordance with local

environmental regulations for waste disposal. For more detailed information about

treatment, recovery and recycling of this product, please contact your local city

ofﬁce, your household waste disposal service or the shop where you purchased

the product.

that

9 10

unds

Remove siphon in softener slot. (fig.“C”).

Refit the siphon in the detergent drawer and fit the drawer back inside its housing.

Press the release lever in the main wash compartment downward and remove

the drawer(fig.“B”).

Select the “Rinse+Spin” programme,reduce the speed to 1000rpm and strat

2 Insert removal tool like slotted screwdriver into the small opening of bottom

baffle, press the bottom baffle downward with much strength and open it.

Before emptying the residual water, switch the appliance off and unplug it

fromthe mains socket. Remove the plinth,place a container beneath it.

DRAINING RESIDUAL WATER

(depends on model)

1 Pull out emergency drain pipe of machine.

2 Put end of emergency drain pipe into a container.

3 Rotate emergency drain pipe plug and remove it after it becomes loose.

4 Until water runs off naturally.

5 Reinstall emergency drain pipe plug.

6 Fill detergent box with 1L water to check

emergency drain pipe.Check if there is

any leakage at connection of pipe plug.

7 Put emergency drain pipe back.

if it fails to perform spin cycles.

Ensure that the water has

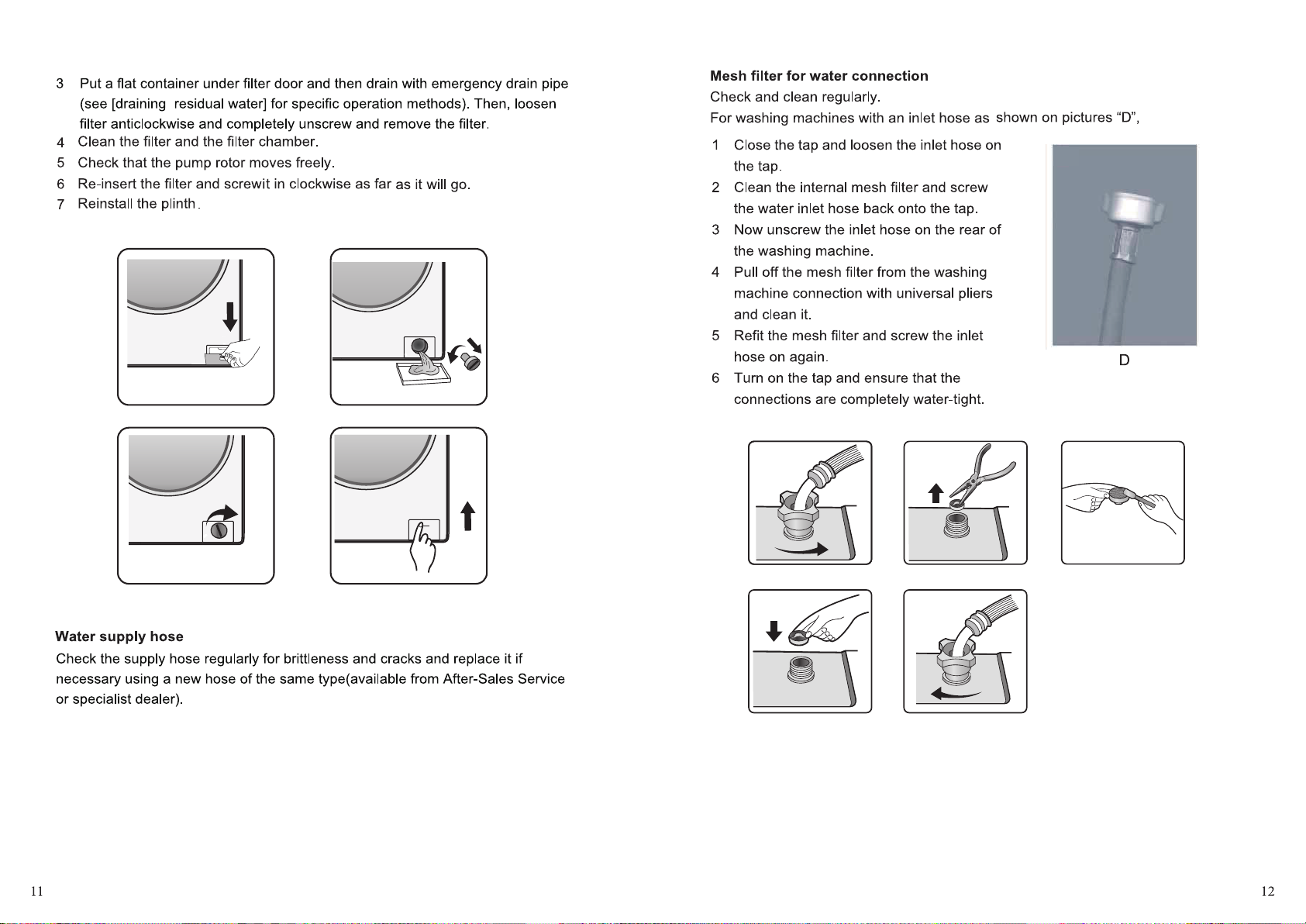

We recommend that you check and clean the filter regularly, at least two or three

times a year.
