Hisense W921DJS Instrucciones de montaje
使用说明书
X08060523
X08060523
版本号
设 计
审 核
工 艺
标准化
更改单编号
会签
会签
批准
图形识别符号
重 量 比 例
第 1 张 共 11 张
B
80g胶版纸
后附图纸32页英文。
技术要求
1.材料：80g胶版纸，正反面印刷；
2.印刷为黑白色单色印刷；
3.所有印刷内容正确、清晰，不得有漏印、误印，无印刷缺陷；
4.幅面：（210 ）X（145 ），（单位：mm）；±3 ±3
5.
未注公差按照GB/T 1804-m；
6.颜色及整体效果必须经过研发部确认后方能生产，产品检验以封样件为准；
7.符合RoHS现行标准要求和REACH指令。
洗衣机研发部
W921DJS
2081174
李军田2019.10.29
崔维明 2019.10.29
刘泽旺 2019.10.29
程⽊聪 2019.10.29 ⽯伟泽 2019.10.29
XECN004503
刘松 2019.10.29
USER’S OPERATION MANUAL
Before operating this unit, please read this manual thoroughly,
and retain for future reference
TABLE OF CONTENTS
1. SAFETY INFORMATION................................................................................1
3.DESCRIPTION OF THE WASHING MACHINE .............................................3
4.INSTALLATION..............................................................................................5
5.BEFORE THE FIRST WASH CYCLE...........................................................12
6.PREPARATION OF THE WASHING.............................................................12
7.PROGRAMMES INSTRUCTIONS................................................................17
8.PROGRAMME SETTINGS AND OPTIONS.................................................18
2.PRECAUTIONS AND GENERAL RECOMMENDATIONS.............................2
2.1 Packaging....................................................................................................2
2.2 Disposing package and scrapping used washing machines.......................2
2.3 Location and surroundings..........................................................................2
2.4 Safety...........................................................................................................2
3.1 Overview......................................................................................................3
3.2 Parts supplied..............................................................................................4
3.3 Control panel...............................................................................................4
4.1 Choosing an appropriate installation location..............................................5
4.2 Removing the packaging and inspection.....................................................5

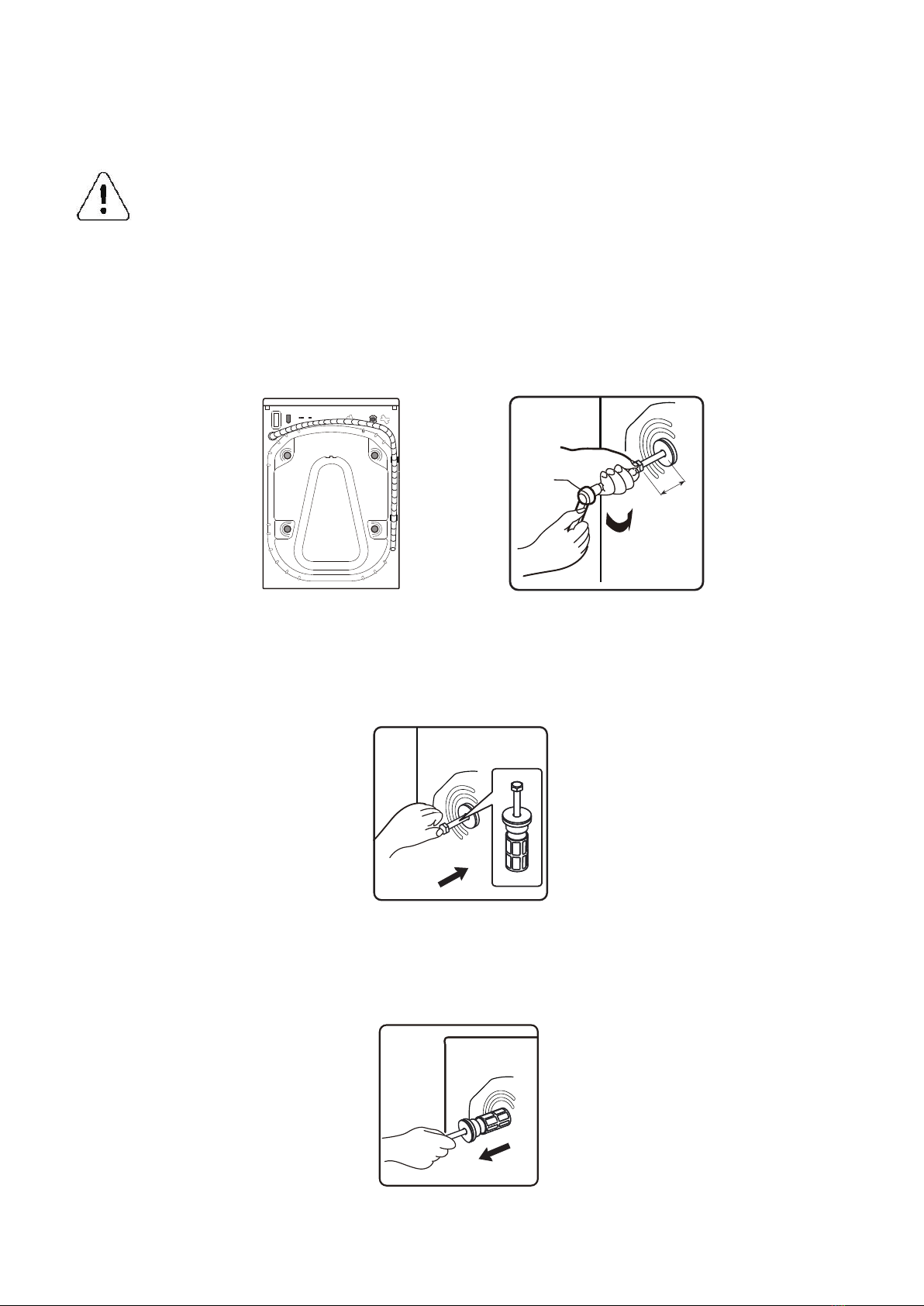

4.3 Removing the transportation bolt.................................................................6
4.4 Adjusting the feet.........................................................................................7
4.5 Connecting the water supply.......................................................................8
4.6 Connecting drain hose to the drain.............................................................10
4.7 Electrical connection..................................................................................11
6.1 Sort the laundry..........................................................................................12
6.2 Preparing laundry for washing...................................................................13
6.3 Detergents and additives...........................................................................14
7.1 Programme table.......................................................................................17
7.2 Programmes..............................................................................................18
8.1 Add detergents, close the door and select the programme.......................18
8.2 Select any desired option..........................................................................19
8.3 Programme Start.......................................................................................19
8.4 Reload in process......................................................................................19
9.CLEANING AND MAINTENANCE..............................................................22
10.TROUBLESHOOTING GUIDE..................................................................24
11.OPERATING DATA...................................................................................29
8.5 To Cancel the Program or Reselect the Options.....................................20
8.6 Programme end.......................................................................................20
8.7 Door Lock Icon.........................................................................................20
8.8 Tap Icon...................................................................................................20
8.9 Draining Pump Icon.................................................................................20
9.1 Removing the filter...................................................................................22
9.2 Draining residual water............................................................................23
9.3 Care and maintenance............................................................................23
8.10 Child lock.................................................................................................21
8.11 Delay End...............................................................................................21
8.12 Mute Function.........................................................................................21
1. SAFETY INFORMATION
1
The manufacturer reserves the right for any modifications on the
product which might be deemed necessary or useful without
informing about it in this IFU.
Before operating your new washing machine, please read this
instruction carefully, and keep it for future reference. If you have
lost it accidentally, ask customer service for e-copy or hard copy.
Please make sure the socket is grounded securely, the water
source connection is reliable.
4. This appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
5. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
8. The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
1.
2.
3.
For appliances with ventilation openings in the base, that a
carpet must not obstruct the openings.
Children of less than 3 years should be kept away unless
continuously supervised.
The maximum permissible inlet water pressure, 1 MPa, for
appliances intended to be connected to the water mains. The
minimum permissible inlet water pressure, 0.1 MPa, if this is
necessary for the correct operation of the appliance.
9.
10.
11.
2
2.1 Packaging
The packaging material is entirely recyclable, and marked with the recycling symbol .
Adhere to current local regulations when disposing of packaging material.
2.2 Disposing package and scrapping used washing machines
The washing machine is built from reusable materials. It must be disposed of in
compliance with current local waste disposal regulations.
Before scrapping, remove all detergent residues, break the door hook, and cut off
the power cable so that the washing machine is made unusable.
This appliance is marked according to the European directive on Waste Electrical and
Electronic Equipment (WEEE). By ensuring that this product is disposed of correctly,
you will help prevent potential negative consequences for the environment and human
The symbol on the product, or on the documents accompanying the product
indicates that this appliance may not be treated as housedhold waste. instead it
shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance
with local environmental regulations for waste disposal. For more detailed
information about treatment, recovery and recycling of this product, please
contact your local city office, your household waste disposal service or the shop
where you purchased the product.
health, which could otherwise be caused by inappropriate waste handling of this product.
2 PRECAUTIONS AND GENERAL RECOMMENDATIONS
The maximum washing capacity is 9kg.
For private domestic use only.
This appliance is intended to be used in household and similar
applications such as:
− staff kitchen areas in shops, offices and other working
environments;
− farm houses;
− by clients in hotels, motels and other residential type
environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in launderettes.
12.
13.
14.
2.3 Location and surroundings
The washing machine must only be installed in enclosed spaces. installation in the
bathroom or other places where air is humid is not recommended.
3
Control panel layout and
appearance will depend on the model.
Clean the outside of the washing machine with a damp cloth. Do not use abrasive
detergents.
Never open the door forcibly or use it as a step.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Children must not be allowed to play with the appliance or to climb into the drum.
If necessary, the power cable may be replaced with an identical one obtained from our
After-Sales Service. The power cable must only be replaced by a qualified technician.
If the product you bought has no special procedure for washing waterproof clothes such
as down coat, raincoat, bicycle cover, ski pants or waterproof cover, please do not wash
these articles or spin-dry them.
3.1 Overview
3 DESCRIPTION OF THE WASHING MACHINE
Control Panel
Door
Power Plug
Detergent Dispenser
Drain Hose
Plinth covering
pump access
2.4 Safety
Do not leave the appliance plugged in when not in use. Never plug or unplug the
power from the mains supply, if your hands are wet.
Turn off the tap.
Before any cleaning and maintenance, switch off the machine or disconnect if from the mains.
Do not store flammable fluids near the appliance.
C
A
B
A: “On/Off” button
D: “Extra Rinse” button
G:“Temp.” button
J:Mute Function
B: “Start/Pause” button
E: “Prewash” button
H: Child lock Function
C: Programme selector
F: “Spin ” button
I: Delay End Function
D
C
B
A
4
3.2 Parts supplied
User’s operation Manual 4 Plastic Caps
Cold inlet hose
Hot inlet hose (if available, depending
on models)
“U” - bend
warranty card (depends on model)
3.3 Control panel
G H F I E J D K
K:Time and temperature display
E
Wrench
After unpacking, ensure that the washing machine is undamaged. If in doubt, do
4.2 Removing the packaging and inspection
not use the washing machine. Contact After-Sales Service or your local retailer
Check that the accessories and supplied parts are all present.
Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of
children, as they are potentially dangerous.
Move the appliance without lifting it by the worktop.
Minimum housing dimensions:
Width: 600 mm
Height: 850 mm
Depth: refer to the
Specification
5
4 INSTALLATION
4.1 Choosing an appropriate installation location
Do not place the product on a floor without sufficient capacity to carry the load.
Do not install the product in places where there is the risk of freezing.
1. Preparation of the location and electrical, tap water and waste water
installations at the place of installation is under customer's responsibility. Make
sure that the installation and electrical connections of the product are performed
by competent persons.
2. Make sure that the water inlet and drain hoses as well as the power cable are
not folded, pinched or crushed while pushing the product into its place after
installation or cleaning procedures.
3.
The appliance must be installed on a solid and level floor surface (if
necessary use a spirit level). If the appliance is to be installed on a wooden
floor, distribute the weight by placing it on a 60 x 60 cm sheet of plywood at
least 3 cm in thickness and secure it to the floor. If the floor is uneven, adjust
the 4 leveling feet as required; do not insert pieces of wood etc. under the feet.
4. Never place the product on a carpet-covered floor.
5. Do not lean the product on furniture, keep a distance between them.
6. Do not place the product on any platform.
7. Manufacturer shall not be held liable for damages that may arise from
procedures carried out by unauthorised persons.
Note:
There is risk of getting injured, two or more people are needed for
removing the packaging.
The washing machine is fitted with transportation bolts to avoid any possible
damage to the interior during transport.
Screw off all transportation bolts for approx. 30mm with wrench following the
direction of arrow shown (not fully screw it off).
Push two transportation bolts on horizontal direction inward and loose
transportation bolts.
Pull out transportation bolts together with rubber part and plastic part.
30
6
Transportation bolts which are not removed can cause damage
to the appliance.
Step 1:
Step 2:
Step 3:
4.3 Removing the transportation bolt
Tabla de contenidos
Otros manuales de Arandela de Hisense
Hisense
Hisense 5S Series Instrucciones de montaje
Hisense
Hisense WFBL7014V Instrucciones de montaje
Hisense
Hisense WFHV6012 Instrucciones de montaje
Hisense
Hisense WFGE80141VMB Instrucciones de montaje
Hisense
Hisense HWFE7510 Instrucciones de montaje
Hisense
Hisense WFQP6010EVM Series Instrucciones de montaje
Hisense
Hisense WDQA8014EVJM Series Manual del propietario
Hisense
Hisense WD5S1045B Series Instrucciones de montaje
Hisense
Hisense WFHV6012 Manual del propietario
Hisense
Hisense HWGE8141V Instrucciones de montaje
Hisense
Hisense WFPV9014EMT Instrucciones de montaje
Hisense
Hisense WFP8014VS Hoja de información del producto
Hisense
Hisense WFDJ60101 Instrucciones de montaje
Hisense
Hisense WFPV7012EMS Instrucciones de montaje
Hisense
Hisense WFDJ90121 Instrucciones de montaje
Hisense
Hisense X08060026B Instrucciones de operación
Hisense
Hisense WF5S1043B Series Instrucciones de montaje
Hisense
Hisense W10630786B Instrucciones de montaje
Hisense
Hisense WFP8014V Hoja de información del producto
Hisense
Hisense 3 Series Instrucciones de montaje
