USER’S OPERATION MANUAL
Before operating this unit, please read this manual
thoroughly, and retain for future reference.
RF22B3FSE
English
EN
Safety and warning information .....................................................................................................................
Installing your new appliance...........................................................................................................................
Description of the appliance..............................................................................................................................
Display controls.............................................................................................................................................................
Using your appliance................................................................................................................................................
Cleaning and care....................................................................................................................................................
Helpful hints and tips...............................................................................................................................................
Troubleshooting..........................................................................................................................................................
Disposal of the appliance...................................................................................................................................
01
06
14
15
20
23
25
26
30
Contents
Thank you for choosing Hisense. We are sure you will find your new refrigerator a
pleasure to use. However, before you use the appliance, we recommend that you
carefully read the instructions, which provide details about installing and using
the product. Please keep this manual for future reference.
For your safety and correct usage before installing and first using the appliance,
read this user manual carefully, including its hints and warnings. To avoid
unnecessary mistakes and accidents, it is important to make sure that all people
using the appliance are thoroughly familiar with it operation and safety features.
Save these instructions and be sure that they remain with the appliance if it is
moved or sold, so that anyone using it throughout its life, will be properly informed
on its usage and safety notices. For the safety of life and property, keep the
precautions of these user's instructions as the manufacturer is not responsible for
damages caused by omission.
Safety and warning information
WARNING
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the
manufacturer.
When disposing of the appliance do so only at an authorized waste disposal
center. Do not expose to flame.
Connect to potable water supply only.
If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.
Keep ventilation openings in the appliance enclosure or in the built-in
structure, clear of obstruction.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
01
Safety and warning information
General safety and daily use
It is important to use your appliance safely. We recommend that you follow
the guidelines below.
Store any food in accordance with the storage instructions from the
manufacturer.
This appliance is intended to be used in household and similar applications
such as
1. staff kitchen areas in shops, offices and other working environments;
2. farm houses and by clients in hotels, motels and other residential type
environments;
3. bed and breakfast type environments;
4. catering and similar non-retail application.
Don’t try to repair the appliance yourself. It is dangerous to alter the
specifications or modify this product in any way. Any damage to the power
cord may cause a short circuit, fire or electric shock.
Don’t place too much food directly against the air outlet on the rear wall of
both the refrigerator and freezer compartment, as it may affect important air
circulation.
Don’t place hot items near the plastic components of this appliance.
Frozen food must not be refrozen once it has been thawed out.
Don’t store bottled or canned drinks (especially carbonated drinks) in the
freezer compartment. Bottles and cans may explode.
Use caution consuming popsicle or ice cubes straight from the freezer as this
can cause freezer burn to the mouth and lips.
In order to sense the temperature and humidity near the appliance and
make the appliance run better, temperature and humidity sensor are added
outside the box of appliance.
02
02
Safety and warning information
Unpack and check through the appliance. Should any damage be evident,
don’t plug in the appliance but contact the shop immediately from which
you purchased it. Keep all packing materials in this case.
We recommend that you wait for 4 hours before connecting the appliance to
allow the refrigerant to flow back into the compressor.
The appliance must be applied with single phase alternating current of
110~115V/60Hz. If the voltage fluctuates exceeding the upper limit, A.C.
automatic voltage regulator of more than 350W should be applied to the
refrigerator for safety use.
The power plug must be accessible when the appliance is installed.
Electrical Safety
To avoid the risks that are always present when using an electric appliance,
we recommend that you pay attention to the instructions about electricity
below.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
Keep all packaging away from children to avoid risk of suffocation.
Protect children from being scalded by touching the compressor at the rear
bottom of appliance.
Do not place items on top of the appliance as this could cause injury should
they fall off.
Never allow children to play with the appliance by hanging or standing over
or on the doors, racks, shelves and drawers etc.
Safety for children and others who are vulnerable people
03
This appliance must be grounded.
This appliance is fitted with a plug, in accordance with local standard. The
plug should be suitable for use in all houses fitted with sockets in accordance
with current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off and
carefully disposed of. To avoid a possible shock hazard, do not insert the
discarded plug into a socket. If in doubt contact a qualified, registered
electrician.
Do not use extension cords or multiple sockets which could cause
overloading of wiring circuits and could cause a fire. Always plug your
appliance into its own individual electrical socket which has a voltage rating
that matched the rating plate.
Make sure that the plug is not squashed or damaged. Otherwise, it may
cause short circuit, electric shock or overheat and event cause a fire.
Do not insert the power plug if the socket is loose, there is a risk of electric
shock or fire.
Switch off the appliance and disconnect it from the main power before you
clean or move it.
Never unplug the appliance by pulling on the electrical cord, Always grip the
plug firmly and pull straight out from the socket to prevent damaging the
power cord.
Do not operate the appliance without the cover of interior lighting.
Any electrical component must be replaced or repaired by a qualified
electrician or authorized service engineer. Only genuine replacement parts
should be used.
Do not use electrical appliances such as ice cream makers inside the food
storage compartments of the appliance unless they are approved by the
manufacturer.
Electrical Safety
04
Safety and warning information
05
Safety and warning information
The refrigerant isobutane (R600a) is contained with the refrigerant circuit of
the appliance. During transportation and installation of the appliance, ensure
that none of the components of the refrigerant circuit become damaged.
The refrigerant (R600a) is flammable.
Refrigerant
Caution: Risk of Fire
Don’t store products which contain flammable propellants (e.g. spray cans)
or explosive substances in the appliances.
Should the refrigerant circuit be damaged:
Avoid open flames (candles, lamps etc,) and other sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
Take off the doors.
Leave the shelves in place so that children may not easily climb inside.
DANGER
To Risk of child entrapment. Before you throw away your old refrigerator of
freezer:
To avoid eye injury, do not look directly into the LED light located in the
refrigerator compartment. If it is not functioning correctly, consult a qualified,
registered electrician or replace it in accordance with the “Cleaning and
Care” chapter.
Electrical Safety
Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain
good ventilation around the
appliance for the dissipation of
heat. For this reason, sufficient
clear space should be available
around the refrigerator.
Suggestion:
It is advisable for there to be at
least 50mm (2'') of clearance from
the back to the wall, at least 12mm
(1/2'') clearance from its top, at
least 12mm (1 2'') from its side to/
the wall and a clear space in front
to allow the doors to open 160°. As
shown in the following diagrams.

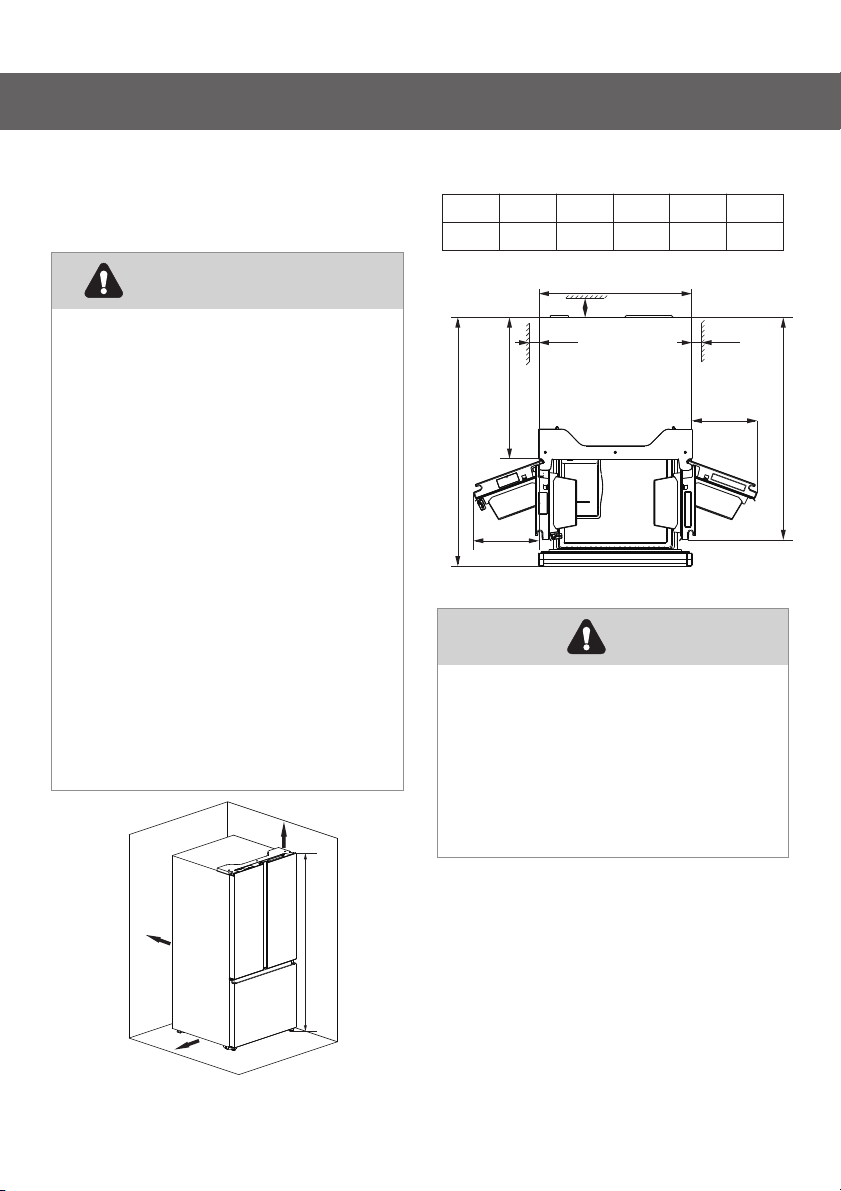

Ventilation of appliance
Relevant information (mm)
790
W
338
W1
338
W2
730
D
1151
D1
Stand your appliance in a dry place to
avoid high moisture damage. Keep the
appliance out of direct sunlight, rain or
frost. Stand the appliance away from
heat sources such as stoves, fires or
heaters.
This appliance performs well in the
environment temperature from
12.8°C (55°F) to 43.3°C (110°F). It may
not work properly if being left at a
temperature above or below the
indicated range for a long period.
Note
06
12mm
50mm
12mm
1725mm
≥1/2''
D1
W2
W
D
≥1/2''
W1
D2
1285
D2
adjustable bottom feet
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. Please use a
suitable spanner.
To allow the doors to self-close, tilt
back the top backwards at about
15mm or 0.5° by turning the
adjustable feet.
Whenever you want to move the
appliance, remember to turn the feet
back up, so that the appliance can
roll freely. Reinstall the appliance
when relocating.
Leveling of appliance
For proper installation, this
refrigerator must be placed on a
level surface of hard material
that is the same height as the
rest of the flooring, This surface
should be strong enough to
support a fully loaded
refrigerator.
The rollers, which are not castors,
should be only used for forward
or backward movement. Moving
the refrigerator sideways may
damage your floor and the
rollers.
Warning
07
Installing your new appliance
10 15mm-
0.5°
adjustable bottom feet
Installing your new appliance
Refrigerator Door Removal
In case your home access door is too
narrow for the refrigerator to pass
through, remove the refrigerator doors
and drawers.
Tools you will need(Not provided):
Allen Wrench (5/32'', 4mm)
Philips Screwdriver
Wrench (5/16'', 8mm)
2. Remove the screws(2) fixed on the
upper hinges with a wrench(5/16'', 8mm)
and the ground screw(3) attached to
the hinge with Phillips(+) screwdriver.
Remove the upper left and right door
hinges(4).
1. With the door closed, remove the 3
screws holding the top cover (1) with
Philips(+) screwdriver, and then remove
the top cover.
3. Use both hands to open the door
more than 90°. Lift it up and take it off.
4. Remove the screws(5) fixed on the
middle hinges with a allen
wrench(5/32'', 4mm) and the screw(6)
fixed on the middle hinges with
Phillips(+) screwdriver. Remove the
middle left and right hinges(7).
1
2
3
4
6
5
7
08
Tabla de contenidos
Idiomas:
Otros manuales de Refrigerador de Hisense
Hisense
Hisense HR6SBS690GW Instrucciones de montaje
Hisense
Hisense RS694N4IBE Instrucciones de montaje
Hisense
Hisense RS-47WL4SBA/CLA2 Instrucciones de montaje
Hisense
Hisense RS694N4TBE Instrucciones de montaje
Hisense
Hisense FSN535A20D Instrucciones de montaje
Hisense
Hisense RR220D4ADF Instrucciones de montaje
Hisense
Hisense FV105D4BC2 Instrucciones de montaje
Hisense
Hisense RS694N4TZE Instrucciones de montaje
Hisense
Hisense RQ560N4WB1 Instrucciones de montaje
Hisense
Hisense FV306N4AW1 Instrucciones de montaje
Hisense
Hisense H610BS RD-60WC4SZA Instrucciones de montaje
Hisense
Hisense HRF266N6CSE Manual de usuario
Hisense
Hisense RS840N4WBE Instrucciones de montaje
Hisense
Hisense RB440N4AD1 Manual de usuario
Hisense
Hisense HRB208N6BSE Manual de usuario
Hisense
Hisense RB372N4CC2 Instrucciones de montaje
Hisense
Hisense H620BS-WD Instrucciones de montaje
Hisense
Hisense HRBF179B Manual de usuario
Hisense
Hisense HWS54029SS Manual de usuario
Hisense
Hisense RL170D4AWE Instrucciones de montaje
