HIK VISION DS-2CD8253F-EI Guía del usuario

Network Camera

V4.0.1

Quick Operation Guide

Network Camera·Quick Operation Guide

Thank you for purchasing our product. If there are any questions,

or requests, please do not hesitate to contact the dealer. This

manual applies to DS-2CD8253F-EI(Z), DS-2CD8233F-EI(Z),

DS-2CD8264FWD-EI(Z), DS-2CD8264F-E, DS-2CD8254F-EI,

DS-2CD8254FWD-E, DS-2CD8283F-EI, DS-2CD8255F-EI

cameras.

This manual may contain several technical incorrect places or

printing errors, and the content is subject to change without notice.

The updates will be added to the new version of this manual. We

will readily improve or update the products or procedures

described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the

performance or reliability of the security or signaling aspects of

this product. UL has only tested for fire, shock or casualty hazards

as outlined in UL’s Standard(s) for Safety, UL60950-1. UL

Certification does not cover the performance or reliability of the

security or signaling aspects of this product. UL MAKES NO

REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS

WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY

OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS

PRODUCT.

Network Camera·Quick Operation Guide

1Physical Description of

Camera

1.1 Camera Description

Note: Two types of interfaces of cameras as shown in Figure 1-1

and Figure 1-2. Please choose the right figure according to the

appearance of your camera.

Figure 1-1 Overview

Figure 1-2 Overview

Network Camera·Quick Operation Guide

Table 1-1 Physical Description

No.

Description

10M/100M self-adaptive Ethernet interface

Power supply interface

IN, G: Alarm input interface

1A, 1B: Alarm output interface

D+, D-: RS-485 interface

AUDIO IN, G: Audio input interface

AUDIO OUT, G: Audio output interface

1.2 Camera Wiring Diagram

Figure 1-3 Wiring Diagram

Network Camera·Quick Operation Guide

2Installation

Note:

Verify the package contents are correct by checking the items

against the packing list.

Read the following contents carefully before the installation.

Make sure that all the related equipment is power-off during

the installation.

Check whether the power supply is matched with your AC

outlet to avoid any damage.

Do not place the camera in extremely hot or damp

environment. To avoid heat accumulation, good ventilation is

required for a proper operating environment.

If the product does not function properly, please contact your

dealer or the nearest service center. Do not disassemble the

camera for repair or maintenance by yourself.

The bullet camera can be installed to both wall and ceiling. This

quick guide takes wall mounting steps as an example.

Steps:

1. Fix the mounting base to the wall. The mounting base can also

be used to keep the cables.

Network Camera·Quick Operation Guide

Figure 2-1 Fix the Mounting Base

Note:

Please apply water-proof measures between the ceiling

surface and mounting base and around the cables.

For cement wall mounting, you need to use the expansion

screw to fix the mounting base. The mounting hole of the

expansion pipe on the wall should align with the mounting

hole on the mounting base.

For wooden wall mounting, you can just use the

self-tapping screw to fix the mounting base.

The wall must be strong enough to withstand more than 3

times of the weight of the camera and the bracket.

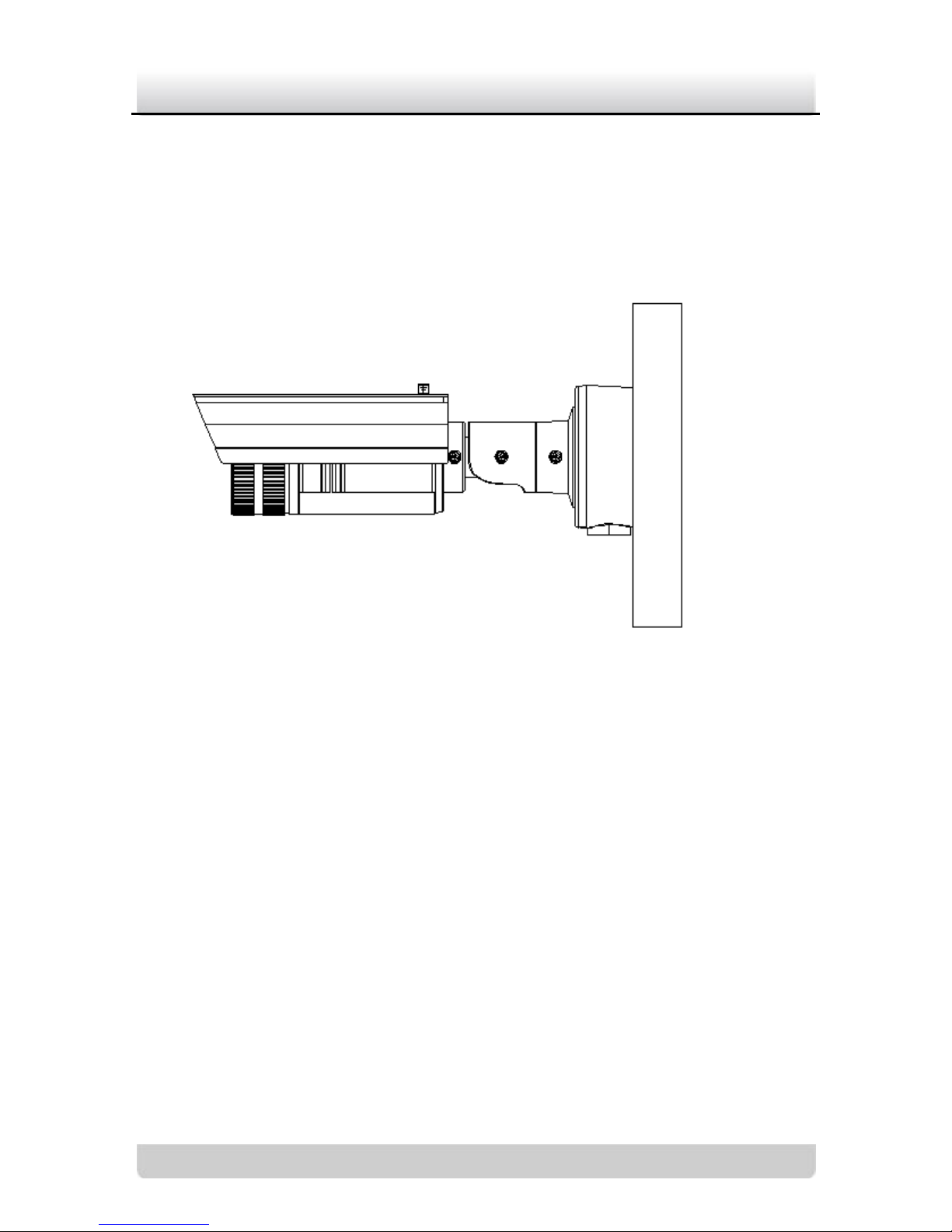

2. Fix the mounting bracket with the camera to the mounting

base.

Mounting base

Network Camera·Quick Operation Guide

Note: The “bottom” mark on the mounting base should align with

the “bottom” mark on the mounting bracket.

Figure 2-2 Fix the Camera

3. View the image of the camera over the network.

4. Loosen the screws on the bracket slightly.

Note:Please loosen the screws slightly until you can adjust the

camera and do not remove the screws from the bracket.

5. Adjust the camera to the desired surveillance angle and then

tighten the screws on bracket to fix the camera.

Figure 2-3 Adjust Monitoring Angle

Rotation screw

Panning screw

Tilting screw

Network Camera·Quick Operation Guide

6. Loosen the lock screw on the sun shield and move the sun

shield until you can remove it. Remove the sun shield.

Figure 2-4 Remove the Sun Shield

7. Rotate to remove the front cover from camera and adjust the

lens to get a clear image.

Figure 2-5 Adjust the Lens

Front

cover

Adjust the

lens

Network Camera·Quick Operation Guide

8. Fix the lens; reinstall the front cover and the sun shield to

finish the installation.

Note: Reinstall the front cover until aligning the mark on the front

cover with the mark on the camera.

Figure 2-6 Reinstall the Camera

Network Camera·Quick Operation Guide

3Setting the Network

Camera over the LAN

Purpose:

To view and configure the camera via LAN(Local Area Network),

you need to connect the network camera in the same subnet with

your PC. Then, install the SADP or iVMS-4200 software to search

and change the IP of network camera.

The following figure shows the cable connection of network

camera and PC:

Figure 3-1 Wiring over LAN

Set the IP address of the camera for accessing via LAN.

Steps:

1. To get the IP address, you can choose either of the following

methods:

Use SADP, a software tool which can automatically detect

network camera in the LAN and list the device information
