HiBoost F15G-CP Manual de usuario



Consumersignalbooster

usermanual

Content

Whatisincluded............................................................................4

1HOWITWORKS.....................................................................................4

2TOOLREQUIRED....................................................................................4

3HOWTOINSTALLYOURNEWCELLULARBOOSTER..............................5

3.1Overview......................................................................................5

3.2Planthelayoutofyoursystem....................................................7

3.3CheckforSignalStrength.............................................................7

3.4Runcoaxialcable..........................................................................8

3.5InstalltheDonor(Outdoor)antenna...........................................9

3.6InstalltheServer(Indoor)antenna.............................................9

3.7Installyourcellularbooster......................................................10

3.8Powerupyourcellularbooster................................................10

3.9ChecktheCellularBoosterStatus.............................................11

4UNDERSTANDTHEPORTS,MGCDIPSWITCH,LEDSTATUS...............12

4.1Repeaterports..........................................................................12

4.2Manualgaincontrol(MGC)......................................................12

4.3LEDstatus..................................................................................13

5UNDERSTANDTHEANTENNA............................................................14

5.1Donor(Outdoor)antenna.........................................................14

5.2Server(Indoor)antenna...........................................................14

5.3AntennaKittingOptions..............Error!Bookmarknotdefined.

6TROUBLESHOOTING...........................................................................15

7FREQUENTLYASKEDQUESTIONS.......................................................19

8FCCRFExposureStatement...............................................................20

9Warning..............................................................................................21

10Specification....................................................................................21





WHATISINCLUDED

1. BoosterF15G‐CP

2. OutdoorYagi9dbiAntenna&30'SIG5DCoaxialCable

3. IndoorPanel10dbiAntenna&3'SIG5DCoaxialCable

4. AC/DCPowerAdapter

1 HOWITWORKS

Thecellularboosterprovidesreliabletwo‐waycellularcoverageby

improvingsignalstrengthinhomes,buildings,offices,andotherareas

wherecellularreceptionisweakorunreliable.



Thesystemamplifiesthesignalfromthenearestcellulartowerand

retransmitsatahigherpowerlevelwithinalocalarea.



Thismanualprovidessimpleinstallationinstructionsthatwillhaveyour

cellularboosterkitrunninginrecordtime.

2 TOOLREQUIRED



PhillipsScrewdriver Drill Cellular Phone (to chec

signalstrength)

3 HOWTOINSTALLYOURNEWCELLULAR

BOOSTER



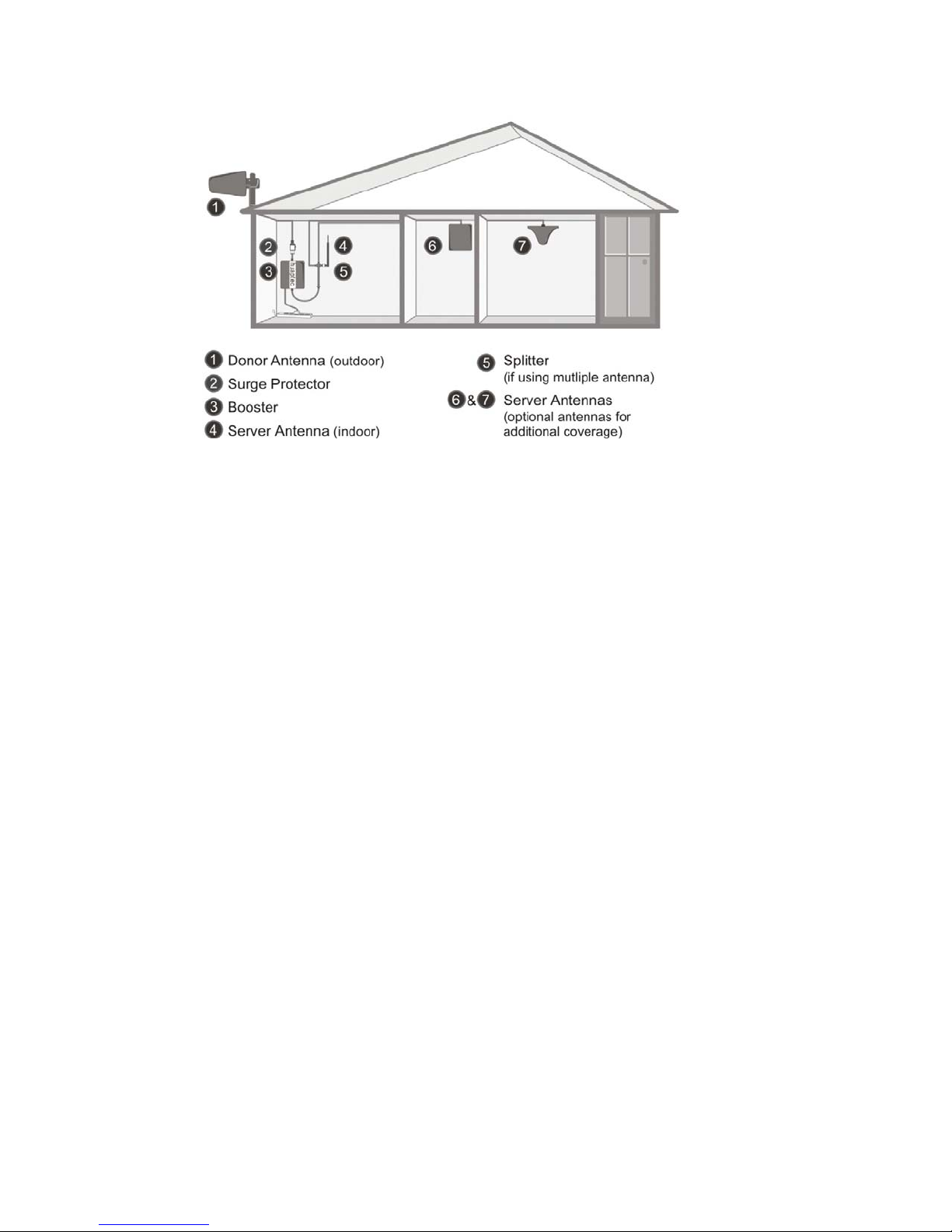

3.1 Overview

Thisguidewillhelpyouproperlyinstallyourcellularboosterkit.Itis

importanttoreadthroughalloftheinstallationstepsbeforeinstalling

yourequipment.Thoroughlyreadthroughtheinstructions,visualize

wherealltheequipmentwillneedtobeinstalledanddoasoft

installationbeforemountinganyequipment.

•BOOSTER– selectlocation

•Installtheboosterinanareathatisprotectedfromtheweather,properly

ventilatedandisawayfromexcessiveheatandmoisture.

•DONORANTENNA(OUTDOOR)‐selectlocation

•Mountthesignal(outdoor)antennainanelevatedoutdoorlocationso

thatitpointstowardsthecellulartowerandawayfromwheretheinside

antennawillbelocated.

•OUTDOORCOAXIALCABLE‐ selectlocation

•Theoutdoorcoaxialcableisusedtoconnectthedonor (outdoor)antenna

tothebooster.

•INDOORCOAXIALCABLE‐(ifused)

•Theindoorcoaxialcableisusedtoconnecttheserver(indoor)antennato

thebooster.

•SERVERANTENNA(indoor)

•Theideallocationforthedistributionantennawillbetheareaofyour

propertywhereyouneedtoimprovethesignalmost.

•NOTE:Thesignalstrengthwillbestrongestclosesttotheantenna.

•IMPORTANT:Thesignalantenna(outdoor)shouldalwaysbeseparatedfromthe

distributionantenna(indoor)byatleast20verticalfeetincludingtheseparationof

athickbarriersuchasarooforawall.Dependingonthestrengthofyouroutdoor

signal,theweakerthesignalthelessseparationdistanceisrequired.

•LIGHTNINGSURGEPROTECTOR‐(SOLDSEPARATELY)

•Thelightningsurgeprotectorconnectsinbetweenthesignalantennaandthe

booster.

•IMPORTANT:Lightningsurgeprotectormustbegrounded.

8• COMMISSIONINGTHESYSTEM

！



3.2 Planthelayoutofyoursystem

Beforeyougetstartedyouwillneedtoplanthelayoutofyoursystem.

Thisinvolvescheckingsignalstrengthforsignalscomingfromthecellular

tower,aswellasantenna,boosterandcableplacement.

3.3 CheckforSignalStrength

Selectalocationontheroofofthebuildingtoinstallthesignalantenna,

bymonitoringyourcellularphone’ssignalstrength(signalbars)tofind

thestrongestsignalfromyourcarrier’scellulartower.



MarkthatareaastheinstallationlocationfortheDonor(outdoor)

IMPORTANT:Confirmthatyouhaveatleast20feetofverticaldistance

betweenthemarkedantennalocationandthelocationwhereyouwill

placetheServer(indoor)antenna.Topreventthesystemfromoscillation

(feedback)youwanttoensurethatthereisenoughseparationbetween

thedistributionandsignalantennaorthattheyareshieldedfromeach

othertoensurethedistributionantennadoesnotsendasignalbackinto

thesignalantenna.Ifyoucannotachievetheseseparations,either

chooseanalternatelocationforthedonor(outdoor)antennaor

determineiftherearenaturalbarriersinthebuildingconstructionitself

thatwillattenuatesignalsbetweenthetwoantennassothatoscillation

canbeprevented.

3.4 Runcoaxialcable

Looselyrunthecoaxialcablefromyouroutdoorantennatoyourbooster.

(Afteryouhavetestedthesystemyoucanpermanentlysecurethe

coaxialcable).



Asyourouteandpullcabling,followthesegeneralguidelines:

 Bendcablesandroutethemsmoothly,andprotecttheouterskin

againstanydamage.

 Keephorizontalcablesstraightandfastenthemwithatieeverythree

tofivefeet.

 Bindandfastenverticalcableseverysixtoeightfeet.

 Waterproofalloutdoorconnectionswithsiliconecaulking

 Becarefulwhenpluggingtheconnectorinsoasnottodamagethe

centerpinsontheconnectors.

3.5 InstalltheDonor(Outdoor)antenna

Connectthesuppliedcoaxialcabletotheantenna.Werecommend

applyingsiliconecaulkingtofullywaterprooftheconnection.

Attachthecableinsuchawaythatadriploopisformed.

Oncemounted,connectoneendofthecoaxialcabletothedonor

(outdoor)antennaandtheotherendtothecellularboosterwhereitis

marked“outdoor”



3.6 InstalltheServer(Indoor)antenna

Connectoneendofthecoaxialcabletotheantennaandtheotherend

tothecellularboosterwhereitismarked“indoor”.



Selecttheinstallationlocationofyoursuppliedserver(outdoor)antenna

basedonthefollowing:

OmniCeilingdirectionalantenna

Placeinthecenteroftheareawherethesignalneedstobeamplified.

Paneldirectionalantenna

Placeintheouterperimeteroftheareathesignalneedstobeamplified.

WhipOmnidirectionalantenna

Mountdirectlytotheconnectormarked“indoor”onthecellularbooster.

3.7 Installyourcellularbooster

Installthecellularboosterinalocationthatisproperlyventilatedand

notexposedtoexcessiveheat,moistureand/ordirectsunlight.The

optimalareawouldbeonawalllocatednearapoweroutlet.



Itshouldbemountedinaneasilyaccessibleareasoit’seasytoperform

generalmaintenancewiththecoaxialcableconnections,dipswitch

settingsandpoweradaptor.



Makesureallcablesandantennasaresecurelyconnectedbefore

commissioningthesystem.

3.8 Powerupyourcellularbooster

OncealltheFollowingprecautionshavebeentaken,poweronthe

cellularbooster.

1. Verifythatyouhaveleftatleast20feetofverticalseparationspacebetweenthe
