HiBoost 4K Smart Link Manual de usuario

User Manual

Home Mobile Signal Booster

4K Smart Link

10K Smart Link

15K Smart Link

Boost Your Bars

Package Content

Introduction

Pre-Installation Instructions

APP Assisted Installation

LCD Assisted Installation

Quick Troubleshooting Guide

Technical Specifications

Authorized Accessories List

FCC and IC Statements

Return and Warranty Policies

CONTENTS

Package Content

4K Smart Link

Package Content

10K Smart Link

Package Content

NOTE: Available accessories can be purchased through HiBoost.com

Warning: Un-authorized antennas, cables, and/or coupling devices are prohibited

by new FCC rules. Please contact FCC for details: 1(888)-CALL-FCC

15K Smart Link

Introduction

Thanks again for purchasing HiBoost cell phone Booster. The Smart Link series is a collection

of precision-engineered products that improve cellular reception inside of homes and

businesses by amplifying incoming and outgoing cell phone signals.

HiBoost cell booster's exclusive cloud-based Signal Supervisor mobile application and LCD

display allow users to monitor the live status of HiBoost cell phone signal boosters directly

from the LCD display or remotely from a mobile device anywhere at any time.

If there are any issues while installing a HiBoost 4K/10K/15K Smart Link Signal cell phone

signal booster, please contact the HiBoost technical support team through the following

Online Support: Create a ticket or chat via Signal Supervisor App

(972) 870-5666 (M-F from 9 am – 5 pm CST)

[email protected]

www.hiboost.com

We strongly recommend you to read the user guide completely before beginning

the installation.

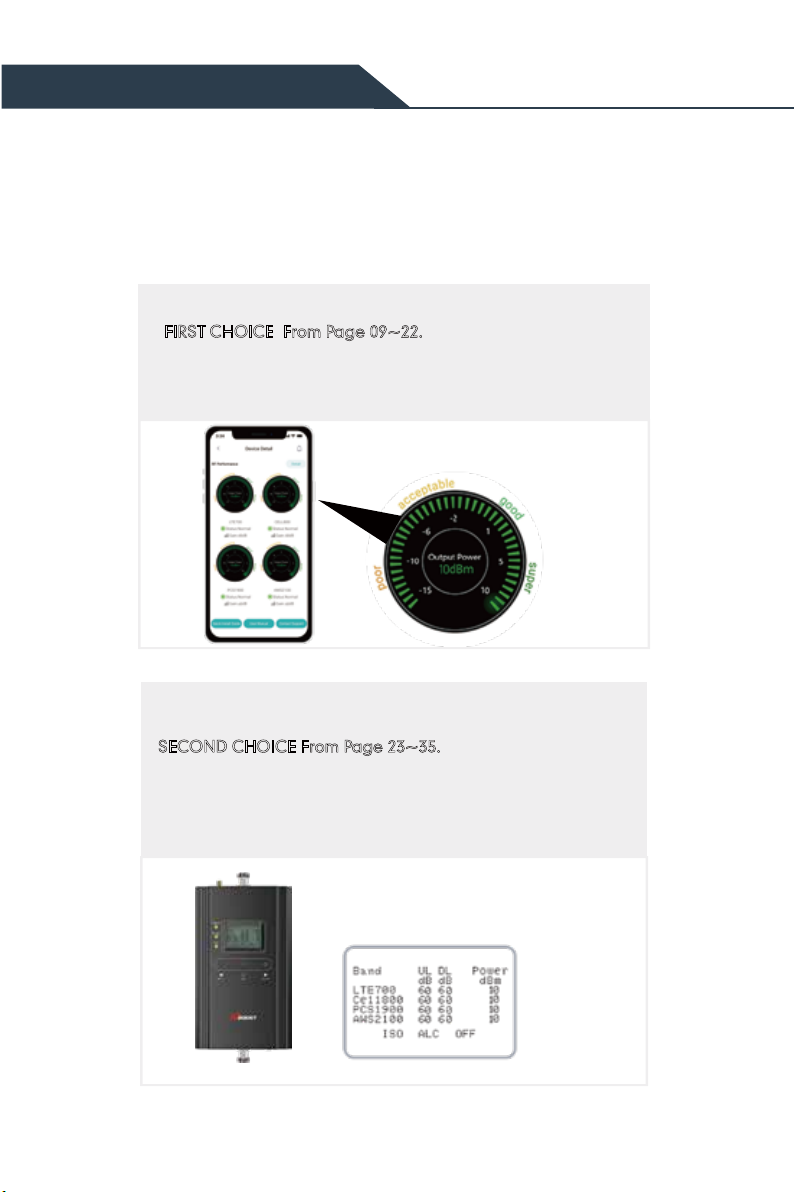

HiBoost SmartLink booster provide 2 options of booster installation,

APP and LCD installation ways are unique methods provided by HiBoost.

This installation guide will take the HiBoost 4K SmartLink as an example.

1. App assisted installation,

FIRST CHOICE From Page 09~22.

It’s more convenient and many work could be done by ONE

person, and the most important is that the obtained signal

can be very precise.

2. LCD assisted installation,

SECOND CHOICE From Page 23~35.

It can achieve the same precise effect as App guidance.

But it may need two people and the installation process is a

little cumbersome.

LCD signal meter tells how

strong the signal is

Pre-Installation Instructions

The App helps you find the

best signal outside

Then why has HiBoost spent extra big efforts and costs to design APP and

LCD signal meters to help you install?

Out of the various reasons, the most important reason is that we would like you, our

valuable client, to get the maximum output power from the booster system in order to get

optimal signal reception for all your mobile devices.

As it is known and a big thanks, FCC makes signal boosters legal in 2014 so that every

body can install and benefit from the signals;

But FCC regulations do limit the gain and output power of all consumer boosters to low

values in order to avoid any interference to the cell towers;

Furthermore FCC stipulates that any improper install should trigger immediately further

reduction of the booster’s already-limited gain and power to protect the towers.

Therefore, you can understand how important you need to find the perfect outside

signal from the tower and how important to squeeze every last gain and power from

the booster, even 1dB more power is so precious when you suffer from no signals.

HiBoost App & LCD signal meters will help you to fine tune the best power and get

as much cover of your spaces.

General Working Principle:

※Please do spend sometime to read it fully, as it is crucial to get full bars for your rooms.

Before we start any of the two ways, please allow us to spend 3 pages to make you

understand how the booster system works for you.

How HiBoost booster works

1. Outdoor antenna receives outside

signal from the nearby cell tower and

sends it to HiBoost Booster

2. The booster ampliﬁes the signal

and sends to indoor antenna

3. Indoor antenna receives ampliﬁed

signal and send it throughout your

rooms

Vice versa, indoor antenna receives cellphone signal and sends to the booster

The booster then amplifies the signal and sends it to outdoor antenna

Outdoor antenna sends signal to the cell tower

Then you can make phone calls and internet streaming.

Working Principle in Formula

Outside

Signal

Outdoor

Antenna Gain

Outdoor

Cable Loss

Booster

Gain

Indoor

Cable Loss

Indoor

Antenna Gain

System

Output Power

Out of the Formula:

Outside Signal: To be received by outdoor antenna from cell tower

Outdoor Antenna Gain: The gain of outdoor antenna

Outdoor Cable Loss: The loss of the outdoor cable

Booster Gain: The actual working gain of the booster

Indoor Cable Loss: The loss of the indoor cable

Indoor Antenna Gain: The gain of indoor antenna

For example:

-65dBm + 11dBi - 4.5dB + 60dB - 2dB + 7dBi = 6.5dBm (System Output Power)

Since the figures in Black color are fixed when you finish the purchase, thus the RED

figures of

1. Outside Signal

2. Booster Gain will play a vital role in reaching the best output power during the

install, especially when we know the FCC limits the booster system values.

So the user guide is focused on:

1. Getting the best outside signal.

2. Keeping the maximum booster gain.

Este manual sirve para los siguientes modelos
