Health O Meter 1101KL Manual de usuario

Health o meter 

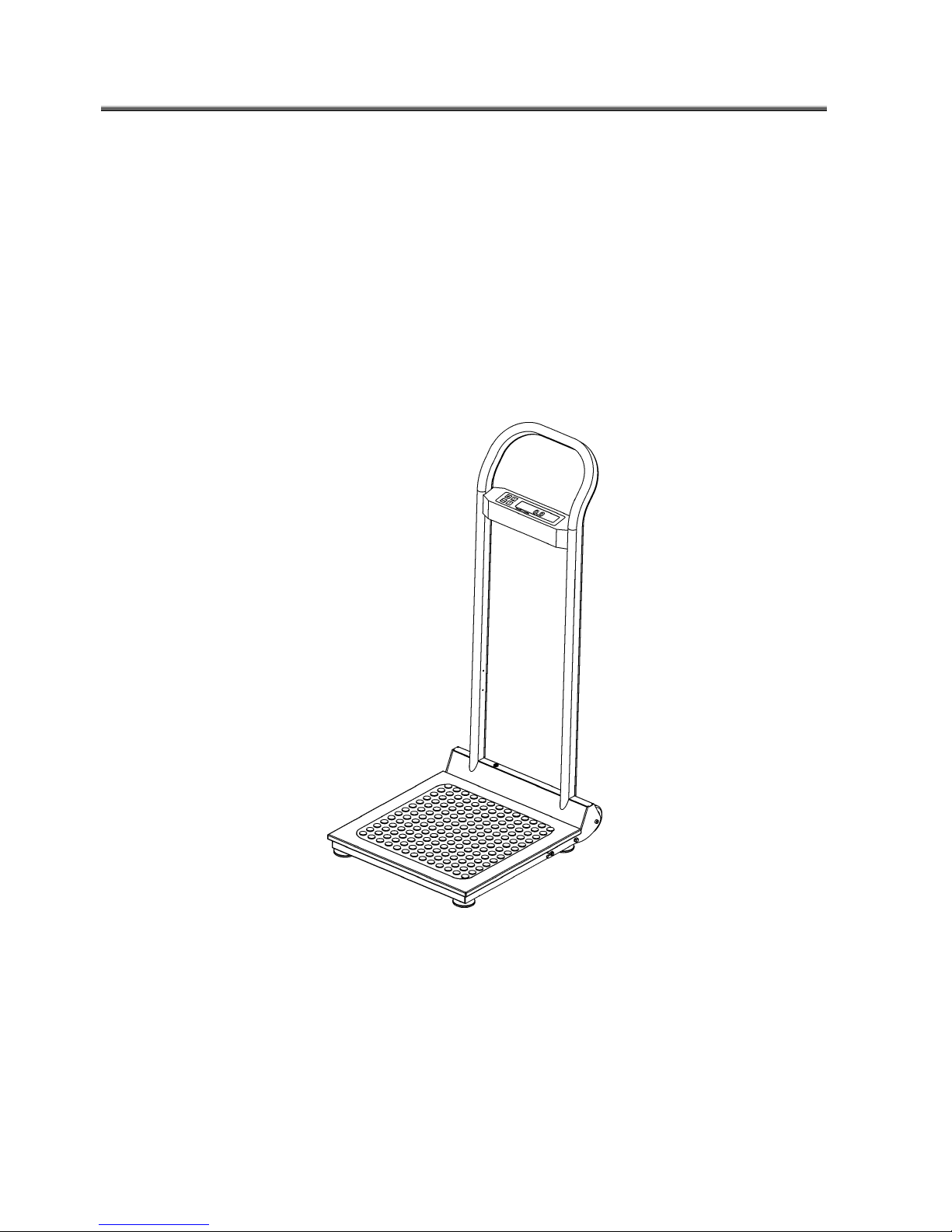

HIGH CAPACITY STAND-ON SCALE

MODEL 1101KL

PESE-PERSONNE A HAUTE CAPACITE

MODELE 1101KL

BALANZA DE GRAN CAPACIDAD

MODELO 1101KL

OPERATION MANUAL

MODE D'EMPLOI

MANUAL DE OPERACIÓN

HIGH CAPACITY STAND-ON SCALE MODEL 1101KL

Thank you for your purchase of this product.

Please read this manual carefully and keep it handy for ready reference.

Merci d'avoir acheté ce produit.

Veuillez lire attentivement ce manuel et le garder à portée de main pour pouvoir le consulter

à tout moment

Gracias por la adquisición de este producto.

Lea por favor este manual cuidadosamente y manténgalo a su alcance para una pronta

referencia.

ENGLISH............................................................................................ 1

FRANÇAIS ......................................................................................... 12

ESPAÑOL .......................................................................................... 24

TABLE OF CONTENTS

CAUTION AND WARNING....................................................................................................2

SPECIFICATIONS.................................................................................................................2

ASSEMBLY INSTRUCTIONS ...............................................................................................3

SET UP..................................................................................................................................4

OPERATION INSTRUCTIONS..............................................................................................6

MAINTENANCE.....................................................................................................................6

TROUBLESHOOTING...........................................................................................................7

CALIBRATION PATH ............................................................................................................8

EXPLODED VIEW OF SCALE ..............................................................................................9

PARTS LIST ..........................................................................................................................10

WARRANTY ..........................................................................................................................11

CAUTION AND WARNING

• To prevent injury, do not transport the scale while the platform is loaded.

• For accurate weighing the scale must be placed on a flat, stable surface.

• For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

• Do not use in the presence of flammable materials.

• Operating at other voltages and frequencies than specified could damage the equipment.

• If the “LO BAT” indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source as soon as possible.

SPECIFICATIONS

GENERAL

Health o meter’s High Capacity Stand-On Scale Model 1101KL uses highly sophisticated

microprocessor technology. Each precision instrument is designed to provide accurate,

reliable and repeatable weight measurements and features that make the weighing process

simple, fast and convenient.

The actual weighing is performed by motion-sensing weighing technology, to determine the

weight of an active human.

The weight can be display in pounds or in kilograms. The scale includes two wheels and a

pillar, used to easily mobilize the scale from place to place.

The unit can be operated using its AC power adapter or by 6-C cell batteries.

SCALE SPECIFICATIONS

Capacity and Resolution 700 Lb x 0.2 Lb (310 Kg x 0.1 Kg)

Power Requirements Adapter 120V AC - 60Hz 6 x C size batteries

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Humidity: 85%

Physical Dimensions Platform

Length: 19⅛” (48.5 cm)

Width: 19⅛” (48.5 cm)

Height: 2¼” (6 cm)

Platform with Handrail

Length: 23¾” (60.5 cm)

Width: 19⅛” (48.5 cm)

Height: 44⅞” (114 cm)

Weight: 37Lb (16.8Kg)

ASSEMBLY INSTRUCTIONS

Parts List:

(1) Platform Assembly

(1) Handrail Assembly

(4) Rubber Feet

(1) AC Adapter Holder

This 1101KL scale has been calibrated at the factory. Remove each assembly from its carton

and unwrap packing material carefully to prevent scratching the unit’s parts.

Figure 1. Assembly After Shipment

1. Place the platform assembly upside down on a level floor.

2. Screw the four feet onto the platform assembly.

3. Prepare the platform assembly for installing to the handrail assembly as follows (use

7/16” or 11mm wrench):

- Unscrew 2 screws from the both sides of the platform assembly.

- Unscrew 4 nuts from the both sides and from the back of the platform assembly.

- Keep these screws and nuts for reinstalling in the same locations.

4. Hold the handrail assembly perpendicular to the platform assembly, as shown in

Figure 1.

5. Attach the handrail assembly to the platform assembly, install 2 screws at both sides of

the platform and then 4 nuts at both sides and at the back of the platform.

6. Plug the handrail cable connector into the platform assembly.

7. Install the AC adapter holder on the interior right side of the handrail using two screws

attached to the holder assembly.

8. Adjust the rubber feet for equal stabilization of the scale.

The scale may be operated by an AC power source adapter or by 6-C cell batteries.

The scale will automatically switch to battery operation when an AC power source is absent.

SET UP

1. Plug the scale’s AC adapter into the handrail assembly and into the power source or

place batteries in the battery holder (see “Replacing Batteries” below).

2. Press the ON/OFF button to turn the scale on. The display will show “start” and

then ”0.0”.

3. When the self-test function is complete:

• The digital display should read ”0.0”.

• “LB” should be indicated on the right side of the display. (To change the default

units of the scale to kilograms (Kg), please contact our Technical Support Center

at 1.800.638.3722 or 1.708.598.9100).

4. Place a weight [not to exceed 700 Lb (310 Kg)] on the scale. The digital display should

blink “

------

“ until the weight calculation is complete.

5. Press the LBS/KG button to select the weight mode, either in kilograms or pounds.

6. Press the REWEIGH button; the digital display should read again the weight of the item

on the scale.

7. Remove the weight from the scale. The digital display should continue to read the

weight of the item that was on the scale.

8. Press the ZERO button; the digital display should return to zero.

9. Disconnect the power source connector from the scale, then turn the scale on using

ON/OFF button. The scale should automatically switch to battery power.

NOTE: If the set up procedure failed, go to the troubleshooting instructions. If the problem is

not corrected, refer to qualified service personnel.

Replacing Batteries

Figure 2. Replacing Batteries

1. Disconnect the scale from the AC power source.

2. Loosen two plastic knobs found underneath the display until the battery holder will be

released from the handrail assembly and will rest on the knobs. Carefully pull out the

cable to provide access to the connector. Disconnect battery holder cable connector

from the handrail cable connector by pressing the plastic button.

3. Raise the battery holder and simultaneously rotate it counterclockwise 1/4 turn.

Carefully remove the holder from the handrail assembly.

4. Replace the batteries with new ones.

5. Place the battery holder on the plastic knobs by rotating it 1/4 turn clockwise.

6. Plug the battery holder cable connector to the handrail cable connector.

7. Hold the battery holder close to the handrail assembly and tighten the two plastic knobs

to secure in place. Be careful not to damage the cable.

SET UP

Figure 3. Control Panel

ITEM DESCRIPTION FUNCTION

1 ON/OFF button Turns scale ON and OFF.

2 REWEIGH button Allows repeated reweighing of person.

3 ZERO button Zeros Digital Display prior to weighing. Enables the

cancellation (tare) of weight if some object was placed

on the scale.

4 LBS/KG button Selects kilograms or pounds.

5 BAT indicator When ON, indicates scale batteries are low. The

batteries should be replaced.

6 ZERO indicator When ON, indicates the scale is stable and ready for

use.

7 Digital Display 6 Digit LCD Displays human weight in kilograms or pounds as

shown by the “LB” or “KG” indicator on the right side of

the display. When REWEIGH button is depressed,

display will blink “

------

” until patient’s weight is

determined.

8 LB indicator When ON, indicates displaying weight in pounds.

9 KG indicator When ON, indicates displaying weight in kilograms.

OPERATION INSTRUCTIONS

1. Press the ON/OFF button to turn the scale on.

2. Wait until ”0.0” appears on the digital display.

3. Ask the patient to step on the scale. The display will blink “

------

” until the weight of the

person is determined.

4. If you wish to reweigh without asking the patient to step off and to step on the scale

again, press the REWEIGH button.

5. Ask the patient to step off the scale. The digital display should continue to read the

person’s weight until REWEIGH or ZERO button is pressed.

NOTE: After 2 minutes of inactivity, the scale will turn itself off to conserve power. To restart

the scale press the ON/OFF button.

MAINTENANCE

GENERAL

This section provides instructions for maintenance, cleaning, troubleshooting and operator

replaceable parts for the High Capacity Stand-On Scale Model 1101KL. Maintenance

operations other than those described in this section should be performed by qualified service

personnel.

MAINTENANCE

Before first use and after periods of non-use, check the scale for proper operation and

function. If the scale does not operate correctly, refer to qualified service personnel.

1. Check overall appearance of the total scale for any obvious damage, wear and tear.

2. Inspect AC adapter for cord cracking or fraying or for broken or bent prongs.

CLEANING

Proper care and cleaning is essential to ensure a long life of accurate and effective operation.

Disconnect the scale from the AC power source.

1. Clean all external surfaces with a clean damp cloth or tissue. Mild soap and water

solution may be used. Dry with a clean soft cloth.

2. Do not immerse the scale platter or pillar assembly into cleaning or other liquid solution.

3. Do not use Isopropyl Alcohol or other solutions to clean the display surface.

TROUBLESHOOTING

Refer to the following instructions to check and correct any failure before contacting service

personnel.

SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION

Scale does not turn on 1. Dead Battery

2. Faulty electrical outlet

3. Bad power supply

1. Replace batteries

2. Use a different outlet

3. Replace adapter

Questionable weight or

the scale does not zero

1. External object

interfering with the scale

1. Remove interfering

object from the scale

2. The display did not show

”0.0” before weighing

2. Ask the patient to get off

the scale, zero the scale

and begin weighing

process again

3. Scale is not placed on a

level floor

3. Place the scale on a

level floor and begin

weighing process again

4. Scale is out of calibration 4. Check weight with

known weight value

The display shows “OL” The load on the scale

exceeds the capacity

Remove the excess weight

and use the scale according

to its limits

The display shows “UL” The scale is in under-load

condition

Make sure the weighing tray

is placed on the base

The display shows “LO BAT” The battery is low Replace batteries according

to instructions

CALIBRATION PATH

The modes are accessible by holding certain keys pressed after power-up.

The keys must be pressed and held for at least three seconds.

EXPLODED VIEW OF SCALE

Tabla de contenidos

Idiomas:

Otros manuales de Escala de Health O Meter

Health O Meter

Health O Meter 142KL Manual de usuario

Health O Meter

Health O Meter 8320KL Manual de usuario

Health O Meter

Health O Meter DIGITAL PEDIATRIC SCALE 549KL Manual de usuario

Health O Meter

Health O Meter Pro Plus 2101KL Manual de usuario

Health O Meter

Health O Meter Professional Digital Scale Wireless USB... Manual de usuario

Health O Meter

Health O Meter 597KL Manual de usuario

Health O Meter

Health O Meter Weigheasier 2650KG Manual de usuario

Health O Meter

Health O Meter 500KL Manual de usuario

Health O Meter

Health O Meter 2842KL Manual de usuario

Health O Meter

Health O Meter BFM580 Manual de usuario

Health O Meter

Health O Meter BFM142 Manual de usuario

Health O Meter

Health O Meter BABYSLINGSCALE Manual de usuario

Health O Meter

Health O Meter 32910003 Manual de usuario

Health O Meter

Health O Meter PROPLUS 2650KGWA Manual de usuario

Health O Meter

Health O Meter 501KL Manual de usuario

Health O Meter

Health O Meter PROPLUS 1100KL Manual de usuario

Health O Meter

Health O Meter 2210KL Manual de usuario

Health O Meter

Health O Meter HDL489-60 Manual de usuario

Health O Meter

Health O Meter HDM770 Manual de usuario

Health O Meter

Health O Meter 3001KL-AM Manual de usuario

Health O Meter

Health O Meter Professional 498KL Manual de usuario

Health O Meter

Health O Meter 499KLHR Manual de usuario

Health O Meter

Health O Meter HDR121-60 Manual de usuario

Health O Meter

Health O Meter HDC100 Manual de usuario

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
