Health O Meter PROPLUS 2000KL Manual de usuario

PRO PLUS® STRETCHER SCALE

MODEL 2000KL

OPERATION MANUAL

AA0339-0

PRO PLUS®STRETCHER SCALE

MODEL 2000KL

Thank you for your purchase of this product.

Please read this manual carefully and keep it handy for ready reference.

TABLE OF CONTENTS

CAUTION AND WARNING....................................................................................................2

SPECIFICATIONS.................................................................................................................3

ASSEMBLY INSTRUCTION.................................................................................................. 4

SET UP..................................................................................................................................10

OPERATION INSTRUCTIONS.............................................................................................. 11

MAINTENANCE..................................................................................................................... 23

TROUBLESHOOTING...........................................................................................................24

CALIBRATION PATH ............................................................................................................25

EXPLODED VIEW OF SCALE .............................................................................................. 25

PARTS LIST ..........................................................................................................................27

WARRANTY ..........................................................................................................................28

CAUTION AND WARNING

To prevent injury and damage to your scale, please follow these instructions very carefully.

•To ensure proper operation of the ProPlus® Stretcher Scale, this operation manual should be

reviewed carefully before operation. Keep this manual available for future reference, and also

for use in the orientation of new personnel.

•If the scale becomes damaged, it should not be operated until properly serviced. All repairs

should only be performed by authorized Healthometer® Professional service personnel.

•This scale is designed for static weighing of patients only. No scale should be used for

patient transfer. Healthometer® Professional / Pelstar LLC assumes no responsibility

for patient injury or scale damage should this caution be ignored.

•Do not leave patients unattended while on the scale.

•For accurate weighing the scale must be placed on a flat and stable surface with the locking

screw locked properly and the weighing mechanism not touching the floor.

•For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

•Do not use in the presence of flammable materials.

•Operating at other voltages and frequencies than specified could damage the equipment.

•If the “LOW BAT” indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source as soon as possible.

•Failure to comply with the following will void scale warranty:

oDo not gas sterilize or autoclave the scale.

oDo not place liquids on top of the scale display console.

oDo not exceed recommended weigh limit of 400 lb/181kg for this

scale.

oThis scale contains delicate sensors. Do not bang into doors,

elevators, etc., as damage may result.

SPECIFICATIONS

GENERAL

Health o meter’s ProPlus® Stretcher Scale Model 2000KL uses highly sophisticated

microprocessor technology. This scale is designed to provide accurate, reliable and repeatable

weight measurements and features that make the weighing process simple, fast and convenient.

The scale is set up to use motion-sensing weighing technology, to determine the actual weight

of a moving patient. The scale may be changed to measure live weight; see page 19 for

instructions on changing the scale setting.

The weight can be displayed in pounds (decimals, fractions of a lb or lb/oz) or in kilograms. The

scale features a folding stretcher for easy mobility and a display assembly stand.

The unit can be operated using its AC adapter or by 6-D cell batteries (not included).

SCALE SPECIFICATIONS

Capacity and Resolution 400 Lb x 0.2 Lb / ¼ lb / 4 oz (181 Kg x 0.1 Kg)

Power Requirements Adapter 120VAC - 6VDC - 60Hz or 6 x D size batteries

Environmental Operating temperatures: 50°F to 95°F (10°C to 35°C)

Storage temperatures: 30°F to 125°F (0°C to 50°C)

Humidity: 85%

Stretcher Dimensions Closed:

Length: 70 ⅞” (180 cm)

Width: 6” (15 cm)

Weight: 16.5 Lb (7.5 Kg)

Fully extended:

Length: 70 ⅞” (180 cm)

Width: 29½” (75 cm)

ASSEMBLY INSTRUCTIONS

Before Assembly

The Model 2000KL ProPlus® Stretcher Scale is shipped disassembled in two (2) separate

cartons. Carefully inspect all cartons for shipping damage before unpacking. If damage is found,

contact your shipper or Healthometer Professional immediately. Claims must be filed with the

shipper as soon as possible after receipt of the damaged package.

Remove each assembly from the carton and unwrap packing material carefully to prevent

scratching the unit’s parts. It is recommended that two people perform the assembly.

The scale is shipped in two (2) separate cartons as follows:

A. Large carton containing:

(1) Hydraulic pump assembly

(1) Lifter mast

(1) Base adjustment lever

(1) Lifter base with casters

B. Small carton containing:

(1) Lifter boom (1) Stretcher storage tray (4) Stretcher bars

(1) Display support (1) Adapter holder (2) Stretcher bar joint

(1) Display assembly (1) AC adapter (1) Hexagon screw with

lock nut

(1) Load cell assembly (1) Display rear cover (2) Plastic washer

(1) Velcro strap

(2) Stretcher hoops (6) Screws for display

(1) Stretcher sheet (2) Shoulder screw and washer

Tools required: Phillips head screwdriver, adjustable wrenches, 7/16” Allen wrench.

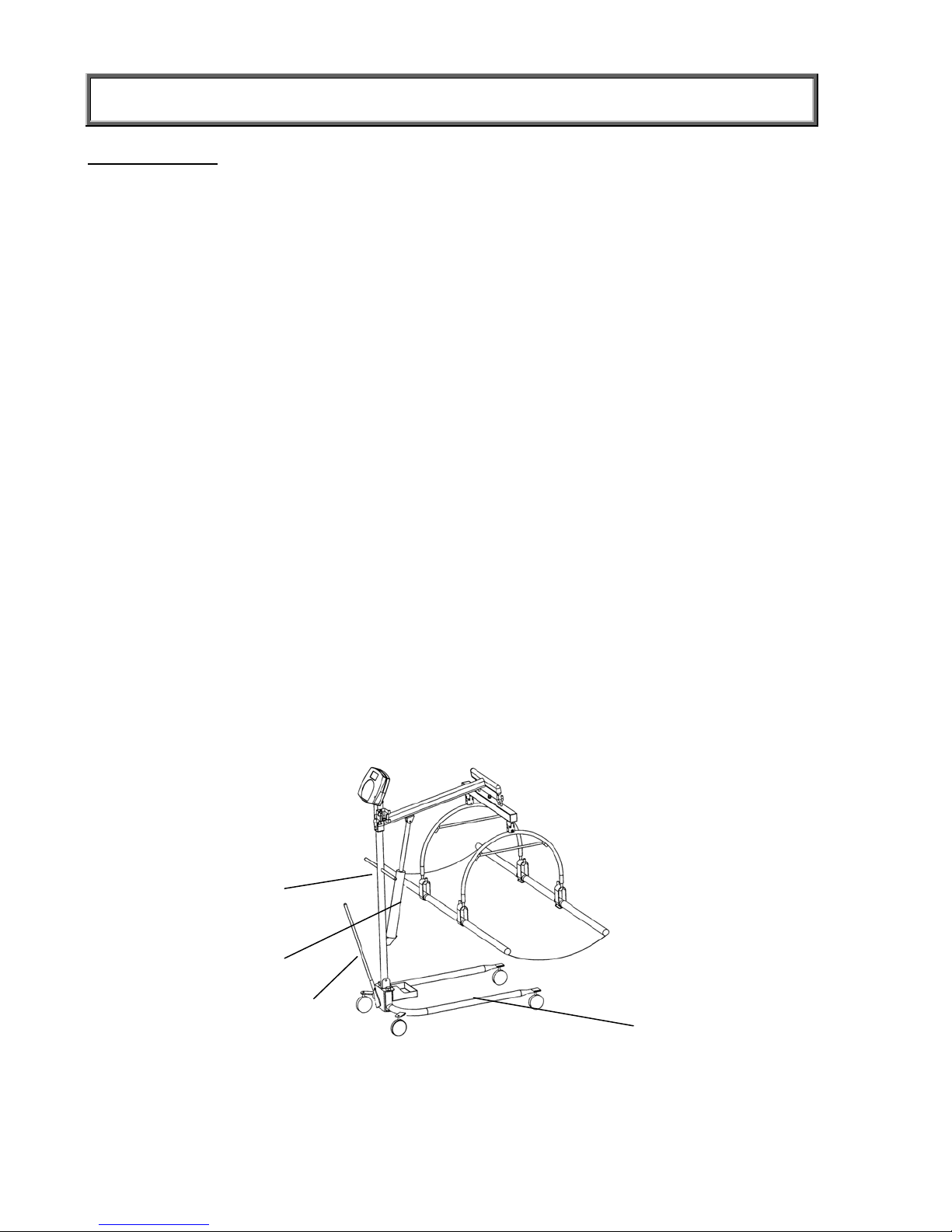

Parts of Stretcher Scale

Lifter mast

Hydraulic pump assembly

Base adjustment lever

Lifter base with casters

Figure 1

ASSEMBLY INSTRUCTIONS

Assembling the Patient Lifter

1. Place the Stretcher Storage Tray on the Lifter Base, as shown below, before attaching the

Lifter Mast.

Figure 2

2. Remove black plastic protective caps from Lifter Mast. Insert the bottom of the Lifter

Mast and Hydraulic Pump assembly into the mast sleeve (through the Stretcher Tray

Holder) on the Lifter Base. The notch on the end of the mast fits over the round tube at

the bottom of the Mast Sleeve. The mast must lock into position in the mast sleeve,

making it impossible to rotate. Check that the mast is locked into position and that the

hole in the mast is aligned with the threaded hole in the mast sleeve.

3. Insert the threaded locking device (the plastic knob and stud chained to the base) into

the threaded hole in the mast sleeve. Tighten to lock the mast to the base. Keep mast

and base locked at all times except when removing mast from base for storage.

KNOB

ASSEMBLY INSTRUCTIONS

Attaching the Display and Scale to the Patient Lifter

Figure 2

Figure 3

PHILLIPS PAN HEAD

SCREW NC8-32x5/16

ASSEMBLY INSTRUCTIONS

4. Connect the Lifter Boom and the Display Support to the Lifter Mast using the NC⅜-

20x2½” hex screw and tighten the self lock nut on its other side.

Note: This screw is the axis of the Lifter Boom, so it is imperative that the three parts – Lifter

Boom, Lifter Mast and Display Support – be assembled in the proper order.

Place the Plastic Washers on either side of the Lifter Boom screw hole to prevent friction.

With the Boom hooks facing down, place the Lifter Boom and Washers inside the two

sides of the Lifter Mast and align the holes. Place the Display Support over the Lifter Mast

and Lifter Boom and align holes. Thread the screw through all three parts and tighten the

self lock nut on the other side well.

5. Insert the shaft end of the Pump into the eared bracket on the Lifter Boom and align the

holes. Slip the 1-3/4” nut through the bracket and the Pump shaft hole. Tighten with

locknut.

6. Insert the Base Adjustment Lever into its socket at the back of the Lifter Base. Check to

see that the bump on the outside of the socket fits securely in the notched adjusting

plate. To adjust the base legs, pull back on the adjusting lever to unlock. Move the lever

to the right to widen the base.

7. A wheel lock is provided on the Lifter Base for parking only. To lock caster, step on cam

lever on side of caster. To unlock, step on higher cam lever. NOTE: Never lock wheel

lock or block wheels when lifting someone. Wheel lock is provided for parking the Lifter

only,

8. Check the operation of the Hydraulic Pump by pumping the handle to elevate the Boom.

Make certain the control valve knob – located on the pump near the handle) is fully

tightened (clockwise).

9. To lower the Boom, slowly turn the control valve knob counterclockwise. The rate of

descent can be controlled by how much the knob is turned. The Boom may not lower

readily with weight. To test, simply apply downward force to the Boom.

Note: If bolts, mounting pump or Lifter Mast are too tight, the Boom may not lower properly.

ASSEMBLY INSTRUCTIONS

Figure 4

10. Position the Display Assembly close to the Display Support. Connect the load cell cable

connector to the load cell port on the rear of the Display Assembly and insert and secure the

cable into the center channel in the display.

Note: Do not attach the power cord at this point.

11. Slide the display assembly onto the display support by inserting the two metal supports into

the two slots in the rear display assembly. Tuck the excess load cell cable in the Lifter Boom

tube.

Note: The load cell cable should now be secured in the channel between the display assembly

and the display support.

12. Insert 4 screws into the display support and tighten.

13. Connect power cord to the power port in the display assembly and insert and secure the

cable into the exposed portion of the 2nd channel from the left in the display.

14. Insert the power cord into the retaining slot on the rear cover. Align the rear cover tabs with

the slots on the rear of the display assembly. Apply pressure to snap the rear cover into

place and secure with 2 screws.

ASSEMBLY INSTRUCTIONS

Figure 5

15. Hang the Load Cell Assembly on the two hooks at the end of the Lifter Boom, using the

loops on top of the Load Cell Assembly.

16. Connect the end of the Load Cell Cable coming out of the center of the Load Cell Assembly

to its port in the Lifter Boom.

17 Use the two washers and shoulder screws to connect the two Stretcher Hoops to the Load

Cell Assembly and tighten well.

18. Connect the two right stretcher bars by screwing them onto one Stretcher Bar Connector, in

order to make one long Stretcher Bar.

19. Repeat step 9 with the left Stretcher Bar.

20. Insert the two bars into the open side of the channel-pockets in the Stretcher Sheet and

through the two hanging loops sewn into both sides of the Stretcher. The Stretcher Bars

should not protrude from the Stretcher Sheet at either end. Make sure one end on both

channel-pockets is sealed with Velcro.

Note: Make sure the bars are inserted into the two hanging loops sewn on both sides of the

stretcher. This will ensure that the Stretcher Bars hang correctly from the hanging loops.
