Hayward CAT 5000 Manual de usuario

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

CAT 5000 WiFi Retro Fit Kit

Owner’s Manual

Basic safety precautions should always be followed, including the following: Failure to fol-

low instructions can cause severe injury and/or death.

This is the safety-alert symbol. When you see this symbol on your equipment or in this

manual, look for one of the following signal words and be alert to the potential for personal

injury.

WARNING warns about hazards that could cause serious personal injury, death or ma-

jor property damage and if ignored presents a potential hazard.

CAUTION warns about hazards that will or can cause minor or moderate personal injury

and/or property damage and if ignored presents a potential hazard. It can also make con-

sumers aware of actions that are unpredictable and unsafe.

IMPORTANT SAFETY INSTRUCTIONS

RFK-C5000-WIFI

Wireless Retrot for CAT 5000 Water Quality Controllers

092518 RevC

Contents

Introduction.........................2

Before you Begin..................2

Installation...........................3

Activation.........................9

Returning Original Parts.......13

Hayward Commercial Pool Products

10101 Molecular Drive, Suite 200

Rockville, MD 20850

www.haywardcommercialpool.com

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Introduction

The RFK-C5000-WIFI is a retroﬁt kit used to replace the pager communication components in the CAT 5000 Controller with WiFi

components. The RFK-C5000-WIFI uses WiFi/Internet communication to connect with the PoolCom.

Before You Begin

Write down the following information BEFORE installing the retroﬁt kit. The numbers below are necessary for activation and will

not be accessible after the retroﬁt kit is installed.

WIFI Transceiver Serial Number ____________________________

WIFI Transceiver Model Number____________________________

WIFI Transceiver Node ID_________________________________

WIFI Transceiver Serial Number WIFI Transceiver Model Number WIFI Transceiver Node ID

Retroﬁt Kit Components, (Clockwise from top left): Ribbon Cable,

Motherboard, Transceiver, Mounting Hardware, Double-sided Tape,

Chips, Chip Puller, Antenna & Hardware, and Antenna Cable. Com-

munications and Assembly Instructions not shown.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Installation

CAUTION: Disconnect power to the C5000 before attempting to install the RFK-C5000-WIFI retroﬁt kit.

2) Remove (4) screws holding the “Riser Board Assembly” (Display screen). Be

sure to remove the screws on the larger board, NOT the smaller one.

1) Unscrew and slowly remove the C5000 face plate. Take care not to stress the

ribbon cable attached. Unplug the ribbon cable where shown, and set aside.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

3) Remove board completely from unit by wiggling and pull-

ing straight up.

4) Remove old transceiver by disconnecting all cables and

carefully prying away from side of enclosure (2 conﬁgura-

tions shown). This unit must be return-shipped to Hay-

ward along with both chips.

6) NOTE: BEFORE PULLING BOTH CHIPS, NOTE TEXT ORI-

ENTATION ON EACH CHIP. (One chip shown removed).

Using the chip puller supplied, remove old processor

chips. (These must also be return-shipped to Hayward in

supplied anti-static case).

7) Place old chips in the anti-static case provided for shipment. 8) Carefully remove the red backing from the

adhesive dot on the bottom of the new chip.

5) Remove old antenna cable from housing.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

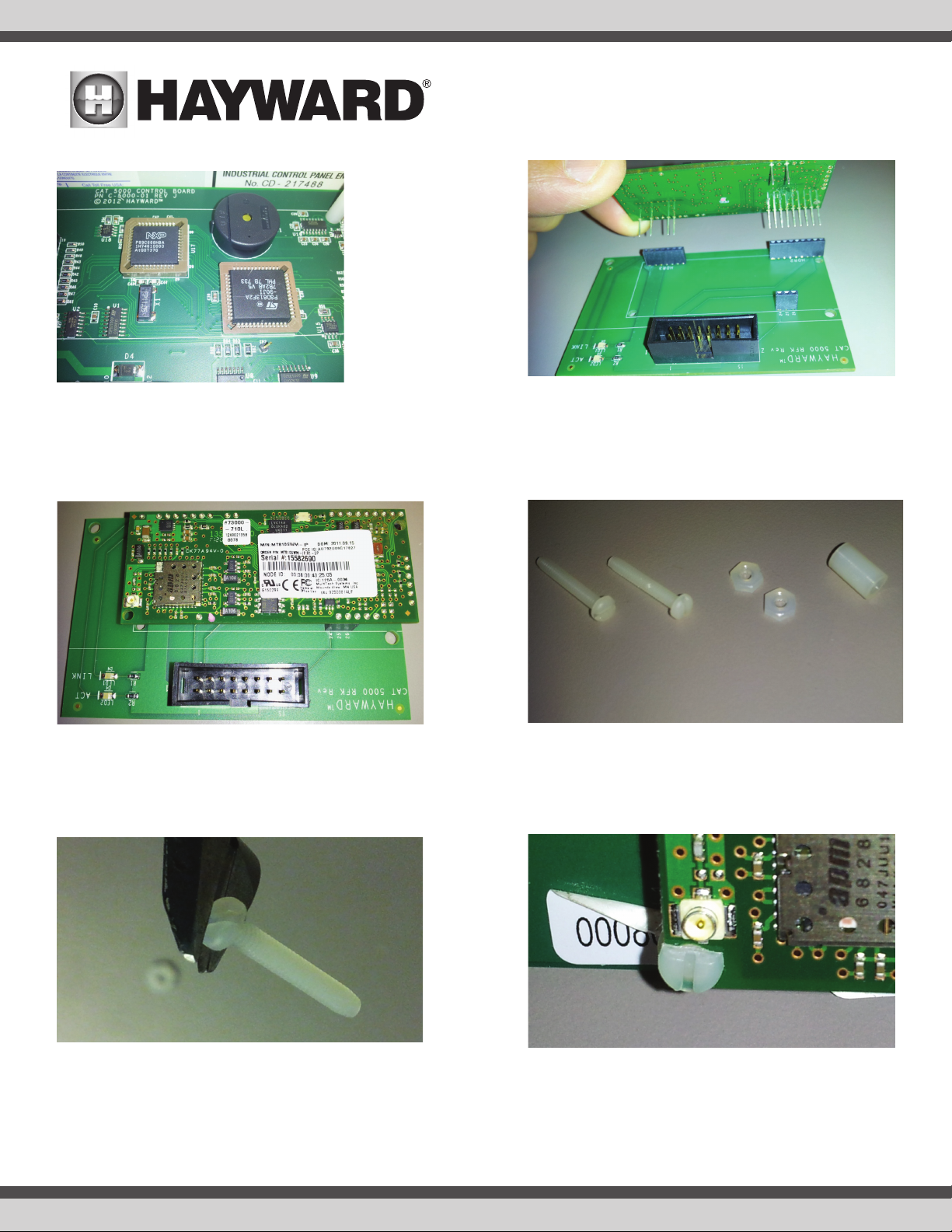

11)Transceiver and motherboard assembled. 12) Gather nylon screws, nuts and spacer for fastening

transceiver to motherboard.

13) On ONE screw only, cut off one edge of screw head

as shown. This prevents interference with antenna

cable socket when assembled.

10) Connect transceiver to motherboard making sure

all pins align with their sockets.

9) Press chips into sockets with same text

orientation as old ones.

14) Insert cut screw through transceiver board, spacer

and motherboard as shown.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

15) Thread on nut and tighten assembly, by hand if pos-

sible, just snug. Do not overtighten.

16) Repeat at opposite corner of transceiver using uncut

screw, and without spacer.

17) Align nut on back to NOT interfere with solder joints as

shown. 18) Apply ribbon cable to motherboard. Note orientation of

red wire and notch/tab in connector.

19) Insert cable antenna through hole in bottom of housing. 20) Install lock washer and nut and tighten with pliers.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

21) Hand-tighten the rubber antenna in place. (Note that

washer and nut will remain visible). 22) Remove backing from one side of double-stick tape, and

fold tape in half.

23) Apply tape where shown and remove backing complete-

ly. 24) Motherboard assembly with adhesive feet, ready for

installation.

25) Adhere the motherboard assembly to the inside of

the enclosure.

26) Attach antenna cable to transceiver by pushing cable

connector onto pc board socket where shown.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

27) Approximate location shown here.

29) Re-fasten with (4) screws.

30) Plug in faceplate ribbon cable.

28) Thread nut on to antenna cable completely. Then insert

cable ﬁtting through mounting hole.

31) Re-attach faceplate.

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

Activation

After installing the RFK-C5000-WIFI retroﬁt kit, contact Hayward for activation.

Activation Phone Number: 301-838-4001

Be prepared to provide the following information:

Name

Company Name

Contact Information

Facility Name

Cat Serial Number

Wiﬁ Transceiver Serial Number (refer to page 1)

Wiﬁ Transceiver Model Number (refer to page 1)

Wiﬁ Transceiver Node ID (refer to page 1)

1) Register Controller to your Poolcomm.com account. (You may do this before or

after set up of unit).

USE ONLY HAYWARD GENUINE REPLACEMENT PARTS

WiFi Connectivity Checklist

Speciﬁc information about your wireless network is required to conﬁgure the CAT 5000 Controller for wireless operation. To aid

in installation, ﬁll out the information below and then proceed to the following steps.

1) Wireless Network ID/Name __________________

2) Network Security Type (Check one of the following)*

a. WPA ___

b. WPA2 ___

c. WEP-64 ___

d. WEP-128 ___

3) Network Security Password ________________________________

4) Does your wireless connection have MAC ﬁltering?____

*If network is unsecured and does not have a password, you may skip steps 2 thru 3.

Additional CAT-4000/5000 Wireless LAN Technical Information

Router Information: Supports 802.11b/g.

Communication supports the following wireless LAN security speciﬁcations:

• No Encryption, 64 bit WEP, 128 bit WEP, WPA-PSK, WPA2-PSK

• Passwords for 64 bit WEP are entered as 10 hexadecimal characters (0-9, a-f or A-F)

• Passwords for 128 bit WEP are entered as 26 hexadecimal characters (0-9, a-f or A-F)

• Passwords for WPA/WPA2 are 8 to 64 characters in length, and can include any character.

Unit can be conﬁgured through menu to use DHCP or manual IP conﬁguration (requiring entry of IP Address, Gateway IP Address,

Subnet Mask, DNS Servers).

If access point is set up with MAC ﬁltering enabled, the MAC address from module, displayed as “NODE ID” on white sticker near

antenna cable connection, should be used.

The CAT-4000/5000 Wireless LAN model communicates using the following protocol/ports. Firewalls/rules that block any of

these protocols/ports will inhibit CAT-4000/5000 from working:

• Outbound UDP port 123

• Outbound TCP/IP port 110

• Outbound TCP/IP port 25

Access Point must broadcast SSID for CAT-4000/5000 to display the name in Network list menu.
