PLAYOFF 48-IN. FOOSBALL TABLE

ASSEMBLY INSTRUCTIONS

THANK YOU!

Thank you for purchasing this product. We work around the clock and around the globe to ensure

that our products maintain the highest possible quality. However, in the rare case of issues during

assembly or use of this product, please contact our Consumer Hotline at 800-759-0977 for immediate

assistance before contacting your retailer. Please read the warranty information at the back of these

assembly instructions for further details.

CARE AND USE

1. This product is intended for INDOOR use only.

2. Do NOT drag the table when moving it, as this will damage the legs.

ASSEMBLY TIPS

1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults

work together to assemble this game. You may want to carefully cut or tear the four corners of the box

so that the bottom of the box can be used as your work surface.

2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts

List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.

3. Some figures or drawings may not look exactly like product.

4. When installing parts that have more than one screw or bolt, hand tighten all screws or bolts

in place before final tightening with screwdriver or wrench.

5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use

extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the

electric screwdriver’s torque is set too high.

WARNINGS!

READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETYINSTRUCTIONS CAREFULLY.

CHOKE HAZARD - THIS ITEM MAY CONTAIN SMALL BALLS AND PARTS

NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.

IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS

IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.

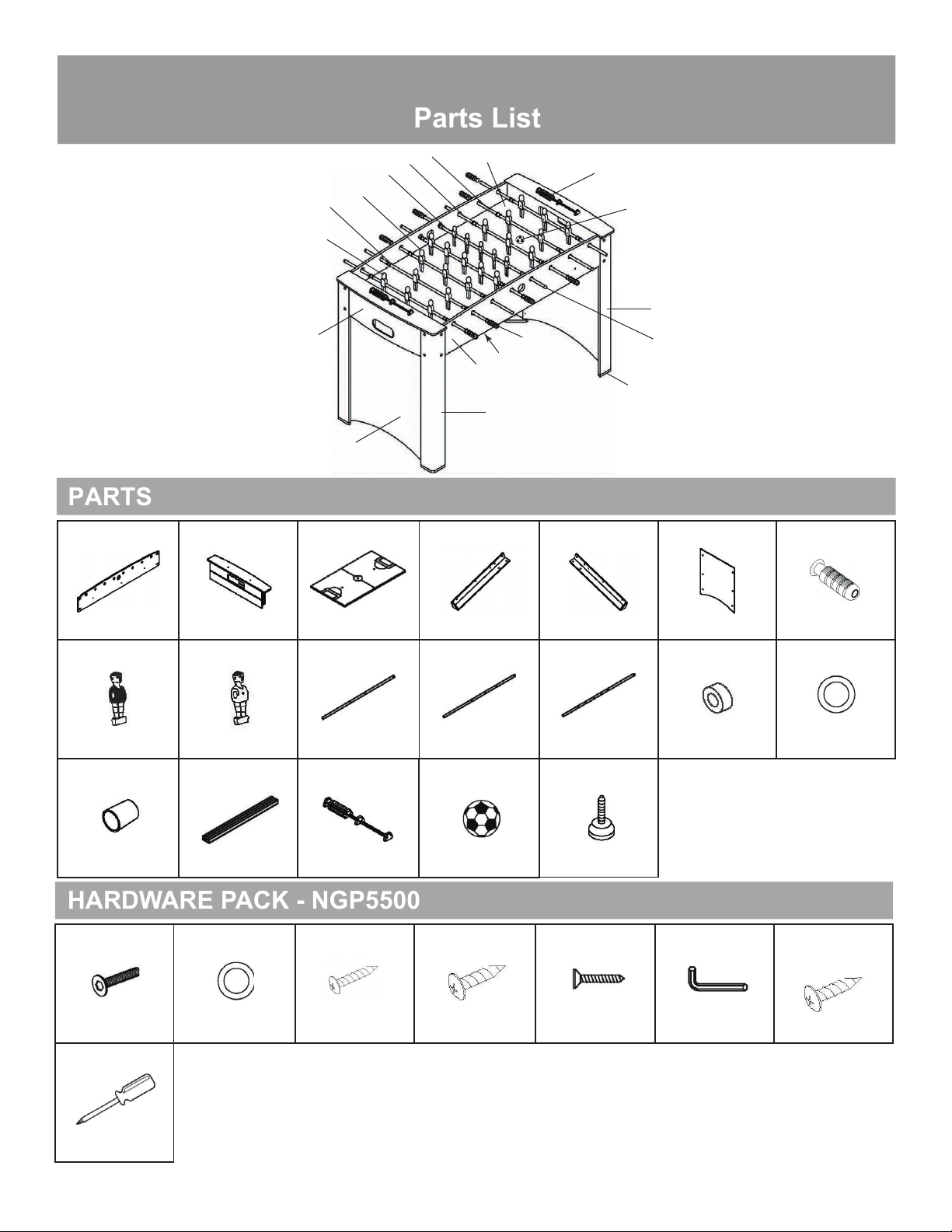

Parts ListParts List

PLAYOFF 48-IN. FOOSBALL TABLE - BG1031F

Illustrations Not to Scale

PARTS

HARDWARE PACK - NGP5500

#1 #2 #3#4#5#6

FLAT WASHER

#19

1-1/2” SCREW 1/2” SCREW 1-1/2” FLAT

SCREW HEX WRENCH

BOLT

ADDITIONAL EQUIPMENT

REQUIRED:

PHILLIPS HEAD

SCREWDRIVER

PLASTIC ROD

WASHER*

#21

3/4” SCREW*

#7NGP5501 #8NGP5502 #9NGP5503 #10 NGP5504 #11 NGP5505

PLAYFIELD LEFT LEG

#12 NGP5506

SIDE PANEL END PANEL RIGHT LEG LEG PANEL

#13 NGP5507

HAND GRIP

#14 NGP5508 #15 NGP5509 #16 NGP5510 #17 NGP5511 # NGP5512 #20 NGP5513

FOAM BUMPER*

BLUE PLAYER* GREEN PLAYER* 2 PLAYER ROD* 3 PLAYER ROD* 5 PLAYER ROD*

#22 NGP5514

ROD END CAP

#23 NGP5515 #24 NGP5516 #25 NGP5102

MANUAL SCORER

SUPPORT BRACE SOCCER BALL

* Note: Items #14 - #21 & #19 are

PRE-ASSEMBLED when received.

Individual pieces may be available

by part number or complete sets,

if needed, are part # NGP5943

#26 NGP50785

LEG LEVELER

8/18 For replacement parts please call 800-759-0977.

NGP5513118

X8 X3 X2 X2

X16 X6 X12

X16

X13 X13 X2 X4 X2 X16 X16

X12

X2 X2 X1 X2 X2 X2 X8

X1 X26

Pre-assembled

on Players

20,21

1. Insert pre-assembled BLUE PLAYER RODS and GREEN PLAYER RODS into one SIDE PANEL

#7 as shown below. Note: Although this table is assembled upside down, players are shown up-

right for clarity. Each team should face the opposite goal when table is turned over. Ensure that

FOAM BUMPERS and PLASTIC ROD WASHERS are in place before inserting rods.

2. Insert PLAYER RODS into remaining SIDE PANEL #7.

3. Attach one END PANEL #8 to one end of the table with 1-1/2" FLAT SCREW #5 using pre-

EXAMPLE OF BLUE

3 PLAYER ROD ASSEMBLY:

ASSEMBLY INSTRUCTIONS

Note: Players should face

opposing goal when upright.

Do NOT overtightenscrews.

ASSEMBLY INSTRUCTIONS (CONT.)

5. Attach remaining END PANEL #8 to the opposite end of the table with 1-1/2" FLAT SCREW

#5. Make sure PLAYFIELD slides into grooves on both END PANELS as well.

6. Attach each PLAYFIELD SUPPORT BRACE #23 across the underside of the PLAYFIELD by

fastening to the SIDE PANELS with 1-1/2" SCREW #3 using pre-drilled holes.

7. Attach LEFT LEGS #10 and RIGHT LEGS #11 to the corners of the table as shown below

using BOLT #1 and FLAT WASHER #2. Thread one LEG LEVELER #26 onto each LEG.

ASSEMBLY INSTRUCTIONS (CONT.)

8. Attach each LEG PANEL #12 to LEGS with 1/2" SCREW #4. Note: Graphics should face

outward. Carefully turn table over.

9. Attach HAND GRIP #13 to the marked end of each PLAYER ROD. Attach ROD END CAP #22

to the opposite end of PLAYER RODS.

10. Attach one MANUAL SCORER #24 to each end of the table with 1-1/2" FLAT SCREW #5. Cut

and remove rubber bands holding parts together, if present. Be careful not to overtighten screws.

180-DAY LIMITED WARRANTY

This product is warranted to the original purchaser to be free from defects in material or workmanship

for a period of 180 days from the date of the original retail purchase.

This warranty does not cover defects or damage due to improper installation, alteration, accident or

any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,

abuse or negligence will void this warranty. This warranty does not cover scratching or damage that

may result from normal usage.

This product is not intended for institutional or commercial use; the manufacturer does not assume

any liability for such use. Institutional or commercial use will void this warranty.

This warranty is nontransferable and is expressly limited to the repair or replacement of the defective

product. During the warranty period, the manufacturer shall repair or replace defective parts at no

cost tothe purchaser. Shipping charges and insurance are not covered and are the responsibility of

the purchaser. Labor charges and related expenses for removal, installation or replacement of the

product or components are not covered under this warranty.

The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable

or obsolete.

The manufacturer shall not be liable for loss of use of the product or other consequential or incidental

costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of

injury resulting from the use of this product.

This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of

. Neither the manufac-

turer nor any of its representatives assumes any other liability in connection with this product.

All warranty claims must be made through the retailer where the product was originally

purchased. A purchase receipt or other proof of date of purchase will be required to process

all warranty claims. The model number and part numbers found within the assembly

instructions will be required when submitting any parts requests or warranty claims.

For further warranty information or inquiries, please call 800-759-0977

Ver. 0420
