DORSETT

5-FT. AIR HOCKEY TABLE

ASSEMBLY INSTRUCTIONS

THANK YOU!

Thank you for purchasing this product. We work around the clock and around the globe to ensure

that our products maintain the highest possible quality. However, in the rare case of issues during

assembly or use of this product, please contact our Consumer Hotline at 800-759-0977for immediate

assistance before contacting your retailer. Please read the warranty information at the back of these

assembly instructions for further details.

CARE AND USE

ASSEMBLY TIPS

1. Find a clean, level surface to begin the assembly of your game table. We recommend that two adults

work together to assemble this game. You may want to carefully cut or tear the four corners of the box

so that the bottom of the box can be used as your work surface.

2. Remove all of the contents from box and verify that you have all of the parts shown on the Parts

List before you begin assembly. Note: Some parts may be pre-installed or pre-assembled.

3. Some figures or drawings may not look exactly like product.

4. When installing parts that have more than one screw orbolt, hand tighten all screws orbolts

in place before final tightening with screwdriver orwrench.

5. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use

extreme caution because screws may be stripped or overtightened, resulting in damaged parts, if the

electric screwdriver’s torque is set too high.

WARNINGS!

READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETY INSTRUCTIONS CAREFULLY.

CHOKE HAZARD - THIS ITEM MAYCONTAIN SMALL BALLS AND PARTS

NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE.

IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS

IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT.

1. This product is intended for INDOOR use ONLY.

2. Do NOT sit on table, or drag table when moving, as this will damage the legs.

3. Keep table covered when not in use. Remove dust on play surface and cabinet with vacuum or wipe

with a clean, soft cloth.

Parts List

DORSETT 5-FT. AIR HOCKEY TABLE - BG50387

7/20 For replacement parts please call 800-759-0977.

LEG SUPPORT

LEFT LEG PUCK

RIGHT LEG

TABLE BODY STRIKER

LEG LEVELER

HARDWARE PACK - NGP7849

PARTS

Illustrations Not to Scale

BLOWER MOTOR

Pre-installed

PUCK CATCHER

NGP7843 NGP7844 NGP7845

NGP7498

NGP7846

10 11 12 13

X12 X12 X16 X4

NGP7847 NGP7848 NGP7316

NGP6293

ADAPTER

NGP7548

X2 X4

ADDITIONAL EQUIPMENT

REQUIRED:

PHILLIPS HEAD

SCREWDRIVER

3 AA BATTERIES

(NOT INCLUDED)

ADDITIONAL EQUIPMENT

REQUIRED:

T3.5X12MM

5/16”X1-1/4” T3.5X18MM

7,15

ASSEMBLY INSTRUCTIONS

#13

#10

#11

#14

ASSEMBLY INSTRUCTIONS (CONT.)

#12

NOTE: Two adults are required to turn table upright. Turn over using main table body only, NOT legs,

and place on all four feet on ground at same time.

ELECTRONIC SCORING SYSTEM LAYOUT AND PARTS

PRE-ASSEMBLED PARTS

NOTE: If the goal sensors are not working properly,

turn the table over and adjust sensors so they are directly

in line with each other. If this doesn’t help, replace scoring

sensor wire (A5 or A6) as shown in above diagram.

A5 or A6

A6 A5

Goal Box

CONTROL

BOX

score

NGP7850 NGP7851 NGP7852 NGP7854 NGP7855NGP7853 A7

NGP7860

OPERATING INSTRUCTIONS

FRONT BACK

AAA AAA AAA

3 AA BATTERIES

(NOT INCLUDED)

This game can be powered with an electrical outlet by using the included Power Adapter

(#15) and plugging it into the back of the Control Box (A1), OR by putting 3 AAA batteries

in the back of the Control Box. DO NOT put batteries in compartment if using the Adapter.

BATTERY USAGE:

• WARNING! DO NOT mix different types of batteries or new and old batteries.

• Non-rechargeable batteries are NOT to be recharged.

• Rechargeable batteries are to be removed before being charged.

• Dead batteries are to be removed from the game.

• Batteries must be inserted with correct polarity.

OPERATING INSTRUCTIONS:

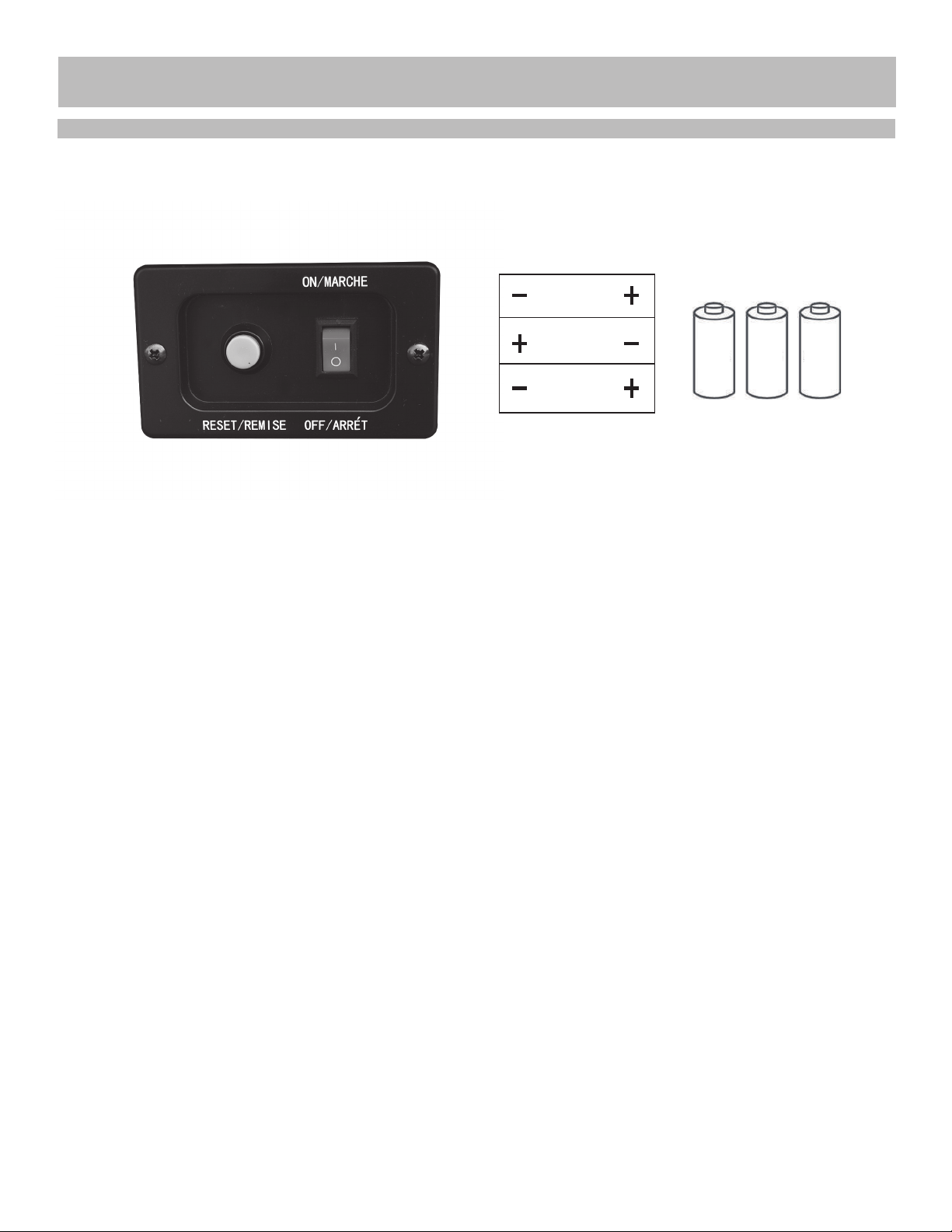

• Use ON/OFF switch: To turn on and turn off the power

• Use RESET button: To start scoring or to start over

1. Turn on the power, by pushing the ON/OFF switch

2. Push the RESET button to start the game.

3. The system starts with no time limit mode, so the first team to score 10 goals is the winner.

4. Push the RESET button to restart the game at any time during play.

5. Turn OFF the game when NOT in use.

CONTROL BOX

180-DAY LIMITED WARRANTY

This product is warranted to the original purchaser to be free from defects in material or workmanship

for a period of 180 days from the date of the original retail purchase.

This warranty does not cover defects or damage due to improper installation, alteration, accident or

any other event beyond the control of the manufacturer. Defects or damage resulting from misuse,

abuse or negligence will void this warranty. This warranty does not cover scratching or damage that

may result from normal usage.

This product is not intended for institutional or commercial use; the manufacturer does not assume

any liability for such use. Institutional or commercial use will void this warranty.

This warranty is nontransferable and is expressly limited to the repair or replacement of the defective

product. During the warranty period, the manufacturer shall repair or replace defective parts at no

cost tothe purchaser. Shipping charges and insurance are not covered and are the responsibility of

the purchaser. Labor charges and related expenses for removal, installation or replacement of the

product or components are not covered under this warranty.

The manufacturer reserves the right to make substitutions to warranty claims if parts are unavailable

or obsolete.

The manufacturer shall not be liable for loss of use of the product or other consequential or incidental

costs, expenses or damages incurred by the consumer of any other use. The user assumes all risk of

injury resulting from the use of this product.

This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of

. Neither the manufac-

turer nor any of its representatives assumes any other liability in connection with this product.

All warranty claims must be made through the retailer where the product was originally

purchased. A purchase receipt or other proof of date of purchase will be required to process

all warranty claims. The model number and part numbers found within the assembly

instructions will be required when submitting any parts requests or warranty claims.

For further warranty information or inquiries, please call 800-759-0977

TABLE DE HOCKEY SUR AIR

DORSETT 1,52 m

INSTRUCTIONS D’ASSEMBLAGE

BG50387

Ver. 1120

Contactez notre

service à la clientèle au

800-759-0977

avec des questions sur le montage

ou l'utilisation de ce produit.

ENTRETIEN ET USAGE

1. Ce produit doit être utilisé À L’INTÉRIEUR seulement.

2. Ne vous asseyez pas sur la table ou faites glisser la table lorsque vous vous déplacez, car cela endommagera les jambes.

Ne pas soulever la table par des tiges.

3. Gardez la table couverte lorsqu'elle n'est pas utilisée. Enlevez la poussière sur la surface de jeu et l'armoire avec l'aspirateur

ou essuyez-la avec un chiffon propre et doux.

MERCI!

Merci d’avoir acheté notre produit. Nous travaillons 24 heures sur 24, partout dans le monde, à garantir

que nos produits sont de la meilleure qualité possible. Toutefois, dans les rares cas de problèmes lors

du montage ou de l'utilisation de ce produit, se il vous plaît communiquer avec notre service à la clientèle

au 800-759-0977 pour une aide immédiate avant de contacter votre revendeur. Pour obtenir de plus amples

renseignements, veuillez lire l'information relative à la garantie au verso de ce guide d’instructions.

INSTRUCTIONS D’ASSEMBLAGE

1. Trouver une surface propre et plane, pour commencer le montage de votre table de jeu. La table

s’assemble à l’envers pour être ensuite retournée sur ses pieds, une fois l’assemblage complété.

Cette table est lourde et nécessite au moins deux adultes forts pour la soulever et la retourner.

2. Retirez le contenu de la boîte, avant de commencer l’assemblage, assurez-vous d’avoir toutes

les pièces telles que listées et illustrées au tableau d’identification. Avis : certaines pièces sont

préassemblées ou préinstallées.

3. Certaines illustrations ou dessins peuvent ne pas ressembler au produit que vous avez acheté.

4. Quand vous fixez en place une pièce avec plus d’une vis ou écrou, veuillez, en premier, les

visser à la main et terminer la fixation avec un tournevis ou une clé.

5. Un tournevis électrique peut être utile lors de l’assemblage, mais veuillez le régler à basse torque

et l’utiliser avec prudence; si la torque est trop élevée, la vis peut se défaire ou être trop serrée.

AVERTISSEMENTS!

LIRE TOUTES LES INSTRUCTIONS D’ASSEMBLAGE ET LES CONSIGNES DE SÉCURITÉ ATTENTIVEMENT.

RISQUE D’ÉTOUFFEMENT – CERTAINS ÉLÉMENTS DU PRODUIT CONTIENNENT

DE PETITES PIÈCES - NE CONVIENT PAS À UN ENFANT DE MOINS DE TROIS ANS.

IMPORTANT! VEUILLEZ LIRE, EN ENTIER, TOUTES LES

INSTRUCTIONS AVANT D’ASSEMBLER VOTRE PRODUIT.
