Harman JBL Quantum 800 Manual de usuario

QUICK START GUIDE

800

HP_JBL_Q800_QSG_PV_V9.indd 1 11/11/2019 2:33:17 PM

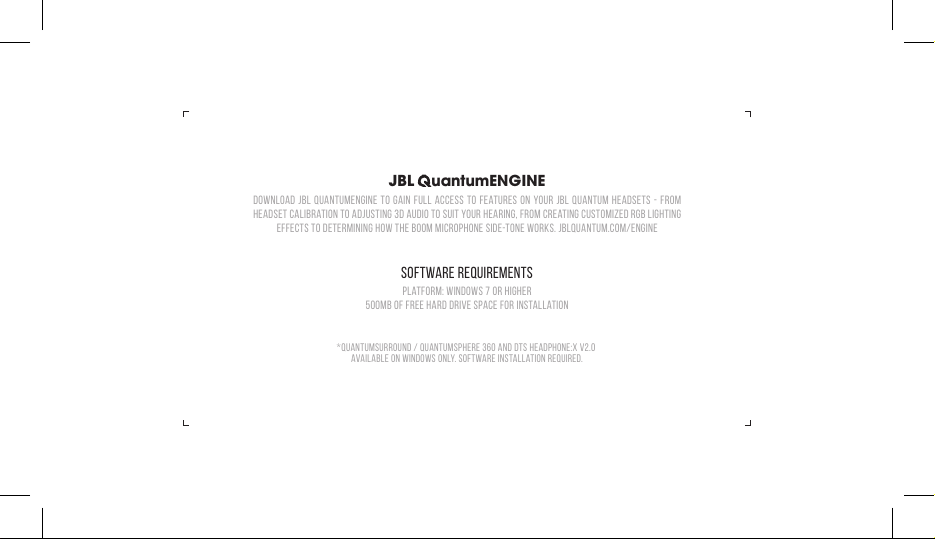

Software requirements

Platform: Windows 7 or higher

500MB of free hard drive space for installation

*QuantumSURROUND / QuantumSPHERE 360 and DTS Headphone:X V2.0

available on Windows only. Software installation required.

Download JBL QuantumENGINE to gain full access to features on your JBL Quantum headsets - from

headset calibration to adjusting 3D audio to suit your hearing, from creating customized RGB lighting

effects to determining how the boom microphone side-tone works. jblquantum.com/engine

JBL QuantumENGINE

HP_JBL_Q800_QSG_PV_V9.indd 2 11/11/2019 2:33:17 PM

001 WHAT'S IN THE BOX

JBL quantum800 headset

USB charging

cable

3.5MM AUDIO

CABLE

USB WIRELESS

DONGLE

QSG | WARRANTY CARD |

Safety Sheet

Windshield foam

for microphone

HP_JBL_Q800_QSG_PV_V9.indd 3 11/11/2019 2:33:18 PM

002 Requirements

System compatibility

PC | Xbox™ | PlayStation™ | Nintendo Switch™ | Mobile | MAC | VR

PLATFORMS: WINDOWS 7 or Higher

500MB OF FREE HARD DRIVE SPACE FOR INSTALLATION

SOFTWARE REQUIREMENTS

JBL

HP_JBL_Q800_QSG_PV_V9.indd 4 11/11/2019 2:33:18 PM

003 OVERVIEW

01 ANC / TALKTHRU LED

02 ANC / TALKTHRU button

03 Game audio-chat balance dial

04 Volume Control

05 Detachable Windshield foam

06 Notification LED for mic mute / unmute

07 Microphone Mute / unMute

08 CHARGING LED

09 3.5mm Audio Jack

10 USB-C port

11 Voice Focus Boom Microphone

12 Bluetooth pairing button

13 POWER ON / OFF slider

14 POWER / 2.4G / Bluetooth LED

15 RGB-lit JBL logo

16 Flat-fold ear cup

17 2.4G PAIRING BUTTON

18 Volume Control

19 MIC MUTE BUTTON

HP_JBL_Q800_QSG_PV_V9.indd 5 11/11/2019 2:33:18 PM

004 POWER ON & CONNECT

power on

>2S

PC | mac | PLAYSTATIONTM

Settings Bluetooth

Bluetooth

DEVICES

JBL Quantum800

Now Discoverable

Connected

2.4G Wireless

Bluetooth

HP_JBL_Q800_QSG_PV_V9.indd 6 11/11/2019 2:33:18 PM

005 SETUP

* USB-C TO USB-C CABLE IS NOT INCLUDED BY-PACK. USB-C PORT FOR CHARGING ONLY.

PC | LAPTOP | MAC

HP_JBL_Q800_QSG_PV_V9.indd 7 11/11/2019 2:33:18 PM

006 BUTTON COMMAND

ANC ON / OFF

>2S

TALKTHROUGH ON / OFF

>2S BT PAIRING MODE

ON OFF

INCREASE CHAT VOLUME

INCREASE GAME VOLUME

INCREASE MASTER VOLUME

DECREASE MASTER VOLUME

ON / OFF

>5S

Microphone Mute / unMute

HP_JBL_Q800_QSG_PV_V9.indd 8 11/11/2019 2:33:18 PM

007 First time setup

JBL Quantum800

Game

JBL Quantum800

Chat

7a Go to Sound Settings

7B UNDER "PLAYBACK" HIGHLIGHT JBL QUANTUM 800 GAME AND SELECT

"SET DEFAULT DEVICE"

7C HIGHLIGHT JBL QUANTUM 800 CHAT AND SELECT "SET DEFAULT

COMMUNICATION DEVICE"

7D UNDER "RECORDING" HIGHLIGHT JBL QUANTUM 800 CHAT AND SELECT

"SET DEFAULT DEVICE"

7E IN YOUR CHAT APPLICATION SELECT JBL QUANTUM 800 CHAT AS THE

DEFAULT AUDIO DEVICE

HP_JBL_Q800_QSG_PV_V9.indd 9 11/11/2019 2:33:18 PM

008 MICROPHONE

Notification LED for mic

mute / unmute

mute unmute

HP_JBL_Q800_QSG_PV_V9.indd 10 11/11/2019 2:33:19 PM
