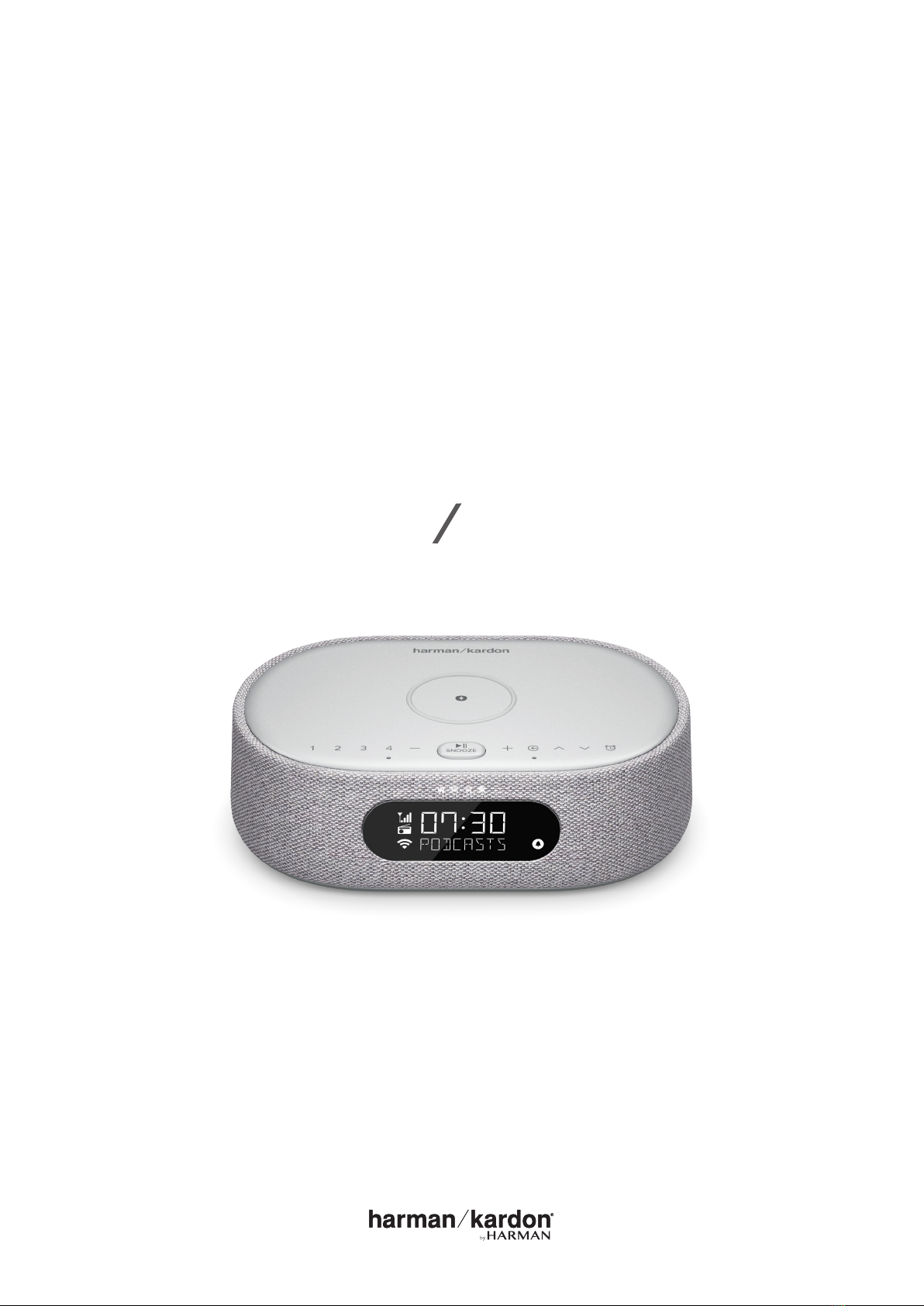

Harman Kardon CITATION OASIS Manual de usuario

OWNER’S

MANUAL

CITATION OASIS

DAB

IMPORTANT SAFETY

INSTRUCTIONS

Verify Line Voltage Before Use

The CITATION OASIS DAB has been designed for use with

100-240 volt, 50/60 Hz AC current. Connection to a line voltage

other than that for which your product is intended can create

a safety and re hazard and may damage the unit. If you have

any questions about the voltage requirements for your specic

model or about the line voltage in your area, contact your

selling dealer before plugging the unit in to a wall outlet.

Do Not Use Extension Cords

To avoid safety hazards, use only the power cord supplied

with your unit. We do not recommend that extension cords be

used with this product. As with all electrical devices, do not run

power cords under rugs or carpets, or place heavy objects on

them. Damaged power cords should be replaced immediately

by an authorized service center with a cord that meets factory

specications.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always

pull the plug; never pull the cord.

If you do not intend to use your speaker for any considerable

length of time, disconnect the plug

from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product.

Opening the cabinet may present a shock hazard, and any

modication to the product will void your warranty. If water

accidentally falls inside the unit, disconnect it from the AC

power source immediately, and consult an authorized service

center.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS............................................. 2

/INTRODUCTION........................................................................................ 4

/APP.................................................................................................................. 5

/PRODUCT TOUR ....................................................................................... 6

/SETUP............................................................................................................ 11

/PL AY ..............................................................................................................13

/SPECIFICATIONS......................................................................................21

/TRADEMARKS ......................................................................................... 22

INTRODUCTION

This manual includes information of the CITATION OASIS

DAB. We encourage you to take a few minutes to read this

manual, which describes the products and includes step-by-

step instructions to help you set up and get started. Read and

understand all the safety instructions before using your product.

Design and specications are subject to change without notice.

If you have any questions about these products, their

installation or their operation, please contact your

Harman Kardon retailer or customer service, or visit us at

www.harmankardon.com

APP

The Google Assistant setup

Google Home

Download the Google Home app and set up your Citation OASIS DAB.

All product features will be set up.

PRODUCT TOUR

1 2 3

1. Citation OASIS DAB x1

2. Regional power cord (varies depending on country) x1

3. DAB antenna x1

/ PRODUCT TOUR

Front

(Qi-enabled phone)

Wireless charging

in progress

Source selector

/ Select a DAB station

Check alarm time

DAB presets

Volume down/up

Press briey: Snooze alarm for 10 minutes; pause

or resume playback

Press and hold (> 5s): Start DAB station scanning

Wireless charging pad

NOTES:

• The wireless charging may be interrupted by obstacles between

the Qi-enabled device and the wireless charging pad, such as a

metallic casing that covers the device.

• Phone cases may impact charging speed and performance. If your

phone is not charging properly, remove the case during charging.

/ PRODUCT TOUR

Back

5 V 1.0 A

Power cable connector

Service only

3.5 mm audio input connector for external devices

DAB antenna connector

Night Wi-Fi

: Wi-Fi on (00:00 - 24:00)

: Wi-Fi is switched o automatically from 00:00

to 06:00.

To change the time duration, go to the Night mode

settings in Google Home app.

Display brightness selector

Microphone Mute / Unmute

Type A USB connector for charging

/ PRODUCT TOUR

Bottom

>5s Factory reset

Backup battery compartment

(CR2032 x1)

CR2032

/ PRODUCT TOUR

Display information

Clock time

Status information

Bluetooth status indicator

Wireless charging in progress

Alarm set

Alarm time displayed

Wi-Fi signal strength

Night Wi-Fi activated, Wi-Fi disconnected

DAB signal strength

DAB source selected

Microphone mute
