Harbor Breeze WO52BB5C Manual de usuario

ITEM #0373645

E124404

WOLCOTT CEILING FAN

MODEL #WO52BB5C

Questions, problems, missing parts? Before returning to your retailer, call or contact our

customer service department at 1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.

Harbor Breeze® is a registered trademark of

ATTACH YOUR RECEIPT HERE

Serial Number Purchase Date

TABLE OF CONTENTS

Safety Information .....................................………………………………………………...…

…..

2 - 3

Package Contents .....……………………………………………………………..….

….

.........

...

Hardware Contents ...................................................................................................................

...

Preparation ...............….…………………..……………………….…………….………………....5

Initial Installation ............….……………..……………………….……….

…..….

..........................6 - 7

Wiring ...............….…………………..……………………….…………….……………...........7 - 9

Final Installation .....……………………………………………………………..….

….

.....

10 - 13

Lighted Housing Bulb Replacement ...........................................................................................14

Operation Instructions ............................................................……………………

……

….

........

14 - 15

Care and Maintenance …

….…

…………………………………………………..….......

.....

....

Troubleshooting .............………...………………………….……………..………....

…...........

.16

Warranty ……………………………….…………………………………………..…

….

.........

.....

Replacement Parts List ...........................................................................................

.........

......

........

SAFETY INFORMATION

READ AND SAVE THESE INSTRUCTIONS

Please read and understand this entire manual before attempting to assemble, install or operate the

product. If you have any questions regarding the product, please call customer service at

1-800-527-1292, 8:30 a.m. - 5:00 p.m., CST, Monday - Friday.

• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for

repairs, it must be shipped in its original packaging to ensure proper protection against damage that

might exceed the initial cause for return.

• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical

Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook,

available at Lowe's, if you are unfamiliar with installing electrical wiring.

• Make sure the installation site you choose allows a minimum clearance of 7 feet from the blades to

the floor and at least 30 in. from the end of the blades to any obstruction.

• After you install the fan, make sure that all connections are secure to prevent the fan from falling.

• The net weight of this fan including the light kit is: 20.5 lbs. (9.3 kg).

To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box

marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS (15.9 KG) OR LESS" and use

mounting screws provided with the outlet box. Most outlet boxes commonly used for the

support of lighting fixtures are not acceptable for fan support and may need to be replaced.

Consult a qualified electrician if in doubt.

When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet

box directly to the building structure. The outlet box and its support must be able to support the

moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.

To avoid personal injury, the use of gloves may be necessary while handling fan parts with

sharp edges.

To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this

fan are designed to accept only one 12 gauge house wire and two lead wires from the fan. If your

house wire is larger than 12 gauge or there is more than one house wire to connect to the two fan

lead wires, consult an electrician for the proper size wire connectors to use.

To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed

control device or control fan speed with a full range dimmer switch.

To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when

installing them, balancing the blades, or cleaning the fan. Do not insert objects between the

rotating fan blades.

To reduce the risk of personal injury, use only parts provided with this fan. The use of parts

OTHER than those provided with this fan will void the warranty.

WARNINGS

CAUTIONS

Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid

electrical shock.

Read all instructions and safety information before installing your new fan. Review the

accompanying assembly diagrams.

SAFETY INFORMATION

PACKAGE CONTENTS

IMPORTANT REMINDER: You must use the parts

provided with this fan for proper installation and safety.

PART DESCRIPTION QUANTITY

A Mounting Plate

Motor Assembly 1

Candelabra-base 7-watt

Bulb

Blade Arm 5

Blade 5

F Light Kit Fitter 1

Glass Shade 4

Candelabra-base 60-watt

Bulb

Pull Chain Extension 2

J Motor Screw 10

(preassembled) + 1 extra

Lock Washer 10

(preassembled) + 1 extra

L Motor Housing

M Switch Housing Screw

(preassembled)

HARDWARE CONTENTS

(shown actual size)

Fiber

Blade

Washer

Qty. 15

+ 1 extra

BB CC

Blade

Screw

Qty. 15

+ 1 extra

E3 Wire

Connector

Qty. 4

Before beginning assembly and installation of product, make sure all parts are present. Compare

parts with package contents list and hardware contents above. If any part is missing or

damaged, do not attempt to assemble, the product. Contact customer service for replacement parts.

Estimated Assembly Time: 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety

Glasses, Stepladder and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook

(available at Lowe’s) and Wire Cutters

Bulbs Required (included): 4 candelabra-base 7-watt max. bulbs--for lighted housing

4 candelabra-base 60-watt max. bulbs--for light kit

DANGER: When using an existing outlet box, make sure the outlet box is securely attached to

the building structure and can support the full weight of the fan. Failure to do this can result in serious

injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan

after installation is complete.

CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is

present.

After opening top of carton, remove mounting hardware package from foam inserts. Remove motor

from packing and place on carpet or on foam to avoid damage to ﬁnish.

CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they

are secured.

PREPARATION

Thumb

Screw

Qty. 12

+ 1 extra

Mounting

Plate

Nut

Qty. 4

Motor

Housing

Mounting

Screw

Qty. 4

Bushing

Qty. 4

INITIAL INSTALLATION

Check to make sure blades (E) are at least 30 in.

from any obstruction and at least 7 ft. above the

floor. (Fig. 2)

OFF

Turn off circuit breakers and wall switch to the fan

supply line leads. (Fig. 1)

DANGER: Failure to disconnect power

supply prior to installation may result in serious

injury or death.

7 ft.

min.

30 in.

min.

3. Before proceeding, make sure that motor

assembly (B) and mounting plate (A) do not

remain connected to one another after they have

been removed from the box. If necessary,

disengage motor assembly (B) from “J” hook on

mounting plate (A) so that motor assembly (B) can

be separated from mounting plate (A). (Fig. 3)

4. Secure mounting plate (A) to outlet box using

screws, spring washers, and flat washers

provided with the outlet box. (Fig. 4) Pull wires

from outlet box through center hole in mounting

plate (A).

*Note: It is very important that you use the proper

hardware when installing the mounting plate (A)

as this will support the fan.

CAUTION: Be sure outlet box is properly

grounded or that a ground (green or bare) wire is

present.

"J" Hook

Bar

INITIAL INSTALLATION

Locate holes that are reinforced with black rubber

in bar at top of motor assembly (B). Insert one

bushing (GG) into each of these holes. (Fig. 6)

Now, using the SLOTTED hole in the bar at the top

of the motor assembly (B), slide the bar over the "J"

hook on the mounting plate (A)--this will support the

fan during wiring. (Fig. 6)

WARNING: To reduce the risk of personal

injury, do not use any of the other holes in the bar

at the top of the motor assembly (B) to hang the

motor assembly (B) on the mounting plate (A).

Caution: Be sure wiring box is properly

grounded and that a ground (green or bare) wire is

present.

WIRING

Warning: If house wires are different colors than

referred to in the following steps, stop immediately. A

professional electrician is recommended to determine

wiring.

WARNING: To reduce the risk of fire, electrical

shock, or personal injury, wire connectors provided

with this fan are designed to accept only one 12

gauge house wire and two lead wires from the fan. If

your house wire is larger than 12 gauge or there is

more than one house wire to connect to the two fan

lead wires, consult an electrician for the proper size

wire connectors to use.

5. Remove motor screws (J) and lock washers (K)

from underside of motor and save for blade arm

(D) attachment later on. (Fig. 5) 5

Bushing x4

Hardware Used

WIRING

Choose wiring diagram (Fig. 1A, Fig. 1B or Fig. 1C)

that fits your situation and make appropriate wiring

connections as follows: [NOTE: For each wire

connection below, use one of the wire connectors

(CC) provided, making sure to screw wire connector

(CC) on in a clockwise direction.]

1A. FAN AND LIGHT CONTROLLED BY PULL

CHAINS: Connect BLACK and BLUE wire from fan

to BLACK wire from ceiling. Connect WHITE wire

from fan to WHITE wire from ceiling. Connect all

GROUND (GREEN) wires together from fan (on

motor assembly (B) and mounting plate (A)) to

BARE/GREEN wire from ceiling. (Fig. 1A)

1B. FAN CONTROLLED BY PULL CHAIN, LIGHT

BY WALL SWITCH: If you intend to control the fan

light with a separate wall switch, connect BLACK

wire from fan to BLACK wire from ceiling. Connect

BLUE wire from fan to the BLACK wire from the

independent wall switch for the light. Connect

WHITE wire from fan to WHITE wire from ceiling.

Connect all GROUND (GREEN) wires together from

fan (on motor assembly (B) and mounting plate (A))

to BARE/GREEN wire from ceiling. (Fig. 1B)

1C. FAN AND LIGHT CONTROLLED BY TWO

WALL SWITCHES: If you intend to control the fan

and light with separate wall switches, connect

BLACK wire from fan to BLACK wire from the

independent wall switch for the fan. Connect BLUE

wire from fan to the BLACK wire from the other

independent wall switch for the light. Connect

WHITE wire from fan to WHITE wire from ceiling.

Connect all GROUND (GREEN) wires together from

fan (on motor assembly (B) and mounting plate (A))

to BARE/GREEN wire from ceiling. (Fig. 1C)

Note: Black wire is hot power for fan. Blue wire is

hot power for light kit. White wire is common for fan

and light kit. Green or bare wire is ground.

FAN AND LIGHT CONTROLLED BY PULL CHAINS

BLACK

WHITE

GROUND/GREEN (BARE)

WHITE

BLUE

WHITE

FROM FAN

120 V Power

FROM

CEILING

FAN CONTROLLED BY PULL CHAIN, LIGHT BY

WALL SWITCH

WHITE

BLACK

BLACK (WALL SWITCH)

GROUND/GREEN (BARE)

BLACK

BLUE

WHITE

FROM FAN

FAN

120 V Power

FROM

CEILING

WHITE

BLACK (WALL SWITCH)

BLACK (WALL SWITCH FOR LIGHT)

GROUND/GREEN (BARE)

BLACK

BLUE

WHITE

FROM FAN

FAN

120 V Power

FROM

CEILING

FAN AND LIGHT CONTROLLED BY TWO WALL

SWITCHES

FAN

GREEN

BLACK

GREEN

WHITE

GREEN

WIRING

Wrap electrical tape (not included) around each

individual wire connector (CC) down to the wire as

shown in Fig. 3.

WARNING: Make sure no bare wire or wire

strands are visible after making connections. Place

green and white connections on opposite side of box

from the black and blue (if applicable) connections.

Turn spliced/taped wires upward and gently push

wires and wire connectors (CC) into outlet box.

E3 Wire Connector x4

Hardware Used

CC CC

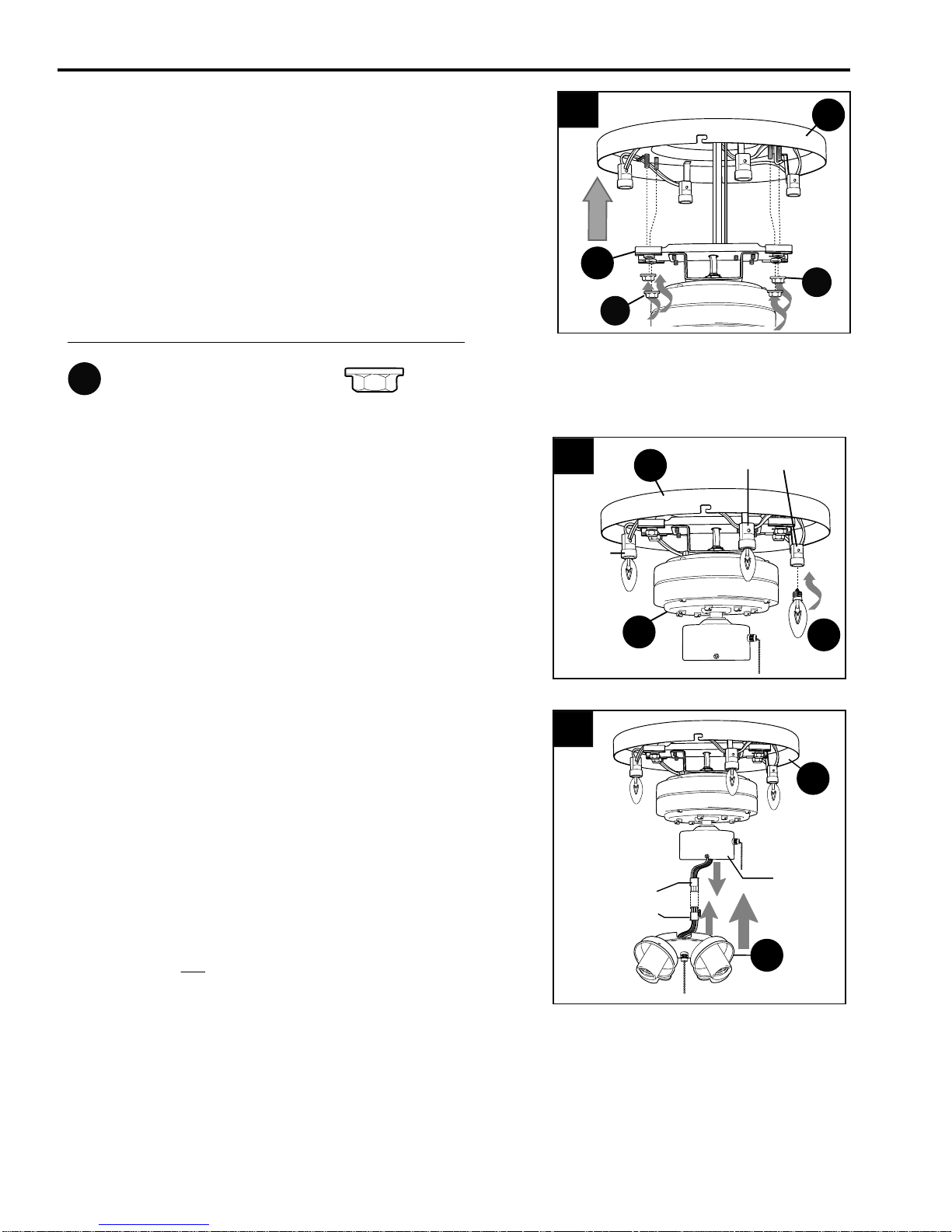

Locate the two WHITE wires labeled "INTERIOR

LIGHT" in the mounting plate (A) and the two molex

connections (one RED wire, one WHITE wire) at the

top of the motor assembly (B) and connect these

wires. (Fig. 2) Make sure that molex connections are

secure.

2. 2

IMPORTANT: Using a full range dimmer switch to

control fan speed will cause a loud humming noise

from fan. To reduce the risk of fire or electrical shock,

do NOT use a full range dimmer switch to control fan

speed. (Fig. 4)

*PLEASE NOTE: Must have third wire in wall to use

wall control (speed switch) such as the one shown at

right.

Dimmer

Switch Speed

Switch

For illustrative purposes only--not

intended to cover all types of controls

FINAL INSTALLATION

Install the four 7-watt candelabra base bulbs (C)

provided into the sockets on the mounting plate (A).

(Fig. 2)

1. A

Locate mounting plate nuts (EE) in one of the

hardware packs.

Remove motor assembly (B) from "J" hook. Align

holes in the bar at the top of the motor assembly (B)

with bolts on underside of mounting plate (A) and

push up until bolts come all the way through the

holes. Secure motor assembly (B) with mounting

plate nuts (EE). (Fig. 1) Make sure to tighten all

mounting plate nuts (EE) completely.

Socket

ASocket

Mounting Plate Nut x4

Hardware Used

It is advisable to check that the wiring has been

done correctly before proceeding. Connect the

male plug from the switch housing to the female

plug from the light kit fitter (F). Make sure that the

plugs connect tightly. (Fig. 3)

Turn power on and then pull the chain on the light

kit fitter (F). The lights on the mounting plate (A)

should light up. Turn power back off and

disconnect male and female plugs. If mounting

plate (A) lights came on, please continue with

Step 4 on the following page; if mounting plate (A)

lights did not come on, repeat instructions in

“WIRING” section.

3. 3

Switch

Housing

Male Plug

Female Plug

Tabla de contenidos

Idiomas:

Otros manuales de Admirador de Harbor Breeze

Harbor Breeze

Harbor Breeze STONECROFT 41946 Manual de usuario

Harbor Breeze

Harbor Breeze 00892 Manual de usuario

Harbor Breeze

Harbor Breeze E-ER56ORB3LKLR Manual de usuario

Harbor Breeze

Harbor Breeze Casual-3-2011 Manual de usuario

Harbor Breeze

Harbor Breeze AR09-52WHT Manual de usuario

Harbor Breeze

Harbor Breeze LAKE PLACIDO CPK1261 Manual de usuario

Harbor Breeze

Harbor Breeze BIRCHMOUNT COVE 41554 Manual de usuario

Harbor Breeze

Harbor Breeze TEX52MBK5C1L Manual de usuario

Harbor Breeze

Harbor Breeze CHESHIRE II CSD52BB5C4 Manual de usuario

Harbor Breeze

Harbor Breeze MERRIMACK II 41125 Manual de usuario

Harbor Breeze

Harbor Breeze COGDELL COG60BNK7LR Manual de usuario

Harbor Breeze

Harbor Breeze ECHOLAKE 42080 Manual de usuario

Harbor Breeze

Harbor Breeze 42612 Manual de usuario

Harbor Breeze

Harbor Breeze HIVE Series Manual de usuario

Harbor Breeze

Harbor Breeze AERO CEILING FAN E-AER52BRZ5LKRCI Manual de usuario

Harbor Breeze

Harbor Breeze 873 Manual de usuario

Harbor Breeze

Harbor Breeze BOD52MW3 Manual de usuario

Harbor Breeze

Harbor Breeze TG52BNK3D1RC Manual de usuario

Harbor Breeze

Harbor Breeze KEYPORT HUGGER 40141 Manual de usuario

Harbor Breeze

Harbor Breeze BELLHAVEN II E-BLHII52VPW5C4S Manual de usuario

Harbor Breeze

Harbor Breeze 40094 Manual de usuario

Harbor Breeze

Harbor Breeze E-WCK44ABZ5LKS Manual de usuario

Harbor Breeze

Harbor Breeze 35063 Manual de usuario

Harbor Breeze

Harbor Breeze 40945 Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
