DearCustomer,

Thank you for choosing a Hanna Product. Please read this instruction

manual carefully before using the instrument. It will provide you with

the necessary information for a correct use of the instrument, as well

as a precise idea of its versatility. If you require further technical

www. .com information@itm.com1.800.561.8187

HI9033,HI9034, HI9039, HI9130,HI 933100and HI 9635are

multirangeconductivity/TDSmeters withAutomaticTemperature Com-

pensation. These meters utilize the latest in four-ring potentiometric

technology which has been proven to provide higher accuracy than

the common amperometric method.

HI 9033, HI 9130, HI 933100 and HI 9635 have a range of 0 to

199900 µS/cm (µmho/cm); HI 9034 has a range of 0 to

19990mg/L (ppm). HI 9635 can also take TDS measurements in

the 0 to 100,000 mg/L range, and temperature measurements in

the 0.0 to 60.0°C range. Thanks to this wide measurement range,

these meters can be used to analyze any sample from deionized

water to brine.

In particular, HI 9130 with its white casing and easy operation has

been specifically designed for the food industry.

HI 9039 can measure conductivity, temperature and two different

types of fertilizer concentrations (F1 and F2) for applications in

agriculture and horticulture. To measure the fertilizer content, simply

standardize the two different fertilizer ranges. To monitor the quality

of the water used with the fertilizer, the conductivity must be checked.

Thisalso helps inthe selection of water to be mixed with the fertilizer.

The temperature of all conductivity/TDS measurements is automati-

Remove the instrument from the packing material and examine it to

make sure that no damage has occurred during shipping. If there is

any damage, notify your Dealer.

Each meter is supplied complete with:

• HI 76302W Conductivity Probe with 1 m (3.3') screened cable

•9 V battery (except HI 933100 and HI 9635 which are

supplied with 4 x 1.5VAA)

•Soft carrying case (HI 9130 only)

•Hard carrying case (except for HI 9130)

Note: Save all packing materials until you are sure that the

instrument functions correctly. Any defective item must be

returned in the original package together with the supplied

accessories.

PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION

PRELIMINARY EXAMINATION

GENERAL DESCRIPTIONGENERAL DESCRIPTION

GENERAL DESCRIPTION

www. .com information@itm.com1.800.561.8187

cally compensated for by the ATC circuitry of the meters. The stainless

steel rings of the probe have a large surface for better response and

easy cleaning. The detachable probe can be changed without

returning the unit to the factory. The probe cable is screened and 1

m (3.3') long.

The meters are constructed with a waterproof, rugged housing to

provide the versatility required for both laboratory and field use.

Another feature of the meters is the Battery Error Preventive System

(BEPS) which prevents erroneous readings due to low battery voltage.

Moreover, HI 9039,HI 933100 and HI 9635 are equipped with a

large LCD that helps the user through operation and calibration with

large comprehensive symbols. Besides displaying the selected range,

the LCD simultaneously displays the temperature. These meters are

microprocessor-based and perform buffer recognition and calibration

automatically.

For continuousmonitoring HI 933100andHI 9635are suppliedwith

built-in 12VDC sockets protected behind a waterproof cover.

The temperature coefficient of HI 933100 and HI 9635 is user-

selectable from 0.0 to 3.0%. The TDS/conductivity ratio (factor) of

HI 9635 can be set to 0.7 (F1) or 0.5 (F2).

FUNCTIONAL DESCRIPTION OFFUNCTIONAL DESCRIPTION OF

FUNCTIONAL DESCRIPTION OF

HI 76302W CONDUCTIVITY PROBEHI 76302W CONDUCTIVITY PROBE

HI 76302W CONDUCTIVITY PROBE

1) Watertight Shielded

Screened Cable

2) 4 Stainless Steel Rings

3) Air-Releaseholes

4) PVC Protective Sleeve

www. .com information@itm.com1.800.561.8187

FUNCTIONAL DESCRIPTION &FUNCTIONAL DESCRIPTION &

FUNCTIONAL DESCRIPTION &

SPECIFICATIONS OF HI 9033SPECIFICATIONS OF HI 9033

SPECIFICATIONS OF HI 9033

Range 0.0 to 199.9 µS/cm

0 to 1999 µS/cm

0.00 to 19.99 mS/cm

0.0 to 199.9 mS/cm

Resolution 0.1 µS/cm

1 µS/cm

0.01 mS/cm

0.1 mS/cm

Accuracy ±1% Full Scale, excluding probe error

(@20°C/68°F)

TypicalEMC ±1%Full Scale

Deviation

Calibration Manual single point

through trimmer on the case

Temperature Automatic from 10 to 40°C

Compensation (50 to 104°F) with ß of 2% °C

Probe HI 76302W with 1 m (3.3') cable

(included)

Battery Type/Life 1 x 9V; 100 hours of continuous use

Environment 0 to 50°C (32 to 122°F); 100% RH

Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")

Weight 425 g (15 oz.); Kit: 1.4 kg (3.1 lb.)

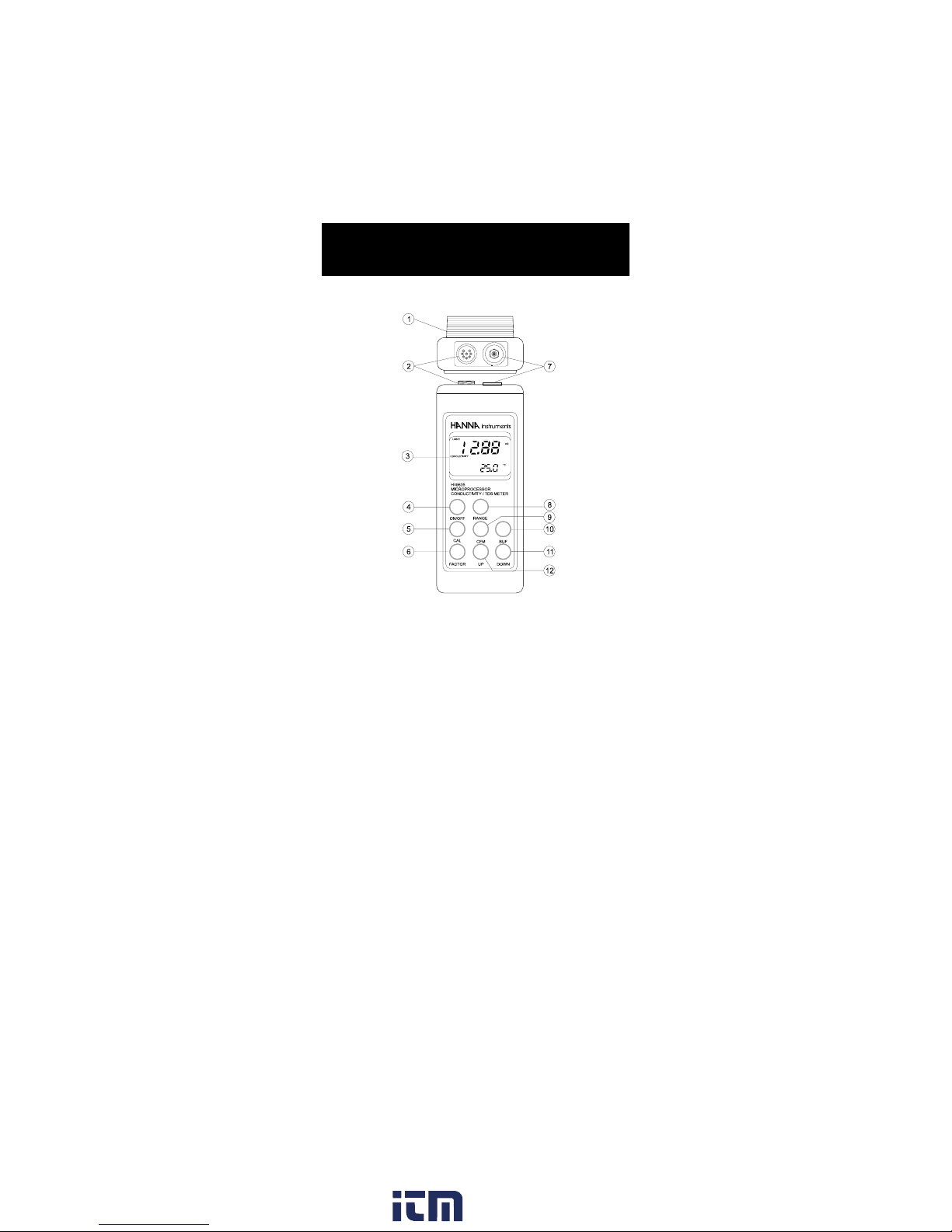

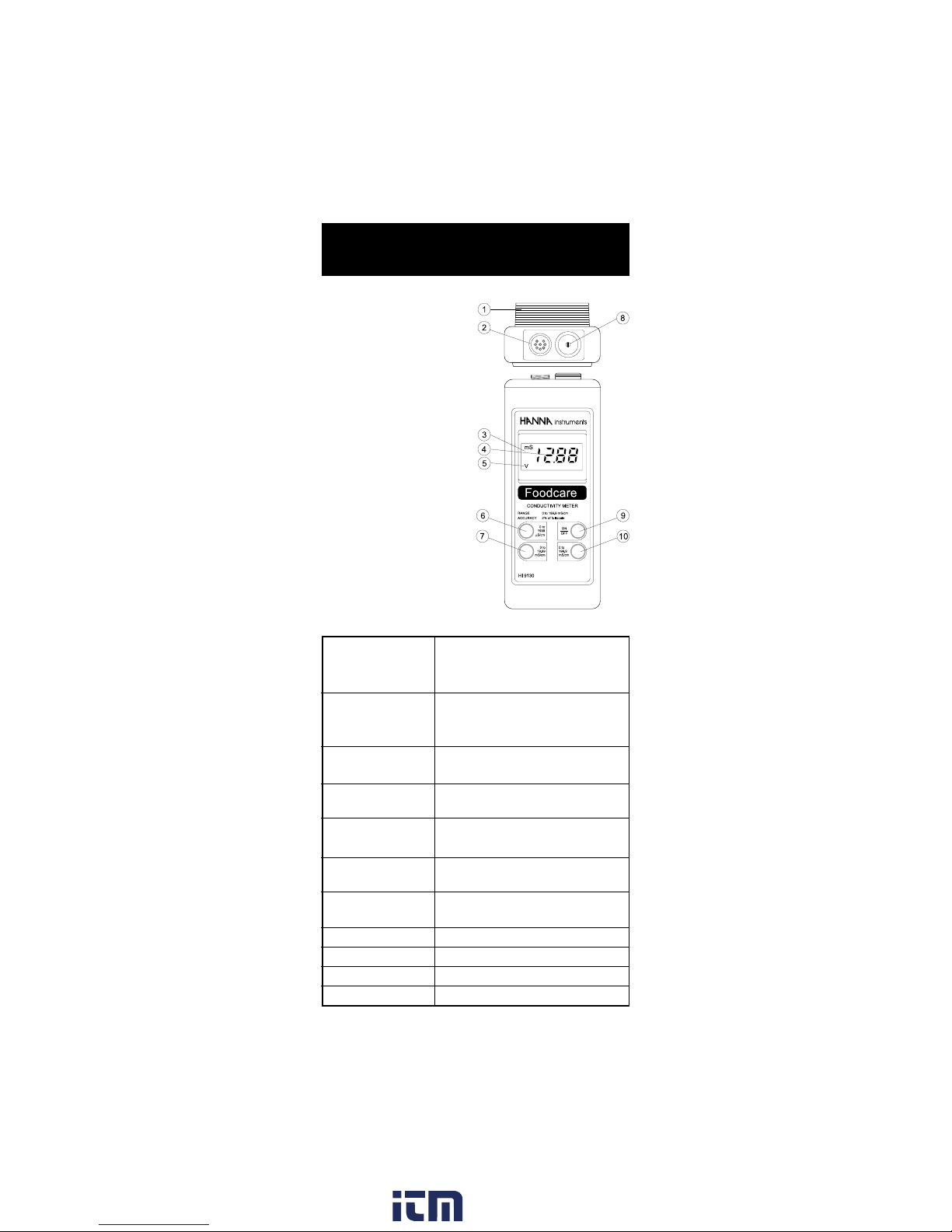

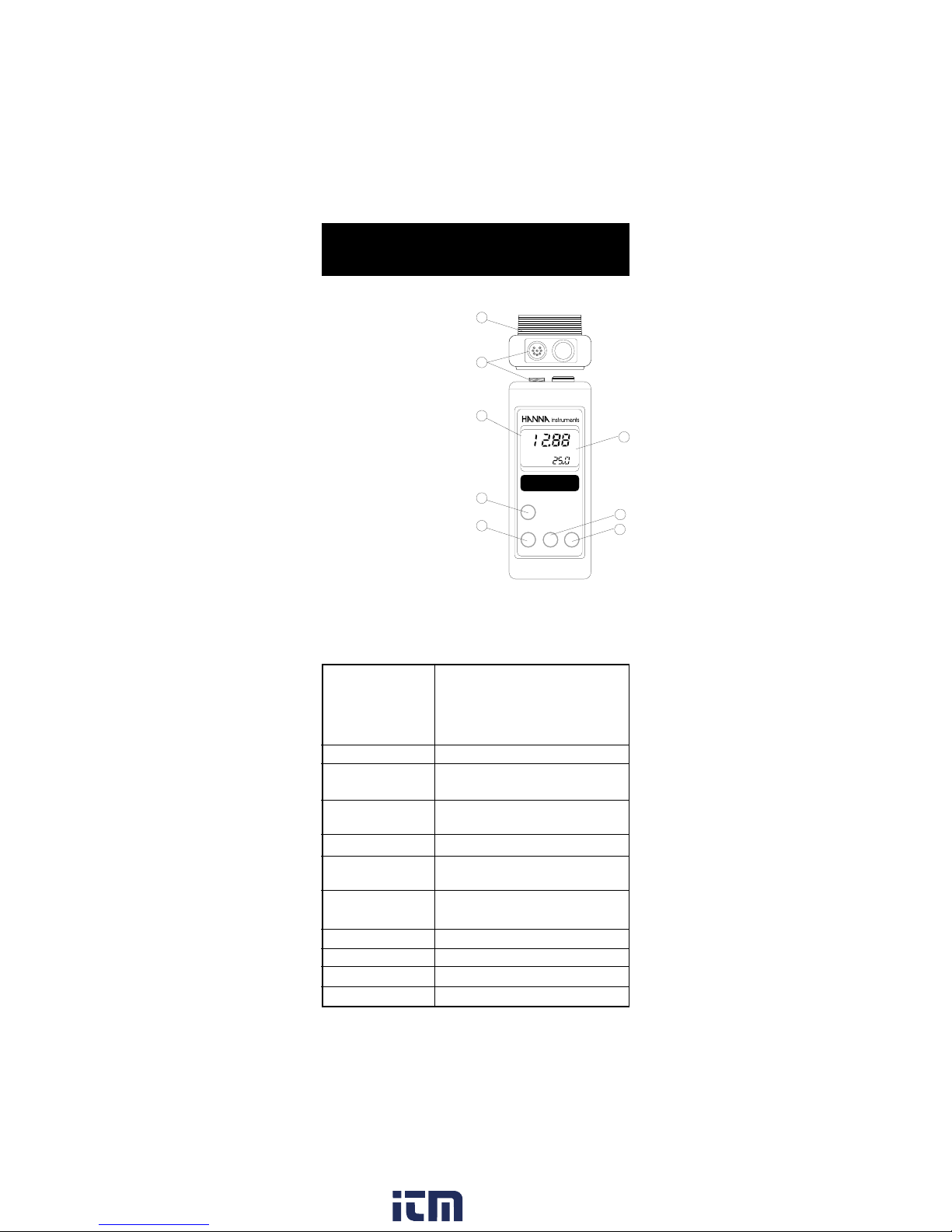

1) Battery Compartment

2) ProbeSocket

3) LCDDisplay

4) "mS" or "µS" Indicator

5) 'V' Low Battery Indicator

6) ON/OFF Key

7) 19.99 mS/cm Range

Selector

8) Conductivity Calibration

Trimmer

9) 199.9 µS/cm Range

Selector

10) 1999 µS/cm Range

Selector

11) 199.9 mS/cm Range

Selectorkey

www. .com information@itm.com1.800.561.8187

FUNCTIONAL DESCRIPTION &FUNCTIONAL DESCRIPTION &

FUNCTIONAL DESCRIPTION &

SPECIFICATIONS OF HI 9034SPECIFICATIONS OF HI 9034

SPECIFICATIONS OF HI 9034

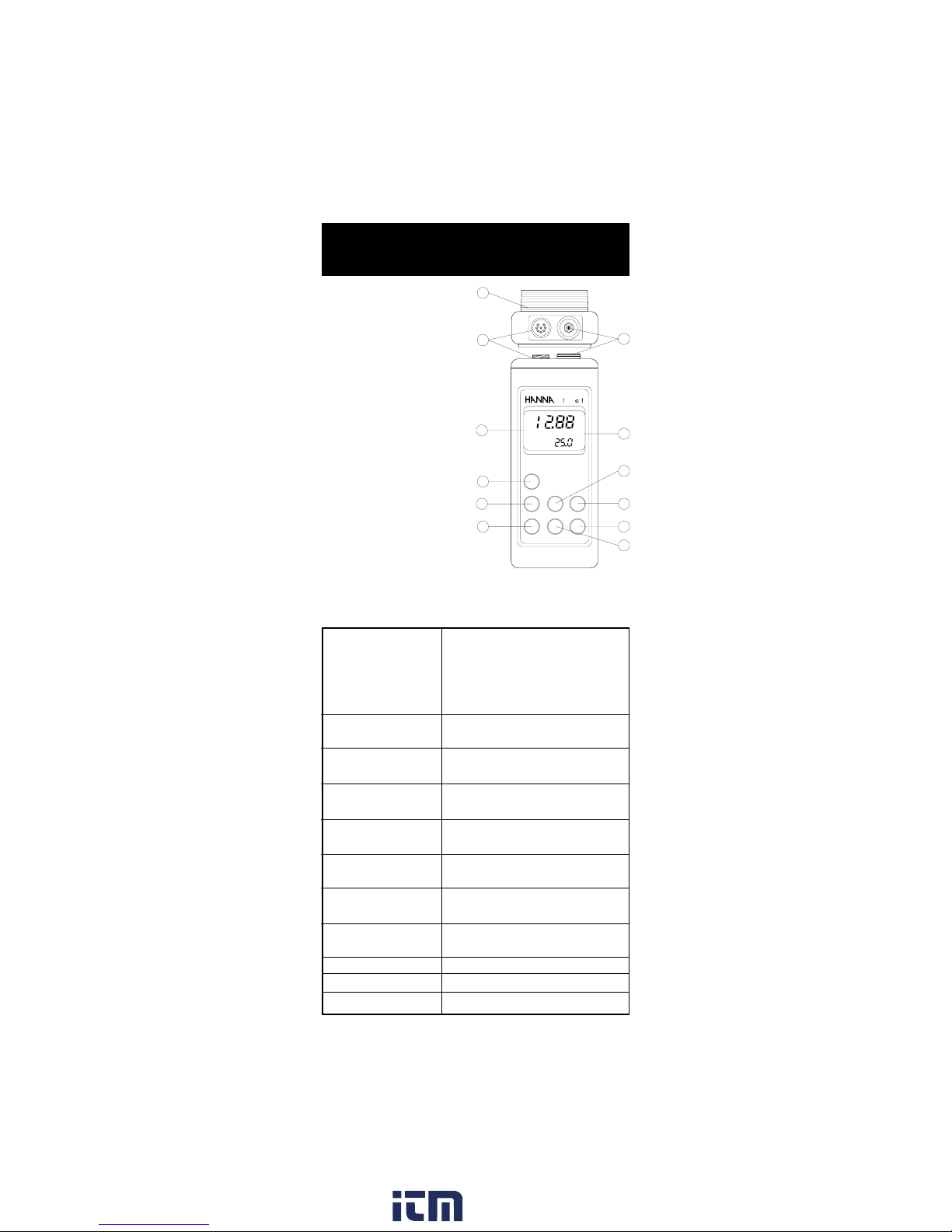

Range 0.0 to 199.9 mg/L

0 to 1999 mg/L

0.00 to 19.99 g/L

Resolution 0.1 mg/L

1 mg/L

0.01 g/L

Accuracy ±1% Full Scale, excluding probe error

(@20°C/68°F)

TypicalEMC ±1%Full Scale

Deviation

Calibration Manual single point

through trimmer on the case

Temperature Automatic from 10 to 50°C

Compensation (50 to 122°F) with ß of 2% °C

Probe HI 76302W with 1 m (3.3') cable

(included)

Battery Type/Life 1 x 9V; 100 hours of continuous use

Environment 0 to 50°C (32 to 122°F); 100% RH

Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")

Weight 425 g (15 oz.); Kit: 1.4 kg (3.1 lb.)

1) Battery Compartment

2) ProbeSocket

3) LCDDisplay

4) 'V' Low Battery Indicator

5) ON/OFF Key

6) 19.99 g/L Range Selector

7) TDS Calibration Trimmer

8) 1999 mg/L Range

Selector

9) 199.9 mg/L Range

Selector

www. .com information@itm.com1.800.561.8187

FUNCTIONAL DESCRIPTION &FUNCTIONAL DESCRIPTION &

FUNCTIONAL DESCRIPTION &

SPECIFICATIONS OF HI 9039SPECIFICATIONS OF HI 9039

SPECIFICATIONS OF HI 9039

Range Conductivity 0 to 9999 µS/cm

Temperature 0.0 to 50.0°C

Fertilizer 1 0.00 to 9.99 g/L

Fertilizer 2 0.00 to 9.99 g/L

Resolution 1 µS/cm; 0.1°C; 0.01 g/L

Accuracy ±1% Full Scale, excluding probe error

(@20°C/68°F)

TypicalEMC ±1%Full Scale

Deviation

Calibration Automatic, single point at 5000 µS/cm

Temperature Automatic from 10 to 50°C

Compensation (50 to 122°F) with ß of 2% °C

Probe HI 76302W with 1 m (3.3') cable

(included)

Battery Type/Life 1 x 9V; 100 hours of continuous use

Environment 0 to 50°C (32 to 122°F); 100% RH

Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")

Weight 425 g (15 oz.); Kit: 1.4 kg (3.1 lb.)

ON/OFF

RANGE CAL CFM

HI 9039

Microprocessor

Conductivity

Fertilizer meter

AGRICARE

CONDUCTIVITY

°C

1) Battery Compartment

2) ProbeSocket

3) LCDDisplay

4) ON/OFF Key

5) RANGE, to select

conductivity or tempera-

ture measurement mode

orfirst/secondfertilizer

6) 'V' Low Battery Indicator

7) CAL, to enter or exit

calibrationmode

8) CFM,to confirm

calibration reading

www. .com information@itm.com1.800.561.8187

FUNCTIONAL DESCRIPTION &FUNCTIONAL DESCRIPTION &

FUNCTIONAL DESCRIPTION &

SPECIFICATIONS OF HI 9130SPECIFICATIONS OF HI 9130

SPECIFICATIONS OF HI 9130

1) Battery Compartment

2) ProbeSocket

3) "mS" or "µS" Indicator

4) LCDDisplay

5) 'V' Low Battery Indicator

6) 0 to 1999 µS/cm Range

Selector

7) 0 to 19.99 mS/cm Range

Selector

8) Conductivity Calibration

Trimmer

9) ON/OFF Key

10) 0 to 199.9 mS/cm Range

Selector

Range 0 to 1,999 µS/cm

0.00 to 19.99 mS/cm

0.0 to 199.9 mS/cm

Resolution 1 µS/cm

0.01 mS/cm

0.1 mS/cm

Accuracy ±2% Full Scale, excluding probe error

(@20°C/68°F)

TypicalEMC ±1%Full Scale

Deviation

Calibration Manual single point

through trimmer on the case

Temperature Automatic from 10 to 40°C

Compensation (50 to 104°F) with ß of 2%/°C

Probe HI 76302W with 1 m (3.3') cable

(included)

Battery Type/Life 1 x 9V; 100 hours of continuous use

Environment 0 to 50°C (32 to 122°F); 100% RH

Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")

Weight 425 g (15 oz.); Kit: 1.4 kg (3.1 lb.)

www. .com information@itm.com1.800.561.8187

FUNCTIONAL DESCRIPTION &FUNCTIONAL DESCRIPTION &

FUNCTIONAL DESCRIPTION &

SPECIFICATIONS OF HI 933100SPECIFICATIONS OF HI 933100

SPECIFICATIONS OF HI 933100

1) Battery Compartment

2) ProbeSocket

3) Liquid Crystal Display

4) ON/OFF Key

5) CAL, to enter or exit cali-

bration mode

6) FACTOR, to set the tem-

peraturecoefficientorselect

the temperature mode

7) 12VDC PowerSocket

8) 'LOBAT' Low Battery

9) CFM, to confirm the cali-

bration reading

10) BUF, to select the calibra-

tion buffer value

11) DOWN,to setthe tempera-

ture coefficient or for manual temperature compensation setting

12) UP, to set the temperature coefficient or for manual tempera-

ture compensation setting

ins rum ns

CAL

ON/OFF

FACTOR UP DOWN

CFM BUF

HI 933100

MICROPROCESSOR

CONDUCTIVITY METER

CONDUCTIVITY

LO BAT

°C

Range Conductivity 0.0 to 150.0 µS/cm

150 to 1500 µS/cm

1.50 to 15.00 mS/cm

15.0 to 199.9 mS/cm

Temperature 0.0 to 60.0°C

Resolution 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm;

0.1 mS/cm; 0.1°C

Accuracy ±1% Full Scale; ±0.5°C

(@20°C/68°F) excluding probe error

TypicalEMC ±1%Full Scale

Deviation ±0.2 °C

Calibration Automatic, two points

at 0 and 1413 or 12880 µS/cm

Temperature Automatic or manual from 10 to 60°C

Compensation (50 to 140°F) with ß from 0 to 3%/°C

Probe HI 76302W with 1 m (3.3') cable

(included)

Battery Type/Life 4 x 1.5V AA; 150 hours of

continuous use. Power socket for 12VDC

Environment 0 to 50°C (32 to 122°F); 100% RH

Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.2")

Weight 425 g (15 oz.); Kit: 1.4 kg (3.1 lb.)

www. .com information@itm.com1.800.561.8187

FUNCTIONAL DESCRIPTION &FUNCTIONAL DESCRIPTION &

FUNCTIONAL DESCRIPTION &

SPECIFICATIONS OF HI 9635SPECIFICATIONS OF HI 9635

SPECIFICATIONS OF HI 9635

1) Battery Compartment

2) ProbeSocket

3) Liquid Crystal Display

4) ON/OFF Key

5) CAL, to enter or exit calibration mode

6) FACTOR, to show temperature, %TC or TDS factor on the

secondarydisplay

7) 12VDC PowerSocket

8) RANGE, to select the measurement mode

9) CFM, to confirm the calibration reading

10) BUF, to select the calibration buffer value

11) DOWN, to set the temperature coefficient or for manual tem-

perature compensation setting

12) UP, to set the temperature coefficient or for manual tempera-

ture compensation setting

www. .com information@itm.com1.800.561.8187

Otros manuales para HI 9033

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Hanna Instruments

Hanna Instruments

Hanna Instruments HI 96712 Manual de usuario

Hanna Instruments

Hanna Instruments BL 983327-0 Manual de usuario

Hanna Instruments

Hanna Instruments pH 21 Manual de usuario

Hanna Instruments

Hanna Instruments HI 98186 Manual de usuario

Hanna Instruments

Hanna Instruments AquaDip Manual de usuario

Hanna Instruments

Hanna Instruments DiST 2 Manual de usuario

Hanna Instruments

Hanna Instruments HI96719C Manual de usuario

Hanna Instruments

Hanna Instruments HI97737 Manual de usuario

Hanna Instruments

Hanna Instruments HI98190 Manual de usuario

Hanna Instruments

Hanna Instruments HI5321 Manual de usuario

Hanna Instruments

Hanna Instruments HI 4109 Manual de usuario

Hanna Instruments

Hanna Instruments HI 93733 Manual de usuario

Hanna Instruments

Hanna Instruments HI9146-04 Manual de usuario

Hanna Instruments

Hanna Instruments HI96707 Manual de usuario

Hanna Instruments

Hanna Instruments HI 96715C Manual de usuario

Hanna Instruments

Hanna Instruments HI84531-02 Manual de usuario

Hanna Instruments

Hanna Instruments HI 255 Manual de usuario

Hanna Instruments

Hanna Instruments HI 93114 Manual de usuario

Hanna Instruments

Hanna Instruments HI 9813-5 Manual de usuario

Hanna Instruments

Hanna Instruments HI96733C Manual de usuario

Hanna Instruments

Hanna Instruments HI 721 Manual de usuario

Hanna Instruments

Hanna Instruments HI97749 Manual de usuario

Hanna Instruments

Hanna Instruments Ammonia Medium Range Manual de usuario

Hanna Instruments

Hanna Instruments HI 758 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
