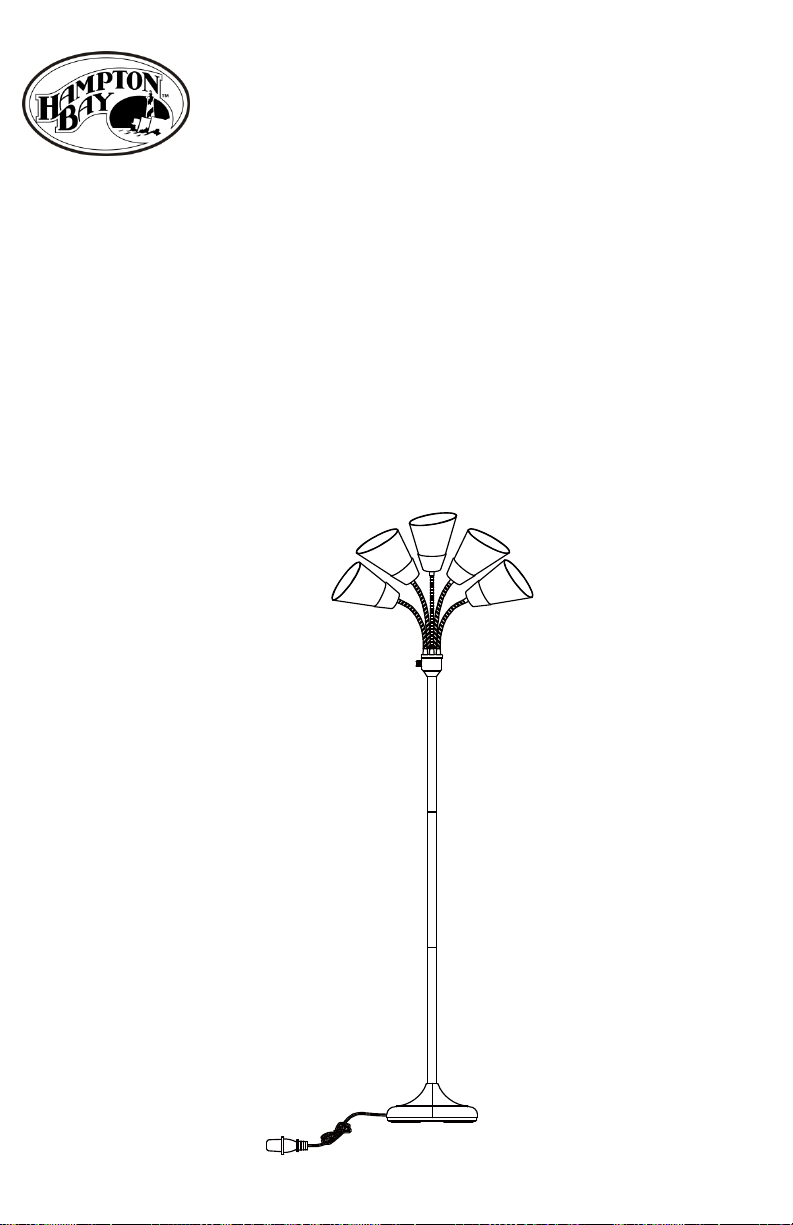

INSTRUCTION MANUAL
Floor Lamp with CFL Bulbs
Home Depot SKU 536 579
(UPC 798919079179)
Page 2
Thank you for purchasing this Hampton Bay interior
portable luminaire. This product has been manufactured
to the highest standards of safety and quality. The
durable finish and shade design provide for care-free
maintenance.
FEATURES:
1. Five gooseneck arms allow for maximum light
direction.
2. Lamp holder may be fitted with a CFL equivalent
energy-saving bulb(s).
QUESTIONS, PROBLEMS, MISSING PARTS:
Before returning to your local Home Depot, please call
our Customer Service Team at 1-877-527-0313 or visit
www.homedepot.com. Please reference your SKU
536 579 (UPC 798919079179) Floor Lamp with CFL
bulbs when speaking to a Customer Service agent.
CAUTION:
1. Before starting to assemble your portable luminaire,
spread all parts out on a clean flat surface. Inspect each
part for defects that may have occurred during shipping.
Be careful when unpacking the lamp since the wires are
connected. If the wires are pulled out of their connectors,
it may result in a bad connection.
Page 3
Important: Inspect the wire insulation for any cuts,
abrasions or exposed copper that may have resulted
during shipping. If there is a defect in the wire, DO NOT
continue the assembly operation. Please call our
Customer Service Team at 1-877-527-0313.
2. CONSULT A QUALIFIED ELECTRICIAN IF YOU
HAVE ANY ELECTRICAL QUESTIONS.
3. Keep your receipt and these Instructions for Proof of
Purchase.
4. This portable lamp has a polarized plug (one blade is
wider than the other) as a safety feature to reduce the risk
of electric shock. This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified
electrician. Never use with an extension cord unless plug
can be fully inserted. Do not alter the plug. CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE
BLADE OF PLUG TO WIDE SLOT AND FULLY
INSERT.
Page 4
G
B
C
D
E
I
H
F
F
H
A
PARTS INCLUDED FOR ASSEMBLY (parts are not
to scale):
1 ea –
Base (A)
3 ea –
Pole
(B-D)
1 ea –
Shade
holder (E
& H)
5 ea-
Shades
(F)
5 ea –
Socket
Ring (I)
5 ea-
13 W
CFL
Bulb
Page 5
ASSEMBLY INSTRUCTIONS:
1. Begin assembly at the bottom of the lamp.
2. Insert lamp pole (B) into base (A) and turn
clockwise to tighten.
3. Insert lamp pole (C) into lamp pole (B) and turn
clockwise to tighten.
4. Insert lamp pole (D) into lamp pole (C) and turn
clockwise to tighten.
5. Insert shade holder (E) into lamp pole (D) and turn
clockwise to tighten. Gently pull any excess cord
from point (G) so that the parts fit.
6. Put shade (F) on holder (H) and turn the socket ring
(I) clockwise to tighten. Repeat this step with the
other shades.
7. Install (5) 13W maximum CFL bulbs (included) or
(5) 60W maximum Type A bulbs (not included). Do
not use 3-way bulbs or halogen bulbs in this fixture.
Page 6
TROUBLESHOOTING:
PRODUCT MAINTENANCE:
1. To clean simply wipe with a soft dry cloth.
2. Do not use any cleaners with chemicals, solvents or
harsh abrasives.
Possible
Cause
Corrective Action
Bulb will
not light.
1. Bulb is burned
out.
1. Replace light
bulb.
2. Power is off.
2. Make sure power
supply is on.
3. Cord not plugged
in.
3. Make sure cord
is plugged into the
outlet.
4. Circuit breaker
off.
4. Make sure circuit
breaker is to the
„on‟ position.
Fuse
blows or
circuit
breaker
trips
when
light is
turned on.
1. Exposed wire
1. Discontinue use.
Unplug unit from
the wall and contact
a qualified
electrician or call
the Home Depot
Customer Service
Team at
1-877-527-0313.
Page 7
LIMITED WARRANTY
The manufacturer warrants this portable luminaire to be free
from defects in materials and workmanship for a period of one
(1) year from date of purchase. This warranty applies only to the
original consumer purchaser and only to products used in normal
use and service. If this product is found to be defective, the
manufacturer‟s only obligation, and your exclusive remedy, is
the repair or replacement of the product at the manufacturer‟s
discretion, provided that the product has not been damaged
through misuse, abuse, accident, modifications, alterations,
neglect or mishandling. This warranty shall not apply to any
product that is found to have been improperly installed, setup, or
used in any way not in accordance with the instruction supplied
with the product. This warranty shall not apply to a failure of the
product as a result of an accident, misuse, abuse, negligence,
alteration, or faulty installation, or any other failure not relating
to faulty material or workmanship. This warranty shall not apply
to the finish on any portion of the product, such as surface and/or
weathering, as this is considered normal wear and tear. The
manufacturer does not warrant and specially disclaims any
warranty, whether express or implied, of fitness for a
particular purpose, other than the warranty contained
herein. The manufacturer specifically disclaims any liability
and shall not be liable for any consequential or incidental
loss or damage, including but not limited to any labor /
expense costs involved in the replacement or repair of said
product.
Page 8
Page 9

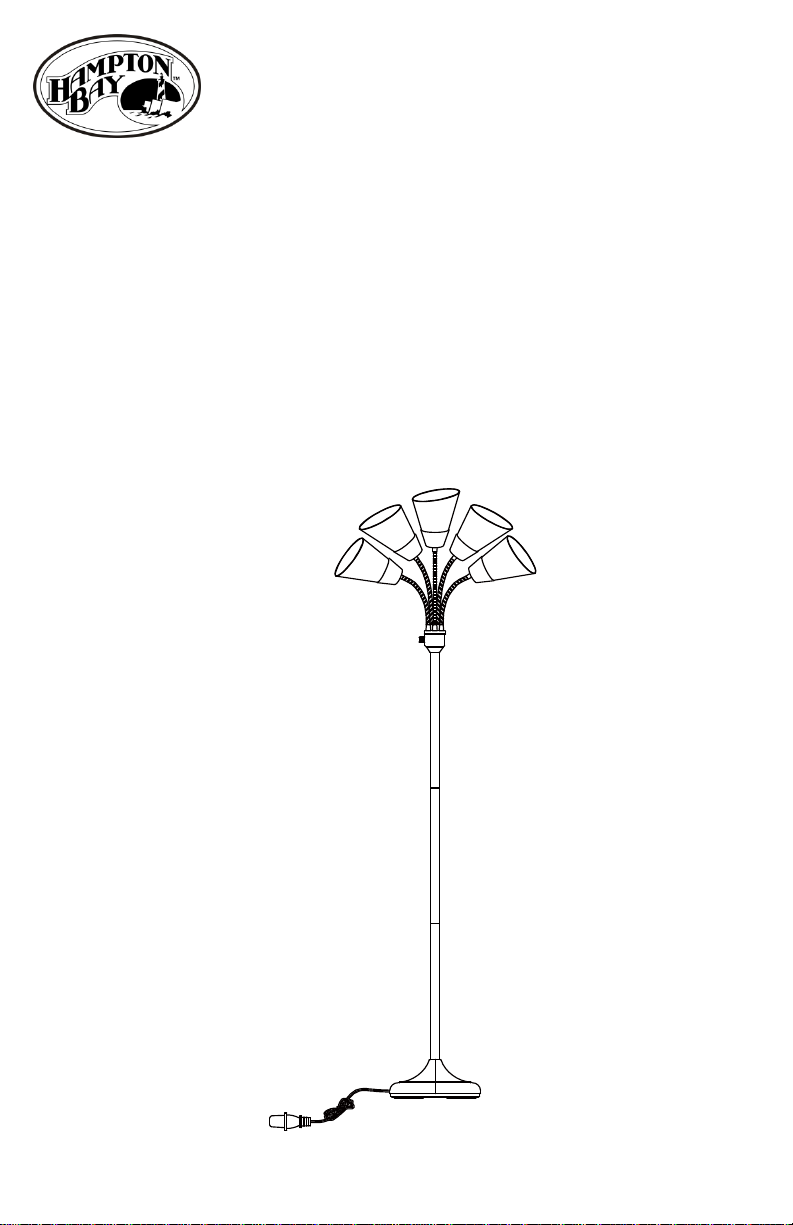

MANUAL DE INSTRUCCION
Lámpara de Pie con Bombillos CFL
Home Depot SKU 536 579
(UPC 798919079179)
Page 10
Gracias por comprar esta luminaria de interiores portátil
Hampton Bay. Este producto ha sido fabricado con los
estándares más altos de seguridad y calidad. El acabado
duradero y el diseño de la pantalla aseguran un
mantenimiento despreocupado.
CARACTERISTICAS:
1. Cinco brazos flexible de cuello de ganso permiten que
la luz sea dirigida al máximo.
2. El portalámparas puede ser encajado con un bombillo
CFL que ahorra energía.
PREGUNTAS, PROBLEMAS, PARTES FALTANTES:
Antes de devolver a su tienda local de Home Depot, por
favor llame a nuestro Equipo de Servicio al Cliente al 1-
877-527-0313 o visite www.homedepot.com. Cuando
hable con un agente de Servicio al Cliente por favor
refiérase a su SKU 536 579 (UPC 798919079179)
Lámpara de Pie con Bombillos CFL.
PRECAUCIÓN:
1. Antes de comenzar a ensamblar su luminaria portátil,
extienda todas las partes en una superficie plana y limpia.
Inspeccione cada parte para defectos que pueden haber
ocurrido durante el envio. Tenga cuidado al desempacar
la lámpara ya que los cables están conectados. Si los
