Hamilton Beach OG02 Instrucciones de instalación y funcionamiento

840212200

Type OG02 Gas Grill

Assembly and Operation Manual

Consumer Affairs: 1-800-267-2826

FOR OUTDOOR USE ONLY

Hamilton Beach Brands, Inc.

Glen Allen, Virginia 23060

STOP! TO PREVENT DAMAGING YOUR GRILL, READ THIS

MANUAL FIRST FOR IMPORTANT UNPACKING AND

ASSEMBLY INSTRUCTIONS!

TABLE OF CONTENTS

BEFORE YOU BEGIN

Message to Our Users .............................................................................................................. 3

Safety Symbols ......................................................................................................................... 3

Installation/Safety Precautions ................................................................................................. 4

Propane and Gas Warning ....................................................................................................... 4

Grill Parts List ............................................................................................................................ 5

Grill Parts Diagram .................................................................................................................... 8

ASSEMBLY

Before the Assembly ................................................................................................................ 9

Assembly Steps ...................................................................................................................... 13

POST-ASSEMBLY

Gas Connection ...................................................................................................................... 28

Leak Testing ............................................................................................................................ 31

Final Installation Checklist ...................................................................................................... 32

Grill Lighting Instruction .......................................................................................................... 33

Operating Instruction .............................................................................................................. 35

Using the SmokeStation™ Wood-Chip Smoker ................................................................... 37

Using the Culinary Baskets and Tray ..................................................................................... 37

Safety Tips .............................................................................................................................. 38

Care and Maintenance ........................................................................................................... 38

Troubleshooting ...................................................................................................................... 40

Food Safety ............................................................................................................................ 41

Grill Storage ............................................................................................................................ 41

• If you smell gas:

1. Shut off gas to the grill.

2. Extinguish any open flames immediately.

3. Open the grill lid.

4. If the odor persists, keep away from the grill and call your gas supplier or your

fire department immediately.

wDANGER

• Do not store or use gasoline or other flammable items in the vicinity of this grill or

any other appliance.

wWARNING

BEFORE YOU BEGIN

Thank you for your purchase of our gas grill. We sincerely hope you will enjoy using our fine

products.

• Please read this user’s manual in its entirety before using the grill.

• Please contact Consumer Affairs if you have any questions.

• Please read this user’s manual carefully. Failure to follow the provided instruction can

result in serious bodily injury and/or property damage.

• Some parts of this grill may have sharp edges. Please wear suitable protective gloves.

IMPORTANT: This grill is intended for outdoor use only and is not intended to be installed in

or on recreational vehicles or boats.

NOTE TO INSTALLER: Leave this user’s manual with the customer after delivery and/or

installation.

NOTE TO CONSUMER: Leave this user’s manual in a convenient place for future reference.

The symbols listed here are being used throughout this manual. Please pay

special attention to them. The meaning of each of the symbols is listed here:

This symbol indicates an imminently hazardous

situation which will result in death or serious bodily

injury if not followed properly.

wDANGER

wWARNING This symbol indicates serious bodily injury may result

if the instructions are not followed.

wCAUTION This symbol indicates a hazardous situation which

may result in minor or moderate bodily injury if the

instructions are not properly followed.

MESSAGE TO OUR USERS

SAFETY SYMBOLS

• This grill is designed to use natural gas only. This grill does not include natural gas hose.

Purchase the proper natural gas hose from local reputable dealer.

• The installation of this appliance must conform with local codes or, in the absence of local

codes, with either the National Fuel Gas Code,ANSI Z223.1/NFPA 54, or CAN/CSA

B149.1, Natural Gas and Propane Installation Code, or CAN/CSA B149.2, Propane

Storage and Handling Code.

• If an external electrical source is utilized, the outdoor cooking gas appliance, when installed,

must be electrically grounded in accordance with local codes or, in the absence of local

codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1. Keep the power cord of the motor away from the hot surfaces of the

grill while in use. Remove and store the motor in a dry place when not in use.

• This grill is safety-certified for use in the United States and Canada only. Never modify

to use in other places. Modification may cause serious bodily injury or property damage.

Hamilton Beach is not responsible for any modifications, and all warranties will be void.

wWARNING

READ THIS SECTION FIRST BEFORE INSTALLING THE GRILL

BEFORE YOU BEGIN

INSTALLATION/SAFETY PRECAUTIONS

1. Combustion by-products produced when using this product contain chemicals

known to the State of California to cause cancer, birth defects, and other

reproductive harm.

2. This product contains chemicals, including lead and lead compounds, known to

the State of California to cause cancer, birth defects, or other reproductive harm.

Wash your hands after handling this product.

wWARNING

CALIFORNIA PROPOSITION 65

TOTAL GAS CONSUMPTION:

Total gas consumption (per hour) of OG02 grill with all burners on HI:

Main burners 40,000 Btu/hr

Smoke burner 6,500 Btu/hr

Side burner 13,000 Btu/hr

Total 59,500 Btu/hr

KEY

DESCRIPTION

Lid

Silicone Rubber Bumper

Insulation Spacer, Lid Handle

Lid Handle

Logo Plate

Bezel, Temperature Gauge

Temperature Gauge

Culinary Basket

Culinary Tray

Cotter Pin

Main Burner

SmokeStation Burner

Cooking Grate

Heat Diffuser (Flame Tamer)

Rotate Rod, Side-Burner Lid

Side-Burner Lid

Side-Burner Grid

Side Burner

Located Pin, Side Burner

Ignitor Wire, Side Burner

Side-Burner Base

Right-Side Shelf

Right-Side Shelf Support

Right-Side Shelf Wall

Gas Valve, Side-Burner

Manifold, Side-Burner

Control Knob

Right-Front Leg

Right Panel

Right-Back Leg

QUANTITY

PART NUMBER

990129200

990137200

990137300

990127500

990135300

990135400

990127300

990134800

990134900

990137400

990128200

990131600

990134700

990128100

990132400

990132600

990132700

990132900

990133000

990132800

990133100

990133200

990133400

990133300

990141300

990132000

990128500

990134600

990131400

990131300

BEFORE YOU BEGIN

GRILL PARTS LIST

KEY

DESCRIPTION

Match Holder Bracket

(Nylon Knot)

Match Holder

Rotate Pin, Lid

Firebox

Culinary Basket Bracket

Control Panel Bracket

Door Bracket

Right-Door Pin Bracket

Left-Door Pin Bracket

Magnet Box

Magnet

Grease Accumulate Panel

Grease Cup Clip

Grease Cup

Manifold, Main Burner

Gas Valve, Main Burner

Gas Valve, SmokeStation™

Burner

Side Burner, Gas Pipe

Control Panel

Control Knob, SmokeStation™

Burner

Bezel, SmokeStation™

SmokeStation™ Tray

Bezel, SmokeStation™ Tray

SmokeStation™ Tray Handle

Right Door

Toolbox Bracket

QUANTITY

PART NUMBER

990137000

990137100

990137500

990129300

990137600

990137700

990132200

990135700

990131000

990132300

990132500

990130900

990135000

990135100

990131900

990141100

990141200

990137900

990131500

990138000

990138100

990135200

990138200

990138300

990132100

990134400

BEFORE YOU BEGIN

GRILL PARTS LIST

KEY

DESCRIPTION

Toolbox

Left Door

Bottom Shelf

Swivel Caster, Right-Front

Swivel Caster With Brake,

Left- and Right-Back

Standard Caster, Left-Front

Back Panel

Left-Front Leg

Left Panel

Left-Back Leg

Left-Side Shelf

Left-Side Shelf Support

Left-Side Shelf Wall

QUANTITY

PART NUMBER

990134300

990131100

990133900

990133800

990138400

990138500

990131200

990134100

990134500

990134200

990135800

990140800

990140900

BEFORE YOU BEGIN

GRILL PARTS LIST

BEFORE YOU BEGIN

GRILL PARTS DIAGRAMGRILL PARTS DIAGRAM

ASSEMBLY

BEFORE THE ASSEMBLY

READ AND FOLLOW THE INSTRUCTIONS BELOW TO CORRECTLY UNPACK

GRILL PARTS FROM SHIPPING BOX.

STEP 1:

1. Open shipping box by slicing down its edges with a box cutter. Take out the four legs and

bottom shelf. Next, remove the door bracket, grease cup, and grease cup clip. Take two

doors and two side panels out of protective Styrofoam, as shown in Fig. A, but leave grill

head in Styrofoam until Step 2. Remove all parts from plastic bags.

Back Panel

Cardboard

Door Bracket

Grill Head Fig. A

Grease Cup and

Grease Cup Clip

Panels

Doors

Manual

Legs

Bottom Shelf

Styrofoam

Cardboard

Styrofoam

Cardboard

ASSEMBLY

BEFORE THE ASSEMBLY

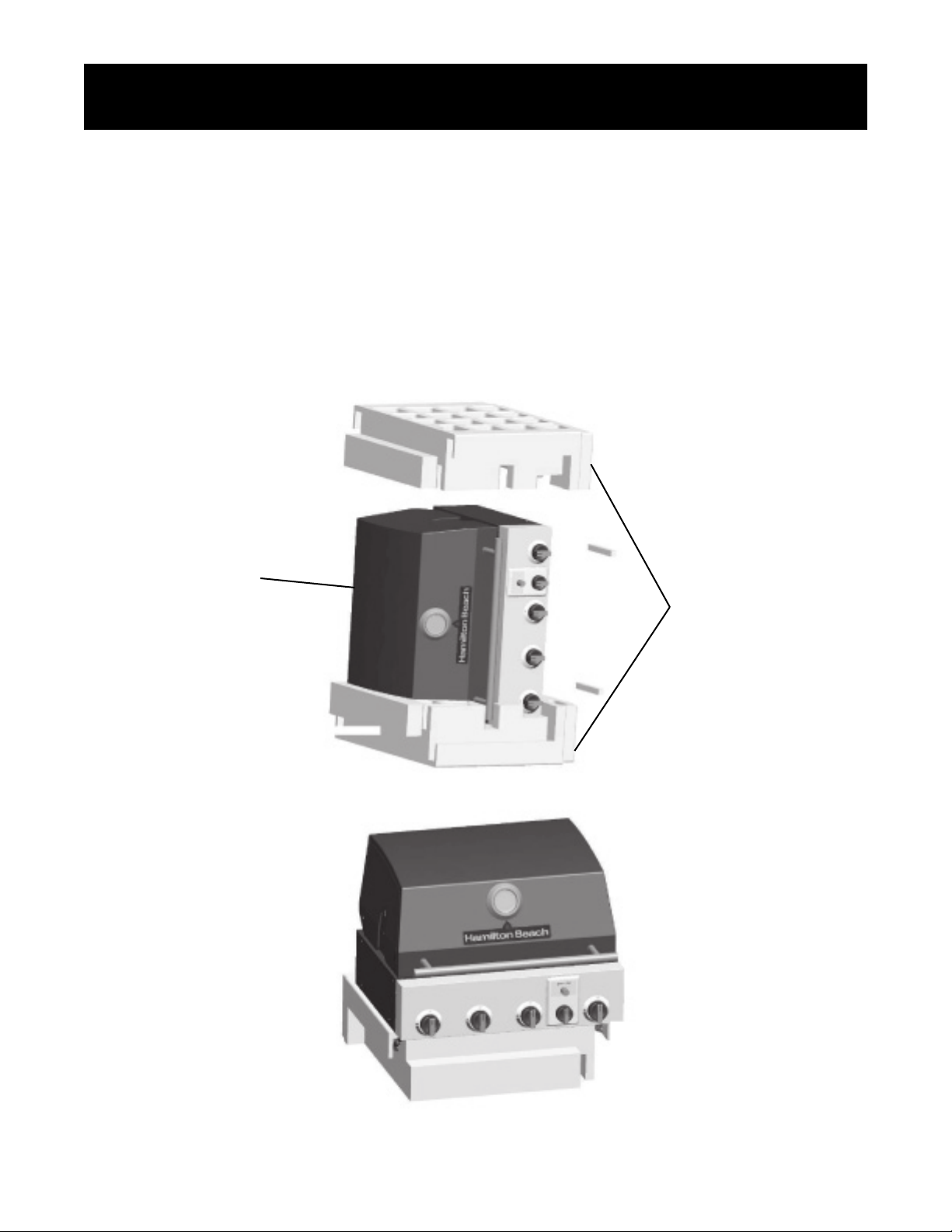

STEP 2:

1. With the aid of an assistant, turn grill head over on its side as shown in Fig. B below and

remove the top Styrofoam piece. Lay the Styrofoam piece flat on the floor. With the aid

of an assistant, lift the grill head out of the bottom Styrofoam piece. Place the grill upright

on the other styrofoam piece as shown in Fig. C.

NOTICE: DO NOT place the grill head directly on the floor or the grease tray could become

bent.

Fig. C

Fig. B

Styrofoam

Grill Head
