User’s Manual

Model HR-733

Fiber optic Video Extender

Extend HDMI™/DVI or VGA/YPbPr

together with Full-Duplex RS-232 over a

Single Fiber Optic Cable

UMA1183 Rev A

HDMI, VGA/YPbPr, and Serial over Single Fiber

TRADEMARKS USED IN THIS MANUAL

Hall Research and its logo are trademarks of Hall Research.

Any other trademarks mentioned in this manual are acknowledged as the property of the

trademark owners.

FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment generates, uses, and can radiate radio frequency energy and if not installed

and used properly, that is, in strict accordance with the manufacturer’s instructions, may

cause interference to radio communication. It has been designed to comply with the limits

for a Class A computing device in accordance with the specifications in Subpart B of Part

15 of FCC rules, which are intended to provide reasonable protection against such

interference when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case the user at

their own expense will be required to take whatever measures may be necessary to correct

the interference.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

HDMI™, the HDMI™ Logo, and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI™ Licensing LLC

Model HR-733

Table of Contents

1.0 General ............................................................................................... 3

2.0 Features .............................................................................................. 3

3.0 Precautions......................................................................................... 4

4.0 Theory of Operation.......................................................................... 5

5.0 Installation.......................................................................................... 6

5.1 Required Cables............................................................................... 6

5.2 Inputs & Outputs.............................................................................. 6

5.3 Fiber Optic Cable Requirements...................................................... 6

5.4 Status of LED Indicators.................................................................. 7

6.0 Operation............................................................................................ 8

6.1 Front Panel Buttons ......................................................................... 8

6.2 HR-733-S LCD Menu System ......................................................... 9

6.3 LCD Menu Detailed Descriptions.................................................. 13

6.4 More on RS-232 ............................................................................ 15

6.5 Using the HR-733-S in Command Mode....................................... 16

6.6 RS-232 Control Commands........................................................... 17

7.0 Troubleshooting............................................................................... 18

8.0 Specifications.................................................................................... 18

HDMI, VGA/YPbPr, and Serial over Single Fiber

1.0 General

Thank you for purchasing the Hall Research HR-733 fiber-optic video

Extender. The HR733 is a 3 input multi-format HD video extender with

bi-directional RS-232 extension and control.

The device can select among 2 HDMI (or DVI) inputs and 1 VGA (or

YPbPr) input and extend the selected source as an uncompressed digital

signal over a single multi-mode fiber to a remote receiver. The device

supports embedded audio on the HDMI inputs, and provides separate R/L

analog or SPDIF (TOSLINK) digital audio inputs for the VGA input.

The HR-733 can also extend a bi-directional data channel (CEC, or RS-

232 Serial) over a single multi-mode (OM2 or OM3) fiber optic cable

spanning distances of up to 1000m (3280ft).

The compact remote unit provides an HDMI output (with embedded

audio) for simple AV connectivity to any display.

The RS-232 port can be used as an extension, or at the same time it can be

used to control the Sender (e.g. to select inputs). A user-friendly front

panel with high-contrast alphanumeric LCD enables the user to easily set

up and control the system.

Advanced features include: automatic scaling of the analog video input to

match the native resolution of the remote display, diagnostic messages on

the front panel LCD (e.g. RS-232 strings sent or received), audio delay of

the analog input to correct lip-sync, support for CEC data channel of

HDMI (choice of RS-232 or CEC extension), and 3D deep-color HDMI

1.4 support (without ARC or Ethernet extension).

The Sender unit is designed as a ½ wide 1RU with threaded holes so that

two can be mounted side by side on a tray (Model RMS-1U-1A), or a

single unit can be rack mounted using supplied brackets (pair of F10375).

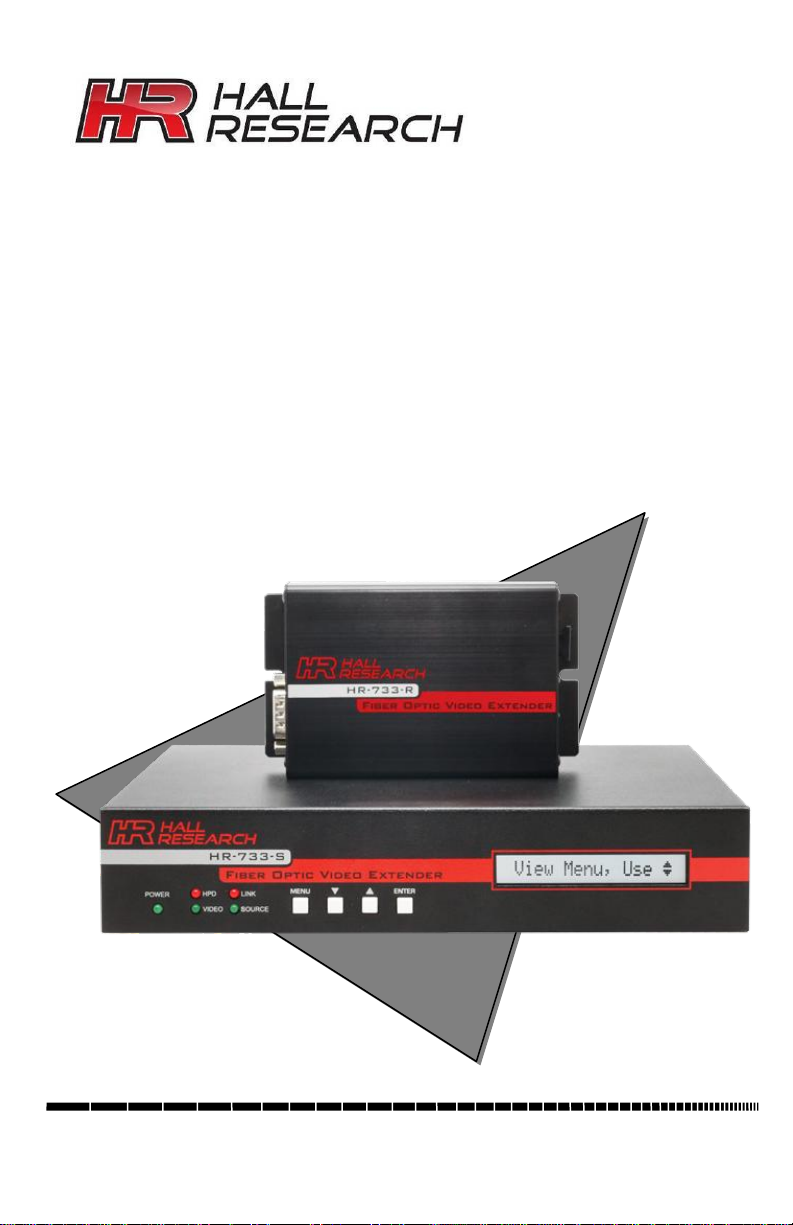

Figure 1 –Model HR-733 Sender and Receiver

2.0 Features

Model HR-733

3 video inputs (2 HDMI and 1 VGA/YPbPr with Audio)

Transmits uncompressed HDMI video along with RS-232 to 1000m

Supports Deep-color (HDMI 1.3 or 1.4) and 3D

Compatible with DVI video (with DVI to HDMI input cable)

Converts PC VGA or component video and audio to HDMI at any

resolution

Automatically detects VGA/YPbPr input and timing parameters

Front panel LCD readout for easy setup and control

Status indication of fiber-optic link, remote LCD (hot-plug), and

Source video

Bi-directional RS-232 data transmission between the sender and the

receiver

RS-232 control of the input source selection and setup

1RU high Sender includes rack-mount brackets, and Receiver has

surface mounting provisions

Safety interlock does not turn on high-power fiber LED drivers

unless fiber-optic cable is plugged in at both ends

Front panel button functions can be locked through serial port

Locking HDMI connectors

Green design, turns off parts of circuit when they are not in use

Compact, Rugged, Reliable, and Economical

Made in USA

3.0 Precautions

This device is a Class 3R Laser device

(per IEC 60825-1:2007) and can cause

damage to eye sight if used improperly.

Refer to ANSI Z136 for proper handling

and usage of Class 3R devices.

This device is sensitive to Electrostatic

Discharge (ESD). Prior to touching the

unit (especially the connectors), touch a

grounded object, and make sure the

devices that will be plugged in to the

HR-733 are properly grounded.

HDMI, VGA/YPbPr, and Serial over Single Fiber

4.0 Theory of Operation

The Sender provides both digital (HDMI/DVI), and analog (VGA/YPbPr

+ audio) inputs. However, in the fiber video is transmitted as digital

regardless of the selected input, and always comes out as HDMI on the

receiver with audio embedded in the video on the same connector. When

the analog input is selected, its video and audio are digitized and scaled to

match the native resolution of the remotely connected LCD.

The video data is transmitted on only one multi-mode fiber. The reason

multi-mode cable is needed is because the TMDS data are transmitted

over a range of optical wavelengths to reduce bandwidth requirement at

any particular wavelength. The TMDS signals use LED lasers to drive the

cable. However, for safety reasons, these lasers are not turned on if no

fiber optic cable is plugged in at both the Sender and Receiver.

Additional (non-video) DVI or HDMI signals are also seamlessly

connected between the source and the sink device. These include:

DDC Channel (SDAT and SCLK) for EDID and HDCP

Hot Plug Detect (to detect remote monitor connection)

Source Active +5vDDC (to indicate to sink there is a source)

In addition, the fiber-optic link provides a general purpose bi-directional

data lane that can be assigned by the user to be used as RS-232 pass-

through between sender and receiver, or to extend the CEC standard of the

HDMI. Currently CEC is seldom used in pro-AV installations, and its

implementation varies from one TV manufacturer to another, so as default

the HR-733 uses the data lane for RS-232 communication and control.

However, the CEC can be selected by the user, in which case the RS-232

port on the remote unit will not serve any function (the RS-232 port on the

Sender can still be used for source selection).

Figure 2 - Connection Block Diagram

Model HR-733

Figure 3

SC Fiber Connector

5.0 Installation

5.1 Required Cables

1 or 2 HDMI cables to connect up to 2 HDMI sources to the HR-

733-S

HDMI cable to connect the HR-733-R to the HDMI display

HD-15 male-to-male VGA cable to connect a PC analog video or

an HD-15 to 3-RCA for component YPbPr DVD video

connection to the HR-733-S

3.5mm stereo audio cable or optical (TOSLINK) audio cable to

connect associated audio of VGA/YPbPr source to the sender

RS-232 DB9 male-to-female (pin to pin) cable to connect the

HR-733-S’s serial port to a PC

Multi-mode (MM) fiber-optic cable to connect the HR-733-S and

HR-733-R

5.2 Inputs & Outputs

The HR-733-S has 2 HDMI inputs, 1 VGA/YPbPr input with audio, and a

bi-directional RS232 port. The audio source of the VGA/YPbPr input can

be either 3.5mm L/R stereo or optical.

The HR-733-R has l HDMI output and 1 bi-directional RS232 port.

5.3 Fiber Optic Cable Requirements

Each end of the HR-733 uses a single SC connector and requires a multi-

mode fiber-optic cable. Unlike some other fiber-optic equipment that may

work with either single-mode or multi-mode cables,

the HR-733 is not compatible with single-mode

cables. Multi-mode cables are generally available in

OM1, OM2, or OM3 constructions. The OM3

cables are best suited for max transmission lengths

and are recommended for this product.

HDMI, VGA/YPbPr, and Serial over Single Fiber

Data Rate

OM1

(62.5/125 µm )

OM2

(50/125 µm )

OM3

(50/125 µm )

1.65 Gb/s

(HDMI 1.2a)

250 m (820 ft)

500 m (1640 ft)

1000 m (3280 ft)

3.4 Gb/s

(HDMI 1.3, 1.4)

150 m (500 ft)

250 m (820 ft)

500 m (1640 ft)

The above table shows the maximum possible cable lengths based on data

rates for 1080p resolution with normal 8-bit color per HDMI 1.2a, as well

as deep color per HDMI 1.3 or 1.4, versus different cable constructions.

The max specified distances disregard inter-pair skew. A maximum inter-

pair skew of 0.6 * Tpixel (as required by HDMI specifications) would

limit the max distance to 600 meters regardless of cable construction at

1080p resolution. However, most HDMI equipment can tolerate skews

larger than that.

5.4 Status of LED Indicators

PWR: Solid GREEN –Unit is in operation.

OFF –Unit is off or not operational.

LINK: Solid RED –Optical link has been established between

the sender and the receiver.

OFF –Optical link has not been established between the

sender and the receiver.

SOURCE: Solid GREEN –Source detected on the sender.

OFF –No source detected on the sender.

(Note that for Source #3 VGA input, due to the built-in

Converter, the source LED will be lit regardless of

connection of VGA input)

HPD: Solid RED –Hot plug detect is active (there is a monitor

plugged to the remote unit and/or it is turned on).

OFF –No hot plug detect is present (there is no LCD

connected to the remote, or it is off).

VIDEO: Solid GREEN –There is TMDS clock (digital video is

coming from Source)

OFF –Source is not outputting digital video.

(Note that for Source #3 VGA input, due to the built-in

Converter, the source LED will be lit regardless of

connection of VGA input)

Model HR-733

6.0 Operation

The HR-733-S has 4 buttons and an LCD display on the front panel which

allows users to easily navigate through the menu and change the settings.

6.1 Front Panel Buttons

The 4 buttons are used to do the following tasks:

The UP and DOWN buttons indicated by ▲and ▼can be used

to navigate through the menu and to adjust the setting.

The ENTER button when pressed will go into the selected

menu. It is also used to save the setting when you exit.

The MENU is used to exit to the previous menu without saving

the setting.

NOTE

Symbol on the LCD is used to indicate the currently

selected option

Figure 4 –HR-733-S Front and Rear Views

Figure 5 –HR-733-R Front and Rear Views

Tabla de contenidos

Otros manuales de Extensor de Hall Research Technologies

Hall Research Technologies

Hall Research Technologies EX-HDMI-2A Manual de usuario

Hall Research Technologies

Hall Research Technologies UH-1C Manual de usuario

Hall Research Technologies

Hall Research Technologies UHBX-S Manual de usuario

Hall Research Technologies

Hall Research Technologies Mini-Cat UH1-BT Manual de usuario

Hall Research Technologies

Hall Research Technologies U97-ULTRA Manual de usuario

Hall Research Technologies

Hall Research Technologies UHBX-S-WP Manual de usuario

Hall Research Technologies

Hall Research Technologies UD2A-EDID Manual de usuario

Hall Research Technologies

Hall Research Technologies SP-DVI-2A Manual de usuario

Hall Research Technologies

Hall Research Technologies UHBX-8X Manual de usuario

Hall Research Technologies

Hall Research Technologies UH-2C Manual de usuario

Hall Research Technologies

Hall Research Technologies UU-2X4 Manual de usuario

Hall Research Technologies

Hall Research Technologies U3CAT6 Series Manual de usuario

Hall Research Technologies

Hall Research Technologies UH-2C-3S Manual de usuario

Hall Research Technologies

Hall Research Technologies EMX-DVI Instrucciones de funcionamiento

Hall Research Technologies

Hall Research Technologies VERSA-4K Series Manual de usuario

Hall Research Technologies

Hall Research Technologies UH-2D-3S Manual de usuario

Hall Research Technologies

Hall Research Technologies ULTRA-4K Series Manual de usuario

Hall Research Technologies

Hall Research Technologies EXHD-RG6 Manual de usuario

Hall Research Technologies

Hall Research Technologies UH-1D Manual de usuario

Hall Research Technologies

Hall Research Technologies FXT-460 Manual de usuario

Hall Research Technologies

Hall Research Technologies U22-160 Manual de usuario

Hall Research Technologies

Hall Research Technologies ECHO Series Manual de usuario

Hall Research Technologies

Hall Research Technologies U97-H2 Manual de usuario

Hall Research Technologies

Hall Research Technologies U2-160-DP Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
