Hakko Electronics 815 Manual de usuario

English

ねじ（３ケ所を外す）

ソケット部を浮かす

コネクターを抜く

日本文

中文

English

 !"#$%&'()OQ OP



 !"#$%&'%()*+,-.&/0

 !"#$%&'

e^hhlUNR !"

 !"#$%&'()*+,-./,

 !"#$%&'(

== !"#$%&'

= !"

NK  !"#$%&

OK P !

= !"#

NK  !"#$%&'()*+

OK  !"#$%&'()*

= !"#

 !"#$%&'()*+,-.%/0

 !"#$%

NK  !"#$%&'(N !"#$P



OK  !"#$%&'()*+,-.#/

`^i !"#$%&'(PUM

 !"#$%&'()*+,

e^hhlNVN !"#e^hhlNVO

 !"

= !

P !"#$%&'(

=

 !"#$%&'()*+,-./012 3

 !"

English

Replacing the heating element

A normal resistance value of a heating element

is 2 to 4 Ω{at 23°C (73°F)}.

If the measured resistance value is out of above

range, replace the heating element as shown in

the figure.

Heating element for the Hakko 815

The heating element is integrated with the heat-

ing core and cannot be separated.

Attempting to do so may damage the heating

element.

WARNING Unplug the power cord before replacing the heating element.

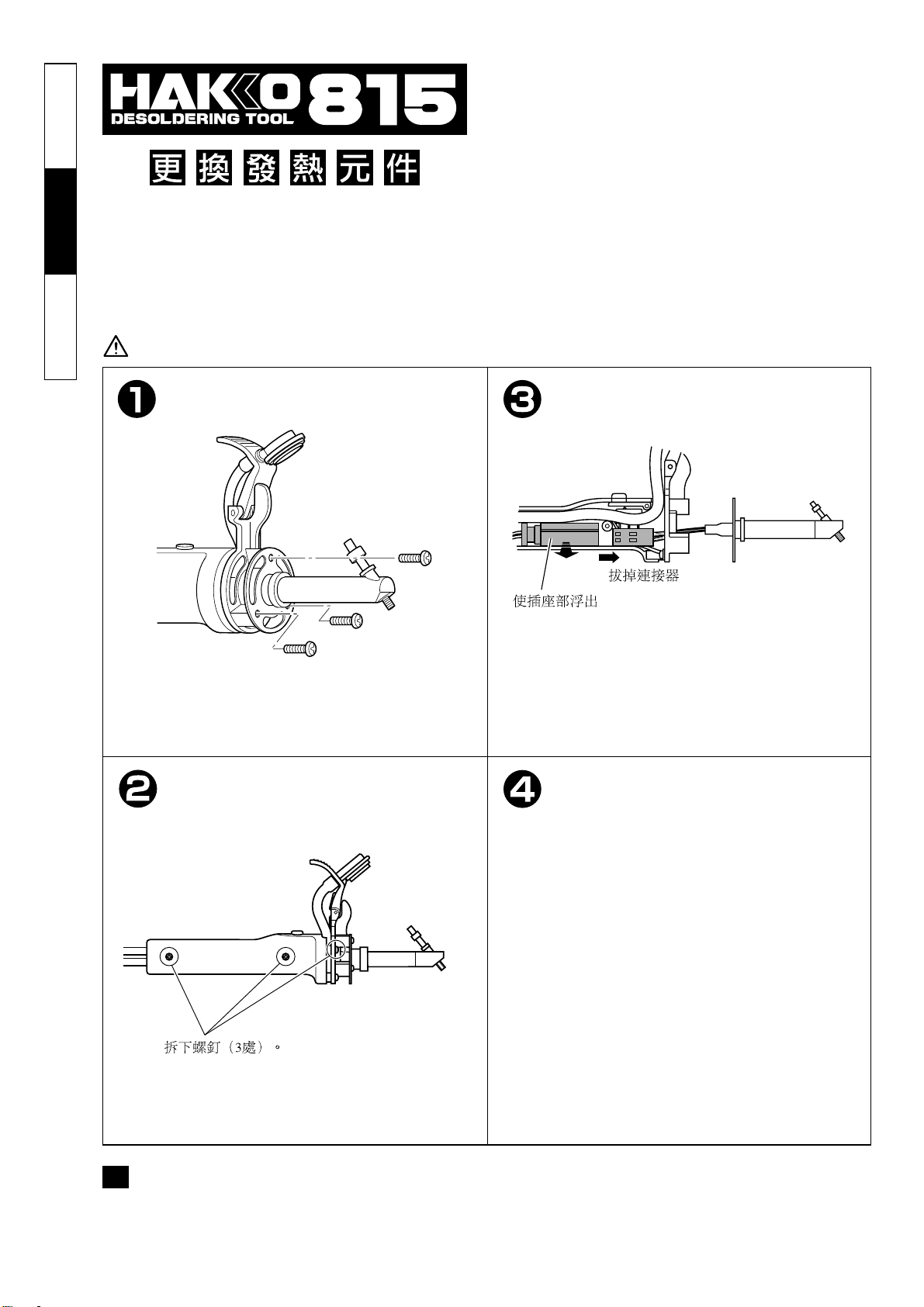

Disassemble the heat-

ing section.

1.Remove the filter pipe and nozzle.

2.Remove the screws (three).

Replacing the heating

element

1.Disconnect the connector and remove the

heating element.

2. Install a new heating element and reassemble.

Remove the screws (three)

Lift up socket part

Disconnect connector

Calibrate the tempera-

ture.

Be sure to calibrate the temperature after re-

placing the heating element in order to ensure

accurate temperature control.

1.Set the temperature control knob to “1” and

heat the nozzle for three minutes.

2. Use a straight-edge (-) screwdriver to adjust the

potentiometer (hole marked CAL) of the station

until the nozzle temperature reads 380°C

(716°F).We recommend using the Hakko 191

(thermometer) or the Hakko 192 (soldering

tester) to measure the nozzle temperature.

Remove the handle.

Remove the screws (three) and open the

handle.

Note

Should the Hakko 815 ever need repair, please send both the iron and the station to your Hakko agent.

〒556-0024大阪市浪速区塩草2丁目4番5号

ＴＥＬ：（06）6561-1574（代）ＦＡＸ：（06）6568-0821



http://www.hakko.com/

OVERSEAS AFFILIATES

U.S.A.: AMERICAN HAKKO PRODUCTS, INC.

TEL: (661) 294-0090 FAX:(661) 294-0096

Toll Free (800)88-HAKKO

4 2 5 5 6

http://www.hakkousa.com

HONG KONG: HAKKO DEVELOPMENT CO., LTD.

TEL: 2811-5588 FAX: 2590-0217

http://www.hakko.com.hk

E-mail:info@hakko.com.hk

HEAD OFFICE

TEL:+81-6-6561-3225 FAX:+81-6-6561-8466

http://www.hakko.com E-mail:[email protected]

SINGAPORE: HAKKO PRODUCTS PTE., LTD.

TEL: 6748-2277 FAX: 6744-0033

http://www.hakko.com.sg

E-mail:sales@hakko.com.sg

Please access to the following address for the other Sales affiliates.

http://www.hakko.com/address

2003. 5

MA01185JU030526
