Haier HVTB40DPABS Manual de usuario

IDua[ Co_part_en_ Dual Zone Wine Cel_l_alr

User Manua[

_'_od÷[ # HVTB4ODPABS

When using this appliance, always exercise basic safety

precautions, including the following:

1. Read all of the instructions before using this appliance.

Use this appliance only for its intended purpose as described in this

use and care guide.

This wine cellar must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in

the installation section.

Never unplug your wine cellar by pulling on the power cord. Always

grasp the plug firmly and pull straight out from the outlet.

Unplug your wine cellar before cleaning or before making any

repairs. Note: if for any reason this product requires service, we

strongly

recommend that a certified technician performs the service.

Repair or replace immediately, all electric power cords that have

become frayed or otherwise damaged. Do not use a cord that shows

cracks or abrasion damage along its length, the plug or the connector

end,

7. This wine cellar should not be recessed or built-in an enclosed

cabineL

it is designed for freestanding installation only.

8. if your old wine cellar is not being used, we recommend that you

remove the door and leave the shelves in place. This will reduce

possibility of danger to children.

9. Do not operate your wine cellar in the presence of explosive fumes.

10. Do not store foods in wine cellar as interior temperature may

not be cool enough to prevent spoilage or may cause bacteria growth.

SAVETHESEiNSTRUCTiONS

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

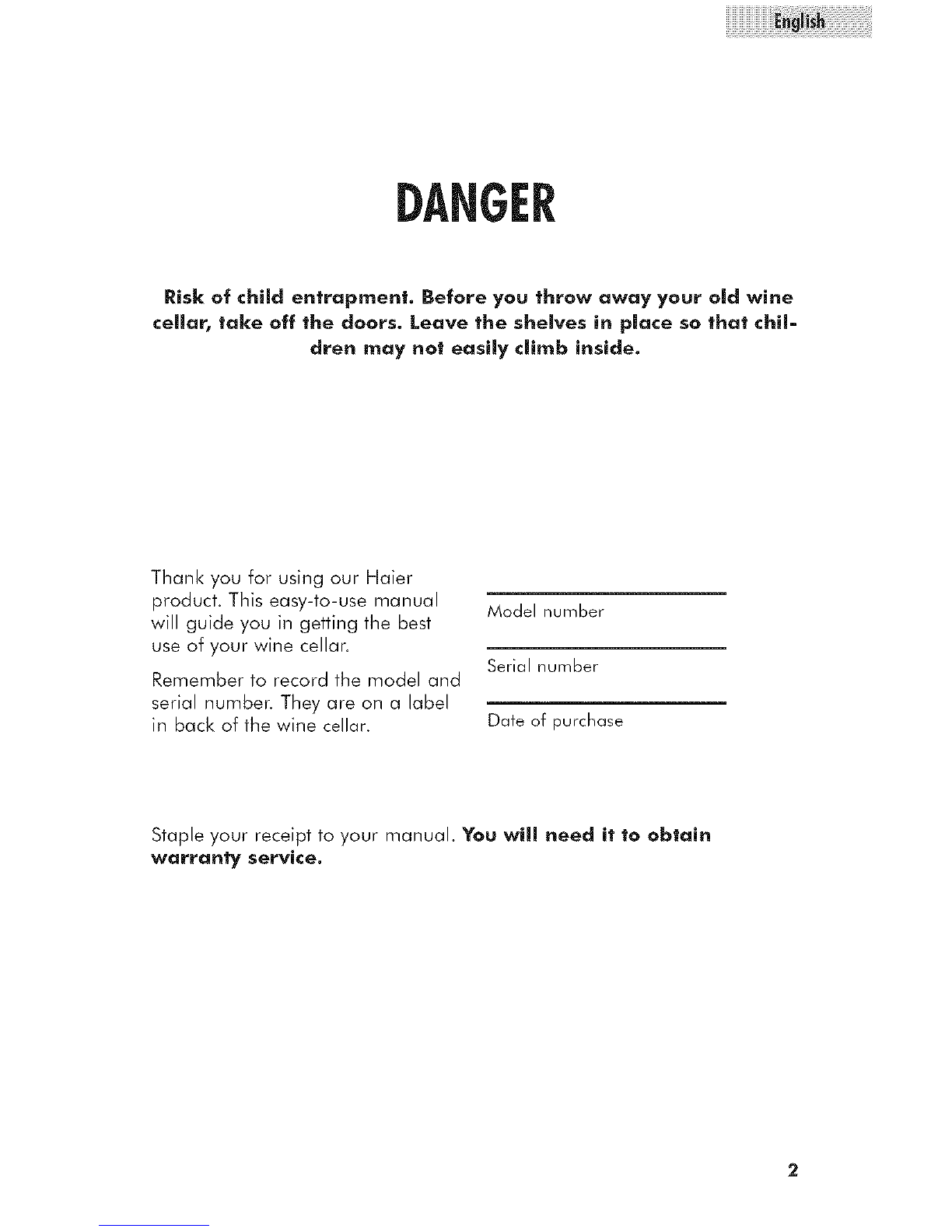

Risk of child entrapment. Before you throw away your old wine

ceffar, take off the doors. Leave the sheJves in pJace so that chiJ-

dren may not easily cffmb inside.

Thank you for using our Haier

product. This easy-to-use manual

will guide you in getting the best

use of your wine cellar.

Remember to record the model and

serial number. They are on a label

in back of the wine cellar.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain

warranty service.

PAGE

important Safeguards .................................................................... 1

Parts And Features .......................................................................... 4

instalJing Your Wine CelJar ............................................................ 5

Unpacking Your Wine Cellar ................................................................ 5

Leveling Your Wine Cellar .................................................................... 5

Proper Air Circulation .......................................................................... 5

Electrical Requirements ........................................................................ 6

Installation Limitations .......................................................................... 6

Use of Extension Cords ........................................................................ 6

Wine CeJJar Features And Use ............................................................ 7

Initial Set Up ........................................................................................ 7

Temperature Adjustment ...................................................................... 7

Flex-Temperature Zone ........................................................................ 7

Shelving .............................................................................................. 8

Interior Light ........................................................................................ 8

Normal Operating Sounds .................................................................. 8

Proper Wine CelJar Care and CJeanJng ........................................ 9

Cleaning and Maintenance .................................................................. 9

Power Interruptions .............................................................................. 9

Vacation and Moving Care .................................................................. 9

TroubJeshooting ............................................................................ 1O

Warranty Information .................................................................... 11

Interior Light Buffon

()

Interior Light Button

1. LED Temperature Display - Upper

Compartment

2. LED Temperature Display - Lower

Compartment

3. Temperature Adjustment (up/clown)

Upper Compartment

4. Interior Light Button

5. Temperature Adjustment (up/clown)

Lower Compartment

6. Door Handle

7. Adjustable Leveling Legs

8. Interior Shelves

9. Tinted Triple Panel Glass Door

Unpacking Yoor Wine Cellar

1. Remove all packaging material. This includes the foam base and all

adhesive tape holding the wine cellar accessories inside and outside.

2. Inspect ancl remove any remains of packing, tape or printed

materials before powering on the wine cellar.

Leveling Yoor Wine Cellar

* Your wine cellar has four leveling legs which are located in the

front and rear corners of your wine cellar. After properly placing your

wine cellar in its final position, you can level your wine cellar.

* Leveling legs can be adjusted by turning them clockwise to raise your

wine cellar or by turning them counterclockwise to lower your wine

cellar. The wine cellar cloor will close easier when the leveling legs

are extended.

Proper Air Circulation

*To assure your wine cellar works at the maximum efficiency it was

designed for, you should install it in a location where there is proper

air circulation, plumbing and electrical connections.

"The following are recommended clearances around the wine cellar:

Sides ............... 2'_(50mm)

Top .................... 2H(50ram)

Back .................. 2'_{50mm)

*Do not over fill your wine cellar for proper wine cooling.

[[÷¢tr[¢a[ R÷quiremen

* Make sure there is a suitable power Outlet (115 volts, 15 amps

outlet) with proper grounding to power the wine cellar.

* Avoid the use of three plug adapters or cutting off the third grounding

in order to accommodate a two plug outlet. This is a dangerous prac-

tice since if provides no effective grounding for the wine cellar and

may result in shock hazard.

Install Limitations

* Do not install your wine cellar in any location not properly insulated

or heated e.g. garage etc. Your wine cellar was not designed to

operate in temperature settings Below 50 ° Fahrenheit and above 90 °

Farenheit.

Select a suitable location for the wine cellar on a hard even

surface away from direct sunlight or heat source e.g. radiators,

baseboard heaters, cooking appliances etc. Any floor unevenness

should be corrected with the leveling legs located on the front and

rear bottom corners of the wine cellar.

Your wine cellar is designed for free-standing installation only. It is

not designed for built-in application.

Use of Extension Cord

Avoid the use of an extension cord because of potential safety haz-

ards under certain conditions. If if is necessary to use an extension

cord, use only a 3-wire extension cord that has a 3-blade grounding

plug and a 3-slot outlet that will accept the plug. The marked rating

of the extension cord must be equal to or greater than the electrical

rating of the appliance.

Initial Setup

When turned on, the LCD will display the internal temperature. If the temperature

is not set if will operate at the lowest temperature of each compartment.

Temperafure Ad[usfmemfs:

Your wine cellar has an electronic temperature control in front of the

unit. The two individual temperature zones maintain their own

temperature with the dual controls. The cooling temperature in the

upper compartment ranges from 45°F to 54°F (7°C to 12°C). The

cooling temperature in the lower compartment ranges from 54°F to

65°F (11°C to 18°C). This makes it ideal for white wines in the top

compartment and reds in the bottom compartment. Please note that

the actual cabinet temperature in a thermal electric unit is dependent

on the ambient ternperafure. If the ambient temperature is too high

then the cabinet temperature may not reach the preset range.

A _ _'J _IY ¸_ V

" To raise or lower the temperature simply press the "Temp +" or

"Temp (-)" button.

" The LCD display will show the actual cabinet temperature while it is

running.

• The set temperature will Be displayed for several seconds once if is

set. After that it will revert Back to the actual cabinet temperature.

Theshelves are designed so that the bottles do not line up over one

another. This is to have air movement around the Bottles to keep the

wine cool. The upper chamber has a 15 bottle capacity where as you

can fit 25 bottles in the lower compartment.

interior Light

•To complement the look of your wine collection, a soft light has been

built into the wine cellan Simply push the "Light" button and the light

comes on, push again for off. For maximum energy efficiency, leave

light off when not viewing your collection.

When door is open the light will go on.Upon closing the door, the

light will go off.

_leaning and Maintenance

Warning: To avoid electric shock always unplug your

wine cellar Before cleaning. Ignoring this warning

may result in death or injury.

Caution: Before using cleaning products, always read and

follow manufacturer's instructions and warnings to

avoid personal injury or product damage.

General:

Prepare a cleaning solution of 3-4 tablespoons of

baking soda mixed with warm water. Use sponge or

soft cloth, dampened with the cleaning solution, to

wipe down your wine cellar.

* Rinse with clean warm water and dry with a soft

cloth.

"Do not use harsh chemicals, abrasives, ammonia,

chlorine bleach,concentrated detergents, solvents or

metal scouring pads. SOME of these chernicals may

dissolve, damage and/or discolor your wine cellar.

DOOI _ Gc_ske|s: Clean door gaskets every three months according to

general instructions. Gaskets must be kept clean and

pliable to assure a proper seal.

* Petroleum jelly applied lightly on the hinge side of

gaskets will keep the gasket pliable and assurea

good seal.

Power interruptions

"Occasionally there may be power interruptions due to thunderstorms

or other causes. Remove the power cord frorn AC outlet when a

power outage occurs. When power has been restored, replug power

cord to AC outlet.

Vacation and Moving Care

" For long vacations or absences, unplug the wine cellar and clean the

wine cellar and door gaskets according to "General cleaning" section.

Leave doors open, so air can circulate inside.

*When moving always move the wine cellar vertically. Do not move

with the unit lying down, as possible damage to the unit

could occur.

Otros manuales para HVTB40DPABS

Tabla de contenidos

Otros manuales de Enfriador de vino de Haier

Haier

Haier HWS84GA Manual de usuario

Haier

Haier HWS33GG Manual de usuario

Haier

Haier HVTS06 Manual de usuario

Haier

Haier JC-125GEA Manual de usuario

Haier

Haier HVD060E-4S Manual de usuario

Haier

Haier HVFM122ABL Manual de usuario

Haier

Haier JQ-F160A Manual de usuario

Haier

Haier HWS34GGH1 Manual de usuario

Haier

Haier WS171GA Manual de usuario

Haier

Haier WS50GA Manual de usuario

Haier

Haier HVFM24B Manual de usuario

Haier

Haier HBCN05EBB - Beverage Centers - 4.6 cu. ft.... Manual de usuario

Haier

Haier HVCE15 Manual de usuario

Haier

Haier HVUEB06B Manual de usuario

Haier

Haier HVW12ABB - Thermal Electric Wine Tower Manual de usuario

Haier

Haier JQ-332A Manual de usuario

Haier

Haier JC 160GDD Manual de usuario

Haier

Haier JC-298G Manual de usuario

Haier

Haier HWS247FDU1 Manual de usuario

Haier

Haier HVW18 Service Manual de usuario

Haier

Haier HVT18DFBB Manual de usuario

Haier

Haier HVB050ABH - Designer Series 50 Bottle Capacity Wine... Manual de usuario

Haier

Haier HVD042M Manual de usuario

Haier

Haier WINE BANK 60 Manual de usuario

Manuales populares de Enfriador de vino de otras marcas

U-Line

U-Line Echelon Wine Captain 2075WC Manual del propietario

Cavist

Cavist 62 Manual de usuario

Kenmore

Kenmore 461.99130 Manual de usuario

Miele

Miele KWT 6422 iG Manual de usuario

Danby

Danby DWC113BLSDB Manual de usuario

Caple

Caple Wi6128 Manual de usuario

Avanti

Avanti WC1001 Manual de usuario

Frigidaire

Frigidaire FFWC38F6LS Manual de usuario

Titan

Titan TT-W2454SZ Manual de instalación

Klarstein

Klarstein Botella 166 Uno Manual de usuario

Costway

Costway FP10130WL Manual de usuario

Lemair

Lemair LWC59 Manual de usuario

Caple

Caple WCi46B Manual de usuario

Climadiff

Climadiff CLI24 Guía rápida

Viking

Viking VCWB301LSS Manual de usuario

Caple

Caple WC6511 Manual de usuario

Vinvautz

Vinvautz VZ08BHK Manual de usuario

AVG

AVG PRYMO PMB76SS Manual de usuario
