Haier HVF042ABL Manual de usuario

Haler °

What The World Comes Home ToTM

WineCooler

Rafra'ichisseur_vin

EnfriadordeVino

UserManual. _odel#

GuidederUtilisateur-ModUle

ManualdelUsuario- Paro_o_e_o_e

SAFETYPRECAUTIONS

Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

1) Use thisappliance only for its intended purpose as described in thisuse

and care guide.

2) This wine cooler must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

3) Never unplug your wine coolerby pulling on the power cord. Always

grasp the plug firmly and pull straightout from the outlet.

41Repair or repine immediately, al_electric service cords that have become

frayed or otherwise damaged. Do not usea cord that showscracks or

abrasion damage along its length, the plug or the connector end.

5) Unplug your wine cooler before cleaning or before making any repairs.

Note: If for any reason thisproduct requires service, we strongly

recommend that acertified technicianperforms the service.

6) If your old wine cooler is not being used, we recommend that you remove

the doors. This will reduce the possibility of danger to children.

7) Thiswine cooler shouldnot be recessedor bulbin an enclosed cabinet. It

is designed for Freestanding installation only.

8) Do not operate your wine cooler in the presence of explosive fumes.

9) Do not store foods in wine cooler as interior temperature may not be cool

enough to prevent spoilage.

10) Use of an extension cord is not recomnended.

ForFutureReferencePlease

SAVETHESEINSTRUCTIONS

DANGER

Risk of child entrapment. Before you throw away your old

wine cooler, take off the doors. Leave the shelves in place so

that children may not easily climb inside.

As per UL 250 1 !.2.6

Risk of child entrapment. Before you throw away your old

Thankyou for usingour Haier

product.Thiseasy-to-usemanualwill

guide you in getting thebestuseof

your wine cooler.

Rememberto record the modelond

serialnumber.Theyare on a labelin

backof the wine cooler.

Model number

Serial number

Date of purchase

Stapleyour receipttoyour manuakYou will need it to obtain

warranty service.

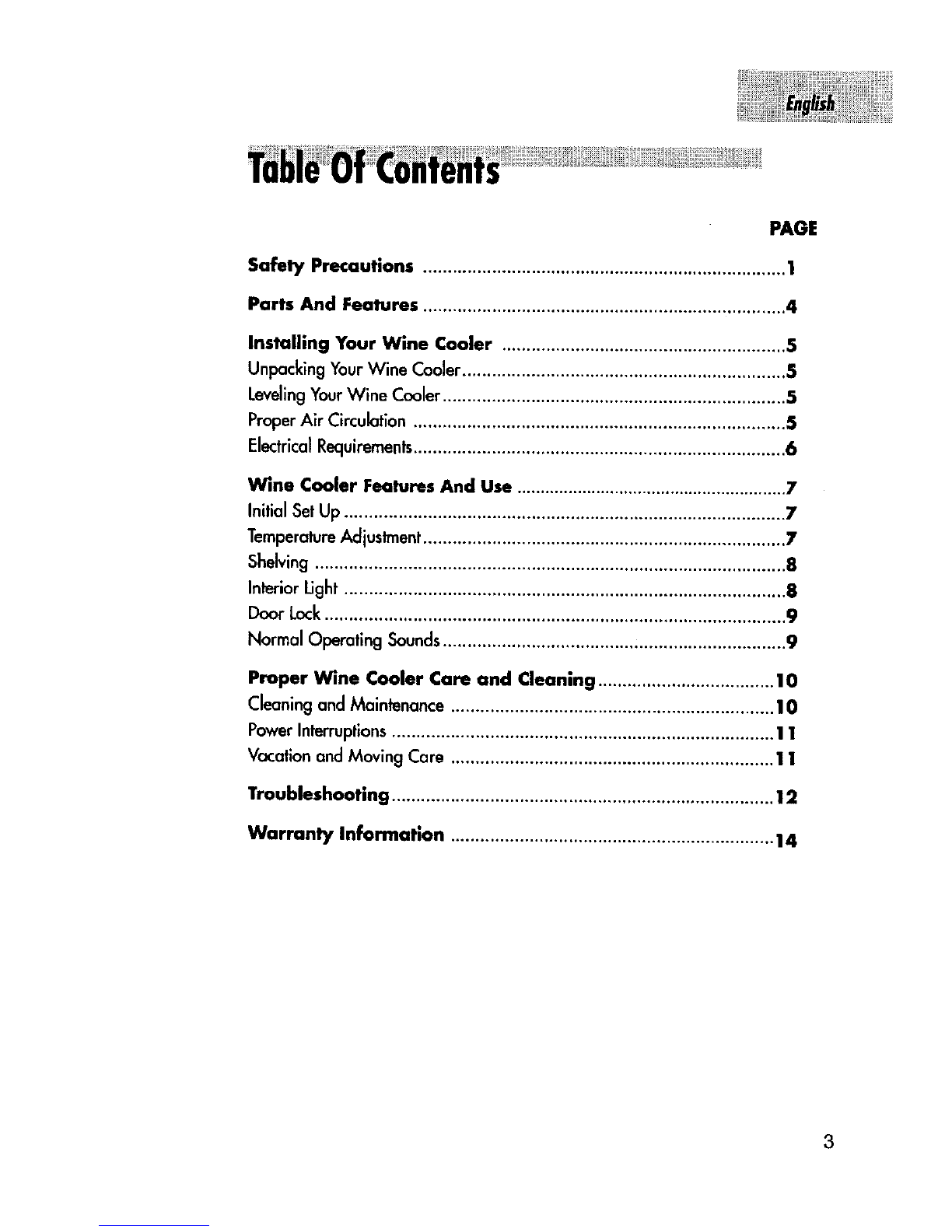

PAGE

Safety Precautions .......................................................................... 1

Parts And Features .......................................................................... 4

Installing Your Wine Cooler .......................................................... 5

UnpackingYourWine Cooler .................................................................. 5

LevelingYourWine Cooler...................................................................... 5

ProperAir Circulation ............................................................................ 5

Electrical Requirements............................................................................ 6

Wine Cooler Features And Use .......................................................... 7

Initial SetUp .......................................................................................... 7

TemperatureAdjustment .......................................................................... 7

Shelving ................................................................................................ 8

Interior Light .......................................................................................... 8

Door Lock.............................................................................................. 9

Normal Operating Sounds ...................................................................... 9

Proper Wine Cooler Care and Cleaning .................................... 10

Cleaning and Maintenance .................................................................. ! 0

PowerInterruptions.............................................................................. ! 1

Vacation and Moving Care .................................................................. 1 1

Troubleshooting .............................................................................. 12

Warranty Information .................................................................. 14

1. White Wine Bulton (-)

2, Red Wine Button (+)

3, Interior Light Button(set)

4. LED TemperatureDisplay

5. Door Lock

6. Door Handle

7. Chrome Plated Slide-Out Shelves

(quantitieswill vary as per model)

8. Adjustable Leveling Legs (not shownJ

InstallingYourWineCooler

Unpacking Your Wine Cooler

1. Remove all packaging material. This includesthe foam base and all

adhesive tape holding thewine cooler accessoriesinside and outside.

Slide out and remove plastic or foam guard used to secure the

compressor from shipping damage due ta vibration and shack.

2. Inspectand remove any remainsof packing, tape or printed

materials before powering on the wine cooler.

Leveling Your Wine Cooler

Yourwine cooler has four levelinglegs which are located in the

front and rear comers of your wine coder. After properly placing your

wine cooler in itsfinal position,you can level your wine cooler.

Levelinglegs can be adjusted by turning them clockwise to raise your

wine cooler or by turning them counterclockwise to lower

your wine cooler. The wine cooler door will close easier when the

leveling legs are extended.

Proper Air Circulation

•Toassureyour winecoolerworksat themaximumefficiencyit

wasdesignedfor,you shouldinstallit ina locationwhere there

isproperair circulation, plumbingand electricalconnections.

• Thefollowing are recommended clearances around the winecooler:

Sides............... 2 "(50ram)

Top.................... 2" (50mm)

Back.................. 2" (50mm)

•Do not over fill your wine coolerfor proper internal air circulation.

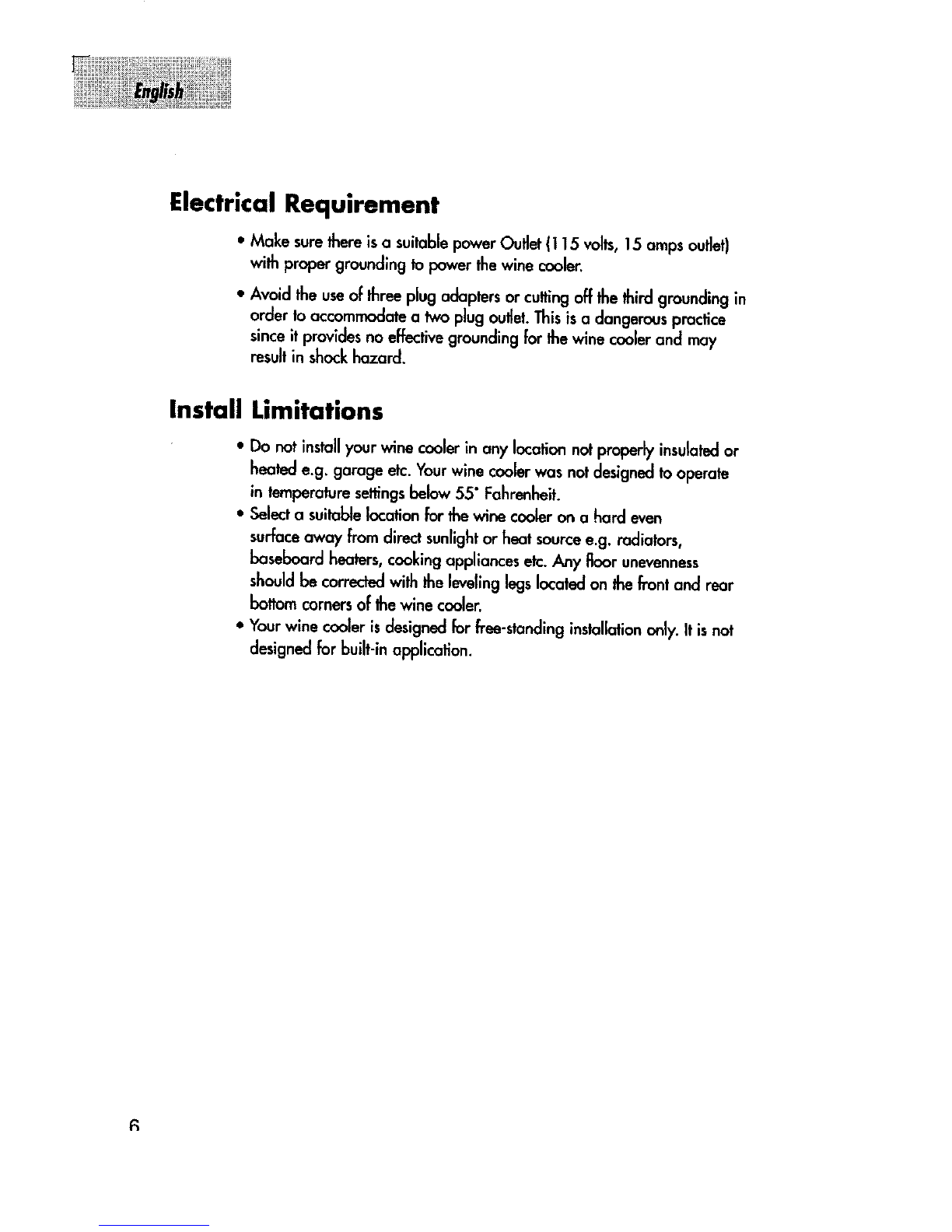

Electrical Requirement

• Make sure there is a suitable power Outlet (I 15 volts, 15 amps outlet)

with proper grounding to power the wine cooler.

•Avoidthe useof three pbg adaptersor cutting offthe thirdgroundingin

order to accommodatea _woplugoul_et.Thisisa dangerouspractice

sinceitprovidesno effectivegroundingforthewinecoolerand may

resultin shockhazard,

Install Limitations

•Do not install your wine cooler in any location not properly insulatedor

heated e.g. garage etc. Your wine cooler was not designed to operate

in temperature settingsbelow 55" Fahrenheit.

• Select a suitable location for the wine cooler on ahard even

surface away from direct sunlightor heat sourcee.g. radiators,

baseboard heaters, cooking appliances etc. Any floor unevenness

shouldbe corrected with the levering bgs located on the front and rear

bottom corners of the wine cooler.

• Yourwine cooler isdesigned for flee-standing installationonly. It isnot

designed for built-in application.

Initial Setup

Once you have plugged the unit into an electrical outlet,

letthe unit run for at least30 minutes to acclimate itself before

making any adjustments.During this lime the Red Wine light may stay on.

Temperature Adjustments: seeFig.#1

The wine cooler is preset from the factory to automatically

accommodate temperature requirements for red or white wines.

If you store mostly white wines, pressthe 'White Wine" button and the

wine cooler will maintain an average temperature between

45" to 50" F.Pushingthe "Red Wine" buttonwill yield an

average temperature between 55" to 60" F.

The wine cooler can be set to any temperature you desire to

accommodate your wine storagerequirements. To setthe temperature,

press both the "White Wine" and "RedWine" buttons simultaneously

and hold for approximately 3 seconds. Now you are in temperature set

mode. Decrease the temperature by pushing the "White Wine" button

and increasethe temperature by pressingthe nRedWine" button.

Pressingthe appropriate button 3 timeswill adjustthe temperature 3

degrees, press4timesequals 4degrees, 5 timesequals 5degrees, and

so on. Once you have selectedthe temperature you desire, pushthe

'Light/Set" button. Now thewine cooler is programmed and the LED

readout will return to current internal temperature reading.

fig.# I

I I

WSh Rod Ligl_

There will be a 3 degree variance +/- between the temperature you

selectand the temperature indicated on the LEDreadout.

Thisoccursbecause the wine cooler activatesand deactivates

trying to maintain your desired temperature. There is often a

1O"variance between thetop and bottom shelvesof thewine cooler.

Therefore, if you hove set the wine cooler for 50" and hove a

mix of red and white wines, you may want to put thewhite wine

on the bottom shelfwhere the temperature will be 45" F,and place the

wine on the top shelfwhere the temperature will be 55" F.

Shelving

Theshelvesare chrome platedforappearance and easycleaning.

Toaccommodatedifferentsizedbottlestheshelvesslideout

and con be movedup or down intoanyof the tracksmolded

intothe coolercabinet. Largerbottlesor Magnumscan bemoreeasily

accommodatedat thecrass shelvesat the bottomof thecooler.

Youwill noticethatthe shelvesare designedsothe bottlesdo

notline-up directlyoveroneanother.Thisallowsfreeair

movementand providesmorespace.

Interior Light

• Tocomplementthelookofyourwinecollection,a softlighthasbeen

built intothe winecooler.Simplypushthe "Light/Set"buttonand the

lightcomeson, pushagain for off. Formaximumenergyefficiency,

leavelightoffwhennotviewingyourcollection.

Door Lock

"For safelyand security,your wine cooler isequipped with a door lock.

Toeliminate the risk of accidental child entrapment, the lockwas

designed so that the door will not lock until the key is removed

(consistentwith UL requirements).

Normal Operating Sounds You May Hear

• Boilingwater, gurgling soundsor slightvibrations that are the resultof

the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycleson and off.
