Haier QBJ1-130A58E Manual de usuario
Instruction for use
QBJ1-130A58E
QBJ1-150A58E
QBJ1-175A58E
QBJ1-200A58E
QBJ1-230A58E
QBJ1-270A58E
Please read thismanual before usage
Retain it forfuture reference
Solar Water Heater
Content
Features
Before use
Assembly Instruction
Appearance and parts
Technical parameter
1
1
1
2
3
4
5
5
5
6
7
7
8
11
11
10
Precautions
Notice
Technical data
4
The location
Exterior and installation dimension
Tank assembly
Frame assembly
Frame fastness
Glass tube assembly
Extraventricular plumbing instructions
Indoor plumbing instructions
Installation notice
Using Instruction
The operation method
Troubles treatment
3
Pipelines thermal insulationnotice 9
The product with controller installation
and using notice 9
Packing list
Technical data
1
1. Inner cylinder:
2. Insulation: Polyurethane foam, thickness-45 mm, good heat preservation effect.
3. Outer shell: Aluminium / zinc coated steelsheet.
4. Frame: Steady structure, shapely and durable .
SUS 304 stainless steel, food grade.

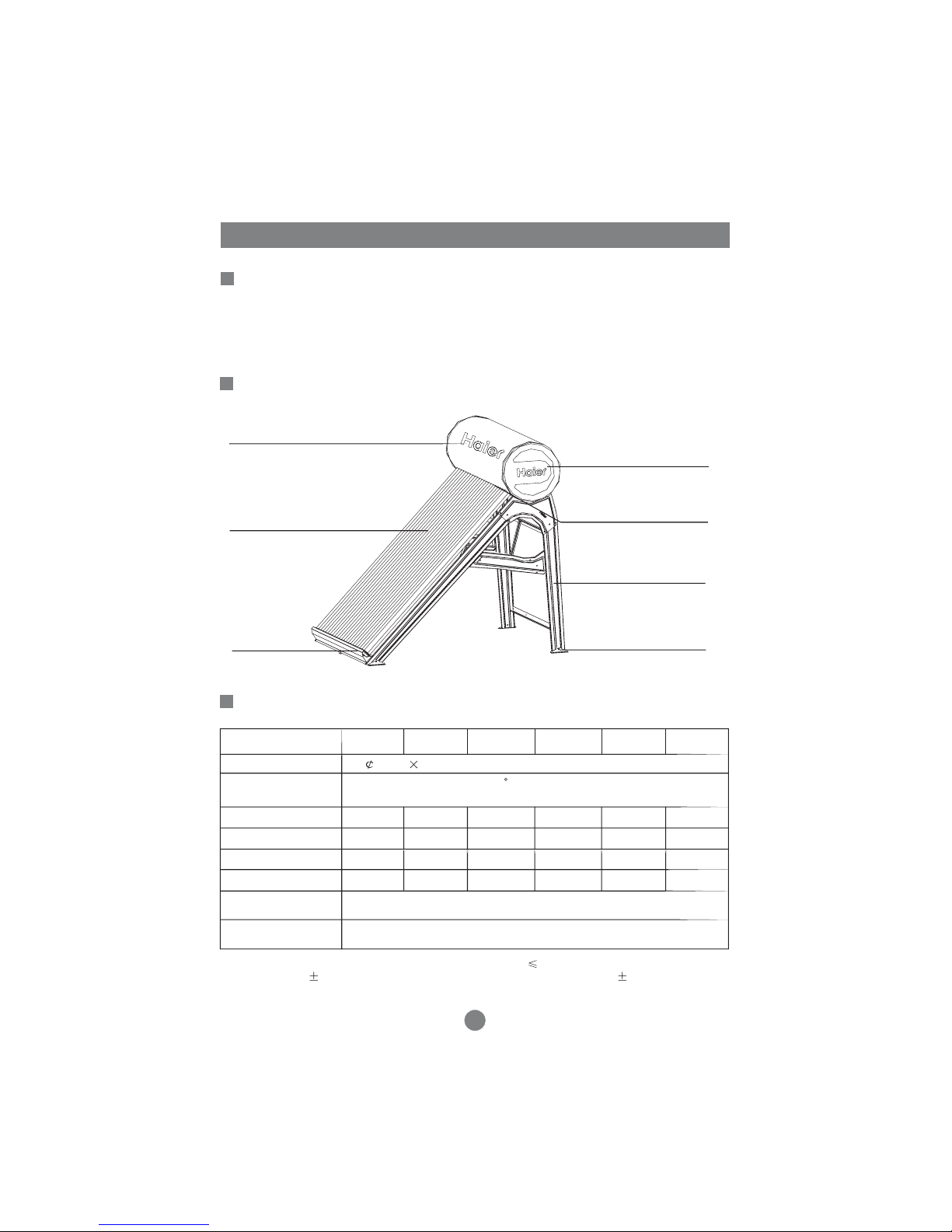

Features
Technical parameter
Appearance and parts
Models
Specification of tubes
Collector frame angle
standard fixed
Number of tubes
Aperture area
Usable water
58mm 1800mm all glass evacuated tubular collector
45
Remarks:1. The warp of a parameters is 3%.the warp ofusable water
parameters is 5%. The permitted error limitof other parametersis 10%
perture area
QBJ1-130A58E QBJ1-150A58E QBJ1-175A58E QBJ1-200A58E
14 16 19 22
2
1.79m 2
2.07m 2
2.48m 2
2.90m
130L 150L 175L 200L
Electric auxiliary
heating
Rated power: 1500W
Water level sensor Using the water level sensor with the height of 360 mm
Outer shell
Evacuated tubes
Base support
Cover
Silicon seal ring
Frame
Foot cushion
QBJ1-230A58E QBJ1-270A58E
25 30
3.35 2
m 4.03 2
m
230L 270L
Totalwater volume 169L 195L 228L 262L 300L 354L
Precautions
Precautions
1.
2. Avoiding irradiation without water after installation, it can't be used immediately, it
should be sheltered.
3. When supplying water at the first time, it should be operated in the morning or
evening or the condition of short of light; avoid supplying water in strong sunshine,
in order to prevent vacuum tubes bombing.
4. If the water pressure isn't enough for water supply, please install an pressurize
equipment.
5. When the hot water is to be used, don't place the spray head face yourself until the
water temperature is suitable.
6. This product can supply the water depend on the fall of the tank and the water exit ,
an pressurize equipment is recommended while the water couldn't be supplied
normally due to the low fall.
7. Do not supply cold water more than once in a low solar irradiance day.
8. The energy is from solar, in the days that lack of solar such as rainy or snowy day,
the temperature of the water may can't reach your demand,
9. Make sure the evacuated tubes clean, hose off the dust and dirt on the tubes and
the reflector before the winter comes.
10. The evacuated tubes resist as low temperature as -70 when tubes is emptied.
The tank should remain filled up during continuously cloudy or snowing days in winter,
in addition every two days the cold water in the tank should be changed to prevent the
water in the tank from freezing which might damage the tubes.
When using the water heater with electric heating, ensure that electric heating and
electric tracing belt are closed.
If there isn't electric heating ,
it may not be used normally.
2
Before use
3
Notice
Please take time to read this manual and familiarize yourself with the function
of this production.
1. Please checkout the packing list.
2.If you fix electric auxiliary heating and controller, please select Haier
equipped products.
3. To avoid thescald, please mix the hot and the cold waterbefore use it.
4. In order to protect the tank ,please don't refit or wall up the air supply pipe
and the overflow pipe.
Assembly Instruction
Notice: The solar water heater shall be installed by professional.

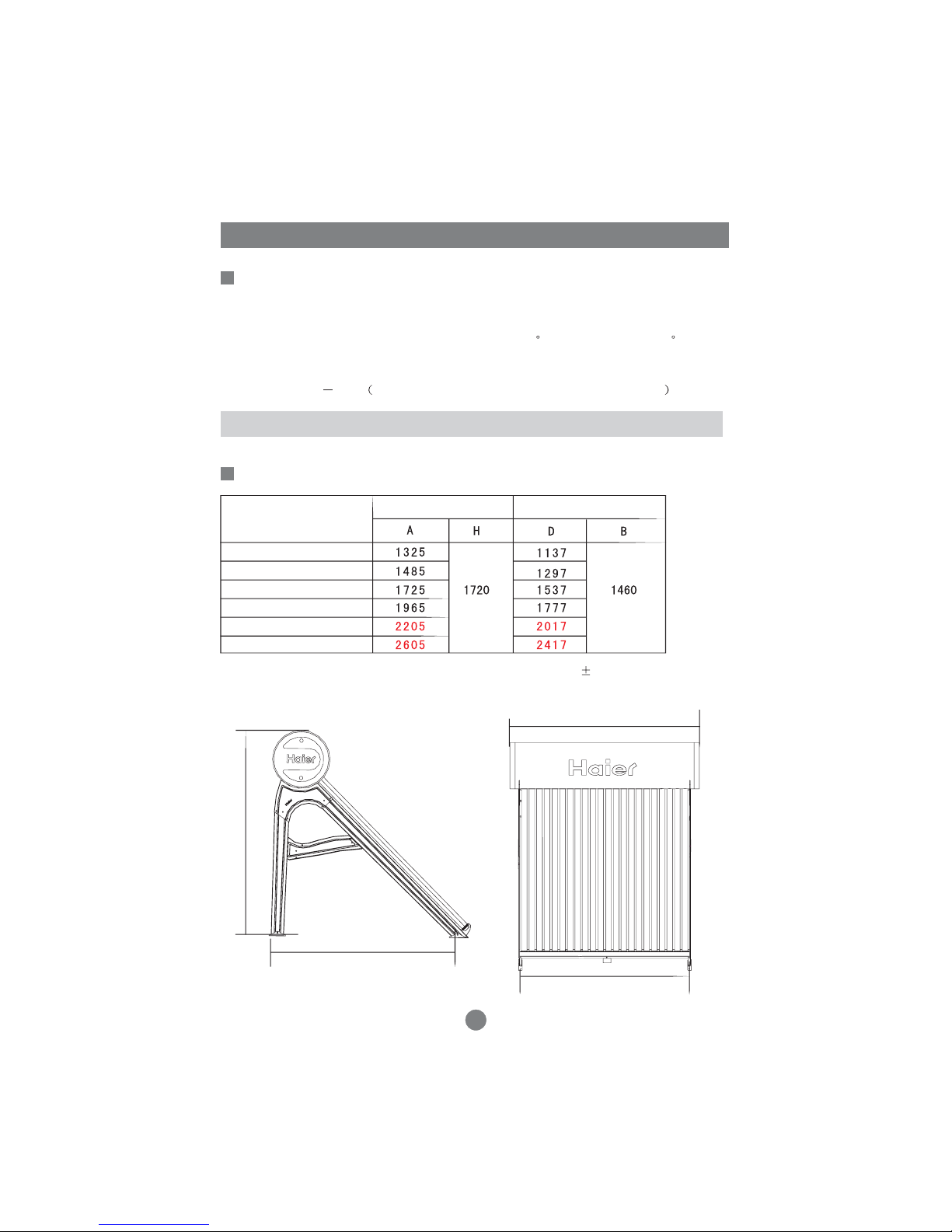

Exterior and installation dimension:
4
Models Exterior dimension(mm) Installation dimension(mm)
1. Please install the solar water heater in the area that avoid the thunder.
2. Solar water heater angle range: east to south for 10 , west to south for 15 .
3. There shouldn't be any hindrance in front of the heater ,or the distance should over
L, L=H/tg(66.5 a) H:height of the hindrance; a: latitude of the area
Remarks: The permitted errorlimit of above parameters is 10%.
The location:
A
D
QBJ1-130A58E
QBJ1-150A58E
QBJ1-175A58E
QBJ1-200A58E
B
H
QBJ1-230A58E
QBJ1-270A58E
Tank assembly
1. Unpacking the tank, rip off the protection film. Uninstall the nut and cushion.
2. Place tank onto tank bracket cradle, inserting protruding bolts into holes.
fasten with nuts.
Notice:
1. Rip off the protection film after the installation to avoid the destroy of the tank,
and please don't use the sharp tool.
2. Leave nuts loose since some adjustment may be necessary after fitting tubes.
3. When assembling the water tank, keep the center line of vacuum tubes
connecting holes parallel with the diagonal pillar of bracket.
Frame assembly
Please consult the accessional paper for figure of the frame and packing list in
the packing of frame.
Frame fastness
1. Peg the feet of the heater into the earth with prepared iron or into the concrete
brick with intumescent bolt.
2. Adjust the height of the frame with the water-proof cushion to keep the tank
aclinic and each foot balanceable.
Notice:
1. Make sure that the feet are all attach the floor closely, or it will cause the
distortion of the frame.
2. Please use the tight wire to fasten the tank and frame in the area that the
typhoon occurred frequently.
3. The installation of the solar water heater should be steadily or it will cause the
destruction and the accident.
Assembly Instruction
5
Assembly Instruction

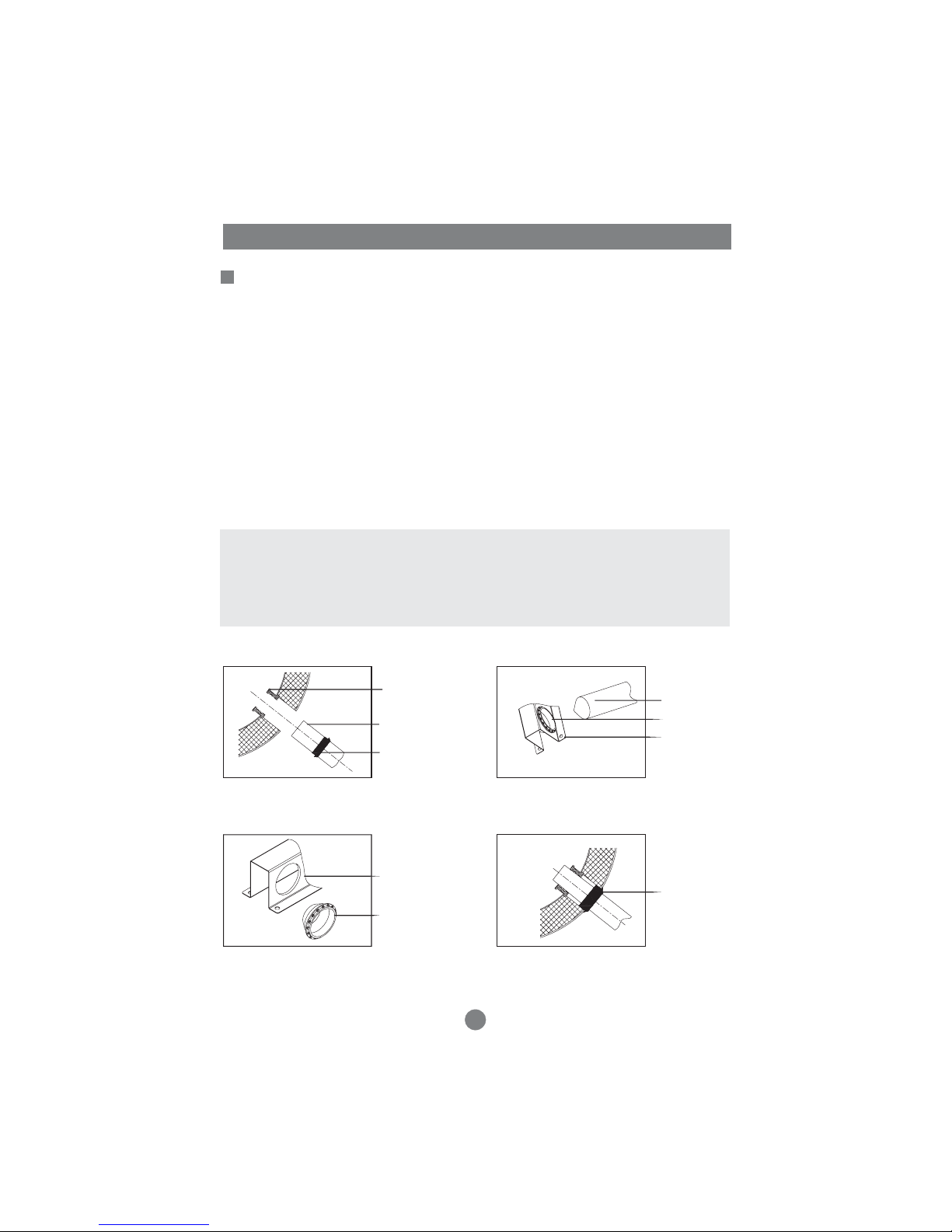

Glass tube assembly
1. Keep tubes out of the irradiation while assembling the unit or a scald may be
caused.
2. Place the rounded side of rubber seal downwards on the open end of tubes.(A)
3. Insert the tube into base support of locating hole with gentle pressure and twisting
motion.
4. Holding the tube, fix base support into base bracket (B), insert tube into base
support (C).
5. Slide the tube down 1 cm, Slide black rubber seal up the tubes until it sits flush
with tank(D).
6. Insert one tube on either end of the tank to achieve alignment of unit.
Notice:
1. Make sure the silicon seal ring are clean and well positioned.
2. Place the rounded side of rubber seal downwards on open end of tube.
Slide it down 10 cm. Wet open end of tube to make it easier to insert.
6
Silicon seal ring
Rubber seal
Evacuated tubes
Evacuated
tubes
Rubber seal
hold position
Base support
Base support
Base bracket
Base bracket
AC
BD

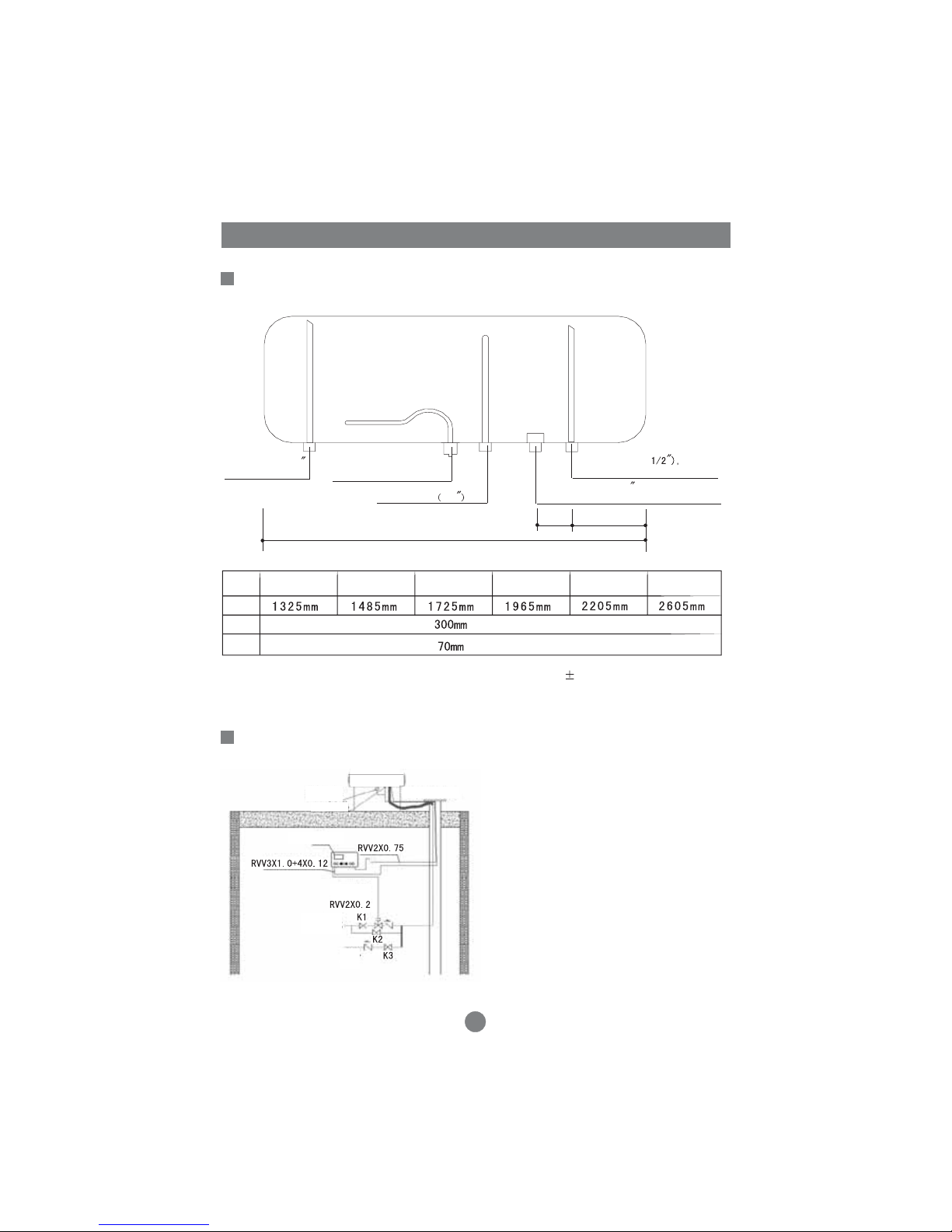

Extraventricular plumbing instructions
Assembly Instruction
7
Air supply pipe Over flow pipe
Over flow hole (
conect to the room
A
Indoor plumbing instructions
Inlet/outlet hole (1/2 ), conect
to the room
Air supply hole(1/2 )
forbidden to stem
QBJ1-130A58E QBJ1-150A58E QBJ1-175A58E QBJ1-200A58E
A
b
a
Remarks: The permitted errorlimit of above parameters is 10%.
Electric heating flange
ab
Sensor hole 3/4
Sensor
Electric heating pipe
Connect
racing belt
the line
of t
Water level sensor
Electric heating
Pre-burrided
cord slot
Solar water heater
Hot water
Tap water
Controller
QBJ1-230A58E QBJ1-270A58E
