Haier S110ENF Manual de usuario

Haier Solar Water Heater User’s Manual

S75ENF

S85ENF

S110ENF

S125ENF

S150ENF

S75ENL

S85ENL

S110ENL

S125ENL

S150ENL

zPlease read this manual before usage

zRetain it for future reference

Contents

Features 1

Technicaldata

Parameters 1

Safety precautions 2

Beforeuse

Specialtips 3

Installation instructions

Selection of installation location 3

Outline and installation dimensions of the horizontal water heater 4

Assembly the bracket 5

Securing the bracket 5

Installing the water tank 5

Installing the vacuum tubes 6

Schematic drawing of the indoor pipeline and wiring 7

Precautions in pipeline installation 7

Connection method of water supply pipeline in the houses where a

solar water heat coexists with another type of water heater 8

Operation instructions

Operationmethod 8

FAQ 9

Packinglist 9

Features· Technical Data

yFeatures

1. SUS304 stainless steel water tank liner

The tank liner is made of SUS304 stainless steel. It is a food grade material featuring high anti-corrosion ability

and durability.

2. Effective and energy-saving heat insulation layer

Polyurethane foam material for solar water heater is adopted to ensure high heat insulation ability and reduce heat

loss to the maximum extent.

3. Al-Zn alloy coated tank shell

Al-Zn alloy coated steel plate has very strong anti-corrosion ability and excellent weatherability. It is the most

preferred outdoor protective material.

4. Tower type bracket

The bracket is made of carbon steel panel by shaping and plastic spraying. It has the advantages of stable structure,

beautiful appearance, anti-corrosion and so on.

yParameters

Model Volume of

useable water

(L)

Size of the

vacuum tubes

Bracket form Quantity of

the vacuum

tubes

Aperture area Total water

volume (L)

S75ENF 75 φ47X1500(mm) Flat roof, 45º14 1.33 96

S85ENF 85 φ47X1500(mm) Flat roof, 45º16 1.52 108

S110ENF 110 φ58X1800(mm) Flat roof, 45º14 1.86 150

S125ENF 125 φ58X1800(mm) Flat roof, 45º16 2.13 170

S150ENF 150 φ58X1800(mm) Flat roof, 45º19 2.53 204

S75ENL 75 φ47X1500(mm) Fastigium, 45º14 1.33 96

S85ENL 85 φ47X1500(mm) Fastigium, 45º16 1.52 108

S110ENL 110 φ58X1800(mm) Fastigium, 45º14 1.86 150

S125ENL 125 φ58X1800(mm) Fastigium, 45º16 2.13 170

S150ENL 150 φ58X1800(mm) Fastigium, 45º19 2.53 204

Note: Allowable error for aperture area: ≤3%, for volume: ±5%, for other sizes:±10%

Safety precautions

zSafety precautions

1. After the vacuum tubes are installed, they should not be sunned empty for long period of time as this will

shorten their service life. If the water heater is not put into use after installation, please shade the tubes with

proper articles.

2. Initial water filling shall be conducted in the morning or at night when there is insufficient sunlight. Filling

water under strong sunshine should be avoided as this will cause explosion of the vacuum tubes.

3. If the water pressure is not high enough, normal water filling will not be realized. Please fit a booster.

4. To avoid burning, do not direct the shower nozzle towards your body while you are adjusting the water

temperature.

5. The water heater is a non-pressurized water heater. The hot water flows out naturally due to the height

difference between the water tank and the water usage point. The output pressure is proportional to the height

difference. If the height difference is too low, it will not function normally. In this case an effluent booster

should be fitted.

6. When sunshine is not sufficient, to ensure effect, you should avoid using hot water several times in one day.

7. The energy source of this water heater is solar energy. In cloudy, rainy, or snowy days, the temperature of the

water coming from it may not be satisfactory due to insufficient sunshine.

8. Before winter comes, please clean the vacuum tubes and keep their surface clean to improve the heat

collecting effect.

9. The vacuum tubes can withstand low temperature of -70℃when they are not filled with water. In winter, on

continuous cloudy days or when it is covered with snow, please keep the tank full of water and replace the

low temperature water in it frequently (2 day intervals). Otherwise the vacuum tubes will break when the

water in it freezes.

Before use ·Installation instructions

ySpecial tips

To ensure correct and safe use of the water heater, here we inform the users seriously to contact professional

service agents appointed by Haier for installation and services. Haier is not responsible for incorrect installation of

the water heater. To contact Haier headquarter, please dial: 4006 999 999

This product is an insured product. Please set your mind at ease when you are using it.

Prior to installing and using the water heater, please read the following contents carefully. Please retain this

manual properly for future reference.

1. Upon unpacking, please check against the packing list in this manual.

2. Improper use of the water heater may cause serious burns. Be sure to take a shower or wash after mixing the

hot water with cold water.

3. To ensure normal use, never refit it or block the ventilation pipe and overflow pipe. Otherwise the water tank

will shrink due to negative pressure.

ySelection of installation location

1. In areas where lightning strikes frequently occur, the water heater shall be installed within the lightning proof

range of the building.

2. The orientation range of the water heater: 10 degrees south by east to 15 degrees south by west.

3. There should be no shading objects in the front of the installation location of the water heater. If there is a

shading object, the distance between it and the water heater should be longer than L.

L=H/tg(66.5 -a)(where H: height of the shading object; a: local latitude)

Note: Installation of the water heater must be conducted by professional personnel.

Installation instructions

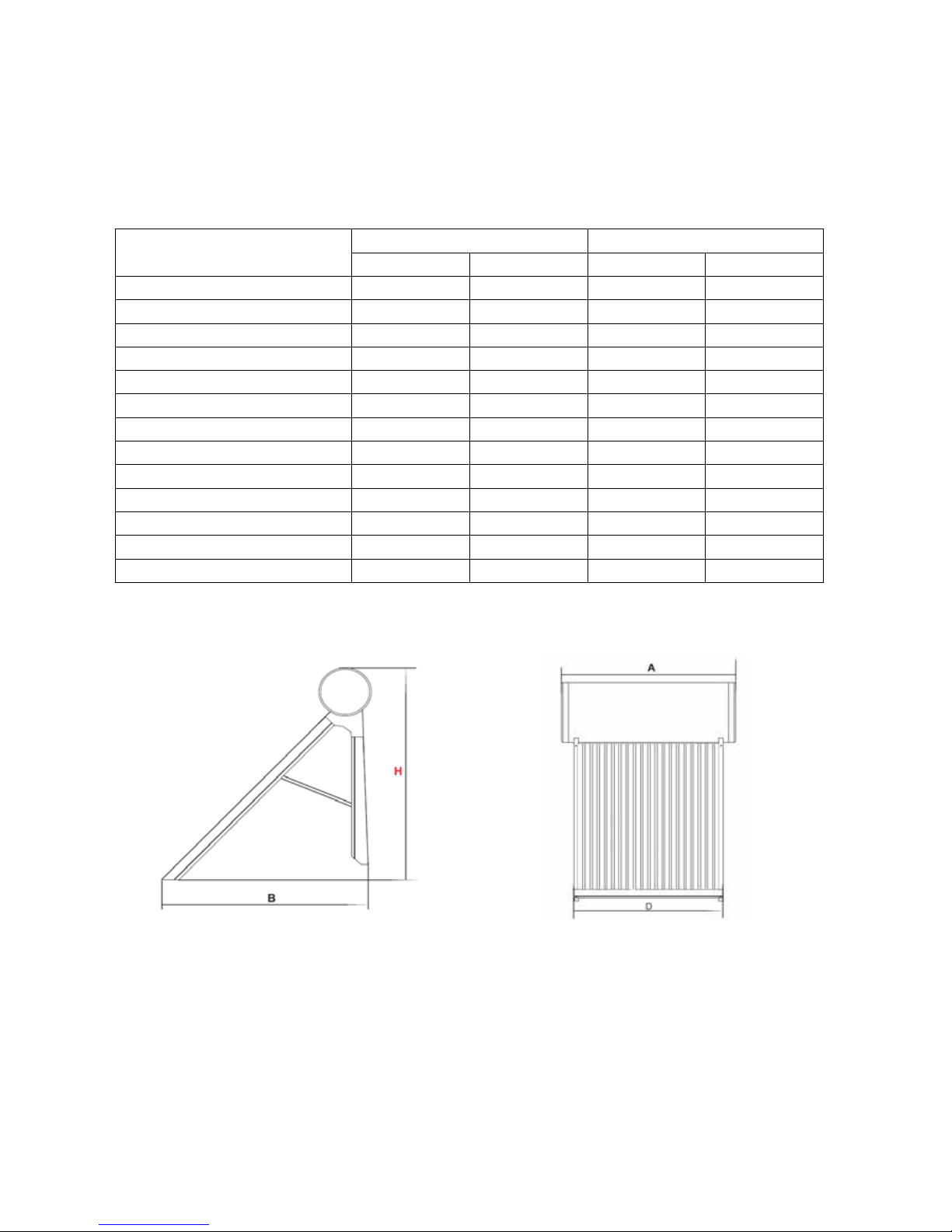

yOutline and installation dimensions of the water heater

Outline dimensions (in mm) Installation dimensions (in mm)

Model A H D B

S75ENF 1166 1457 1000 1351

S85ENF 1306 1457 1140 1351

S110ENF 1296 1710 1140 1590

S125ENF 1456 1710 1300 1590

S150ENF 1696 1710 1540 1418

S75ENL 1166 1457 1000 1351

S85ENL 1306 1457 1140 1351

S110ENL 1296 1710 1140 1590

S125ENL 1456 1710 1300 1590

S150ENL 1696 1710 1540 1418

Note: error of above dimensions: ±%

Installation instructions

yAssembling the bracket

See the attached paper in the bracket packing case for assembly drawing and packing list of the bracket.

ySecuring the bracket

1. Recommend you to secure the legs of the water heater on a foundation with embedded irons. You can also

make cement bricks, attach expansion bolts in the cements and fix the heater legs on the expansion bolts.

2. Adjust the height of the bracket using the hard, waterproof spacers to ensure levelness of the water tank as

well as even the load of each leg.

Notes:

1. Ensure close contact of all legs of the water heater with the support plane. No legs are allowed to hang in the

air as this may cause deformation of the bracket and thus damage the water heater.

2. In the areas where typhoon happens frequently, fix the water tank and bracket firmly on the roof with wire

rope.

3. The water heater must be installed stably and firmly. Otherwise serious damage or injury may occur in bad

weather.

yInstalling the water tank

1. Take the water tank from the packing case and remove the nuts and shims attached to the bolts on both sides

of the tank.

2. Insert the bolts on the bottom of the tank into the long holes in the tank support of the bracket and attach the

shims and nuts.

Notes:

1. To reduce scratching, remove the protective plastic film from the water tank after the installation is finished.

Never use sharp tools such as wallpaper knives to remove the film.

2. The assembly of the water tank is realized by bolt connection and nut fixing. Tighten all nuts after the

assembly of whole water heater is finished.

3. When installing the water tank, please keep the center lines of the connection holes of the vacuum tubes

parallel with the oblique-pulling posts of the bracket.

Installation instructions

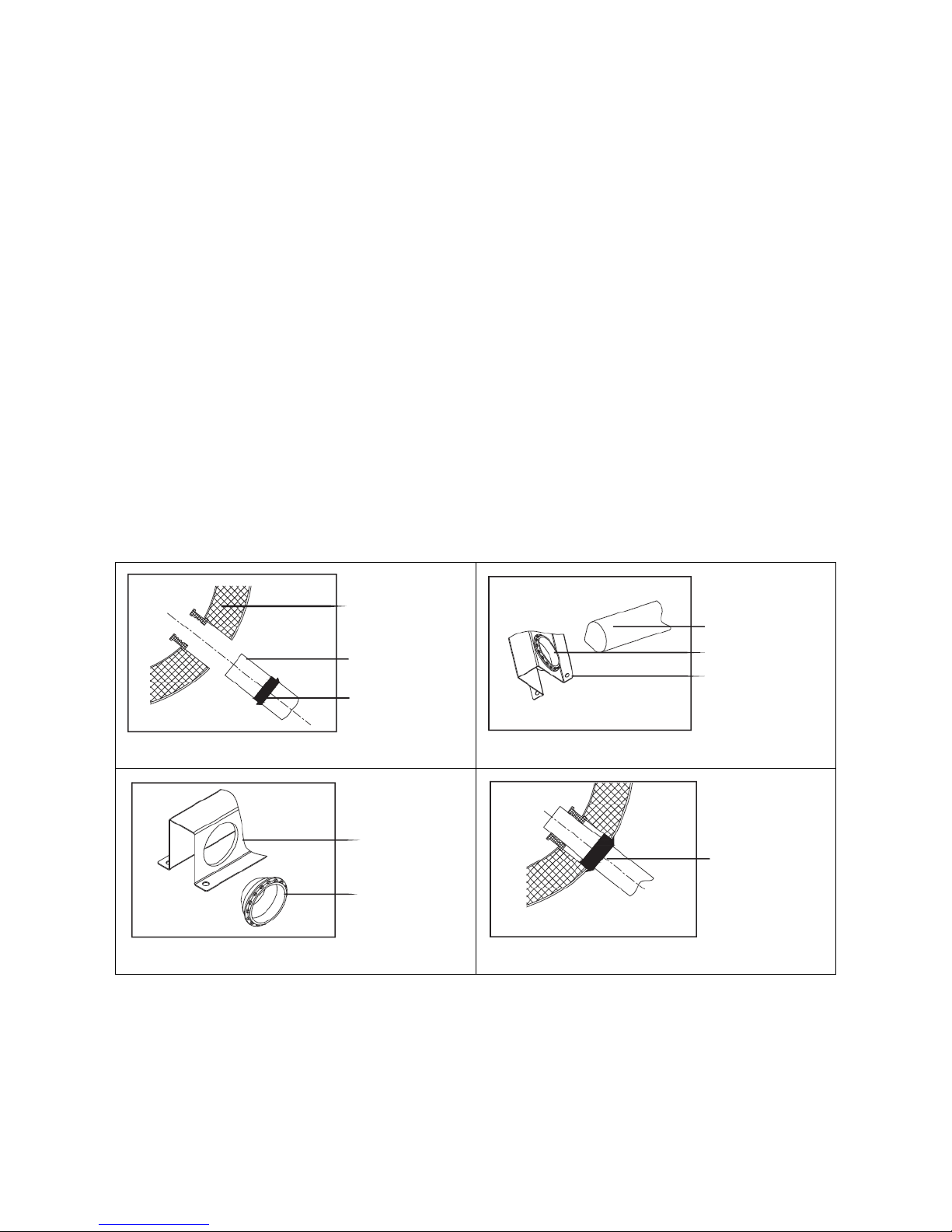

yInstalling the vacuum tubes

1. Before installing, the vacuum tubes should be protected from sunshine. Otherwise you may be burned during

installation.

2. Put the wind shroud on a vacuum tube (Fig.A).

3. Insert the vacuum tube with even force while rotating to turn it into the seal rings. The direction of the

resultant force should be consistent with the axis of the vacuum tube.

4. Put the tail-holder into the tailstock (Fig. B) and then fasten the vacuum tube on the tail-holder (Fig. C).

5. The insertion depth of the vacuum tube into the seal ring should be about 1cm. Push the wind shroud onto the

water tank to plug the joint (Fig. D).

6. When installing the vacuum tubes, one tube should be installed on each side of the water tank first so that the

water tank and bracket can be positioned as a whole.

Notes

1. Check if the seal rings in the tank holes are all ready, if the sealing planes are clean, free of foreign bodies and

breakage.

2. Put the wind shroud on the open end of the vacuum tube with the inclined plane downward and to a position

about 10cm to the tube end. Before installing, wet the tube end with water to facilitate installation.

Seal ring

Vacuum

Wind

Vacuum

Tail-holder

Tailstoc

Tailstock

Tail-holder

Wind shroud

Corking up position

Installation instructions

ySchematic drawing of the indoor pipeline and wiring

yPrecautions in pipeline installation

1. Any form of modification of the installation structure of the water heater may cause problems in use.

2. There are 5 ways for the heater pipeline to enter the house: flue, exhaust pipe, penetrating hole, special

pipeline well for solar water heater, embedded bushing. Of which the first 3 are relatively popular. Before

installing the pipeline, the installation personnel will discuss the entering way and installation position of the

pipeline with you for your convenient use. During piping, the penetrating hole must have an adverse slope

and be sealed properly to prevent rain and odor from coming into the house.

3. The overflow pipe must be fastened firmly and its indoor opening must be kept downward. The overflow

water can be discharged directly into the sewer. The distance between the opening of the overflow pipe and

the sewer plane should not be more than 15cm. Never hang the overflow pipe arbitrarily as splash of large

amount of overflow water will damage articles in your house.

4. Never install valve in the overflow pipeline to ensure rapid, accurate transfer of Full-of-Water signal.

5. Check valves should be installed on the trunks of water supply and drain pipes that are connected with the tap

water pipe to prevent back flowing of water in the tank.

6. When several water heaters are combined, the installation plan should be validated by a professional service

person of Haier.

Solar water heater

Tap water

Hot water

Overflow pipe

Installation instructions ·Operation instructions

yConnection method of water supply pipeline in the houses where a solar water heat

coexists with another type of water heater

yOperation methods:

1. Before using hot water, valves K1, K2 and K3 must be in closed state;

2. To fill water, open valve K1. When water flows out from the overflow pipe, it indicates the water tank is full.

At this time, close valve K1.

3. To use hot water, open valve K2. Hot water will come out from the shower nozzle. If it is too hot, open valve

K3 to adjust the water temperature.

4. Close valves K2 and K3 after use.

To the tank of the solar water heater

Another type o

water heate

When a solar water heat coexists

with another type of water heater,

check valves must be installed on

both cold and hot water pipes to

avoid damage caused by reverse

water flow from tank of another

heater, which has higher pressure,

to that of the solar heater.

Tap water

Solar water heate

Vent

Overflow

Water inlet and outlet

Tap water

valve
