Haier XPBM15-0501 Manual de usuario
1.5
Packing list..............................................................................................the 2nd cover
.............................................................................................1
Safety precautions .................................................................................................2
Installation and adjustment ....................................................................................4
Preparation before washing ..................................................................................5
Washing Process ....................................................................................................7
Disposal after washing ............................................................................................8
Trouble shooting .....................................................................................................9
Specifications...........................................................................................................9

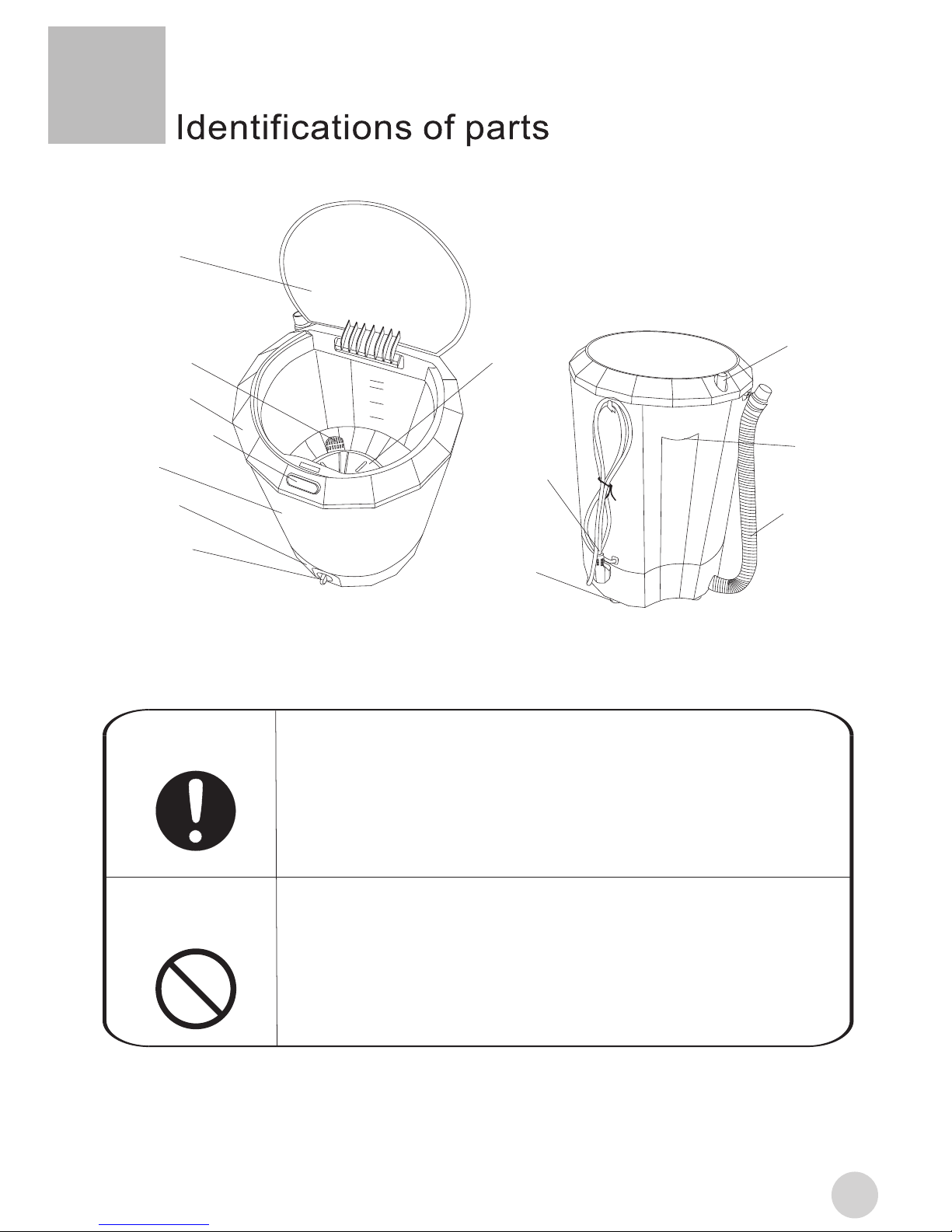

Identifications of parts
Washing capacity....................................................................................................6
Detergent usage......................................................................................................6
Contents
User's manual
Name
One
One
One
Quantity
Packing list
Water inlet hose
Washing machine
Warranty manual One
1
Description of the symbols
Warning sign
Forbidden sign
Contents marked with this symbol are related to the safety
of the product and the personal safety of the users. Please
operate in strict conformity to the instructions, otherwise it
may cause damage to the machine or the personal
safety of the user.
endanger
Contents marked with this symbol are actions forbidden to
perform. Performing of those actions may result in
destruction of the machine or permanent injury to the user.
Fixed legs
Cabinet
Release button
Base frame
Control knob
Drain hose
Control panel
Filter cover
Power cord
Pulsator
Handle
1
2
3
MAX
Top lid
Water-filling
entrance
2
Safety precautions
Do not twist pinch or damage the cord.
If the cord or plug becomes damaged,
please contact the service agent or an
authorised technician.
If the washing machine is installed on
carpet, do not block the ventilation hole
with carpet.
Do not let the machine share one power point with other
electric appliances. If the power plug is damaged or
loose, do not use the plug any more.
Do not wash water-proof items like
the raincoat, bike covers etc.
Do not use water hotter than 50 C .
Do not put the machine in damp places like
the bathroom. Never wash it with water.
Do not put wet clothes on the control panel.
soft items
The ventilation holes
at the bottom
Please plug the washer into a
220V-240V a.c receptacle. Be sure
to use single-phase three pin
receptacle. Ensure the earthing
prong of the power receptacle is
earthed reliably. Use leakage
protector if possible.
Earth
The appliance must be positioned so that
the power plug is accessible.Be sure to pull
the plug out and close the water faucets in
the following cases: power failure, installing
the machine,leaving the machine idle or
cleaning the machine. Do not push or pull
the power plug with wet hand.
If the appliance is attached to an extension
cord or electrical portable outlet device,it should
not be exposed to the splashing of water or
ingress of moisture.
3
Safety precautions
Do not repair or alter the machine by
yourself.
Do not put any hot or heavy items on the
washing machine. Do not wash clothes, with volatile
materials (such as thinner, petrol etc.)
Do not allow children to use the washing
machine. Keep the machine away from direct
sunlight and heat sources.
Do not put your hands into the machine
while it is in operation. It is dangerous
even if the rotation is slow.
Take special care ofchildren. Do not let
children climb on the washing machine.
Petrol
Thinner
4
Installation and adjustment
The largest allowed angle of the
machine is 2 .
More than this will result in unstable
operation or stoppage of the machine.
Adjust the installation position
Please install and adjust the machine according to the requirement of the manual.
It is very important for your safety and operation of the machine.
1.The height of the drain hose should be
less than 10cm, otherwise drainage will
not be smooth.
2.Do not trample or step on the drain hose.
Usage of the drain hose
<10cm
3. Do not lengthen or cut down the drain hose.
5
Preparation before washing
Pay attention to the following before washing.
Look for the
care label on
your laundry
for special
washing requi-
rements
Make sure you
have checked all
pockets for any
loose items.
Fasten all zippers,
hooks,buttons and
strings to make sure
that these items don't
snag on other clothes..
The quantity of
clothes shall not
exceed the rated
value.For large
clothes like jeans
should be put
in loosely.
,
they
a.Separate non-colorfast clothes from those that are.
b.For laundry that are water resistant, please push them into the water with your hands
to soak.
c.For heavy soiled clothes,try to remove most of the loose soil before washing.
d.Do not put clothes polluted with chemicals directly into the washing machine.
e.Mend any torn garments or loose buttons as it may tear larger during washing.
Reference weight of the laundries:
shirt Socks
underpants undershirt
Pyjamas
cotton, about
300g
blend, about
50g
cotton, about
70g cotton, about
180g
about 200g
6
The washing capacity of the machine refers
to the maximum weight of dry clothes being
washed at any one time.
This capacity is 1.5kg.
The thickness, size and type of the cloth will
affect the actual washing capacity.
Fill water to the desired level. Dilute the whitener and pour it slowly into the
washing tub.
Avoid using whitener with colored or patterned laundries, as they are prone
to lose color.
The whitener should not go on the laundries directly.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener, dissolve it before use.
Dissolving power inthe machine
1.Fill machine with water to level"1".Indicators can be seenon the inner tub.
2.Add the powder. Run themachine for approx30 seconds, todissolve
powder.
3.Put the clothes in. Add waterto a suitable water level.
Soap flakes
1.Prepare warm water of 30 in a container.
2.Add the soap and thenstir it until it`s fully dissolved.
Put in theproper quantity ofdetergent according tothe water leveland the
washing quantities .
It is suggestednot to usehigh sudsing detergent.
Detergent usage
Usage of whitener
Usage of washing powder
Washing Capacity
7
Insert the water inlet hose into the water-filling
entrance on the control panel.
Water inlet hose
Water-filling
entrance
Install the water inlet hose
1. Connect the water hose provided to the water mains
Washing Process
2.Connect the power
3. Fill the machine enough with water
to mix detergent, put in your laundr y
and fill up water to the desired level.
4. Close the lid.
Confirm that the washing machine is
earthed reliably. Then insert the power
plug into the receptacle.
1.Confirm that the drain hose is properly
stowed before filling with water, or the water
will flow through the drain hose.
2.Inside the machine you will see water filling
levels-"1" "2" "3"and"MAX".
This relates to the amount of washing you are
using.Never exceed the "MAX"Mark!
3.Only use the new hose set provided.
NOTE
8
9
12
15
3
6
5.Washing duration reference
Select washing duration depending on the laundry
About ~36
About7~8
About8~10
About2 4~
Laundry Washing Duration(min)
Silk fabric(thin laundry)
Knitted fabric/man-made fabric
Bed sheet
Cotton, blending or linen fabrics
Very dirty or heavy laundry About10~15
6.Finish washing
The tumbler will stop revolving.Level the draining hose
down to let the waste water out.
If the cabinetis dirty, wipe itwith
wet cloth
Do not flushit directly withwater.
Wipe it withneutral detergent.
Do not wipeit with thinner, petrol,
alcohol etc.
Disposal after washing
After washing, close the water faucet. ( If needed,
you can dismantle the water inlet hose).
Hang up the power cord and drain hose.
Be sure to pull off the power plug before maintenance.
Do not store water in the washing machine for a long
period. Drain the water completely after each using.
Wipe off the water drops on the surface of the
machine and inside the tub. Open the top lid for
some time (about 1 hour), then close the top lid.
Thinner
Alcohol
Petrol
If you intend to set the timer at 2 minutes or less,you will need to turn it over
6 minutes thenturn back.
