Haier HWM130-0523S Manual de usuario

Twin-tub Washing Machine

User's manual

Model: HWM130-0523S

Please read this manual carefully before using.

Retain it for future reference.

Contents

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Disposal after washing

Packing list *Specification

Names of the parts

Trouble-Shooting *Answer to question

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Names of the parts

Notes: All illustrations in this Manual are given for reference only. Your products and

accessories may show differences from these illustrations due to our

continuous improvement.

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Valve cover

Water-filling entrance

Water inlet selector handle

Buzzer

Wash selector

Wash timer

Control panel

Overflow filter

Lint filter

Wash tube

Pulsator

Wash tube cover

Drain hose

Base frame

Cabinet

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

If the power cord is bad, to avoid risk it is required to replace it by the

technicians of our special shop or the after-sale service department.

Keep the pin of the power plug clean.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Put the underside of the lint filter into overflow filter

then push the upside into overflow filter

After installation, please refer that the lint filter

installed to the right station, otherwise the lint

filter may be fallen off when washing, influencing

your use.

overflow filter

lint filter

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

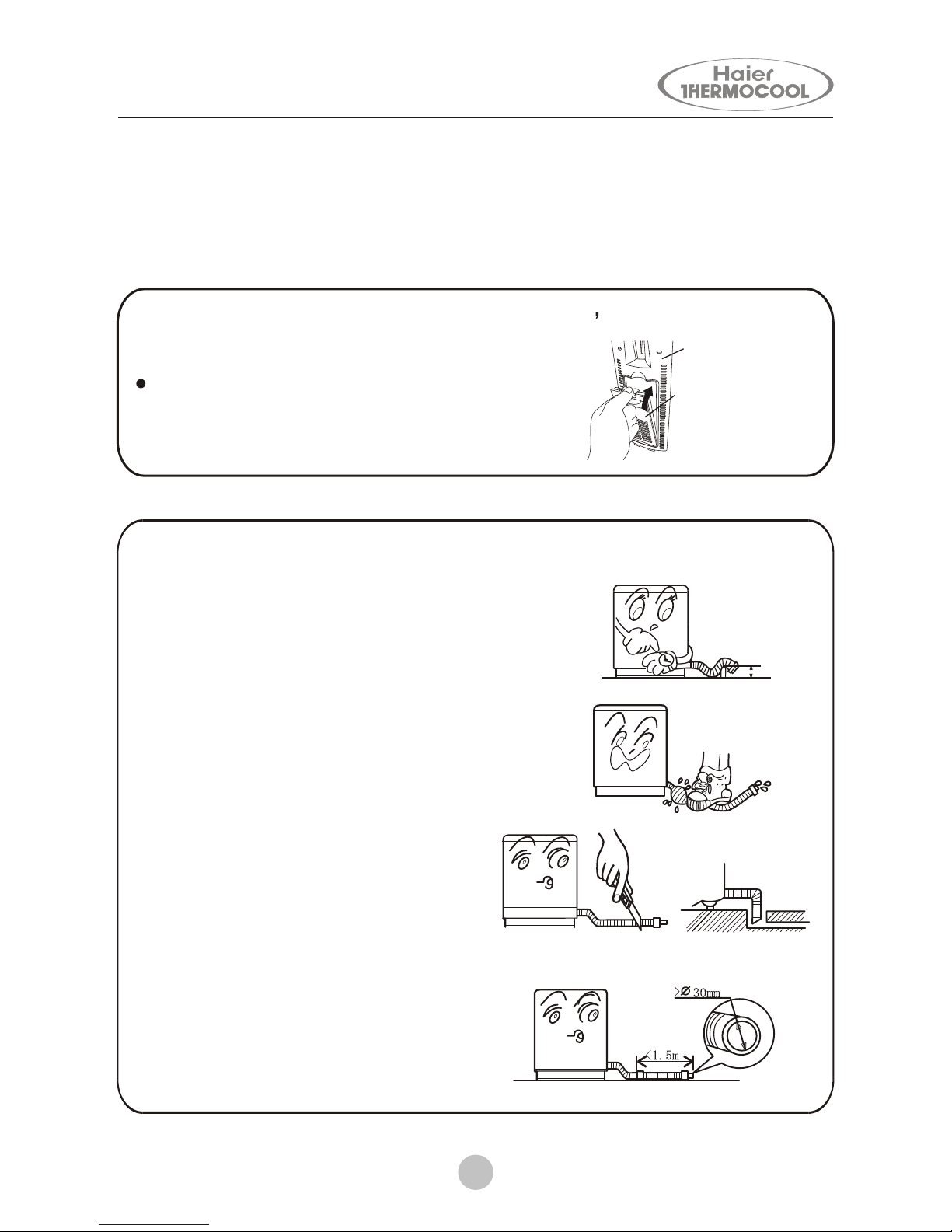

Install the lint filter

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall

be less than 10cm. or the drainage

will not be smooth enough and cause

incomplete drainage.

3.If the drain hose is too long, cut

it at mid point. To make smooth

drainage, cut the front end of

the hose slantingly.

2.Do not step on or press the drain hose.

4.IF extra drain hose is needed,

please make separate purchase.

The inner diameter of the extra

hose shall be not less than

30mm, and the length shall

be not exceed 1.5m.

<10cm

> 30mm

<1.5m

How to change the direction of the drain hoses

Install the water inlet hose; Select the water level

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Dismantle the drain hose fixing clamp and take

the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove along the side

of the spin tub in the order of (1)~(3), heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Figure 1

Figure 2

Figure 3

Embed into the

groove in turn

Back

Extend the drain hose from the side of spin tub

Soft item

Extend to the

spin tub side

Front

Drain hose fixing clamp

Maximum Max

Minimum Min

Medium Med

Water inlet hose Water-filling

entrance

Water level

adjusting lever

Insert the water inlet hose into the water-filling

entrance on the control panel directly. (pull it

out to dismantle it)

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

Ï´µÓ¼ÁµÄÊ¹ÓÃ

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the rated capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 4.0kg , so as to avoid splash-

ing of water.

The musts in washing

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into thewashing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

How to use the washing powder

Usage of the detergent

Washing sequence

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Spin timer

SPIN

WASH

Wash timer

WASH TIMER

Wash selector Buzzer Water-filling entrance

(To set to below 2 minutes,

first set to 5 minutes then

turn it back. it can increase

the service life of the timer).

(standard current,

strong current) (The buzzer will ring when

the washing finishes) (to set to below 1 minute,

first set to 2 minutes then

turn it back. it can increase

the service life of the timer).

Water-filling selector

Wash

DRAIN

STRONG

STANDARD

WASH SELECTOR

1.Water-filling selector

Set the water inlet selector at the "WASH" side.

(Figure 1)

2. Fill the water and add the dissolved washing

powder to make the water level reach the preset

position. (Figure 2)

Run washing program for some time to stir and

dissolve the powder completely.

3.Put in the laundries. If the water quantity is

insufficient, please add water.

4.Select the current.

Select the strength of the current according to

the laundries. (Figure 3)

5.Select the washing time

Select the washing time according to the laundries.

(Figure 4)

6.After washing, the buzzer will ring. Set the "WASH

SELECTOR" at "DRAIN". (Figure 5).

SPIN TIMERSPIN TIMER

WASH TIMERWASH TIMER WASH SELECTORWASH SELECTOR

OFF

SILK

WOOL

COTTON

LINEN

STANDARD

STRONG

OFFSILK

WOOL

OFF

MAX

BUZZERBUZZER

DRAINDRAIN

OFF

SILK

WOOL

COTTON

LINEN

Otros manuales para HWM130-0523S

Tabla de contenidos

Otros manuales de Arandela de Haier

Haier

Haier XPB40-32 Manual de usuario

Haier

Haier HW80-B14959U1 Manual de usuario

Haier

Haier HBF600T Manual de usuario

Haier

Haier HWM60-918NZP Manual de usuario

Haier

Haier HWF5300A Series Manual de usuario

Haier

Haier HD1200TXV Manual de usuario

Haier

Haier HLP21E - Pulsator Wash With Tub Manual de usuario

Haier

Haier HWM130-0677 Manual de usuario

Haier

Haier HWM65-0523K Manual de usuario

Haier

Haier HWM90-0577 Manual de usuario

Haier

Haier DWE-355 Manual de usuario

Haier

Haier HW60-1479-DF Manual de usuario

Haier

Haier HM501 Guía del usuario

Haier

Haier HWM108VA Manual de usuario

Haier

Haier HA600TX Manual de usuario

Haier

Haier XPB62-0613RU Manual de usuario

Haier

Haier HWM 30-22 Manual de usuario

Haier

Haier HWD-C1200TXVE-U Manual de usuario

Haier

Haier HW70-B14636N Manual de usuario

Haier

Haier HNS1260TVE Manual de operación y mantenimiento

Haier

Haier QFQ100 Manual de usuario

Haier

Haier HWM70-112S Manual de usuario

Haier

Haier HWM90DD Manual de usuario

Haier

Haier HW70-1401 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
