Table of Contents

English...................................................................................................................................................................................................4

Deutsch...............................................................................................................................................................................................14

Italiano................................................................................................................................................................................................. 24

Français.............................................................................................................................................................................................. 34

Español............................................................................................................................................................................................... 44

Português.......................................................................................................................................................................................... 54

Čeština................................................................................................................................................................................................ 64

Dansk...................................................................................................................................................................................................74

Nederlands........................................................................................................................................................................................ 83

Polski................................................................................................................................................................................................... 93

Svenska............................................................................................................................................................................................ 103

Suomi.................................................................................................................................................................................................113

български....................................................................................................................................................................................... 123

Magyar.............................................................................................................................................................................................. 134

Română............................................................................................................................................................................................ 144

lietuvių kalba...................................................................................................................................................................................154

Русский............................................................................................................................................................................................ 164

Türkçe................................................................................................................................................................................................174

Slovenský jazyk............................................................................................................................................................................ 184

Slovenski.......................................................................................................................................................................................... 194

Hrvatski............................................................................................................................................................................................. 204

Ελληνικά........................................................................................................................................................................................... 214

eesti keel.......................................................................................................................................................................................... 224

Српски.............................................................................................................................................................................................. 234

Table of Contents

1 Table of contents on page 4

2 Specifications on page 4

3 General information

on page 4

4 Installation on page 6

5 User interface and navigation

on page 8

6 Startup on page 9

7 Operation on page 10

8 Maintenance on page 11

9 Troubleshooting on page 12

10 Replacement parts and

accessories on page 12

Section 1 Table of contents

Specifications on page 4 Operation on page 10

General information on page 4 Maintenance on page 11

Installation on page 6 Troubleshooting on page 12

User interface and navigation

on page 8

Replacement parts and

accessories on page 12

Startup on page 9

Section 2 Specifications

Specifications are subject to change without notice.

Specification Details

Dimensions 25 x 14.5 x 31 cm (9.8 x 5.7 x 12.2 in.)

Weight Single heating block: 2 kg (4.4 lb)

Dual heating block: 2.8 kg (6.17 lb)

Power requirements 100–240 V, +5%/–15%, 50/60 Hz, Protection

Class I

Specification Details

Power input Single heating block: 115 V: 300 VA; 230 V:

450 VA

Dual heating block: 115 V: 600 VA; 230 V:

900 VA

Storage temperature –40 to +60 °C (–40 to +140 °F)

Operating temperature 10 to 45 °C (50 to 113 °F)

Operating humidity 90% (non-condensing)

Temperature range 37 to 165 °C (98.6 to 329 °F)

Timer: 0 to 480 minutes

Temperature stability ± 2 °C (± 3.5 °F)

Heating rate From 20 to 150 °C (68 to 302 °F) in

10 minutes

Certification CE and cTUVus

Section 3 General information

In no event will the manufacturer be liable for direct, indirect, special,

incidental or consequential damages resulting from any defect or

omission in this manual. The manufacturer reserves the right to make

changes in this manual and the products it describes at any time, without

notice or obligation. Revised editions are found on the manufacturer’s

website.

4 English

3.1 Safety information

NOTICE

The manufacturer is not responsible for any damages due to

misapplication or misuse of this product including, without limitation,

direct, incidental and consequential damages, and disclaims such

damages to the full extent permitted under applicable law. The user is

solely responsible to identify critical application risks and install

appropriate mechanisms to protect processes during a possible

equipment malfunction.

Please read this entire manual before unpacking, setting up or operating

this equipment. Pay attention to all danger and caution statements.

Failure to do so could result in serious injury to the operator or damage

to the equipment.

Make sure that the protection provided by this equipment is not impaired.

Do not use or install this equipment in any manner other than that

specified in this manual.

3.1.1 Use of hazard information

DANGER

Indicates a potentially or imminently hazardous situation which, if not

avoided, will result in death or serious injury.

W A R N I N G

Indicates a potentially or imminently hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation that may result in minor or

moderate injury.

NOTICE

Indicates a situation which, if not avoided, may cause damage to the

instrument. Information that requires special emphasis.

3.1.2 Precautionary labels

Read all labels and tags attached to the instrument. Personal injury or

damage to the instrument could occur if not observed. A symbol, if noted

on the instrument, will be included with a danger or caution statement in

the manual.

This symbol, if noted on the instrument, references the

instruction manual for operation and/or safety information.

Electrical equipment marked with this symbol may not be

disposed of in European domestic or public disposal

systems. Return old or end-of-life equipment to the

manufacturer for disposal at no charge to the user.

This symbol indicates that the marked item can be hot and

should not be touched without care.

This symbol indicates that the marked item requires a

protective earth connection. If the instrument is not supplied

with a ground plug on a cord, make the protective earth

connection to the protective conductor terminal.

3.2 Product overview

This instrument has one or two heating blocks that increase the

temperature of solutions in round sample cells to a specified temperature

for a specified time period (Figure 1). There are six stored temperature

programs and three temperature programs that are configured by the

user and saved.

English 5

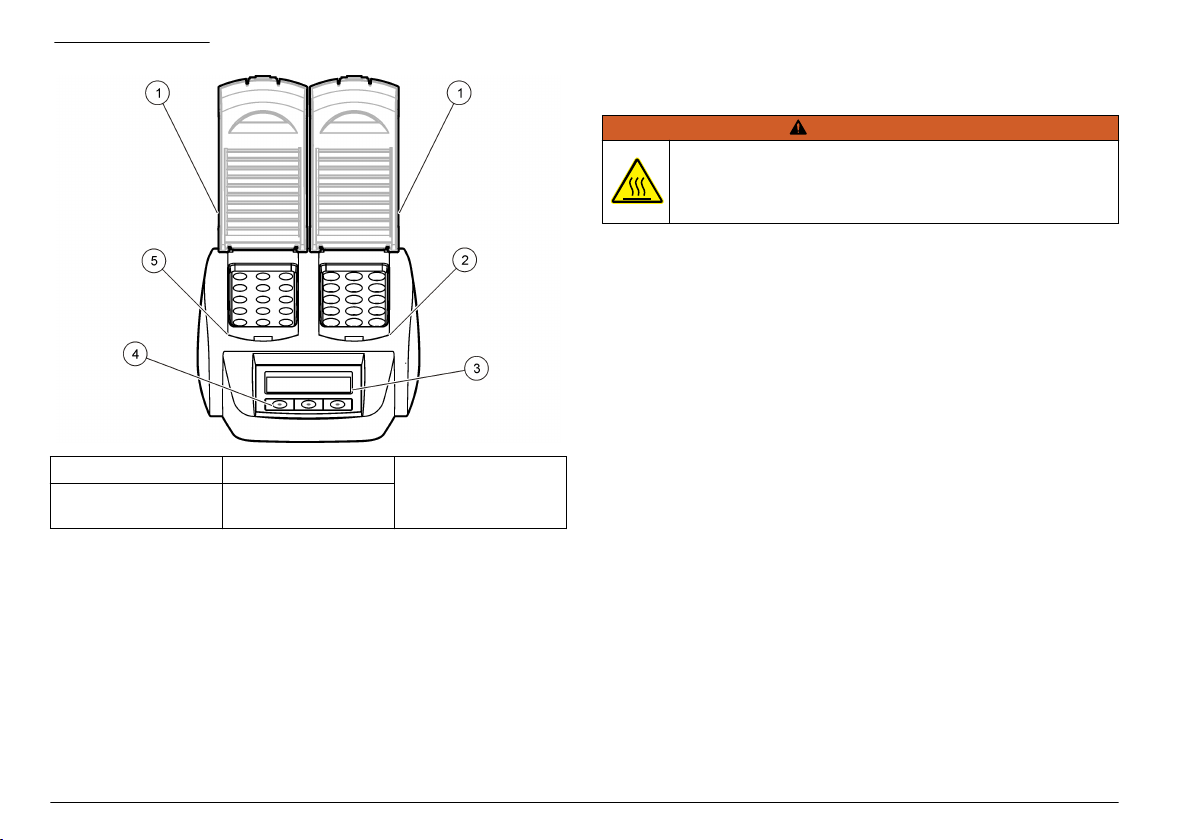

Figure 1 Front view

1 Protective cover 3 Display 5 Left heating block

2 Right heating

block

4 Keys

Section 4 Installation

4.1 Install the protective covers

W A R N I N G

Shock and Burn Hazard. The protective cover must be

installed to prevent personal injury. The protective cover

prevents burns and power cord contact with the heating

block.

Refer to the illustrated steps that follow.

6 English

1 2

English 7

Section 5 User interface and navigation

5.1 User interface

The instrument is operated using three keys that are located below the

display (Figure 2). The function of each key is shown on the display. If

no function is shown for a key, that key is not currently active.

Figure 2 Keypad description

1 Display 3 Middle key

2 Right key 4 Left key

5.2 Display description

Figure 3 Screen display when a program is active on the left

heating block only

1 Thermometer symbol 5 Left heating block

2 Temperature of heating block 6 Remaining time

3 Right heating block 7 Timer symbol

4 Down arrow key (use to select

program)

8 English

Table 1 Thermometer symbols

Symbol Description

The heating block is increasing in

temperature.

The heating block is at the

selected temperature.

The heating block is decreasing in

temperature.

Section 6 Startup

6.1 Turn the instrument on

NOTICE

Do not turn the instrument off and on quickly as this can damage the

instrument. Always wait about 20 seconds before turning the

instrument on again.

1. Put the instrument on a stable, level, heat-resistant surface.

2. Connect the power cord to the power plug on the back of the

instrument.

3. Connect the power cord to a power socket with earthing contact.

4. Push the power switch on the back of the instrument to turn the

instrument on.

6.2 Select the language

To change the default language setting (English):

1. Hold down the left key and turn the instrument on.

2. Push the right arrow key to scroll through the menu. The display

goes back to the start of the menu at the end of the menu.

3. When the correct language is shown, push the key for the language.

Refer to Table 2.

Table 2 Language settings

Setting Language Setting Language

GB English E Spanish

D German NL Dutch

F French S Swedish

I Italian PL Polish

6.3 Set the display contrast

1. Hold down the middle key and turn the instrument on.

2. Push or hold down the up and down arrow keys to change the

contrast value.

3. Push OK to save the change.

English 9

Section 7 Operation

DANGER

Chemical exposure hazard. Obey laboratory safety

procedures and wear all of the personal protective equipment

appropriate to the chemicals that are handled. Refer to the

current safety data sheets (MSDS/SDS) for safety protocols.

7.1 Routine operation

CAUTION

Burn Hazard. Do not put a finger in an opening in the heating

block. Close the protective cover before increasing the

temperature of the heating block, and always keep the

protective cover closed during operation.

CAUTION

Burn Hazard. Sample cells are hot. Wear thermal insulating

material (e.g., gloves or finger cots). Do not remove a sample

cell that is greater than 80 °C. Do not put a sample cell that is

greater than 80 °C in a colorimeter.

CAUTION

Chemical Hazard. If a sample cell breaks, do not let the liquid

touch skin. Use a fume hood as necessary to remove

chemical fumes.

CAUTION

Chemical exposure hazard. Dispose of chemicals and wastes

in accordance with local, regional and national regulations.

NOTICE

To prevent sample cell and instrument damage, keep the openings in

the heating block dry. Dry the outside of sample cells fully.

NOTICE

To prevent instrument damage, immediately disconnect power if an

accidental spill occurs or a sample cell breaks, then clean the

instrument. Refer to Clean the instrument on page 11.

NOTICE

Do not cover the ventilation slits in the protective cover. The instrument

and sample cells may become too hot and decrease the accuracy of

measurement.

1. Prepare the test sample cells as specified in the analysis procedure.

2. Close the sample cells with the cap.

3. Dry the outside of the sample cells fully.

4. Turn the instrument on and open the protective cover. The last

temperature program(s) selected is shown on the display.

5. If using 16 mm tubes with a heating block with 20 mm openings, put

reducing adapters in the openings.

6. Select the correct temperature program (and digestion period if

applicable) using the keys, then push Start. Refer to Stored

programs on page 10. The temperature program is selected

independently for each heating block when there are two heating

blocks.

Note: To stop a program, push the key below the program two times.

7. When the heating block is at the selected temperature (two beeps

are heard), put the test sample cells in the correct heating block and

close the protective cover.

8. Push Start to start the program.

The time counts down to zero (0). When the digestion program is

completed, three beeps are heard and the heater turns off.

7.2 Stored programs

Table 3 gives descriptions of the stored temperature programs.

10 English

Otros manuales para DRB 200

Tabla de contenidos

Idiomas:

Otros manuales de Equipo de laboratorio de Hach

Hach

Hach TU5200 Manual de usuario

Hach

Hach Digesdahl 23130-20 Manual de usuario

Hach

Hach QbD1200 AutoSampler Manual de usuario

Hach

Hach MTC10101 Manual de usuario

Hach

Hach DRB 200 Manual de usuario

Hach

Hach sension ph31 Manual de usuario

Hach

Hach Lange 2100AN Manual de usuario

Hach

Hach CDC401-01 Manual de usuario

Hach

Hach QuikChem 8500 2 Series Manual de usuario

Hach

Hach sensION+ EC7 Manual de usuario

Hach

Hach TenSette 19700-01 Manual de usuario

Hach

Hach LT 200 Manual de usuario

Hach

Hach LT 200 Manual de usuario

Hach

Hach sensION+ pH3 Manual de usuario

Hach

Hach sensIONTM+ pH31 Manual de usuario

Hach

Hach DR 3900 Manual rápido

Hach

Hach LQV157.99.50001 Manual de usuario

Hach

Hach AS1000 Manual de usuario

Hach

Hach Flow Cell FC 48/10 USC Manual de usuario

Hach

Hach Lachat BD40HT Manual de usuario

Hach

Hach PHC735 Manual de usuario

Hach

Hach ORBISPHERE 29122 Manual de usuario

Hach

Hach TitraLab AT1000 Series Manual rápido

Hach

Hach TU5200 Manual de usuario

Manuales populares de Equipo de laboratorio de otras marcas

Qiagen

Qiagen DML 3000 Manual de usuario

Queensgate

Queensgate NANOSCAN OP400 Manual de programación

Conviron

Conviron GEN1000-GE Manual de usuario

Parr Instrument

Parr Instrument 4560 Manual de instrucciones

IKA

IKA IC control Manual de usuario

Integra

Integra DOSE IT Manual de usuario

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manual de usuario

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manual de usuario

NI PXI-5422 Manual

Collomix

Collomix Aqix Manual de usuario

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manual de usuario

Ocean Insight

Ocean Insight FLAME-NIR+ Manual de usuario

Parker

Parker ALIGN-MG-NA Manual de usuario

BD 644787 Manual de usuario

DENTAURUM

DENTAURUM Compact Megaplus Manual de usuario

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manual de usuario

VWR

VWR SAS Super IAQ Manual de usuario

illumina

illumina MiSeqDx Manual de usuario
