Hach AS1000 Manual de usuario
DOC022.97.80516
Sample changer AS1000
01/2018, Edition 5
User Manual
Manuel de l’utilisateur
Manual del usuario
Manual do Usuário
用户手册
取扱説明書
사용 설명서
English..............................................................................................................................3
Français......................................................................................................................... 18
Español.......................................................................................................................... 33
Português...................................................................................................................... 48
中文................................................................................................................................. 63
日本語............................................................................................................................. 76
한글................................................................................................................................. 91
2
Table of contents
Specifications on page 3 Maintenance on page 15
General information on page 4 Troubleshooting on page 16
Installation on page 9 Replacement parts and accessories on page 16
Operation on page 14
Specifications
Specifications are subject to change without notice.
Specification Details
Dimensions (W x H x D) 395 x 300 x 535 mm (15.55 x 11.81 x 21.06 in.)
Weight approximately Approximately 10 kg (22.05 lb)
Enclosure Lifting module: Enamelled steel and PP; Rotating module: PP
Pollution degree 2
Installation category II
Protection class 2
Operating temperature 15 to 40 °C (59 to 104 °F)
Storage temperature –5 to 40 °C (23 to 104 °F)
Relative humidity 20 to 80%, non-condensing
Maximum sound power level 60 dBA
Power requirements Instrument input: 24 VDC, 2.5 A; External plug-in power supply: Input
100–240 VAC, 50-60 Hz, 1.5 A, Class I; output, 24 VDC, 2.5 A
Magnetic stirrer1RCA connector, maximum voltage 12 V, maximum current 150 mA
Rotating module connection2RJ45 telephone connector
Communications RJ11 connector, RS232 inputs/outputs
Tray rotational speed 4 rpm (nominal)
Vertical movement (sensor
holder)
88 mm (3.5 in.)
Tray positions 12, 20 or 30
Sample beakers (H x D) 50 mL: 96 x 29 mm (3.77 x 1.14 in.); 50 mL: 88 x 60 mm (3.46 x 2.36 in.);
90 mL: 75 x 43 mm (2.95 x 1.69 in.); 150 mL: 88 x 60 mm (3.46 x 2.36 in.)
Certifications Safety: IEC/EN 61010-1; EMC: IEC/EN 61326-1
1For the supplied stirrers only.
2For the supplied trays only.
English 3
Specification Details
Korean certification User Guidance for EMC Class B Equipment
가정용을 포함하는 EMC 등급 B 장치에
대한 사용자 지침
사용자안내문
B 급 기기 ( 가정용 방송통신기자재 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주로 가정에서 사용하는 것을
목적으로 하며 , 모든 지역에서 사용 할 수 있습니다.
Warranty 1 year (EU: 2 years)
General information
In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential
damages resulting from any defect or omission in this manual. The manufacturer reserves the right to
make changes in this manual and the products it describes at any time, without notice or obligation.
Revised editions are found on the manufacturer’s website.
Safety information
N O T I C E
The manufacturer is not responsible for any damages due to misapplication or misuse of this product including,
without limitation, direct, incidental and consequential damages, and disclaims such damages to the full extent
permitted under applicable law. The user is solely responsible to identify critical application risks and install
appropriate mechanisms to protect processes during a possible equipment malfunction.
Please read this entire manual before unpacking, setting up or operating this equipment. Pay
attention to all danger and caution statements. Failure to do so could result in serious injury to the
operator or damage to the equipment.
Make sure that the protection provided by this equipment is not impaired. Do not use or install this
equipment in any manner other than that specified in this manual.
Use of hazard information
D A N G E R
Indicates a potentially or imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate injury.
N O T I C E
Indicates a situation which, if not avoided, may cause damage to the instrument. Information that requires special
emphasis.
4 English
Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or damage to the instrument
could occur if not observed. A symbol on the instrument is referenced in the manual with a
precautionary statement.
This is the safety alert symbol. Obey all safety messages that follow this symbol to avoid potential
injury. If on the instrument, refer to the instruction manual for operation or safety information.
This symbol indicates that a risk of electrical shock and/or electrocution exists.
This symbol indicates a potential pinch hazard.
Electrical equipment marked with this symbol may not be disposed of in European domestic or public
disposal systems. Return old or end-of-life equipment to the manufacturer for disposal at no charge to
the user.
Certification
Canadian Radio Interference-Causing Equipment Regulation, IECS-003, Class B:
Supporting test records reside with the manufacturer.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de classe B répond à toutes les exigences de la réglementation canadienne
sur les équipements provoquant des interférences.
FCC Part 15, Class "B" Limits
Supporting test records reside with the manufacturer. The device complies with Part 15 of the FCC
Rules. Operation is subject to the following conditions:
1. The equipment may not cause harmful interference.
2. The equipment must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to
correct the interference at their expense. The following techniques can be used to reduce
interference problems:
1. Move the equipment away from the device receiving the interference.
2. Reposition the receiving antenna for the device receiving the interference.
3. Try combinations of the above.
English 5
Chemical and Biological Safety
D A N G E R
Chemical or biological hazards. If this instrument is used to monitor a treatment process and/or
chemical feed system for which there are regulatory limits and monitoring requirements related to
public health, public safety, food or beverage manufacture or processing, it is the responsibility of the
user of this instrument to know and abide by any applicable regulation and to have sufficient and
appropriate mechanisms in place for compliance with applicable regulations in the event of malfunction
of the instrument.
N O T I C E
Never use this instrument to do tests on living beings.
Normal operation of this device may require the use of chemicals or biological samples.
• Do not use the instrument in samples that could cause a biological hazard.
• Observe all cautionary information printed on the original solution containers and safety data
sheets prior to their use.
• Dispose of all consumed solutions in accordance with the local and national regulations and laws.
• Select the type of protective equipment suitable to the concentration and quantity of the dangerous
material being used.
Product overview
The TitraLab AS1000 series is an automatic sample changer used in analytical laboratories with the
TitraLab AT1000 series analyzers. There are three sampler models:
• AS1000.XX.20090: Sampler for TitraLab AT1000 series, 20 beakers, 90 mL
• AS1000.XX.30050: Sampler for TitraLab AT1000 series, 30 beakers, 50 mL
• AS1000.XX.12150: Sampler for TitraLab AT1000 series, 12 beakers, 50/150 mL
The sampler is PC-controlled with the TM1000 software. The instrument has a tray that holds the
sample beakers. Refer to Table 1 for instrument configurations. The rotating module turns the tray to
change the sample position while the lifting module moves sensors and tubes up and down into each
sample. The sampler has an integrated magnetic stirrer. Use the sampler for a wide variety of
aqueous sample applications. Refer to the analyzer and software documentation for more
information. Refer to Figure 1.
Note: The type of tray, probe holder and beakers is dependent on the model. Refer to Table 1.
6 English
Figure 1 Sampler
1 Lifting module 6 Tray
2 Probe and tubes holder 7 Rotating module
3 Sample beakers 8 Magnetic stirrer
4 Blue LED (Flashes when the tray is in position 1.
For the remaining positions, the LED is on.)
9 Power switch
5 Green LED (ON/OFF indicator LED) 10 Rear panel
Table 1 Instrument configurations
Model Tray positions Beakers Minimum sample volume (mL)3Tubes4Probes5
Combined Pt-Pt/ISE
AS1000.XX.20090 20 90 mL 51 30 3 1
AS1000.XX.30050 30 50 mL 21 11 3 1
AS1000.XX.12150 12 50 mL 46 19 4 2
150 mL 70 39 4 2
Product components
Make sure that all components have been received. Refer to Figure 2. If any items are missing or
damaged, contact the manufacturer or a sales representative immediately.
3Some probes can require a larger minimum sample volume. Make sure that the sensing part of
the probe is fully into the sample during the measurement.
4Maximum number of tubes (suction tube not included).
5Maximum number of accepted probes.
English 7
Figure 2 Sampler components
1 Lifting module 9 RS-232 adapter cable with USB/Serial adapter
2 Tray screw cap 10 TM1000 software
3 Tube holder 11 Tray
4 Rotating module 12 Sample beakers
5 Power cord 13 Magnetic stir bars
6 Power supply 14 Probe holder
7 Base with magnetic stirrer 15 Ring adapters for 50 mL beaker
8 Ethernet cables
Note: The type of tray, probe holder and beakers is dependent on the model.
8 English
Instrument connections
Connect the power supply, the rotating module, the magnetic stirrer and the PC to the rear panel of
the instrument. Refer to Figure 3 for instrument connections.
Figure 3 Instrument connections
1 Magnetic stirrer connection 3 External power supply
connection
5 Connections label
2 Rotating module connection 4 PC connection
Installation
D A N G E R
Explosion hazard. The instrument is not approved for installation in hazardous locations.
D A N G E R
Fire hazard. This product is not designed for use with flammable liquids.
WARNING
Chemical exposure hazard. Obey laboratory safety procedures and wear all of the personal protective
equipment appropriate to the chemicals that are handled. Refer to the current safety data sheets
(MSDS/SDS) for safety protocols.
CAUTION
Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the
document.
English 9
This instrument is rated for an altitude of 2000 m (6562 ft) maximum. Although the use of this
equipment above the 2000 m altitude does not show any substantial safety concern, the
manufacturer recommends that users with concerns contact technical support.
Installation guidelines
• This instrument is for indoor use only.
• The power supply connector on the rear panel must be easily accessible so the power can be
disconnected quickly in case of emergency.
• Keep the instrument away from temperature extremes, including heaters, direct sunlight and other
heat sources.
• Put the instrument on a stable and level surface in a well ventilated place.
• Make sure that there is at least 15 cm (6 in.) of space on all sides of the instrument to prevent
electrical parts from overheating.
• Do not operate or keep the instrument in dusty, damp or wet locations.
• Always keep the surface of the instrument and all accessories dry and clean.

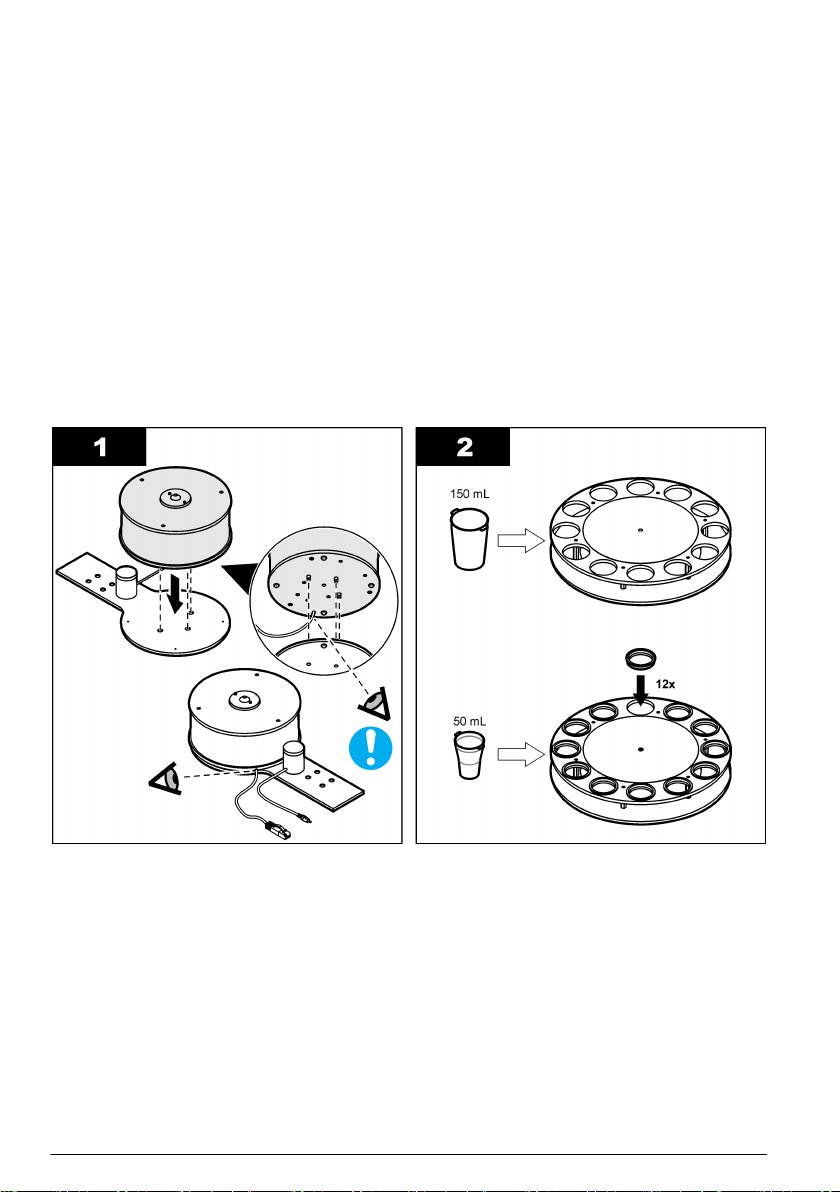

Assemble the instrument
Refer to the illustrated steps that follow.
10 English
Tabla de contenidos
Idiomas:
Otros manuales de Equipo de laboratorio de Hach
Hach
Hach PHOSPHAX sc LR Manual de usuario
Hach
Hach TenSette 19700-01 Manual de usuario
Hach
Hach QbD1200 AutoSampler Manual de usuario
Hach
Hach 900 MAX Manual de usuario
Hach
Hach 2100Q Manual rápido
Hach
Hach HQ440d Manual de usuario
Hach
Hach ORBISPHERE 29122 Manual de usuario
Hach
Hach AutoCAT 9000 Manual de usuario
Hach
Hach TitraLab Manual rápido
Hach
Hach TenSette plus BBP087 Manual de usuario
Hach
Hach PHC705 Manual de usuario
Hach
Hach TitraLab Manual de usuario
Hach
Hach Portable Spectrophotometer DR 2800 Manual de usuario
Hach
Hach LZV902 Manual de usuario
Hach
Hach sensION MM340 Manual de usuario
Hach
Hach QP 1680-TOC/TNb Manual rápido
Hach
Hach DRB 200 Manual de usuario
Hach
Hach DR 6000 Manual rápido
Hach
Hach SIP 10 kit Manual de usuario
Hach
Hach PHC108 Manual de usuario
Manuales populares de Equipo de laboratorio de otras marcas
Agilent Technologies
Agilent Technologies 5800 ICP-OES Manual de usuario
Endress+Hauser
Endress+Hauser Cleanfit CPA875 Manual de usuario
NI
NI PXI-5422 Manual
Collomix
Collomix Aqix Manual de usuario
SPEX SamplePrep
SPEX SamplePrep 6875 Freezer/Mill Series Manual de usuario
Ocean Insight
Ocean Insight FLAME-NIR+ Manual de usuario
