H3C WA6320 Manual de usuario

H3C WA6320 Access Point

Installation Guide

New H3C Technologies Co., Ltd.

http://www.h3c.com

Document version: 5W100-20200224

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of New H3C Technologies Co., Ltd.

Trademarks

Except for the trademarks of New H3C Technologies Co., Ltd., any trademarks that may be mentioned in this

document are the property of their respective owners.

Notice

The information in this document is subject to change without notice. All contents in this document, including

statements, information, and recommendations, are believed to be accurate, but they are presented without

warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions

contained herein.

Environmental protection

This product has been designed to comply with the environmental protection requirements. The storage, use,

and disposal of this product must meet the applicable national laws and regulations.

Preface

This installation guide describes the installation procedure for the H3C WA6320 access point.

This preface includes the following topics about the documentation:

•

Audience.

•

Conventions.

•

Documentation feedback.

Audience

This documentation is intended for:

•

Network planners.

•

Field technical support and servicing engineers.

•

Network administrators working with the WA6320 access point.

Conventions

The following information describes the conventions used in the documentation.

Command conventions

Convention

Description

Boldface Bold text represents commands and keywords that you enter literally as shown.

Italic Italic text represents arguments that you replace with actual values.

[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.

{ x | y | ... }

Braces enclose a set of required syntax choices separated by vertical bars, from which

you select one.

[ x | y | ... ]

Square brackets enclose a set of optional syntax choices separated by vertical bars,

from which you select one or none.

{ x | y | ... } *

Asterisk marked braces enclose a set of required syntax choices separated by vertical

bars, from which you select a minimum of one.

[ x | y | ... ] *

Asterisk marked square brackets enclose optional syntaxchoices separated byvertical

bars, from which you select one choice, multiple choices, or none.

&<1-n> The argument or keyword and argument combination before the ampersand (&) sign

can be entered 1 to n times.

# A line that starts with a pound (#) sign is comments.

GUI conventions

Convention

Description

Boldface Window names, button names, field names, and menu items are in Boldface. For

example, the New User window opens; click OK.

> Multi-level menus are separated by angle brackets. For example, File > Create >

Folder.

Symbols

Convention

Description

WARNING!

An alert that calls attention to important information that if not understood or followed

can result in personal injury.

CAUTION:

An alert that calls attention to important information that if not understood or followed

can result in data loss, data corruption, or damage to hardware or software.

IMPORTANT:

An alert that calls attention to essential information.

NOTE:

An alert that contains additional or supplementary information.

TIP:

An alert that provides helpful information.

Network topology icons

Convention

Description

Represents a generic network device, such as a router, switch, or firewall.

Represents a routing-capable device, such as a router or Layer 3 switch.

Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that

supports Layer 2 forwarding and other Layer 2 features.

Represents an access controller, a unified wired-WLAN module, or the access

controller engine on a unified wired-WLAN switch.

Represents an access point.

Represents a wireless terminator unit.

Represents a wireless terminator.

Represents a mesh access point.

Represents omnidirectional signals.

Represents directional signals.

Represents a security product, such as a firewall, UTM, multiservice security

gateway, or load balancing device.

Represents a security module, such as a firewall, load balancing, NetStream, SSL

VPN, IPS, or ACG module.

Examples provided in this document

Examples in this document might use devices that differ from your device in hardware model,

configuration, or software version. It is normal that the port numbers, sample output, screenshots,

and other information in the examples differ from what you have on your device.

Documentation feedback

You can e-mail your comments about product documentation to info@h3c.com.

We appreciate your comments.

Contents

1 Preparing for installation··········································································1-1

Safety recommendations ································································································································1-1

Site preparation···············································································································································1-1

Installation accessories···································································································································1-1

Installation tools ··············································································································································1-2

2 Installing the AP·······················································································2-1

Installation flowchart········································································································································2-1

Pre-installation tasks·······································································································································2-1

Determining the installation position ···············································································································2-2

Mounting the AP··············································································································································2-2

Mounting bracket·····································································································································2-2

Mounting the AP on a wall ······················································································································2-2

Mounting the AP on a ceiling ··················································································································2-5

Connecting the AP to a power source ············································································································2-7

Connecting a PoE power source·············································································································2-7

Connecting a local power source············································································································2-7

Check after power-on······························································································································2-8

Connecting the AP to the network···················································································································2-8

3 Appendix A Technical specifications························································3-1

4 Appendix B Ports and LEDs ····································································4-1

Ports································································································································································4-1

LEDs ·······························································································································································4-2

1-1

1 Preparing for installation

Safety recommendations

WARNING!

Only

professional technical personnel can install and remove the AP and its

accessories. You must

read all safety instructions carefully before working with the AP.

To avoid possible bodily injury and equipment damage, read the following safety recommendations

before installing the AP. Note that the recommendations do not cover every possible hazardous

condition.

•

To avoid bodily injury and device damage, take adequate safety measures.

•

Place the AP in a dry and flat location and take anti-slip measures.

•

Keep the AP clean and dust-free.

•

Do not place the AP in a moist area and avoid liquid intrusion.

•

Keep the AP and installation tools away from walkways.

Site preparation

Before installing the AP, examine the installation site and make sure the AP will operate in a

favorable environment. Make sure the temperature and humidity at the installation site meet the

requirements in Table 1-1.

Table 1-1 Temperature and humidity requirements

Item

Specification

Operating temperature -10°C to 55°C (32°F to 113°F)

Storage temperature –40°C to +70°C (–40°F to +158°F)

Operating humidity 5% RH to 95% RH, noncondensing

Installation accessories

Figure 1-1 Accessories provided with the AP

1-2

Installation tools

When installing the AP, you might need the following tools. Prepare the installation tools yourself as

required.

Figure 1-2 Installation tools

2-1

2 Installing the AP

Installation flowchart

Figure 2-1 Installation flowchart

Pre-installation tasks

Before installing the AP, perform the following tasks:

•

Connect the AP to a power source and the network. Examine the LEDs to verify that the AP is

operating correctly. For information about AP LEDs, see "LEDs."

•

Record the MAC address and serial number at the rear of the AP for future use.

•

Make sure you have completed cabling at the installation site.

Start

Complete pre-installation

tasks

Determine the installation

position

Mount the AP

On a wall On a ceiling

Connect the AP to the

power source

Connect the AP to the

network

End

2-2

Determining the installation position

Determine the installation position by observing the following principles:

•

Few obstacles such as wall exist between the AP and clients.

•

The AP is far away from electronic devices (such as microwave oven) that might generate

radio frequency (RF) noise.

•

The AP does not hinder people’s daily work and life.

•

The place is not water seeping, water soaking, and condensing.

Mounting the AP

IMPORTANT:

•

Before mounting the AP on a wall or ceiling, connect cables to the AP.

•Install an M3 × 23.5 security screw as required.

The AP can be installed only indoors. You can mount the AP on a wall or a ceiling.

Mounting bracket

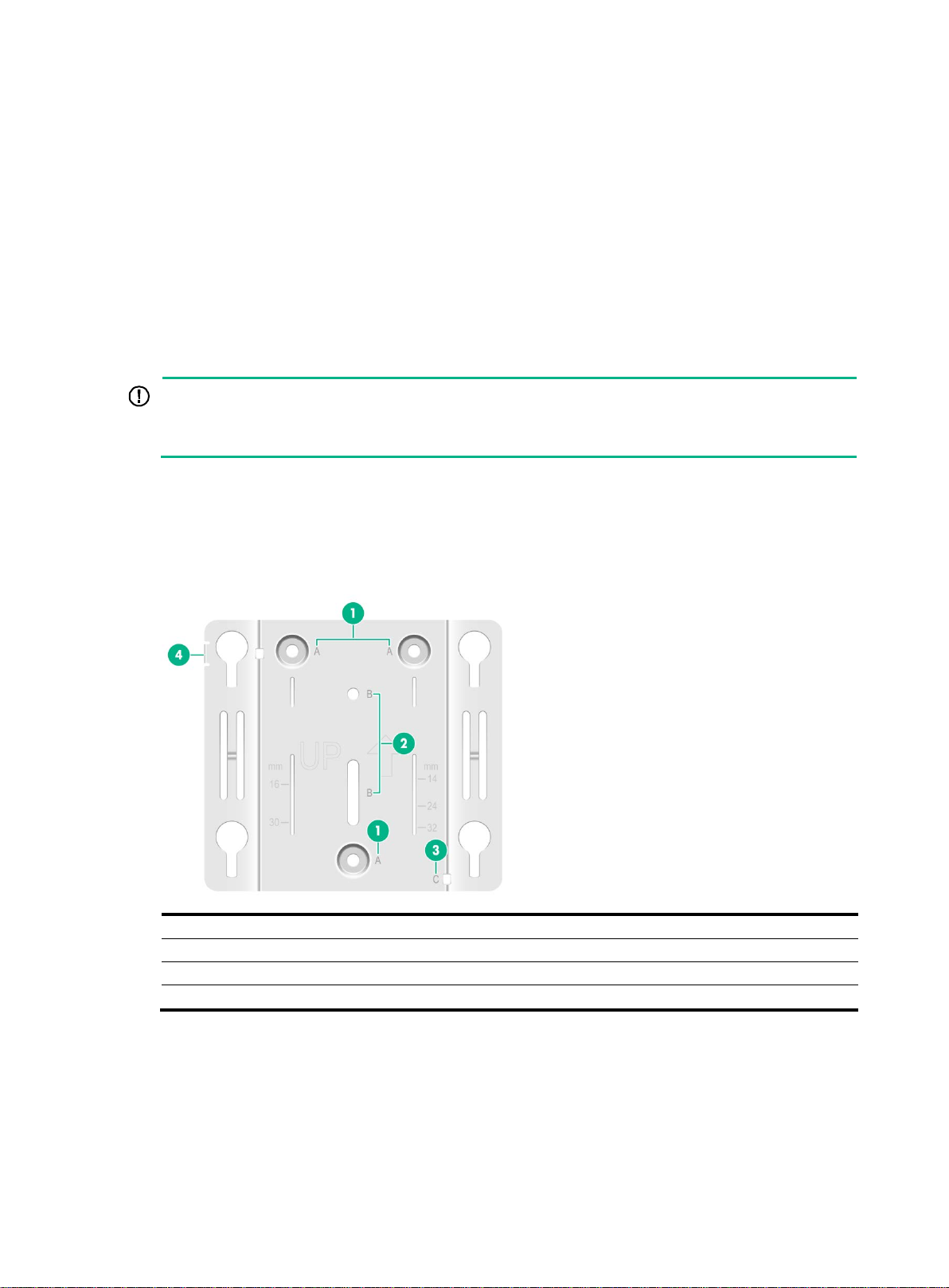

Figure 2-2 Mounting bracket

(1) Installation hole for securing the mounting bracket to a wall or ceiling (point A)

(2) T-rail installation hole (reserved) (Point B)

(3) Auxiliary hole for securing cables by using cable tie (point C)

(4) Security hole for an M3 × 23.5 security screw

Mounting the AP on a wall

1. Place the mounting bracket against the wall and mark the installation holes on the wall.
