H3C WA5620i-ACN Manual de usuario

H3C WA5620i-ACN Access Point

Installation Guide

New H3C Technologies Co., Ltd.

http://www.h3c.com.hk

Document version: 6W101-20170414

No part of this manual may be reproduced or transmitted in any form or by any means without prior written

consent of New H3C Technologies Co., Ltd.

Trademarks

H3C, , H3CS, H3CIE, H3CNE,Aolynk, , H3Care, , IRF, NetPilot, Netflow, SecEngine,

SecPath, SecCenter, SecBlade, Comware, ITCMM and HUASAN are trademarks of New H3C Technologies

Co., Ltd.

All other trademarks that may be mentioned in this manual are the property of their respective owners

Notice

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute the warranty of any kind, express or implied.

Environmental protection

This product has been designed to comply with the environmental protection requirements. The storage, use,

and disposal of this product must meet the applicable national laws and regulations.

Preface

The H3C WA5620i-ACN Access Points Installation Guide guides you through the installation of your

AP. It covers product overview, preparing for installation, installing theAP, and LEDs and ports.

This preface includes the following topics about the documentation:

•Audience.

•Conventions

•Obtaining documentation

•Technical support

•Documentation feedback

Audience

This documentation is intended for:

•Network planners.

•Field technical support and servicing engineers.

•Network administrators working with the WA5620i-ACN APs.

Conventions

The following information describes the conventions used in the documentation.

Command conventions

Convention Description

Boldface Bold text represents commands and keywords that you enter literally as shown.

Italic Italic text represents arguments that you replace with actual values.

[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.

{ x | y | ... }

Braces enclose a set of required syntax choices separated by vertical bars, from which

you select one.

[ x | y | ... ]

Square brackets enclose a set of optional syntax choices separated by vertical bars,

from which you select one or none.

{ x | y | ... } *

Asterisk marked braces enclose a set of required syntax choices separated by vertical

bars, from which you select a minimum of one.

[ x | y | ... ] *

Asterisk marked square brackets enclose optional syntax choices separated by vertical

bars, from which you select one choice, multiple choices, or none.

&<1-n> The argument or keyword and argument combination before the ampersand (&) sign

can be entered 1 to n times.

# A line that starts with a pound (#) sign is comments.

GUI conventions

Convention Description

Boldface Window names, button names, field names, and menu items are in Boldface. For

example, the New User window opens; click OK.

Convention Description

> Multi-level menus are separated by angle brackets. For example, File > Create >

Folder.

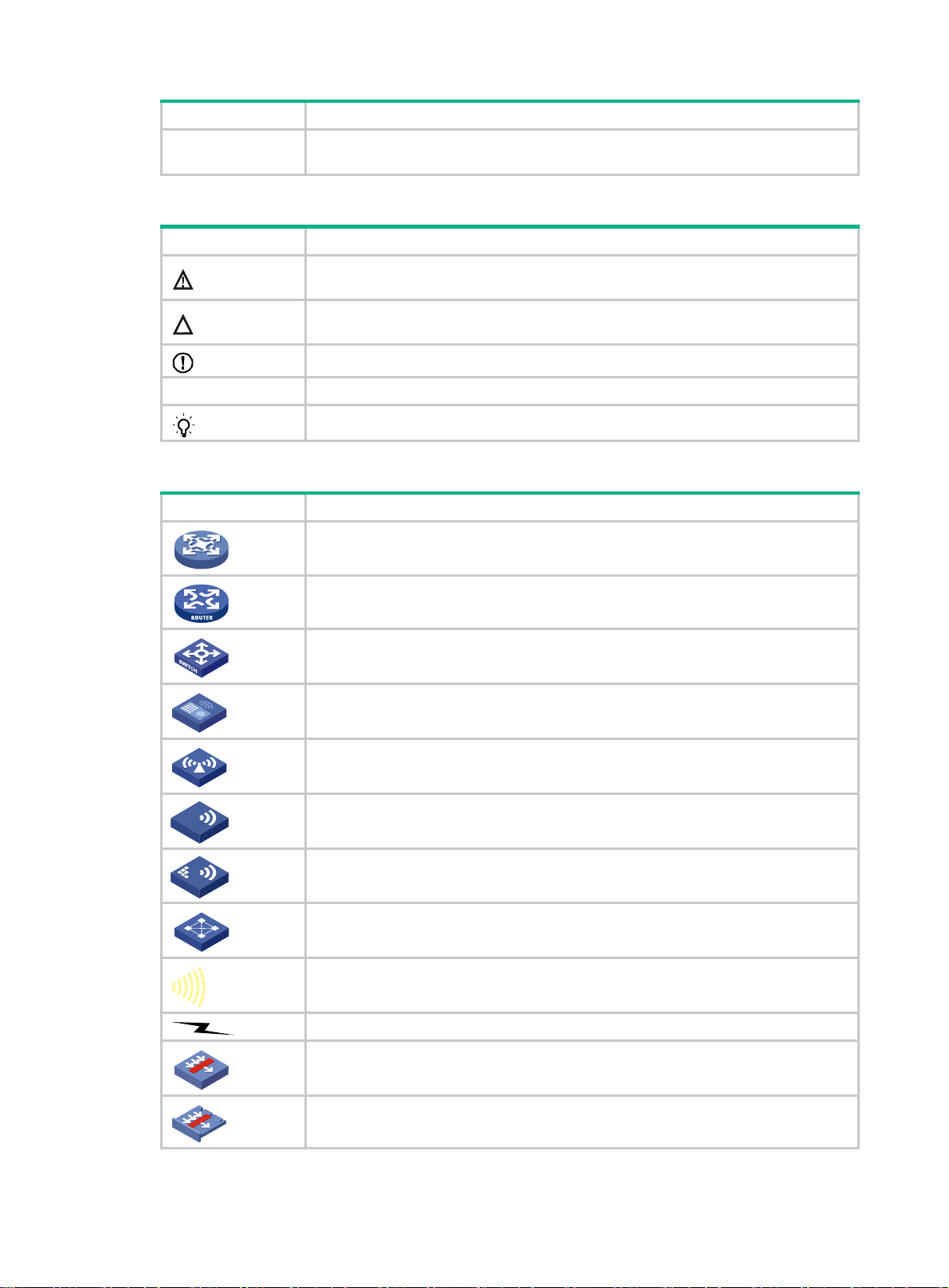

Symbols

Convention Description

WARNING! An alert that calls attention to important information that if not understood or followed

can result in personal injury.

CAUTION: An alert that calls attention to important information that if not understood or followed

can result in data loss, data corruption, or damage to hardware or software.

IMPORTANT: An alert that calls attention to essential information.

NOTE: An alert that contains additional or supplementary information.

TIP: An alert that provides helpful information.

Network topology icons

Convention Description

Represents a generic network device, such as a router, switch, or firewall.

Represents a routing-capable device, such as a router or Layer 3 switch.

Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that

supports Layer 2 forwarding and other Layer 2 features.

Represents an access controller, a unified wired-WLAN module, or the access

controller engine on a unified wired-WLAN switch.

Represents an access point.

Wireless terminator unit.

Wireless terminator.

Represents a mesh access point.

Represents omnidirectional signals.

Represents directional signals.

Represents a security product, such as a firewall, UTM, multiservice security

gateway, or load balancing device.

Represents a security module, such as a firewall, load balancing, NetStream, SSL

VPN, IPS, or ACG module.



Examples provided in this document

Examples in this document might use devices that differ from your device in hardware model,

configuration, or software version. It is normal that the port numbers, sample output, screenshots,

and other information in the examples differ from what you have on your device.

Obtaining documentation

To access the most up-to-date H3C product documentation, go to the H3C website at

http://www.h3c.com.hk

To obtain information about installation, configuration, and maintenance, click

http://www.h3c.com.hk/Technical_Documents

To obtain software version information such as release notes, click

http://www.h3c.com.hk/Software_Download

Technical support

service@h3c.com

http://www.h3c.com.hk

Documentation feedback

You can e-mail your comments about product documentation to info@h3c.com.

We appreciate your comments.

Contents

Product overview ·············································································1

Preparing for installation····································································2

Safety recommendations·············································································································2

Temperature and humidity requirements·························································································2

Accessories provided with the AP··································································································2

Installation tools and equipment····································································································3

Installing the AP···············································································4

Check before installation ·············································································································4

Determining the installation position·······························································································4

Installing the AP ························································································································5

Mounting the AP on a wall·····································································································5

Installing the AP on a ceiling··································································································7

Connecting the AP to a power supply···························································································10

Connecting a PoE power supply···························································································10

Connecting the local power supply························································································10

Check after power-on·········································································································11

Connecting the AP to the network································································································11

Verifying network connection for the fit AP··············································································11

Product overview

An H3C WA5620i-ACNAP can act as a fitAP to cooperate with access controller modules or access

controllers to provide wireless access for WLAN users. The network settings are configured on the

access controller modules or access controllers.

Figure 1 Deployment of WA5620i-ACN APs

Table 1 H3C WA5620i-ACN specifications

Item Specification

Protocol •IEEE 802.11a/b/g/n/ac

•Dual-radio

Built-in antennas •2.4 G antenna: gain 4 dBi

•5 G antenna: gain 4 dBi

Power consumption 12.5 to 25 W

Dimensions (H × W × D) 52 × 220 × 227 mm (2.05 × 8.66 × 8.94 in)

Weight 1.06 kg (2.34 lb)

Preparing for installation

Safety recommendations

WARNING!

Only qualified personnel can install and remove the APand its accessories. You must read all safety

instructions supplied with the AP before installation and operation.

To avoid possible bodily injury and equipment damage, read the following safety recommendations

before installing the AP. Note that the recommendations do not cover every possible hazardous

condition.

•Take adequate safety measures to avoid injury andAP damage.

•Place the AP in a dry and flat location and take anti-slip measures.

•Keep the AP clean and dust-free.

•Do not place the AP in a moist area and avoid liquid surrounding the AP.

•Keep the AP and installation tools away from walkways.

Temperature and humidity requirements

Item Specification

Operating temperature (indoor) –10°C to +55°C (14°F to 131°F)

Storage temperature –40°C to +70°C (–40°F to +158°F)

Operating humidity (noncondensing) 5% to 95%

Accessories provided with the AP

Mounting kit

Three sets of M4 × 30 pan head

screw, washer, and nut

Three sets of wall anchor kit

MAC address label

One M4 × 10 pan head screw

Installation tools and equipment

When installing the AP, you may need the following tools. Prepare these tools and equipment

yourself.

Needle-nose pliers Wire-stripping pliers Diagonal pliers Marker

Percussion drill with

matching drills Rubber hammer Phillips screwdriver

Installing the AP

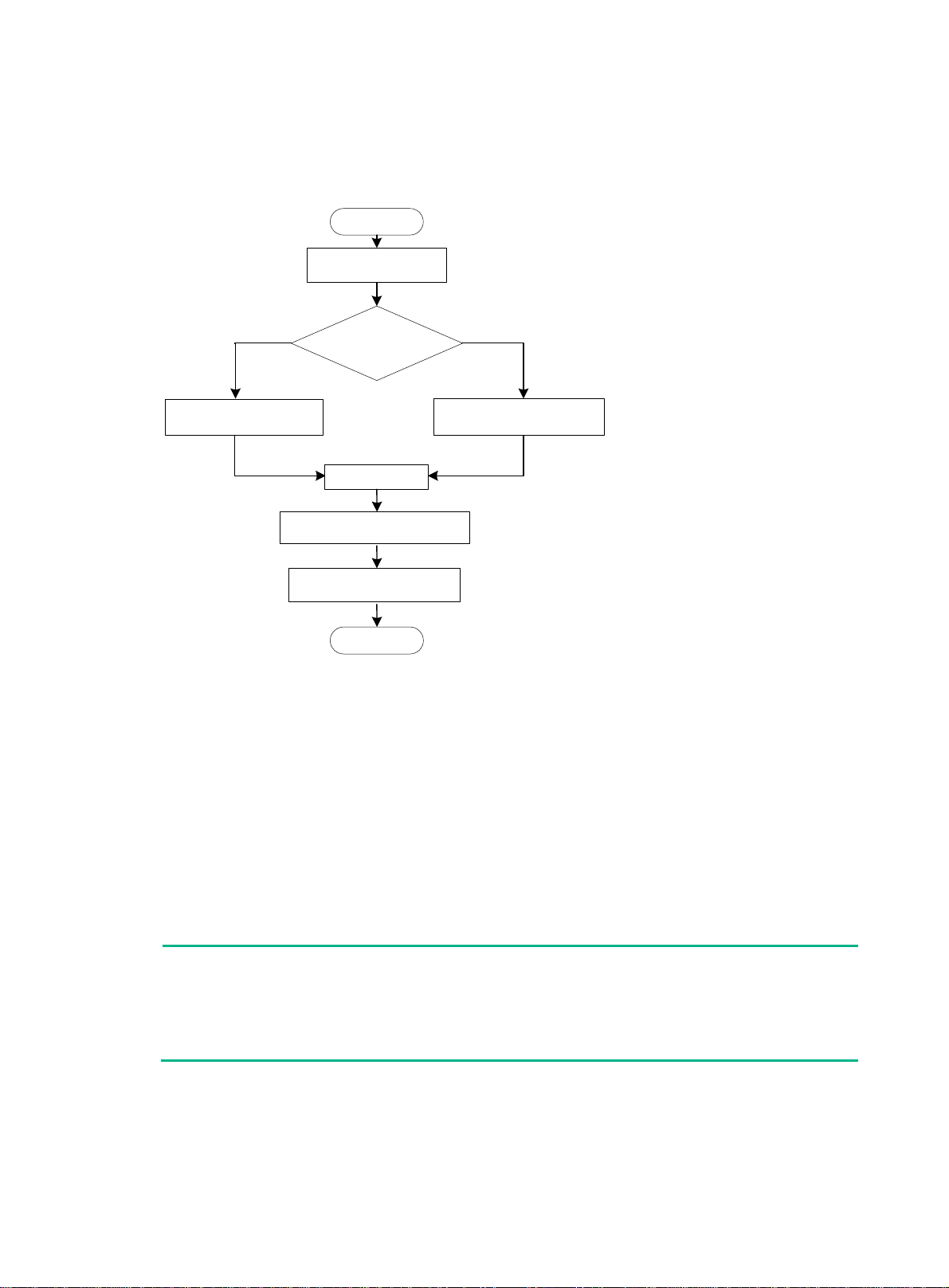

Figure 2 Installation flowchart

Check before installation

Before installing anAP, perform the following tasks:

•Connect the AP to the power supply and the network. Examine the LEDs to verify that the AP

can operate correctly. For more information about AP LEDs, see "Appendix LEDs and ports."

•Verify that cabling on the installation site has been completed.

•To power the AP through PoE/PoE+, use 802.3at PoE+ as a best practice. If 802.3af PoE is

used, the AP supports only one spatial stream and the USB and unused Ethernet ports are

shutdown automatically.

•Record the AP MAC address and serial number marked on the rear of theAP for future use.

NOTE:

•Use a category 5e cable to connect the AP's 2.5 GE port. For the interface to operate at 2500

Mbps, use an H3C switch that provides a 2.5 GE interface.

•Use a category 5 cable to connect the AP's GE port. The auto-negotiated transmission rate is

1000 or 100 Mbps.

Determining the installation position

You can mount the AP to a wall or ceiling. Determine the installation position by observing the

following principles:

Start

Determine the installation

position

Wall-mounting the AP

End

Mount the mounting bracket to

the wall

Install the AP

Connect the AP to the power supply

Connect the AP to the network

Mount the mounting bracket to

the ceiling

Ceiling-mounting the AP

Check before installation
