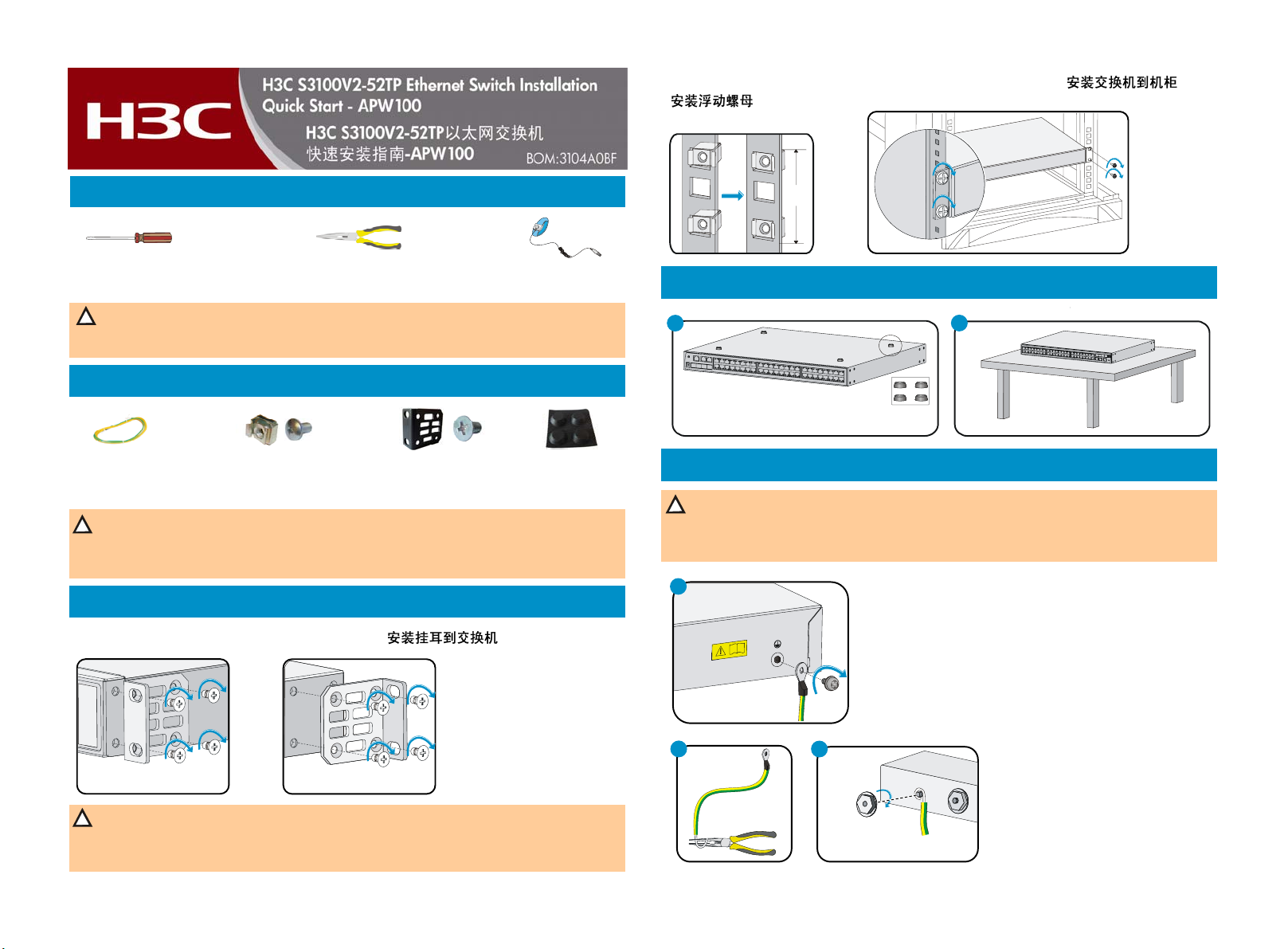

H3C S3100V2-52TP Manual de operación y mantenimiento

Tool list 工具参考

Mounting the switch to a rack 安装交换机到机柜

Introduction to installation accessories 安装附件介绍

Grounding cable

地线

Rubber pads

脚垫贴

Cage nut and M6 screw (User

supplied) 浮动螺母和M6螺钉

(请用户自备)

Mounting bracket

and M4 screw

挂耳和M4螺钉

Attach the mounting brackets to the switch

The installation tools are not provided with the switch. Prepare them by yourself.

交换机不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。

Flat-head screwdriver

一字螺丝刀

ESD-preventive wrist strap

防静电腕带

Before installation, wear an ESD-preventive wrist strap, and make sure that the wrist

strap has a good skin contact and is well grounded. 在以下安装交换机的过程中，操

作者需佩戴防静电腕带，请确保防静电腕带已经正确接地并与皮肤良好接触。

The mounting brackets can be attached to a switch for front or rear mounting. You

can choose a proper position according to the actual requirements. 用户可以根据安

装场景的需要，将挂耳安装在机箱侧面前部或者后部两种不同位置。

Front mounting

前部安装

Rear mounting

后部安装

Needle-nose pliers

尖嘴钳

Mounting the switch to a workbench 安装交换机到工作台

Install cage nuts Mount the switch to a rack

Connecting the grounding cable 连接保护地线

Properly connect the switch grounding cable because it is crucial to the lightning

protection and electromagnetic shield (EMS) of your switch.交换机地线的正确连接是

交换机防雷、防干扰的重要保障，请使用设备随机提供的保护地线正确接地。

Connect the OT terminal of the grounding

cable to the switch.

将保护地线一端的OT端子与交换机相连

Connect the grounding cable to the

grounding strip.

保护地线的另一端与接地排相连

2 3

Stick the rubber pads to the appropriate

positions on the switch bottom

粘贴脚垫到交换机底部

Connect the AC power cable

Connecting the power cable 连接电源线

Before connecting the power cable, connect the grounding cable and make sure that

the switch is correctly grounded. 在连接电源线前，需先连接保护地线，保证交换机

正确接地。

Connect the power cable to the switch first and then to the power supply system to

avoid bodily injury. 连接电源线时，请先完成电源线与交换机侧的连接，再进行电源

线与供电系统的连接，以免造成人身伤害。

Obtaining Documentation资料获取方式

Take the following steps to get related documents from the H3C website at www.h3c.com.

1. Go to http://www.h3c.com/portal/Technical_Documents.

2. Choose the desired product category and model.

您可以访问H3C网站（www.h3c.com.cn）获取最新的产品配套资料：

1. 请访问网址：http://www.h3c.com.cn/Technical_Documents，

或单击主页的［服务支持/文档中心］；

2. 选择产品类别和产品型号，即可查询和下载与该产品相关的手册。

For more information about the product and installation procedures, log in to www.h3c.com

如需了解产品及安装方面的更多信息，请登录 H3C 网站 www.h3c.com.cn
