GW Instek GSP-730 Manual de usuario
Spectrum Analyzer
GSP-730
QUICK START GUIDE
GW INSTEK PART NO. 82SP-73000M01
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is
protected by copyright. All rights are reserved. No part
of this manual may be photocopied, reproduced or
translated to another language without prior written
consent of Good Will Corporation.
The information in this manual was correct at the time
of printing. However, Good Will continues to improve
its products and therefore reserves the right to change
the specifications, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng
Dist., New Taipei City 236, Taiwan.
SAFETY INSTRUCTIONS
This section contains the basic safety symbols that may
appear on the accompanying user manual CD or on the
instrument. For detailed safety instructions and
precautions, please see the Safety Instructions chapter
in the user manual CD.
Safety Symbols
These safety symbols may appear in the user manual or
on the instrument.
Warning
Warning: Identifies conditions or
practices that could result in injury or
loss of life.
Caution
Caution: Identifies conditions or
practices that could result in damage
to the instrument or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal
Do not dispose electronic equipment
as unsorted municipal waste. Please
use a separate collection facility or
contact the supplier from which this
instrument was purchased.
Power Cord for the United Kingdom
When using the instrument in the United Kingdom,
make sure the power cord meets the following safety
instructions.
NOTE: This lead/appliance must only be wired by
competent persons.
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in
accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed as
follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or
contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable of
0.75mm2should be protected by a 3A or 5A fuse. Larger conductors
would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged
in a live socket is extremely hazardous. If a cable or plug is deemed
hazardous, turn off the mains power and remove the cable, any
fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.
GETTING STARTED
This chapter provides a brief overview of the GSP-730,
the package contents, instructions for first time use and
an introduction to the front panel, rear panel and GUI.
Main Features
Performance
•150kHz~3GHz bandwidth
•100kHz resolution
Features
•Autoset with automatic floor level
and span.
•Marker table function
•Limit line testing
•Split window display
•ACPR measurement
•OCBW measurement
•Automatic resolution bandwidth
mode.
Interface
•480x640 color LCD display
•On-screen menu icons
•VGA video output
•RS-232C
•USB 2.0 Host port for data storage
•USB 2.0 Device port for the virtual
com port communication
Package Contents
Please the package contents to ensure you have all of
the following items:
Part Number
Description
82SP-73000E01
User Manual CD
82SP-73000M01
Quick Start Guide (this document)
Region Dep.
Power cord x1
Cal. Certificate
Display and Panel Overview

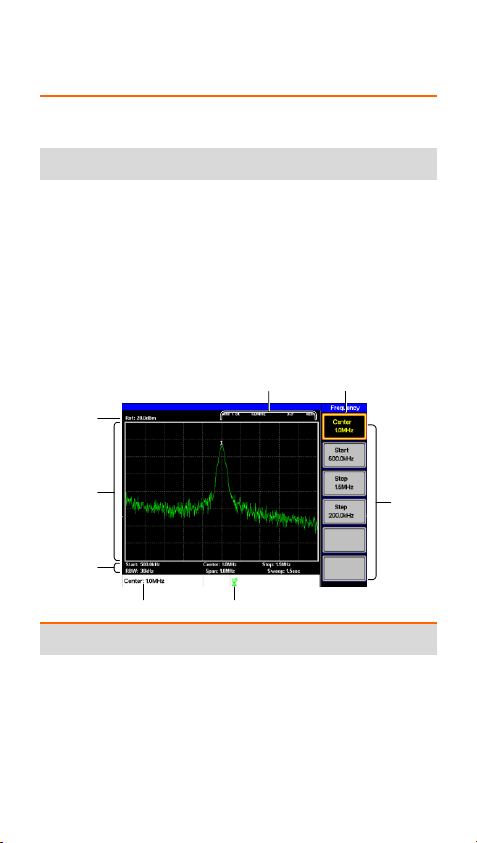

Display Overview
1
2 3
4
56
7
8
Description
1. Reference level
2. Marker information
3. Function menu
4. Soft menu keys
5. Trace icons
6. Entry/Message area
7. Frequency /
Bandwidth settings
8. Trace and waveforms

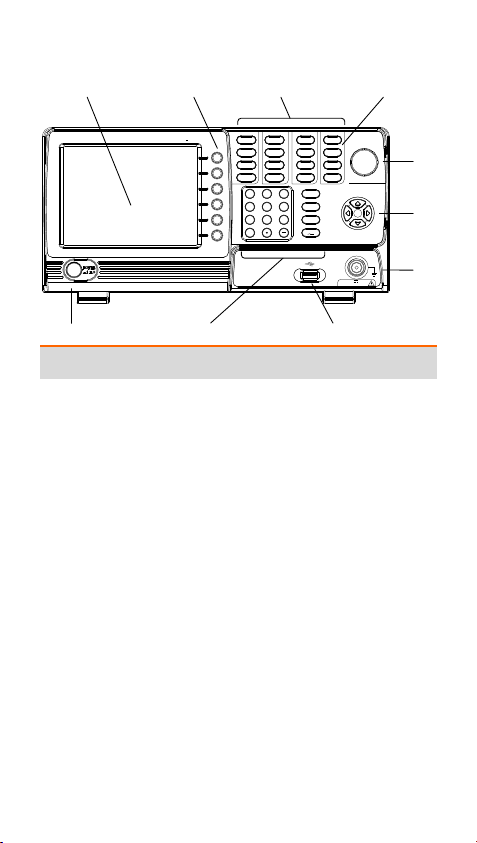

Front Panel
dB
Enter
F 1
F 2
F 3
F 4
F 5
F 6 0BK SP
kHz /
Sec
m
mSec
MHz /
GHz /
Sec
1
4
7
2
5
8
3
6
9
Frequency
Span
Amplitude
Autoset
Marker
Peak
Limit Line
Meas
Search
BW
Trace
Display
Memory
Preset
Hardcopy
System
Hardcopy
Setup
150 kHz 3 GHz
Spectrum Analyzer
RF INPUT 50
+30dBm MAX.
MAX.DC ±25V
Ω
21 3 4
5
6
8910
7
Description
1. LCD display
2. Function keys
3. Menu keys
4. Hardcopy key
5. Scroll wheel
6. Arrow keys
7. RF terminal input
8. USB A port
9. Keypad and unit keys
10. Power button

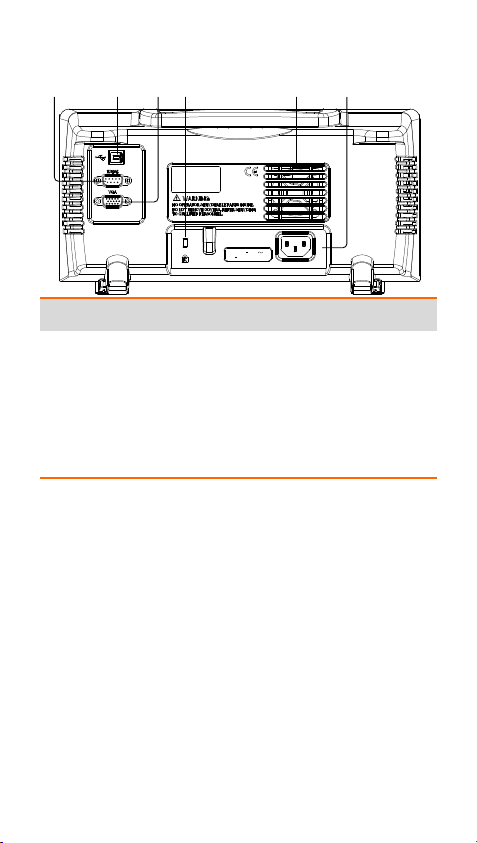

Rear Panel
52 643
AC 100 240V
50 60 Hz 15W MAX.
1
Description
1. RS-232 port
2. USB B port
3. VGA output
4. Security slot
5. Fan
6. Power socket
First Time Use Instructions
Use the procedures below when first using the GSP-
730 to tilt the stand, power up the instrument, update
the firmware and restore the unit back to the default
settings. Lastly, the Conventions sections will
introduce you to the basic operating conventions used
throughout the user manual. For further details, please
see the user manual.

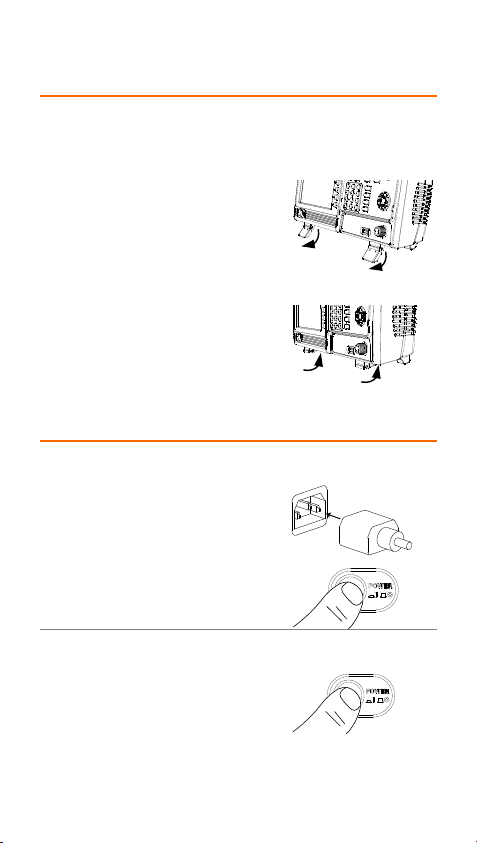

Tilting the Stand
The GSP-730 has two adjustable tabs at the front that
can be used to position the instrument into two preset
orientations.
Leaning position:
Set the tabs down to have the
GSP-730 leaning backward.
Upright Position:
Set the tabs flat to have the
GSP-730 in an upright position.
Power Up and Down
Power Up:
1. Insert the AC power cord into
the power socket.
2. Press the power button to turn
the GSP-730 on.
Power Down:
Press the power button to
power down.
Software Update
The GSP-730 allows the software to be updated by
end-users. Before using the GSP-730, please check the
GW Instek website or ask your local distributor for the
latest software.
The update file, MAIN1.BIN, must be placed in the
root directory of a USB flash drive.
System Version:
1. Press
System
>Information[F4].
2. The system version is displayed on the SW Ver[F4]
icon.
Software version
Update Software:
1. Place the update file, MAIN1.BIN, into the root
directory of a USB flash drive.
2. Insert the USB flash drive into the USB port on the
front panel.
3. Press
System
>Update From USB Flash[F5].
4. Press Update Now[F3] to execute the update
process.
•When the message “Programmed Successful” is
displayed, the software has completed the update.
5. Reboot the system when the update procedure has
finished by cycling the power button.
6. Check the software version again to confirm the
update procedure.
