GU Electronic MB 2015-PAS-T Manual de usuario

MB 2015MB 2015--PASPAS--T T

Parking Assist SystemParking Assist System

ManualManual

- MODEL : MB-PAS-150601

- DATE : 2015.06.30

IndexIndex

1. Main Spec

2. Block Diagram

3. Dimension

4. External Appearance

5. Connector Pin Assignment

6. Product Composition

7. DIP S/W Setting

8. OSD(On Screen Display) Control

9. Install Manual

10. Q & A

1. Main Spec.1. Main Spec.

1. Input Spec. (MULTI VIDEO INTERFACE)

- 1 x Analog RGB Input (Navigation System output)

- 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

- 1 x CVBS(FRONT CAMERA) Input. (Front camera source)

- 1 x LVDS Input. (Car Command System)

2. Output Spec.

- 1 x LCD Output (LCD Operation)

3. Power Spec.

- Input Power : 8VDC ~ 24VDC

- Consumption Power : 12Watt, Max

4. Switch Input mode

- Possible to select CAR model while switching mode by DIP S/W

- By button on the Commander in the car via CAN

2. Block Diagram2. Block Diagram

Scaler

(PIP)

MCU

LVDS

INTERFACE

CAR

COMMAND

SYSTEM

LVDS

CAN

EEPROM

CAN

RECEIVER

LVDS

CAR

TFT-LCD

LVDS

RELAY

REAR CAMERA

POWER

REAR CAMERA

RGB+Sync

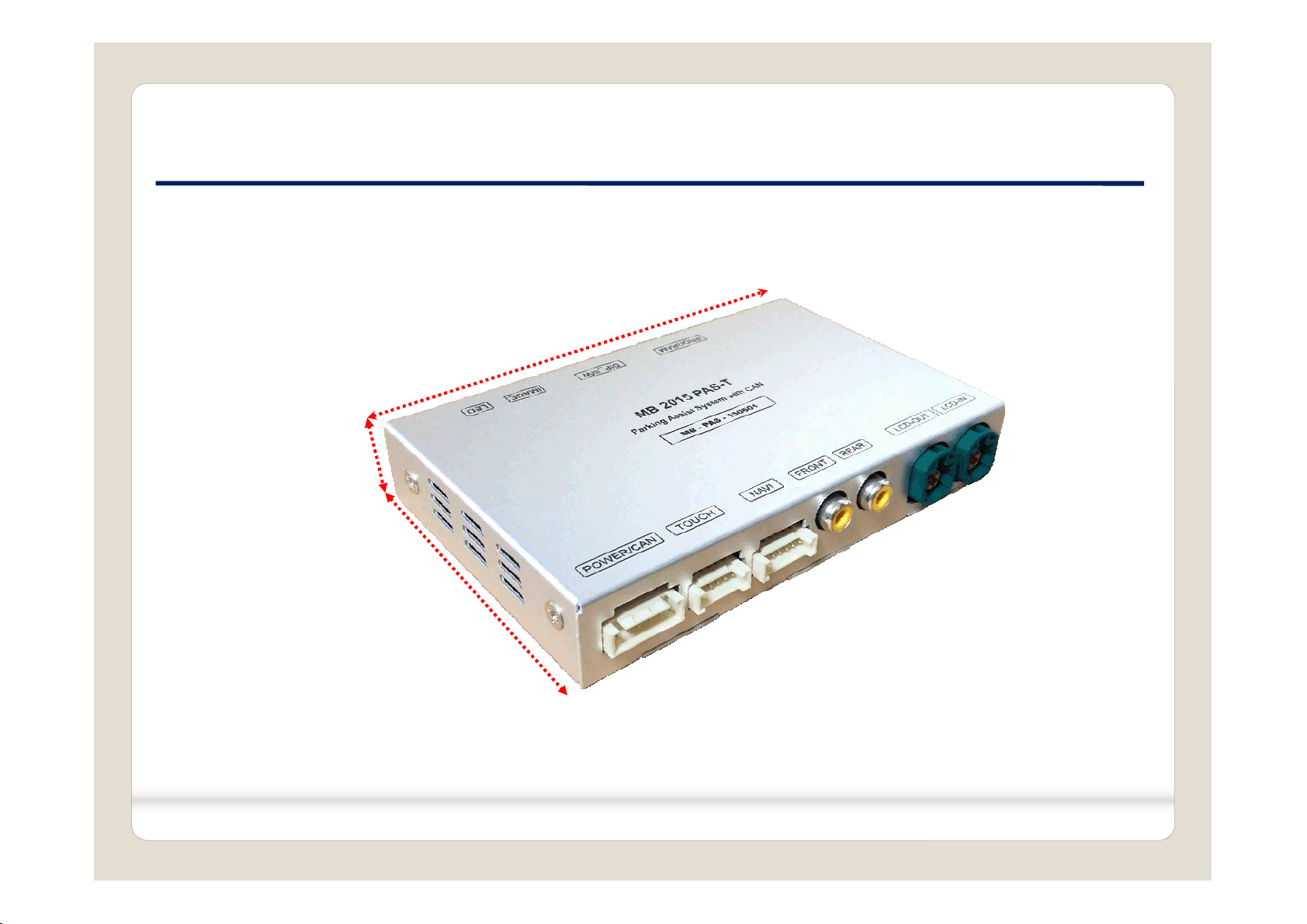

3. Dimension3. Dimension

126mm

83mm

21mm

* The size can be changed by manufacturer’s circumstance

126mm * 83mm * 21mm

4. External Appearance 4. External Appearance

TOUCH

LCD-IN

LCD-OUT

LED DIP S/W PROGRAM

FRONT


REARNAVIPOWER/CAN

4. External Appearance 4. External Appearance

LEDDIP S/W

PROGRAM IMAGE

TOUCH

LCD-IN

LCD-OUT

FRONT

REARNAVIPOWER/CAN

5. Connector Pin Assignment5. Connector Pin Assignment

*POWER Connect

① ACC(Yellow)

②REAR_POWER (Red)

③CAN-HIGH (Orange)

④CAN-LOW (Green)

⑤NC

⑥GND (Black)

① ② ③ ④ ⑤ ⑥

*NAVI Connect

① R DATA (Red)

②G DATA (Green)

③B DATA (Blue)

④SYNC (White)

⑤GND (Black)

⑥DMB IR (TX)(Green)

⑦DVD IR (RX) (Orange)

① ② ③ ④ ⑤ ⑥ ⑦

6. Product Composition6. Product Composition

Power Cable 1 EA

LVDS Cable 1 EA

Interface 1 EA

OSD Board 1 EA

RGB Navi Cable 1 EA

6. Product Composition Option6. Product Composition Option

Option : S class Capacitive Touch Screen Option : C class Capacitive Touch Screen

Option : TOUCH Board

Option : Touch Cable

TOUCH Option
