Grundig GCA-B0326D Manual de usuario

GCA-B1322D.1.1.25.11.2011

Owner's Manual

Cameras & Domes

GCA-B1322D 1/3" Col/B&W Fixed Dome Camera, Vari-Focal

GCA-B0322D 1/3" Col/B&W Fixed Dome Camera, Vari-Focal

GCA-B0323D 1/3" CCD Col/B&W Fixed Dome Camera w/ IR LED

GCA-B0325D 1/3" Col/B&W Fixed Dome Camera, Vari-Focal, WDR

GCA-B0326D 1/3" CCD Col/B&W Fixed Dome Camera w/ IR LED WDR

Content:

1. Available Versions 1

2. Important Safety Instructions 2

3. Package Contents 2

4. Installation 3

1. Part Names 3

2. Base Installation 4

3. Connections 5

4. 3-Axis Gimbal Adjustment 6

5. Zoom & Focus Adjustment 6

5. OSD Menu 6

1. OSD Controls 6

2. Main menu 7

3. Camera Setup 8

4. Intelligence 15

5. Privacy Zone 17

6. Other Set 18

7. Communication 18

8. System Info 18

9. Language 19

1. Available Versions

These instructions apply to the following products. For the different properties of the

products please refer to the table.

1English

2. Important Safety Instructions

Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery may cause explosion, fire,

electric shock, or damage to the product. Do not connect multiple products to one single

adapter. Exceeding the capacity may cause abnormal heat generation or fire.

Do not place conductive objects (e.g. screwdrivers, coins or any metal items) or

containers filled with water on top of the product. Doing so may cause personal injury

due to fire, electric shock, or falling objects.

If any unusual smells or smoke comes from the unit, stop using the product. In such

case, immediately disconnect the power source and contact the service center.

Continued use in such a condition may cause fire or electric shock.

If this product fails to operate normally, contact the nearest service center. Never

disassemble or modify this product in any way. (GRUNDIG is not liable for problems

caused by unauthorised modifications or attempted repair.)

To prevent fire or electric shock, do not expose the inside of this device to rain or

moisture.

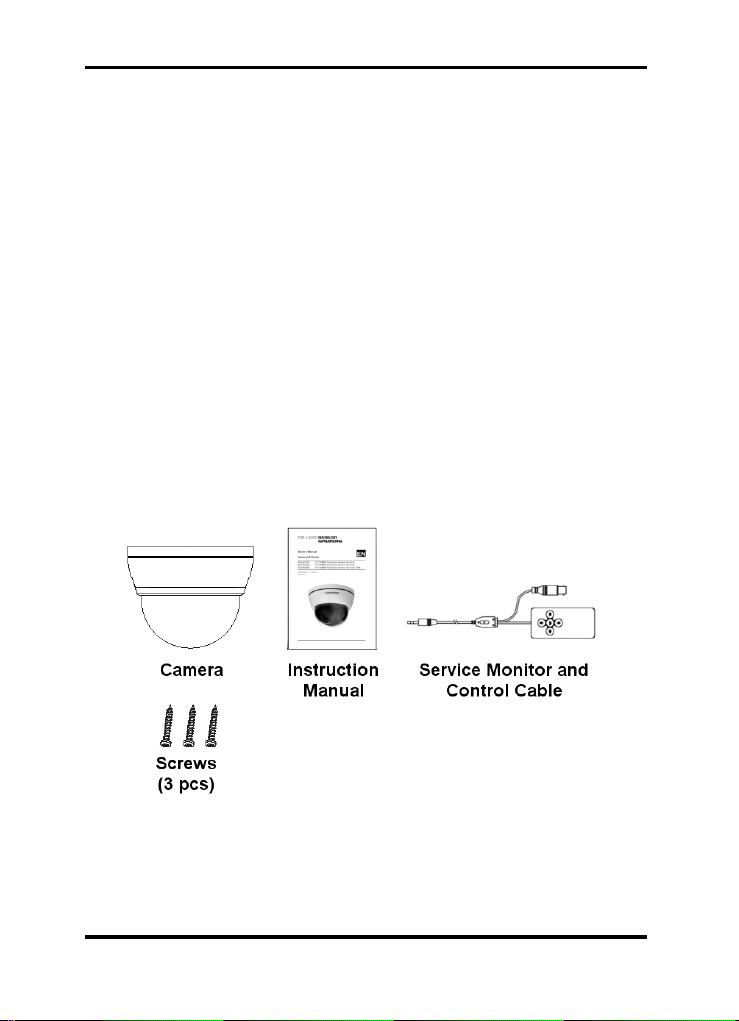

3. Package Contents

These parts are included:

2English

4. Installation

Do not install the product in a location subject to high temperature (over 50°C), low

temperature (below -10°C), or high humidity. Doing so may cause fire or electric shock.

Keep out of direct sunlight and heat radiation sources. This may cause fire. Avoid aiming

the camera directly towards extremely bright objects such as the sun, as this may

damage the image sensor.

Do not install the unit in humid, dusty or sooty locations. Doing so may cause fire or

electric shock. Install it in a place with good ventilation.

When installing the unit, fasten it securely and firmly. A falling unit may cause personal

injury.

If you want to relocate the already installed product, be sure to turn off the power and

then move or reinstall it.

4.1. Part Names

1. Bubble

2. Dome Cover Ring

3. Mounting Screws

4. Camera Module Gimbal Bracket

5. Lens

6. Dome Base

7. Service Monitor Output Port

8. Video Out and Power Cable

3English

4.2. Base Installation

1. Open the dome cover ring at the marked position (e.g. with a flat screw driver).

2. There are three mounting holes on the Dome Base for installation of the unit in any

place such as a ceiling, wall and etc. Use the three mounting screws to affix the Dome

Base to a sturdy surface. To access all three holes, rotate the camera module.

4English

4.3. Connections

- Power connection: Requires a DC 12V or AC 24V input depending on the camera

model.

- All camera models are supplied with a service monitor output on the camera module. A

service monitor and control cable is included in the package.

Note:

To set up the OSD menu externally, a service monitor and control cable is required.

5English

4.4. 3-Axis Gimbal Adjustment

1. Pan: Adjust the pan by turning it

manually to the right or left.

2. Tilt: Adjust the tilt by moving it manually

up or down.

3. Rotation: Adjust the rotation manually to

the desired angle.

4.5. Zoom & Focus Adjustment

1. If you need to make viewing angle/focus adjustments, move the levers as shown

below. First loosen the Zoom/Focus levers, and then adjust them as needed.

2. After the adjustments are completed, tighten the Zoom/Focus levers.

5. OSD Menu

5.1. OSD Controls

5.1.1. OSD Control Keys

- SETUP key: Accesses the menu mode or

confirms the setting.

- UP (/\) / DOWN (\/): Chooses the desired

menu.

- LEFT (<) / RIGHT (>): Sets up the value of

the selected menu.

6English

5.1.2. OSD Icons

Exits the menu setting. Before you exit,

make sure you SAVE your settings, or

select QUIT to cancel.

Returns to the previous menu.

Returns to the main menu.

Use this to SAVE your settings of MASK

AREA, PRIVACY ZONE and more. Once

you saved your settings, they will remain

even if you select QUIT in the menu.

Use this to delete your settings of MASK

AREA, PRIVACY ZONE and more. Once

you saved your settings, they will not be

restored even if you select QUIT in the

menu.

5.2. Main menu

1. Press the SETUP key and hold it for a while to access the menu mode.

2. Select the desired feature by using the UP/DOWN keys (/\ \/) on the control.

CAMERA SET: Here you can configure

camera related functions and data.

INTELLIGENCE: You can configure the

settings of motion detection, tracking and

more.

PRIVACY ZONE: You can configure the

privacy related settings.

OTHER SET: You can configure for factory

defaults, and more.

English

COMMUNICATION: Configures the settings regarding the RS-485 communication.

SYSTEM INFO: Displays the system information including the camera version and

communication settings.

LANGUAGE: Select a preferred language from those listed.

5.3. Camera Setup

CAMERA ID [OFF, ON] :

It is used to switch on/off the camera id. If

the camera id is switched ON, you can

access the CAMERA ID menu to programm

the camera text.

IRIS [ALC, ELC] :

The IRIS menu is used if you want to adjust

the intensity of light incoming into the

camera.

MOTION [S.SLOW, SLOW, NORM, FAST, F.FAST] :

This menu is used to adjust the strength of the AGC level for a control of the camera

motion. You can select from S.SLOW, SLOW, NORM, FAST and F.FAST for the AGC

level. If you monitor fast moving objects in a low contrast scene, select F.FAST while

selecting S.SLOW for hardly moving objects in the same lighting condition.

Note:

- This is only available if the SENS-UP menu is set to AUTO.

- If the DAY/NIGHT menu of CAMERA SET is set to AUTO, the MOTION menu will be

deactivated.

DNR [OFF, LOW, MID, HIGH, USER (1~16)] :

You can configure the DNR (Digital Noise Reduction) related settings. It reduces the

noise on the screen. This is especially useful for a severely distorted screen. You can

set the level if you set DNR to USER.

SHUTTER [OFF, AUTO 1/120~1/10K, 1/120~1/10K] :

You can select one of 7 options from 1/120 to 1/10K for the fixed high speed electronic

shutter, which is mostly used for imaging a fast moving object. The auto high speed

electronic shutter operates as the fixed high speed shutter in a high contrast scene but

automatically focuses the target if the iris opens fully in a low contrast scene like in ELC

mode. When it gets bright again, the mode will switch to the fixed high speed electronic

shutter mode. However, the auto high speed shutter operates properly only in a camera

featuring a DC or VIDEO lens.

8English
