Grundig GCA-B3323V Manual de usuario
GCA-B3323V.42.1.09.02.2012
Owner's Manual
EN
© ASP AG
Cameras & Domes
GCA-B3323V 1/3" CCD Col/B&W Fixed Dome Camera
GCA-B3326V 1/3" CCD Col/B&W Fixed Dome Camera w/ IR LED
Content:
1. Available Versions 2
2. Important Safety Instructions 2
3. Package Contents 3
4. Installation 3
1. Part Names 4
2. Base Installation 5
3. Mounting Housings to Electrical Junction Boxes 6
4. Connections 7
5. 3-Axis Gimbal Adjustment 7
6. Zoom & Focus Adjustment 8
7. IR-LED On/Off Switch 8
8. Fan &Heater (optional) 9
5. OSD Control Keys 9
6. OSD Menu 10
1. LENS 11
2. SHUTTER/ AGC 12
3. WHITE BAL (White Balance) 13
4. PICT ADJUST (Picture Adjustment) 15
5. NR (Noise Reduction) 16
6. ATR (Adaptive Tone-Curve Reproduction) 16
7. BACKLIGHT 16
8. CAMERA ID 17
9. DAY/NIGHT 17
10. MOTION DET (Motion Detection) 18
11. PRIVACY 19
12. SYNC 20
13. LANGUAGE 20
14. CAMERA RESET 20
15. NEXT / BACK 20
16. EXIT 20
17. SAVE ALL 20
1. Available Versions
These instructions apply to the following products. For the different properties of the
products please refer to the table.
2. Important Safety Instructions
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product. Do not connect multiple products to one single
adapter. Exceeding the capacity may cause abnormal heat generation or fire.
Do not place conductive objects (e.g. screwdrivers, coins or any metal items) or
containers filled with water on top of the product. Doing so may cause personal injury
due to fire, electric shock, or falling objects.
If any unusual smells or smoke comes out of the unit, stop using the product. In this
case, immediately disconnect the power source and contact the service center.
Continued use in such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest service center. Never
disassemble or modify this product in any way. (GRUNDIG is not liable for problems
caused by unauthorised modifications or attempted repair.)
To prevent fire or electric shock, do not expose the inside of this device to rain or
moisture.
2English
3. Package Contents
These parts are included:
- Torx Wrench: Length 90mm (1pc)
- Dowel: Length 30mm, Thickness 6mm (4pcs)
- Assembly Screws: FH M4x14 (4pcs)
- Mounting Screws: ST4x38 (4pcs)
These screws are used to mount both surface mount plate or flush mount base to a
sturdy surface. If necessary, use the dowels included.
- Pipe Cap Driver: (1pc)
This is used to open/close the pipe cap of the surface mount plate.
- Service monitor and control cable:
It is possible to set up the camera through a portable monitor and adjust the OSD menu
of the camera externally.
4. Installation
Do not install the product in a location subject to high temperature (over 50°C), low
temperature (below -10°C), or high humidity. Doing so may cause fire or electric shock.
Keep out of direct sunlight and heat radiation sources. This may cause fire. Avoid aiming
the camera directly towards extremely bright objects such as the sun, as this may
damage the image sensor.
Do not install the unit in humid, dusty or sooty locations. Doing so may cause fire or
electric shock. Install it in a place with good ventilation.
3
English
When installing the unit, fasten it securely and firmly. A falling unit may cause personal
injury.
If you want to relocate the already installed product, be sure to turn the power off and
then move or reinstall it.

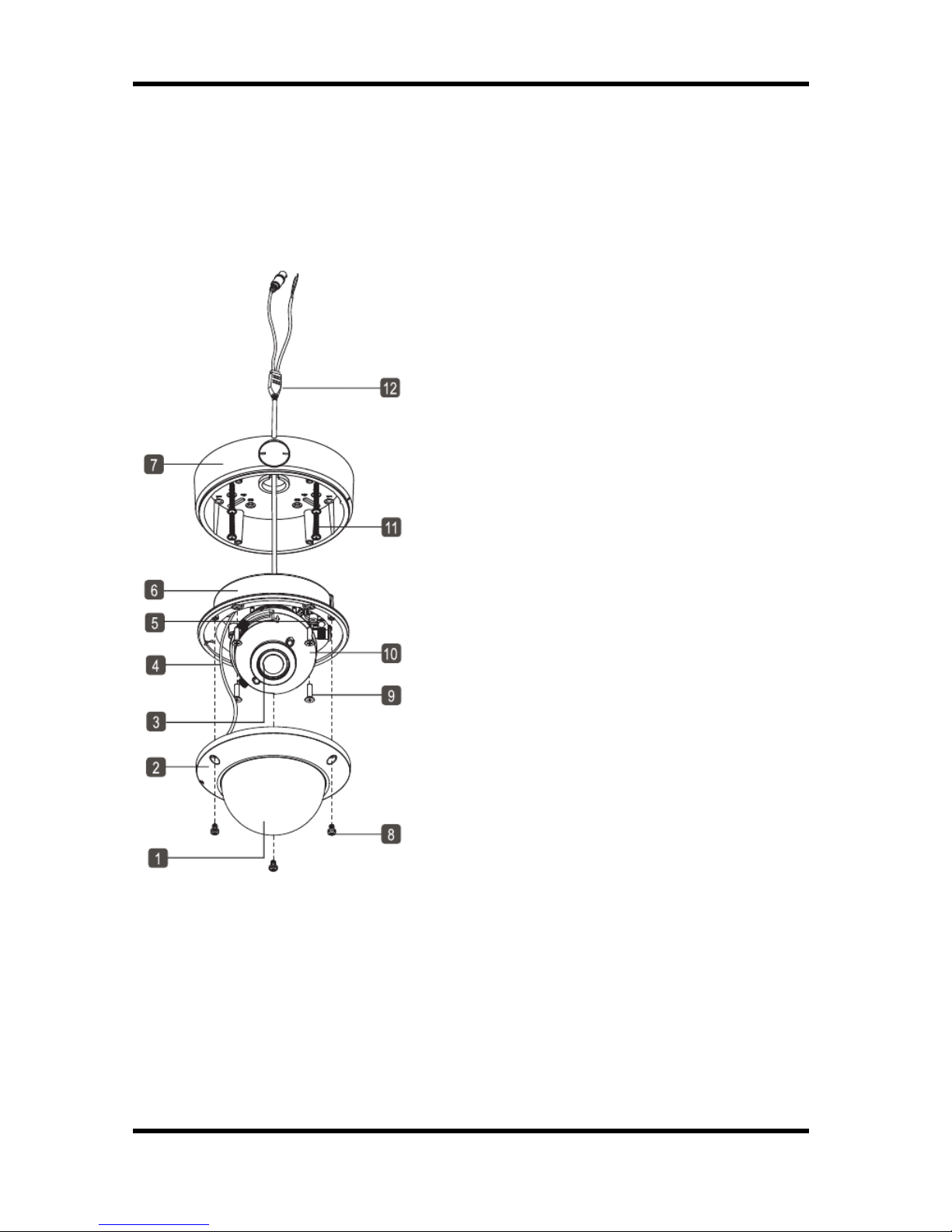

4.1. Part Names
1. Bubble
2. Dome Cover Ring
3. Lens
4. Safety Wire
5. Service Monitor Output Port
6. Flush Mount Base
7. Surface Mount Plate
8. Assembly Screws (Torx M4x8)
9. Assembly Screws (Philips M4x14)
10. Gimbal Bracket
11. Mounting Screws (St4x38)
12. Video/Power Cable
Caution:
To avoid smear, do not expose the camera directly to a strong light source such as the
sun or spot light.
4English
4.2. Base Installation
1. Remove the dome cover by loosening the 3 screws. Use the Torx wrench supplied.
2. Surface Mount :
Using the four ST4x38 screws, mount the surface plate to a sturdy surface.
Using the four M4x14 screws, affix the flush mount base to a surface plate.
(For flush mount application, disregard section 2.)
3. Flush Mount :
Using the four ST4x38screws, affix the flush mount base to a sturdy surface.
5English
4.3. Mounting Housings to Electrical Junction Boxes
This unit can be either flush mounted or surface mounted with Electrical Junction Boxes
using the pre-drilled mounting holes. The dome housing accommodates various
electrical junction boxes, making the installation easy and less time consuming.
NOTE:
The screws required for electrical junction boxes are not supplied with the Dome. These
screws are readily available at local electrical supply stores.
6English
4.4. Connections
- Power connection: Requires a DC 12V or AC 24V input depending on the camera
model.
- All camera models are supplied with a service monitor output on the camera module. A
control cable is included in the package.
Note:
To set up the OSD menu externally, a control cable is required.
4.5. 3-Axis Gimbal Adjustment
1. Pan: Adjust the first pan angle by turning
the gimbal 360° degrees (see figure No.1).
2. Tilt: Adjust the tilt angle by moving the
gimbal up and down (see figure No.2).
3. Rotation: Loosen the pan screw (No.3) to
adjust the pan to a desired angle (see figure
No.4) and fix the screw.
7
English
4.6. Zoom & Focus Adjustment
If you need to make viewing angle/focus
adjustments, loosen the lever bolts and
make the necessary adjustments as shown.
- Field of View: Telephoto (T) to Wide (W)
- Focus: Near (N) to Infinity (oo)
After the adjustments are completed,
tighten the Zoom/Focus levers.
Caution:
Focus and Zoom Lever Bolts MUST be pushed back in properly. If they touch the inside
of the dome bubble, they will cause scratches. This may effect the view of the camera.
4.7. IR-LED On/Off Switch
For the cameras with IR-LEDs, it is possible to switch off the LEDs. Please turn the
switch to ON or OFF according to your needs.
- OFF: Select OFF if the subject in the picture has an extreme IR-LED refelction.
- ON: Select ON if the subject has no IR-LED reflection.
8English
