ENGLISH

SAFETY/INFORMATION _____________________

Safety

This device is designed for the playback of audio signals. Any other use is

expressly prohibited.

Protect the device from moisture (water drops or splashes). Do not place any

vessels such as vases on the device. These may be knocked over and spill

fluid on the electrical components, thus presenting a safety risk.

When deciding where to place the device, please note that furniture

surfaces are covered by various types of varnish and plastic, most of which

contain chemical additives. These additives can corrode the device

supports, leaving residues on the furniture surfaces which can be difficult

or impossible to remove.

Do not use any cleaning agent, as this may damage the casing. Clean the

device with a clean, moist leather cloth. Never open the device casing.

The manufacturer will not accept any liability for damage resulting from

improper handling.

Technical data

Power supply: 230 V, 50 Hz

Max. power consumption: < 4 W (operation), < 3 W (standby)

Output: DIN 45324, 10% THD 400 mW

Frequency bands: FM 87.5 ...108.0 MHz

Dimensions and weight: W x H x L 125 x 151 x 90 mm

Weight approx. 700 g

This device is noise-suppressed according to the applicable EU directives.

This product fulfils the European directives 89/336/EEC, 73/23/EEC and

93/68/EEC.

This device conforms to the safety regulation DIN EN 60065 (VDE 0860) and therefore

the international safety regulation IEC 60065.

The type plate is located on the bottom of the device.

ENGLISH

VOLUME

TUNING

ALARM1

ALARM2

SONOCLOCK52

100

104

106

108

MHz

! SERVICE !! SERVICE !

! SERVICE !

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 15

OVERVIEW____________________________________________

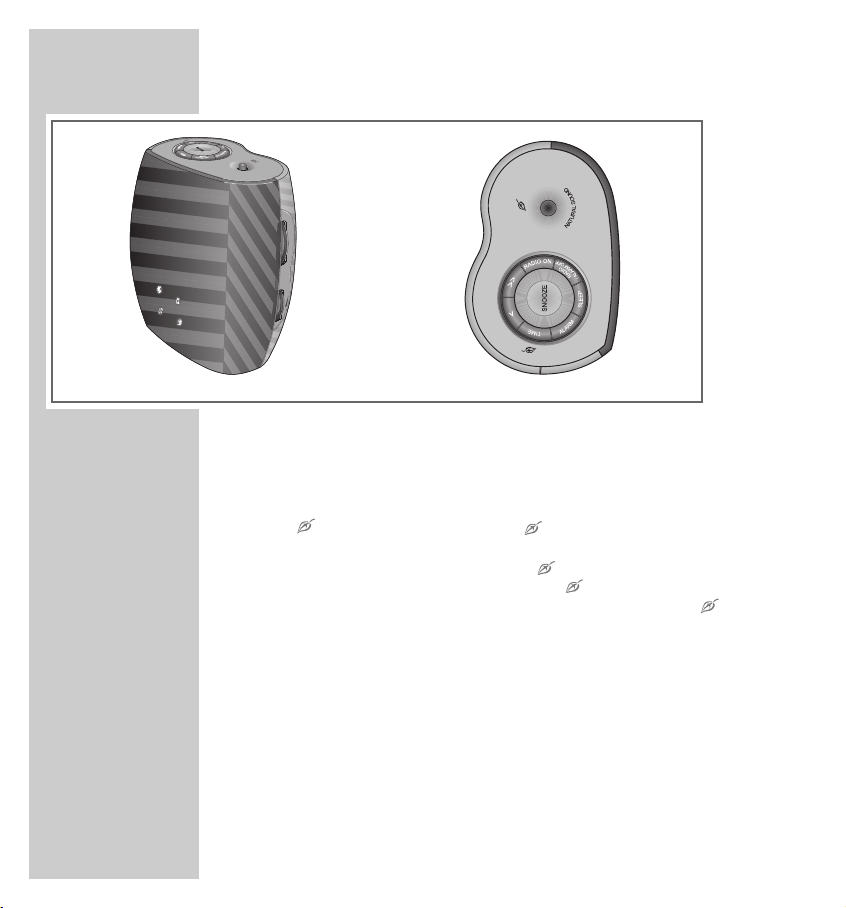

Controls on the top

SNOOZE Interrupts the alarm function.

Displays the seconds.

TIME The »ALARM ɷe•« sliding switch is in the »•«

position: press and hold down to set the time.

The »ALARM ɷe•« sliding switch is in the

”Natural Sound” position ( ): press and hold down to

set the alarm tone with »NATURAL SOUND «.

ALARM With the device switched off, press and hold down

to set the alarm time.

Press briefly to display the alarm time.

<To set the clock, the alarm and the switch-off time with

the time running slowly backwards.

>> To set the clock, the alarm and the switch-off time with

the time running quickly forwards.

VOLUME

TUNING

ALARM 1

ALARM 2

SONOCLOCK 52

100

104

106

108

MHz

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 16

ENGLISH

OVERVIEW_________________________________________________

SLEEP Press briefly to switch on the radio or to display the

current sleep timer setting.

Hold down to shorten the remaining time until the unit

switches off.

RADIO ON Switches the radio on from standby mode.

RADIO/ALARM Switches the radio to standby mode.

OFF

NATURAL Selects the alarm tone ”water”, ”frog”, ”rooster”

SOUND or ”wind”.

Controls on the sides

ALARM ɷeSwitches off the wake-up function.

•Switches between the radio station, the signal tone

and the signal tones for the wake-up function.

Sliding switch on the left side of the device.

For setting the ”Natural Sound” with »TIME « and

»NATURAL SOUND «, the switch

must be set to ”Natural Sound” ( ).

VOLUME

TUNING

ALARM 1

ALARM 2

SONOCLOCK 52

100

104

106

108

MHz

ALARMALARM

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 17

OVERVIEW_________________________________________________

ALARM Activates alarm times 1 and 2, or 1+2. Sliding

1 1+2 2 switch on left side of device.

TUNING For tuning to radio stations (on the right side of the

device).

VOLUME Adjusts the volume (on the right side of the device).

}

Controls on the back

ÜPower cord.

yWire antenna for FM reception.

yHeadphone jack.

Controls on the bottom

Battery compartment for 9 V back-up battery.

VOLUME

TUNING

ALARM 1

ALARM 2

SONOCLOCK 52

100

104

106

108

MHz

ALARMALARM

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 18

ENGLISH

OVERVIEW_________________________________________________

The display

ALARM 1 ●LED. Indicates that the alarm setting is activated with

alarm time 1.

ALARM 2 ●LED. Indicates that the alarm setting is activated with

alarm time 2.

10:00 Shows the time, the alarm time and the switch-off time.

●LED. Indicates that the radio is switched on and dis-

plays the frequency of the selected radio station on the

frequency scale.

LED. The ”water” natural alarm sound is selected.

LED. The ”frog” natural alarm sound is selected.

LED. The ”rooster” natural alarm sound is selected.

LED. The ”wind” natural alarm sound is selected.

Note:

The device is equipped with an auto-dimmer, i.e. the brightness of the

display adapts automatically to the lighting in the room by means of a

sensor. The sensor is located on the left side of the device.

000

ALARM 2

ALARM 1

•

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 19

POWER SUPPLY___________________________________

Mains operation

Note:

Check that the mains voltage on the type plate (on the bottom of the

device) corresponds to your local mains supply. If this is not the case,

contact your specialist dealer.

1Plug the mains cable into the socket (230 V~, 50 Hz).

Note:

The only way to disconnect the device from the mains supply is to pull

out the plug.

Inserting the back-up battery

During mains operation, the back-up battery ensures that stored settings are

not lost in the case of a power failure or when the device is briefly discon-

nected from the mains.

1Open the battery compartment by pressing the area marked with an

arrow on the drawing and lifting up the cover.

2Before inserting the battery (9 V, 6LF 22) into the cable connection

compartment, note the polarity of the battery.

3Insert the battery upright.

4Replace the cover of the battery compartment and click the catch into

place.

Note:

When closing the battery compartment, make sure that you do not

wedge in the FM wire antenna, which should be inserted into its special

recess.

Note:

Remove the back-up battery when it is flat or when you know that the

device will not be used for a long period of time.

Environmental note:

Batteries, including those which contain no heavy metal, may not be

disposed of with household waste. Please dispose of used batteries in

an environmentally sound manner. Find out about the legal regulations

which apply in your area.

VOLUME

TUNING

ALARM1

ALARM2

SONOCLOCK52

100

104

106

108

MHz

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 20

POWER SUPPLY __________________________________________

Additional information for units sold in the UK.

Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains

supply.

The range of multi-system receivers is built to work in most European coun-

tries. However, the mains plug and socket system for the UK differs from

many European countries.

This appliance has been supplied with a fitted, non-removable, approved

converter plug for use in the UK. This converter plug is fitted with a 5A rated

fuse.

In case this appliance is supplied with a moulded 2-pin Euro plug only,

which is unsuitable for UK operation, this must be cut off and immediately

disposed of. An approved 13A, 3-pin UK plug should then be fitted by a

qualified electrician.

Note:

The severed Euro plug must be destroyed to avoid a possible shock

hazard should it be inserted into a socket elsewhere.

If a non-rewireable 3-pin plug or a rewireable 13A (BS1363) 3-pin plug is

used, it must be fitted with a 5A ASTA or BSI approved BS1362 fuse. If any

other type of plug is used it must be protected by a 5A fuse either in the

plug, or at the distribution board. If this type of plug becomes defective,

ensure that the fuse is removed before disposal, to eliminate potential shock

hazard.

If it is necessary to change the fuse in the non-rewireable plug, the correct

type and rating (5A ASTA or BSI approved BS1362) must be used and the

fuse cover must be refitted. If the fuse cover is lost or damaged, the lead and

plug must not be used until a replacement is obtained. Replacement fuse

covers should be obtained from your dealer.

Important:

The wires in the mains lead are colour coded in accordance with the follo-

wing code:

BLUE – NEUTRAL

BROWN – LIVE

As the colours of the wires in the mains lead of your appliance may not cor-

respond with the coloured marking identifying terminals in your plug, pro-

ceed as follows:

ENGLISH

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 21

POWER SUPPLY __________________________________________

Connect the BLUE coloured wire to plug terminal marked with the letter “N”

or coloured black.

Connect the BROWN coloured wire to the plug terminal marked with the

letter “L” or coloured red.

In no circumstance must any of the wires be connected to the terminal mar-

ked with the letter “E”, earth symbol “z”, coloured green, or green & yel-

low.

Replacement mains lead sets can be obtained from your local dealer, or by

contacting Grundig Consumer Relations (01788 570088)

Moulded 3-pin lead set, suitable for UK use:

Ref: Leadset UK 8290-991-224

Moulded 2-pin Euro lead set, not suitable for UK use:

Ref: Leadset Euro 8290-991-316

02 SC 5302, GB 07.01.2003 8:49 Uhr Seite 22

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Radio reloj de Grundig

Grundig

Grundig Sono Clock 420 Manual técnico

Grundig

Grundig SONOCLOCK 930 IP Manual de usuario

Grundig

Grundig SC 990 Manual de usuario

Grundig

Grundig SCN 340 Manual de usuario

Grundig

Grundig Sonoclock 660 PLL Manual de usuario

Grundig

Grundig Sono Clock 620 LED Manual técnico

Grundig

Grundig Sonoclock 490 Manual de usuario

Grundig

Grundig Sonoclock 790 DCF Manual de usuario

Grundig

Grundig Sonoclock 420 Manual de usuario

Grundig

Grundig Sonoclock 390 Manual de usuario

Grundig

Grundig Sonoclock 590 Manual de usuario

Grundig

Grundig SONOCLOCK 610 Manual de usuario

Grundig

Grundig Sonoclock 55 SC 5305 Manual de usuario

Grundig

Grundig Sonoclock 3500 Manual de usuario

Grundig

Grundig Discalo CCD 6300 Manual de usuario

Grundig

Grundig SC- 660 PLL Manual de usuario

Grundig

Grundig Sonoclock SC 5300 Manual de usuario

Grundig

Grundig Sonoclock 360 Manual de usuario

Grundig

Grundig SONOCLOCK 935 IP Manual de usuario

Grundig

Grundig SONOCLOCK 220 Manual de usuario

Grundig

Grundig SONOCLOCK 620 Manual de usuario

Grundig

Grundig Sonoclock 660 PLL Manual de usuario

Grundig

Grundig Sonoclock 54 Manual de usuario

Grundig

Grundig Sonoclock SC 755 Manual de usuario

Manuales populares de Radio reloj de otras marcas

Denver

Denver CRQ-105 Manual de usuario

Audiovox

Audiovox CE90 Manual de usuario

Sony

Sony Dream Machine ICF-C763L Manual de usuario

Sanyo

Sanyo DMP-P6 Manual de usuario

RCA

RCA RPC100 Manual de usuario

Yamaha

Yamaha ISX-80 Manual de usuario

Pyle

Pyle PLMR20W Manual de usuario

Blaupunkt

Blaupunkt CR7BK Manual de usuario

Philips

Philips AJ3180 Manual de usuario

HoMedics

HoMedics SS-5500-2EU Manual de usuario

RCA

RCA RC66i Manual de usuario

Versaudio

Versaudio Vers Manual de usuario

SOUNDMASTER

SOUNDMASTER UR8100 Manual de usuario

Audiovox

Audiovox CE90 Manual de usuario

Jensen Audio

Jensen Audio JCR-222 - AM/FM Projection Alarm Clock Radio Manual de usuario

Roberts

Roberts ChronoDAB Manual de usuario

AEG

AEG MRC 4132 BT Manual de usuario

Tokai

Tokai TC-155 Manual de usuario
