Grohe 39126 Manual de usuario

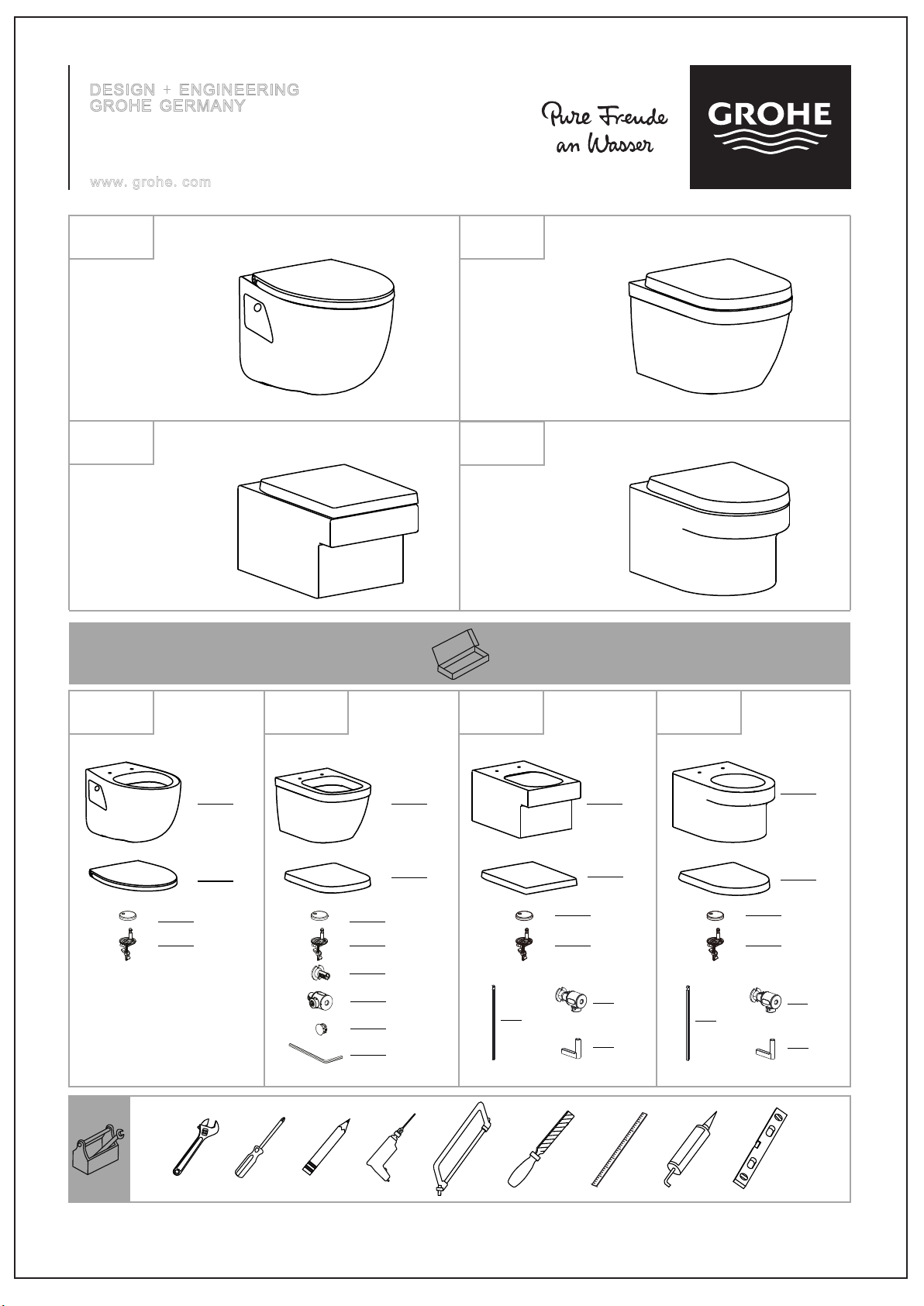

DESIGN + ENGINEERING

GROHE GERMANY

www.grohe.com

39244 39296

39126

39205

39205 39244 39296

99.0591.131/ECN 255110/02.23

- 1 -

39126

- 2 -

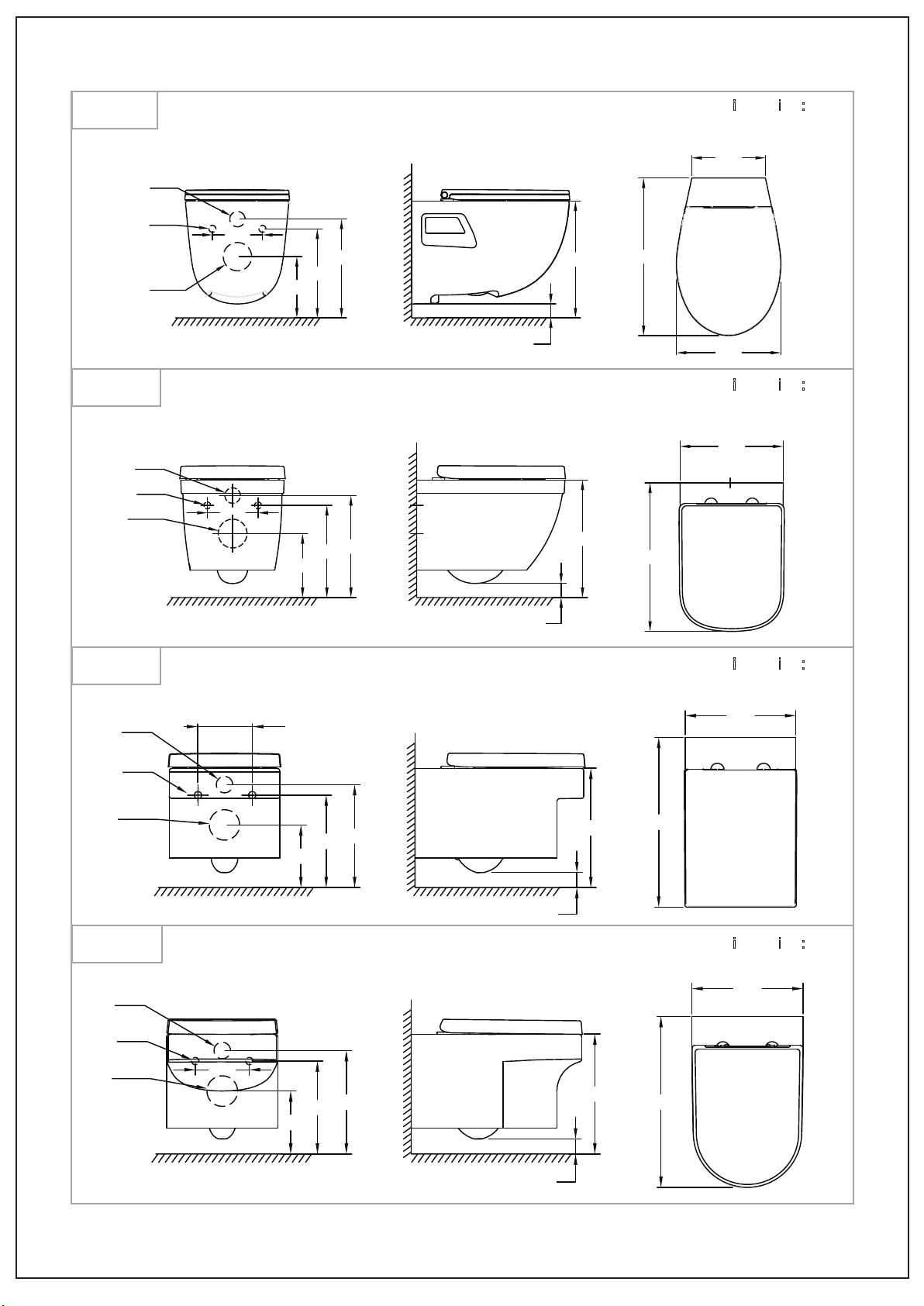

Dimension: mm

单位：毫米

Dimension: mm

单位：毫米

Dimension: mm

单位：毫米

Dimension: mm

单位：毫米

39205

39244

39296

565

265

370

200

335

180

Ø25

300

Ø55

Ø102

400

370

565

Ø55

Ø24

Ø102

211311346

180

400

370

568

Ø55

Ø24

Ø102

211311346

180

400

367

525

Ø55

Ø24

Ø102

210

310345

180

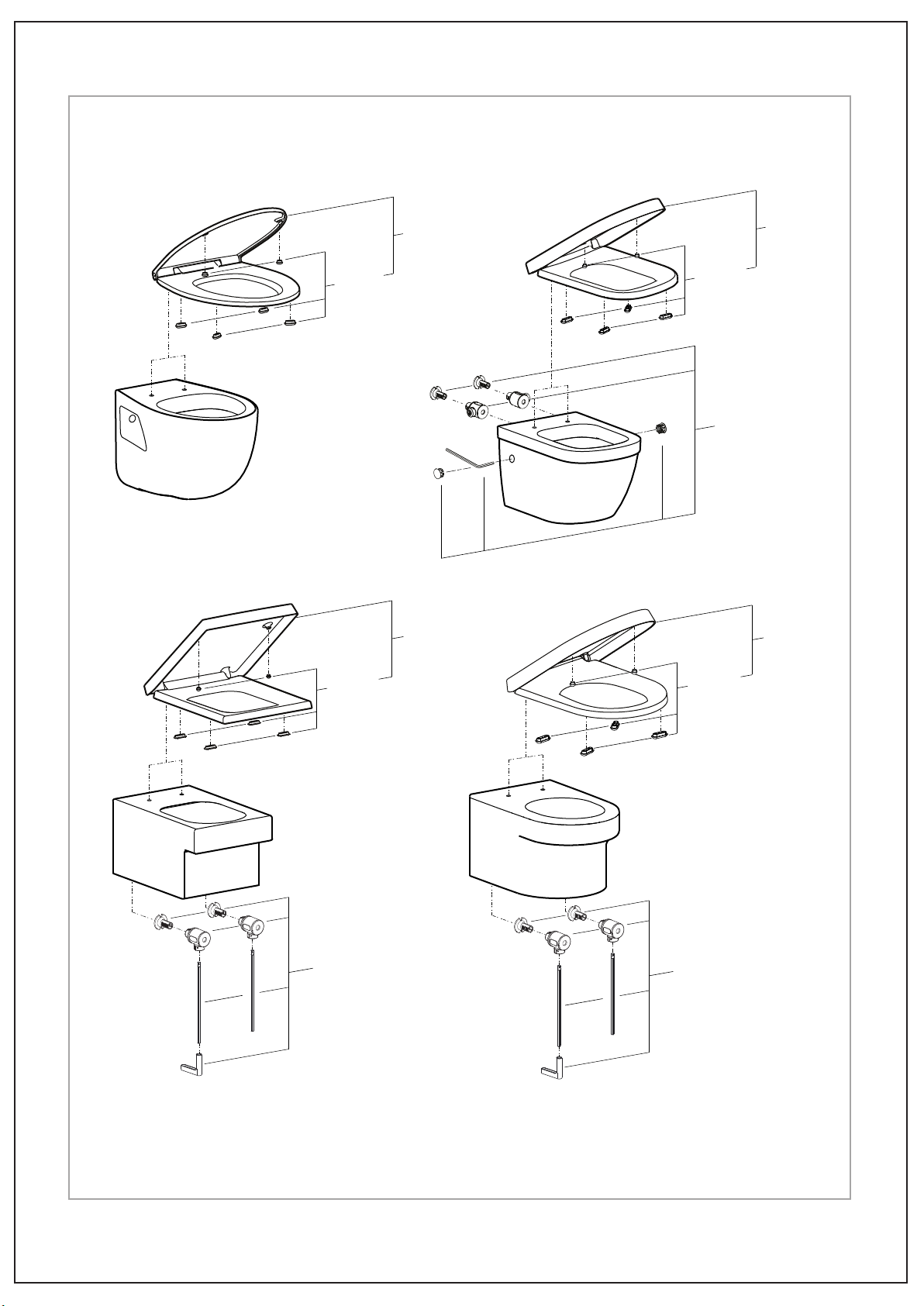

49506

49520

49511

49521

49508

49505

49520

49510

49520

49504

- 3 -

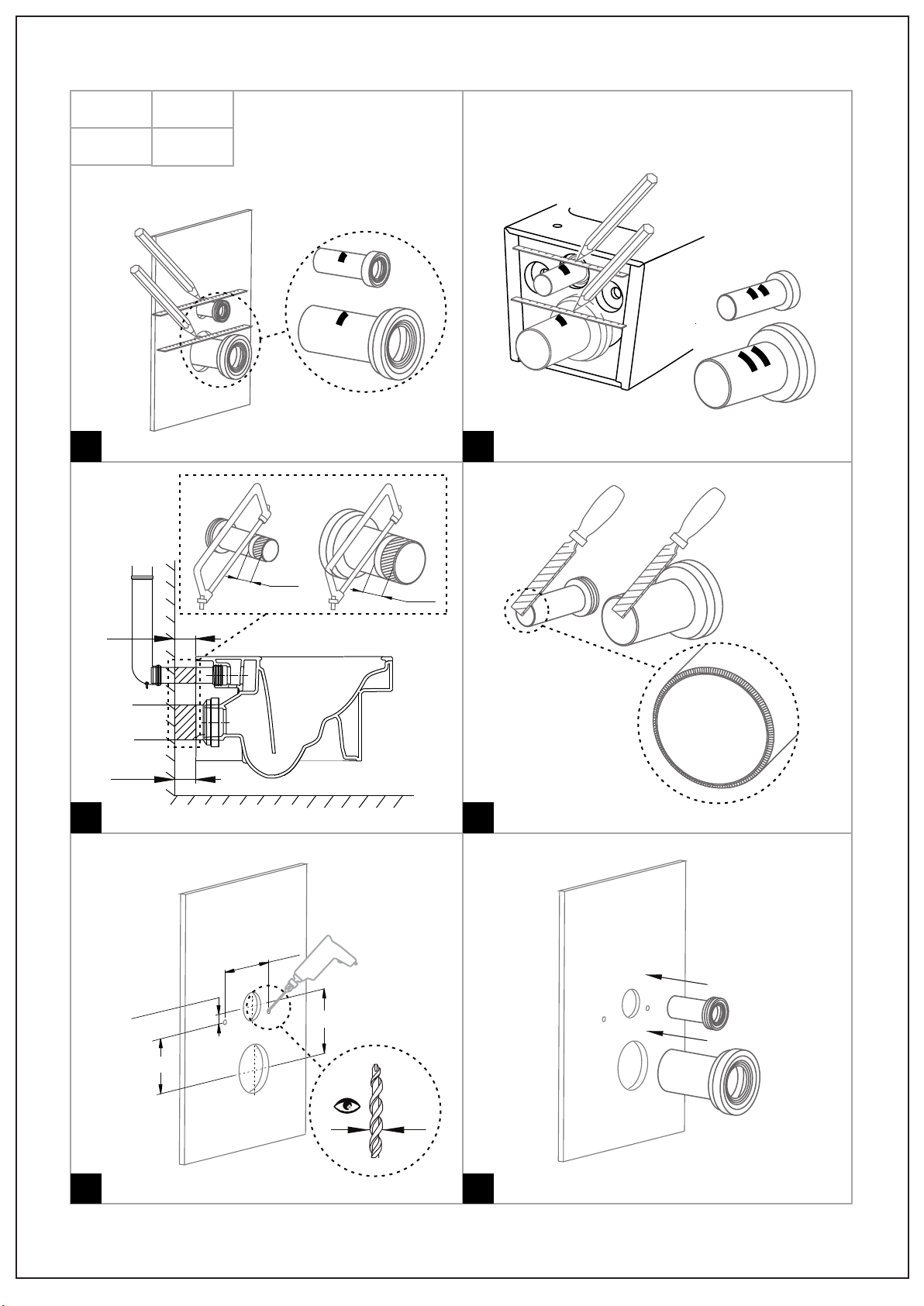

49510

- 4 -

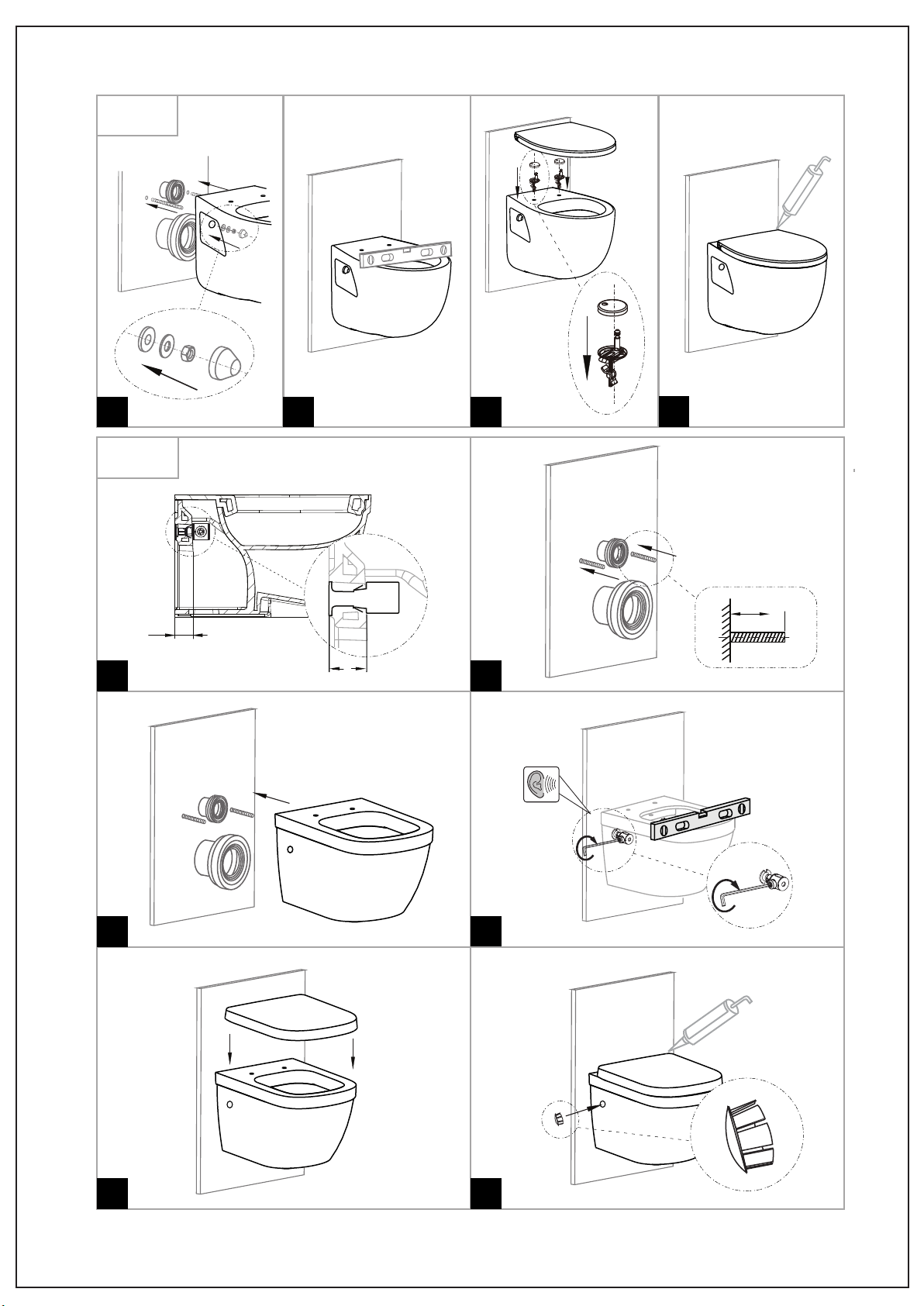

39126

39205

39244

39296

3 4

X+3 Y+3

135±3

100±3

35±5

180±5

- 5 -

39126

39205

1 2 34

L+50mm

“Click”

- 6 -

400mm

400mm-

- 400mm

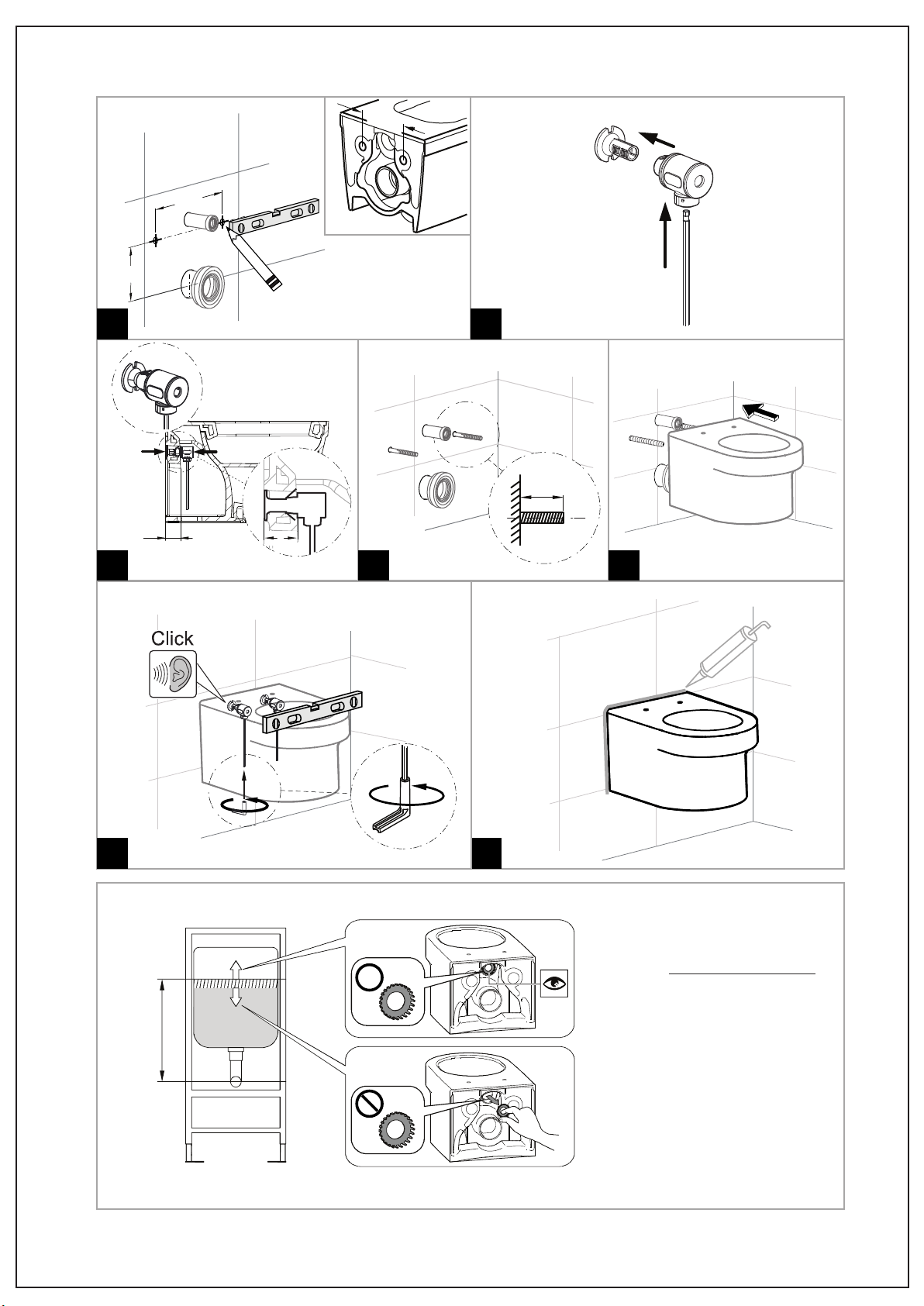

Note: take off the orifice

when water level is below

400mm measured from the

center of end openning of

flush pipe.

39244/39296:

注意：当水箱水位低于400

毫米的时候请取下孔口配件。

180

3 4 5

L+50mm

3..

100

- 7 -

Importance Notice

1. Do not use material such as cement to secure the toilet in place - use only the installation parts

provided - Otherwise cracks in the ceramic could arise.

2. After installation, please don’t use the toilet until the silicone sealant has solidified.

3. This product may not be used below 0

4. So not throw into the toilet items such as newspaper,baby diapers, feminine hygiene items and

items and any other waste which might easily cause blockages.

5. Avoid hard object impacts on the ceramic to avoid damage and leakage.

6. Our company disclaimer any liability for special, incidental or consequential damage result from

breaking the operation guidelines.

7. CODE LIST

BOWL: 39126001

Water consumption: 3/4.5L

Water efficiency grade: 1 Grade

With CISTERN: 38528001 &

Water-saving components: 42333000

Standard: GB25502-2017

BOWL: 39205000

Water consumption: 3/6L

Water efficiency grade: 2 Grade

With CISTERN: 38528001

Standard: GB25502-2017

BOWL: 39244000

Water consumption: 3/5L

Water efficiency grade: 1 Grade

With CISTERN: 38528001 &

Water-saving components: 42333000

Standard: GB25502-2017

BOWL: 39296000

Water consumption: 3/5L

Water efficiency grade: 1 Grade

With CISTERN: 38528001 &

Water-saving components: 42333000

Standard: GB25502-2017

注意事项

1.请不要使用水泥安装便器，这样会容易使座便器开裂。

2.请在座便器安装好等玻璃胶干燥后使用。

3.本产品不得在0℃以下的环境中使用。

4.请不要向便器内冲入新闻纸、纸尿垫、妇用卫生巾等容易堵塞的物品。

5.请不要用力撞击陶瓷，以防止破损漏水。

6.所有不按安装说明书进行操作导致产品损坏的一切后果本公司恕不负责。

7.型号清单：

坐厕：39126001

用水量：3/4.5升

额定用水效率等级：1级

配套隐蔽式水箱型号：38528001 和

节水配件型号：42333000

标准号：GB25502-2017

坐厕：39296000

用水量：3/5升

额定用水效率等级：1级

配套隐蔽式水箱型号：38528001 和

节水配件型号：42333000

标准号：GB25502-2017

坐厕：392050001

用水量：3/6升

额定用水效率等级：2级

配套隐蔽式水箱型号：38528001

标准号：GB25502-2017

坐厕：39244000

用水量：3/5升

额定用水效率等级：1级

配套隐蔽式水箱型号：38528001 和

节水配件型号：42333000

标准号：GB25502-2017

2022/04/12

www.grohe.com
