GRASS VALLEY VDA-1002 Manual del propietario

VDA-1002

Analog Video Distribution Amplifier

Guide to Installation and Operation

M452-9500-102

2015-07-07

GUIDE TO INSTALLATION AND OPERATION

VDA-1002

Electromagnetic Compatibility

This equipment has been tested for verification of compliance with FCC Part 15, Subpart B requirements for

Class A digital devices.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

This equipment has been tested and found to comply with the requirements of the EMC directive

2004/108/CE:

•EN 55022 Class A radiated and conducted emissions

•EN 61000-3-2 Harmonic current emission limits

•EN 61000-3-3 Voltage fluctuations and flicker limitations

•EN 61000-4-2 Electrostatic discharge immunity

•EN 61000-4-3 Radiated electromagnetic field immunity – radio frequencies

•EN 61000-4-4 Electrical fast transient immunity

•EN 61000-4-5 Surge transient immunity

•EN 61000-4-6 Conducted disturbances immunity

•EN 61000-4-11 Voltage-dips, short-interruption and voltage variation immunity

GUIDE TO INSTALLATION AND OPERATION

VDA-1002

Table of Contents

1VDA-1002 Analog Video Distribution Amplifier .....................................................................1

1.1 Introduction ......................................................................................................................................... 1

1.2 Features.............................................................................................................................................. 1

1.3 Block Diagram..................................................................................................................................... 1

1.4 Front Card-edge Interface................................................................................................................... 1

2Installation................................................................................................................................2

2.1 Installation in the Densité frame.......................................................................................................... 2

2.2 Rear Panels ........................................................................................................................................ 2

3Operation..................................................................................................................................4

3.1 Video Gain Control.............................................................................................................................. 4

3.2 Card-Edge Status LED ....................................................................................................................... 4

3.3 Local control using the Densité frame control panel........................................................................... 4

3.3.1 Overview................................................................................................................................ 4

3.3.2 Menu for local control............................................................................................................. 5

4Specifications...........................................................................................................................6

5Contact Us................................................................................................................................7

Grass Valley Technical Support................................................................................................................... 7

Corporate Head Office................................................................................................................................. 7

GUIDE TO INSTALLATION AND OPERATION

VDA-1002

GUIDE TO INSTALLATION AND OPERATION

VDA-1002 | 1

1 VDA-1002 Analog Video Distribution Amplifier

1.1 Introduction

The VDA-1002 is an analog video distribution amplifier with a differential looping input and 8 outputs. Gain can be

controlled from the card edge. Input video signal status is also flagged on the front card edge. The differential input

provides rejection of hum and other artefacts on incoming signals. The VDA-1002 may be housed in a Densité 2 or

Densité 3 frame, and several different rear connector panels are available, including a specialized multi-card rear for

master sync distribution..

1.2 Features

•Analog video differential input with passive loop-through.

•Up to eight (8) video outputs, depending on the rear panel in use

•Supports NTSC and PAL video standards

•90 MHz analog video bandwidth

•Control of gain from the card edge.

•Status LED and remote reporting

1.3 Block Diagram

The block diagram shows the functionality of the VDA-1002.

Figure 1.1Functional block diagram of the VDA-1002

1.4 Front Card-edge Interface

The front card-edge of the VDA-1002 incorporates three elements:

•Status LED (see section 3.2)

•Select Button (see section 3.3)

•Gain control (see section 3.1)

STATUS

SELECT

VDA-1002

GAIN

STATUS

SELECT

SW1

Gain adjustment

Push ButtonStatus Indicator

Figure 1.1 Front card-edge layout

GUIDE TO INSTALLATION AND OPERATION

2| VDA-1002

Figure 2.1VDA-1002 Rear Panels for Video Distribution

2 Installation

2.1 Installation in the Densité frame

The VDA-1002 and its associated rear connector rear panel must be mounted in a Densité 2 or Densité 3 frame.

Cards sold for use in a Densité 3 frame incorporate an extender to fit the card into the taller frame. It is not necessary

to switch off the frame’s power when installing or removing the card. See the frame manual for detailed instructions for

installing cards and their associated rear panels.

2.2 Rear Panels

Five different rear panels are available for the VDA-1002:

For the Densité 2 frame:

•VDA-1002-SRP Single-slot-width panel Video IN + 4 video OUT

•VDA-1002-SRP/L Single-slot-width panel Video IN + loop-thru; 3 video OUT

•VDA-1002-DRP Double-slot-width panel Video IN + loop-thru; 8 video OUT

For the Densité 3 frame:

•VDA-1002-3SRP Single-slot-width panel Video IN + 7 Video OUT

•VDA-1002-3NRP Nine-slot-width panel REF IN + loop-thru; 70 REF OUT

With the VDA-1002-DRP double-width rear panel installed, the VDA-1002

must be installed in the right-most of the two slots covered by the panel in

order to mate with the panel’s connectors.

If it is placed in the wrong slot, the front panel LED will flash red. Move the

card to other slot for correct operation. No damage will result to the card

should this occur.

GUIDE TO INSTALLATION AND OPERATION

VDA-1002 | 3

The VDA-1002-3NRP rear panel is a specialized rear designed to maximize the space efficiency of a Densité-3 frame

when used as a master sync distribution system. It occupies one half of a frame, and provides rear connectivity for up

to nine VDA-1002 cards. A single REF IN and LOOP OUT feed all nine card slots, leaving 70 output connectors to

carry REF OUT signals. A Densité-3 frame with two of these rears and 18 VDA-1002 cards can therefore provide 140

REF outputs in 3RU.

•Only a single cable is required to connect the LOOP output from one rear to the REF IN of the other.

•It is not necessary to install cards in all of the available slots. The outputs associated with any populated slot are

active; the others are inactive.

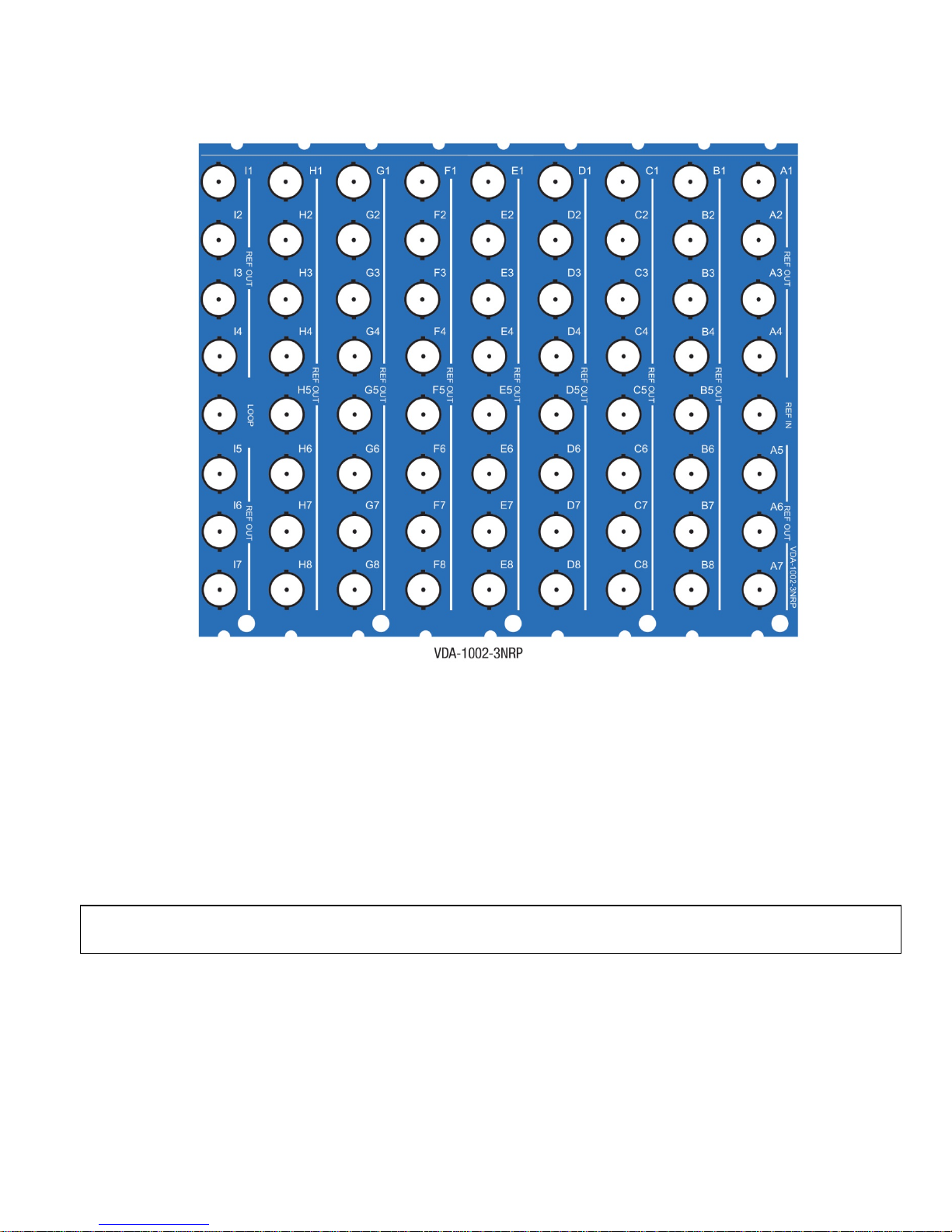

Figure 2.2VDA-1002 Rear Panel for Reference Distribution

INSTALLATION NOTE – to minimize interference from the power supplies located in the center of the frame, users

are advised to install the VDA-1002-3NRP rear panel in slots 1 to 9 or 11 to 20, leaving slots 10 and 11 empty.

GUIDE TO INSTALLATION AND OPERATION

4| VDA-1002

3 Operation

3.1 Video Gain Control

Use the front card-edge gain pot (see figure 1-2) to adjust the video gain for the desired output level.

3.2 Card-Edge Status LED

The status monitor LED is located on the front card-edge of the VDA-1002, and is visible through the front access door

of the Densité frame. This multi-color LED indicates the status of the VDA-1002 by color, and by flashing/steady

illumination.

The chart shows how the various error conditions that can be flagged on the VDA-1002 affect the LED status.

•If a cell is gray, the error condition cannot cause the LED to assume that status

•If more than one LED status is possible for a particular error condition, the status is configurable.

See Section 3.4.14 for details.

•The factory default status is shown by a 

The LED will always show the most severe detected error status that it is configured to display, and in the chart error

severity increases from left to right, with green representing no error/disabled, and flashing red the most severe error.

LED Status

Error Condition

Green

Yellow

Red

Flashing

Red

No errors 

No signal 

No rear panel or wrong rear panel



If the LED is Flashing Yellow, it means that the card is selected for local control using the Densité frame’s control

panel. See Section 3.3 for details.

3.3 Local control using the Densité frame control panel

3.3.1 Overview

Push the SELECT button on the VDA-1002 card edge (see Section 1.4) to assign the local control panel to operate

the VDA-1002. Use the control panel buttons to navigate through the menu, as described below.

All of the cards installed in a Densité frame are connected to the frame’s controller card, which handles all interaction

between the cards and the outside world. There are no operating controls located on the cards themselves. The

controller supports remote operation via its Ethernet ports, and local operation using its integrated control panel.

The local control panel is fastened to the front of the CPU-ETH2 controller card, and when installed can be accessed

by opening the front door of the frame. The panel consists of a display unit capable of displaying two lines of text,

each 16 characters in length, and five pushbuttons.

The panel is assigned to operate any card in the frame by pushing the SELECT button on the front edge of that card.

GUIDE TO INSTALLATION AND OPERATION

VDA-1002 | 5

•Pushing the CONTROLLER button on the control panel selects the Controller card itself.

•The STATUS LED on the selected card flashes yellow

The local control panel displays a menu that can be

navigated using the four pushbuttons located beside

the display. The functionality of the pushbuttons is as

follows:

[+] [–] Used for menu navigation and value

modification

[SELECT] Gives access to the next menu level.

When a parameter value is shown,

pushing this button once enables

modification of the value using the [+] and

[–] buttons; a second push confirms the

new value

[ESC] Cancels the effect of parameter value changes that have not been confirmed; pushing [ESC] causes the

parameter to revert to its former value.

Pushing [ESC] moves the user back up to the previous menu level. At the main menu, [ESC] does not

exit the menu system. To exit, re-push the [SELECT] button for the card being controlled.

If no controls are operated for 30 seconds, the controller reverts to its normal standby status, and the selected card’s

STATUS LED reverts to its normal operating mode.

3.3.2 Menu for local control

The VDA-1002 has operating parameters which may be adjusted locally at the controller card interface.

•Press the SELECT button on the VDA-1002 front card edge to assign the Densité frame’s local control panel to

the VDA-1002.

•Use the keys on the local control panel to step through the displayed menu to configure and adjust the VDA-

1002.

The complete menu structure is shown here:.

NO SIGNAL, OK 525, OK 625, OK HD, REAR PANEL ERROR

[GREEN, YELLOW, RED, FLASH RED]

[NONE, GPI]

[RESTORE]

Sets all parameters shown above to their underlined default values.

Alarm Level: sets the color that the card-front Status LED will display when this error is detected

Alarm Report: sets whether an alarm detected on this card will trigger the alarm GPI on the Densité frame rear

panel.

Figure 3.1 Densité Frame local control panel

STATUS

ALARM LEVEL

CONFIGURE ALARM

ALARM REPORT

NO SIGNAL

RESTORE DEFAULT

GUIDE TO INSTALLATION AND OPERATION

6| VDA-1002

4 Specifications

Input

Signal:..................................................1 Vpp nominal

Return loss: .........................................>35 dB up to 10 MHz, with VDA-1002–SRP(/L), –DRP or -3SRP rear panels.

>31 dB up to 5 MHz, with VDA-1002-3NRP rear panel.

Coupling:..............................................DC

Level: ...................................................0.3 to 1.5 Vcc

Impedance: .........................................75 ohms bridging

Common mode signal: ........................28 Vpp

Common mode rejection:.....................>65 dB to 10 kHz

Output

Signal (8): ............................................1 Vpp nominal, adjustable

Return loss:..........................................>42 dB up to 10 MHz

Impedance: .........................................75 ohms

Phase match between outputs: ..........<0.1 ° @ 4.43 MHz

Cross talk:............................................> 40 dB @ 10 MHz

Response variation:.............................<0.1 dB, 1 to 8 loads, to 20 MHz

Processing Performance

Gain: ....................................................±3 dB

Frequency response: ..........................±0.05 dB up to 5 MHz

±0.15 dB up to 10 MHz

-3 dB @ 90 MHz typically

Differential gain:...................................<0.15 %

Differential phase:................................<0.15 ° with 8 loads

.............................................................<0.1° with 2 loads

Horizontal tilt: .......................................<0.1% DC coupling

Vertical tilt: ...........................................<0.1 % DC coupling

S/N:......................................................>64 dB up to 5 MHz (rms noise/0.714V, unweighted)

Chroma/luma delay: ............................< ±1 ns

Chroma/luma gain: ..............................< ±0.02 dB

HUM: ...................................................<1 mV

Processing delay .................................15 ns

Power:

SRP and SRP/L rear panels:...............1.5 W

DRP, 3SRP and 3NRP rear panels: ...2W

Tabla de contenidos

Otros manuales de Amplificador de GRASS VALLEY

GRASS VALLEY

GRASS VALLEY 8947RDA-FR - Manual de usuario

GRASS VALLEY

GRASS VALLEY 2041EDA Manual de usuario

GRASS VALLEY

GRASS VALLEY 8914 - Manual de usuario

GRASS VALLEY

GRASS VALLEY 8914 - Manual de usuario

GRASS VALLEY

GRASS VALLEY HDA-3962 Manual de instrucciones

GRASS VALLEY

GRASS VALLEY 8937D Manual de usuario

GRASS VALLEY

GRASS VALLEY 8911 AES-EBU Manual de usuario

GRASS VALLEY

GRASS VALLEY 8912RDA-D Manual de usuario

GRASS VALLEY

GRASS VALLEY 8902 Manual de usuario

GRASS VALLEY

GRASS VALLEY 8910ADA-M - Manual de usuario

GRASS VALLEY

GRASS VALLEY 8911 AES-EBU Manual de usuario

GRASS VALLEY

GRASS VALLEY 8949MDA-SXF Manual de usuario

GRASS VALLEY

GRASS VALLEY 8985PRC - Manual de usuario

GRASS VALLEY

GRASS VALLEY 8985PRC - Manual de usuario

GRASS VALLEY

GRASS VALLEY 8910ADA-M - Manual de usuario

GRASS VALLEY

GRASS VALLEY 8906 Manual de usuario

GRASS VALLEY

GRASS VALLEY 8941 Manual de usuario

GRASS VALLEY

GRASS VALLEY 8945EDA - Manual de usuario

GRASS VALLEY

GRASS VALLEY 8945EDA-D - V1.3.0 Manual de usuario

GRASS VALLEY

GRASS VALLEY 8937 Manual de usuario

GRASS VALLEY

GRASS VALLEY SHDSDA1 Manual de instalación

GRASS VALLEY

GRASS VALLEY 8949MDA-CXF Manual de usuario

GRASS VALLEY

GRASS VALLEY 8931 Manual de usuario

GRASS VALLEY

GRASS VALLEY 8945EDA-D - V1.3.0 Manual de instrucciones

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
