GRASS VALLEY 2041EDA Manual de usuario

2041EDA

WIDEBAND REAR EQUALIZING DA

Instruction Manual

071803201

FIRST PRINTING: JANUARY 2001

REVISED PRINTING: JANUARY 2003

1.0software release

22041EDA Instruction Manual

Contacting Grass Valley Group

This document may not be copied, in whole or in part, or otherwise reproduced, except as specifically

permitted under U.S. copyright law, without the prior written consent of Grass Valley Group, P.O. Box

599000, Nevada City, CA 95959-7900 USA. GRASS VALLEY GROUP is a registered trademark and

Grass Valley is a trademark of Grass Valley Group. All registered trademarks and trademarks are prop-

erty of their respective holders. Grass Valley Group products are covered by U.S. and foreign patents,

issued and pending. Product options and specifications subject to change without notice. The informa-

tion in this manual is furnished for informational use only, is subject to change without notice, and

should not be construed as a commitment by Grass Valley Group. Grass Valley Group assumes no re-

sponsibility or liability for any errors or inaccuracies that may appear in this publication.

Grass Valley Group Web Site

The www.thomsongrassvalley.com web site offers the following:

Online User Documentation

— Current versions of product catalogs, brochures,

data sheets, ordering guides, planning guides, manuals, and release notes

in .pdf format can be downloaded.

FAQ Database

— Solutions to problems and troubleshooting efforts can be

found by searching our Frequently Asked Questions (FAQ) database.

Software Downloads

— Software updates, drivers, and patches can be down-

loaded.

Region Voice Fax Address Web Site

North America (800) 547-8949

Support: 530-478-4148 Sales: (530) 478-3347

Support: (530) 478-3181 Grass Valley Group

P.O. Box 599000

Nevada City, CA 95959-

7900 USA

www.thomsongrassvalley.com

Paciﬁc Operations +852-2585-6688

Support: 852-2585-6579 +852-2802-2996

U.K., Europe, Asia, Middle East +44 1753 218 777 +44 1753 218 757

France +33 1 45 29 73 00

Germany +49 221 1791 234 +49 221 1791 235

2041EDA Instruction Manual 3

Contents

Preface

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2041EDA Wideband Rear Equalizing Distribution Amplifier

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Module Placement in the 2000 Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Inputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operation Indicator LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Configuration and Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Remote Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Module Configuration Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Software Update Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Power-up Diagnostics Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Module Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Input Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Microprocessor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Output Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

42041EDA Instruction Manual

Contents

2041EDA Instruction Manual 5

Preface

About This Manual

This manual describes the features of a speciﬁc 2000 Series module in the

Kameleon Media Processing System. As part of this module family, it is

subject to Safety and Regulatory Compliance described in the 2000 Series

frame and power supply documentation (see the 2000 Series Frames

Instruction Manual).

62041EDA Instruction Manual

Preface

2041EDA Instruction Manual 7

2041EDA Wideband Rear

Equalizing Distribution

AmpliÞer

Introduction

The 2041EDA Wideband Rear Equalizing DA provides basic equalization

and distribution of a single standard or high deﬁnition wideband signal

(4 Mb/s to 1.5 Gb/s) to eight outputs. The single module resides in any

rear slot of a Kameleon 2000 Series frame and is independent of any front

card for operation.

The features of the 2041EDA include:

•Auto equalization of both SD and HD signals,

•Accepts a wide range of standard or high deﬁnition input signal stan-

dards,

•Use of non-inverted outputs allow distribution of compressed signals

such as SMPTE 310M and DVB-ASI,

• Ideal for monitoring or distributing reclocked signals from adjacent

2000 modules, and

•Remote control and monitoring support.

82041EDA Instruction Manual

Installation

Installation of the 2041EDA module is a process of:

• Placing the module in a rear frame slot, and

•Cabling signal ports.

The 2041EDA module can be plugged in and removed from a Kameleon

2000 Series frame with power on. When power is applied to the module,

LED indicators reﬂect the initialization process (see

Power Up

on page 10).

Module Placement in the 2000 Frame

There are twelve rear cell locations in the 3 RU frame to accommodate

either analog or digital modules. The 2041EDA rear module plugs into any

one of the rear slots of the Kameleon 2000 frame.

Install the module by inserting it into any rear slot of the frame as

illustrated in Figure 1.

Verify that the module connector seats properly against the midplane.

Secure the module to the rear of the frame with the two screw locks on

either side of the back panel using a crossblade screwdriver.

Figure 1. Installing 2041EDA Module

J10 SIG

J9 J8 J7 J6 J5 J4 J3 J2

2041

EDA

Alignment post

and receptacle

Screw lock

(both sides)

8032_01

2000 frame (rear view) Board edge guides

(both sides)

2041EDA Instruction Manual 9

Installation

Cabling

Cabling to the 2041EDA module is done on the BNCs on the rear of the

module. Refer to Figure 2 for a detailed illustration of the rear connections

referenced below.

Inputs

The 2041EDA will accept any of the video standards listed in the Input

speciﬁcations in Table 3 on page 14. Connect a video input to BNC J10.

Outputs

The 2041EDA outputs conform to the video standards listed in the Output

speciﬁcations in Table 3 on page 14.

Connect video destinations to any of the eight outputs at connectors J2 – J9.

Terminate any unused outputs.

Note

BNC J1 is not used on this module. On earlier versions of the 2041EDA

labeled with part number 671-5248-00, BNC J1 provided an output.

Figure 2. 2041EDA Input/Output Connectors

8032_02r1

J10 SIG J9 J8 J7 J6 J5 J4 J3 J2 J1

In 2041EDA

Outputs

Signal Present

LED

Video

Input Not

Used

10 2041EDA Instruction Manual

Power Up

The on-board LED indicators are illustrated in Figure 3. Upon power-up,

the green PWR LED should light and the yellow CONF LED should illumi-

nate for the duration of module initialization.

Operation Indicator LEDs

With a valid input signal connected, the green on-board PWR LED,

SIG_PRES LED and the SIG LED (visible from the rear) should be on. Refer

to Table 1 on page 11 to see a complete list of possible operating conditions

and the resulting indicator status.

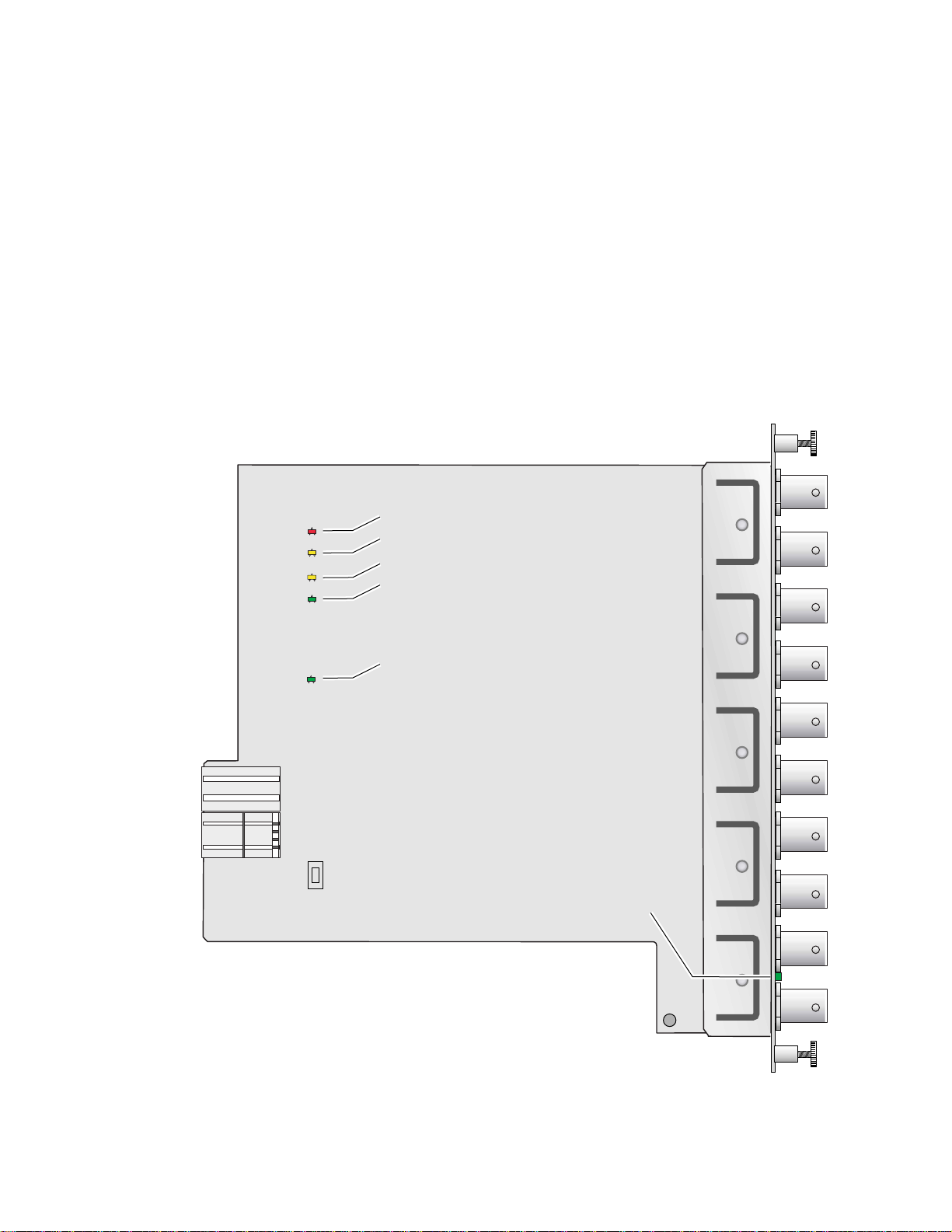

Figure 3. LEDs and Conﬁguration Switches

8032_03

FAULT Fault – (red) off during normal operation

Communication – (yellow)

Configuration – (yellow)

Power – (green) on during normal operation

Remote override – (yellow)

Signal present – (green)

COMM

CONF

PWR

SIG_PRES

Signal present – (green) on rear connector plate
