Grandstream Networks WP810 Manual de usuario
Grandstream Networks, Inc.
WP810/WP822/WP825 Series
Cordless Wi-Fi IP Phone
User Guide
WP810/WP822/WP825 - User Guide
WELCOME
The WP810 is a portable Wi-Fi IP phone designed to suit a variety of enterprises and vertical market applications, including
retail, logistics, medical and security. This basic cordless Wi-Fi phone comes equipped with integrated dual-band
802.11a/b/g/n/ac Wi-Fi, an advanced antenna design and roaming support. By adding 6-hour talk time and HD voice with
dual-MICs, the WP810 offers an affordable option and comes equipped with a combination of features, mobility and
durability to suit all portable telephony needs.
The WP822 is a portable Wi-Fi IP phone designed to suit a variety of enterprises and vertical market applications, including
retail, logistics, medical and security. This business-grade Wi-Fi phone comes equipped with integrated dual-band
802.11a/b/g/n/ac Wi-Fi, an advanced antenna design and roaming
support. By adding 8-hour talk time, HD voice with dual-MICs, and a configurable push-to-talk button, the WP822 comes
equipped with a combination of features, mobility and durability to suit all portable telephony needs.
The WP825 is a ruggedized portable Wi-Fi IP phone designed to suit a variety of enterprises and vertical market applications,
including retail, logistics, medical and security. This cordless Wi-Fi phone comes equipped with integrated dual-band
802.11a/b/g/n/ac Wi-Fi, an advanced antenna design and roaming
support. By adding 8-hour talk time and HD voice with dual-MICs, the WP825 offers an affordable option and comes
equipped with a combination of features, mobility and durability to suit all portable telephony needs.
PRODUCT OVERVIEW
Feature Highlights
The following table contain the major features of the WP810, WP822 and WP825:
Contacts Display the list of the registered contacts and also the groups contacts with the ability of searching, adding or
editing the entries and also deleting the selected contacts.
Call History Display the call history:Missed Calls,Accepted Calls,Outgoing CallsorAll Calls. You can add contacts
toShared Contactsdirectly from call logs.
SMS SMSstands for Short Message Service and referred to as a “text message”. With aSMS, you can send a
message by pressing“New Message”of up to 160 characters to another device or check the received ones.
Voice Mail
Select:Play voice mail messages received.
Note: Voicemail ID needs to be configured, otherwise, “select” softkeys will open configuration settings.
Diagnostics
●LCD Test
●LCD off
●LED Test
●Keypad Test
●Audio Loopback
●Proximity Sensor
●Vibration
●Verify Certificate
Settings
●Account: Configure/View SIP accounts settings and account ringtone.
●Call settings:Configure the account auto answer, call forward, DND and speed dial settings.
Table 1: WP810/WP822/WP825 Features at a Glance
Technical Specifications
The following table resumes all the technical specifications including the protocols/standards supported, voice codecs,
telephony features, languages and upgrade/provisioning settings.
WP810
●Network Settings:Configure the networks settings including Wi-Fi settings, and additional networks
settings.
●BasicSettings:Configure the basic settings including voice settings, display settings, Gestures and button
customization, language settings and date/time settings.
●Adv.Settings:Configure the advanced settings including system upgrade, PTT/Paging settings, system
security settings, syslog settings and factory reset / reboot.

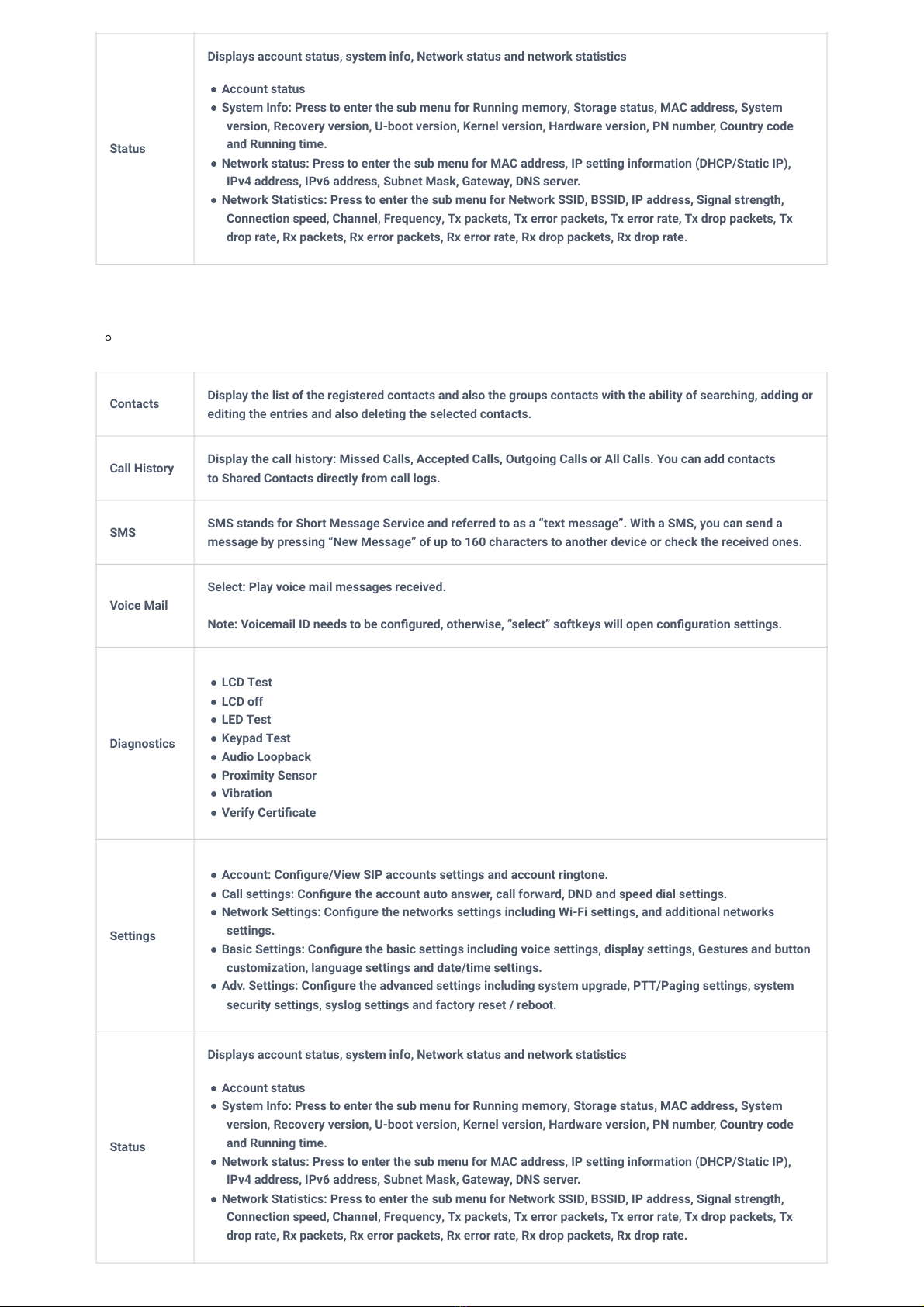

Status
Displays account status, system info, Network status and network statistics
●Account status
●System Info:Press to enter the sub menu for Running memory, Storage status, MAC address, System
version, Recovery version, U-boot version, Kernel version, Hardware version, PN number, Country code
and Running time.
●Network status: Press to enter the sub menu for MAC address, IP setting information (DHCP/Static IP),
IPv4 address, IPv6 address, Subnet Mask, Gateway, DNS server.
●Network Statistics: Press to enter the sub menu for Network SSID, BSSID, IP address, Signal strength,
Connection speed, Channel, Frequency, Tx packets, Tx error packets, Tx error rate, Tx drop packets, Tx
drop rate, Rx packets, Rx error packets, Rx error rate, Rx drop packets, Rx drop rate.
Contacts Display the list of the registered contacts and also the groups contacts with the ability of searching, adding or
editing the entries and also deleting the selected contacts.
Call History Display the call history:Missed Calls,Accepted Calls,Outgoing CallsorAll Calls. You can add contacts
toShared Contactsdirectly from call logs.
SMS SMSstands for Short Message Service and referred to as a “text message”. With aSMS, you can send a
message by pressing“New Message”of up to 160 characters to another device or check the received ones.
Voice Mail
Select:Play voice mail messages received.
Note: Voicemail ID needs to be configured, otherwise, “select” softkeys will open configuration settings.
Diagnostics
●LCD Test
●LCD off
●LED Test
●Keypad Test
●Audio Loopback
●Proximity Sensor
●Vibration
●Verify Certificate
Settings
●Account: Configure/View SIP accounts settings and account ringtone.
●Call settings:Configure the account auto answer, call forward, DND and speed dial settings.
●Network Settings:Configure the networks settings including Wi-Fi settings, and additional networks
settings.
●BasicSettings:Configure the basic settings including voice settings, display settings, Gestures and button
customization, language settings and date/time settings.
●Adv.Settings:Configure the advanced settings including system upgrade, PTT/Paging settings, system
security settings, syslog settings and factory reset / reboot.
Table 2: WP810 Technical Specifications
WP822
Status
Displays account status, system info, Network status and network statistics
●Account status
●System Info:Press to enter the sub menu for Running memory, Storage status, MAC address, System
version, Recovery version, U-boot version, Kernel version, Hardware version, PN number, Country code
and Running time.
●Network status: Press to enter the sub menu for MAC address, IP setting information (DHCP/Static IP),
IPv4 address, IPv6 address, Subnet Mask, Gateway, DNS server.
●Network Statistics: Press to enter the sub menu for Network SSID, BSSID, IP address, Signal strength,
Connection speed, Channel, Frequency, Tx packets, Tx error packets, Tx error rate, Tx drop packets, Tx
drop rate, Rx packets, Rx error packets, Rx error rate, Rx drop packets, Rx drop rate.
Contacts Display the list of the registered contacts and also the groups contacts with the ability of searching, adding or
editing the entries and also deleting the selected contacts.
Call History Display the call history:Missed Calls,Accepted Calls,Outgoing CallsorAll Calls. You can add contacts
toShared Contactsdirectly from call logs.
SMS SMSstands for Short Message Service and referred to as a “text message”. With aSMS, you can send a
message by pressing“New Message”of up to 160 characters to another device or check the received ones.
Voice Mail
Select:Play voice mail messages received.
Note: Voicemail ID needs to be configured, otherwise, “select” softkeys will open configuration settings.
Diagnostics
●LCD Test
●LCD off
●LED Test
●Keypad Test
●Audio Loopback
●Proximity Sensor
●Vibration
●Verify Certificate
Settings
●Account: Configure/View SIP accounts settings and account ringtone.
●Call settings:Configure the account auto answer, call forward, DND and speed dial settings.
●Network Settings:Configure the networks settings including Wi-Fi settings, and additional networks
settings.
●BasicSettings:Configure the basic settings including voice settings, display settings, Gestures and button
customization, language settings and date/time settings.
●Adv.Settings:Configure the advanced settings including system upgrade, PTT/Paging settings, system
security settings, syslog settings and factory reset / reboot.
Status
Displays account status, system info, Network status and network statistics
●Account status
●System Info:Press to enter the sub menu for Running memory, Storage status, MAC address, System
version, Recovery version, U-boot version, Kernel version, Hardware version, PN number, Country code
and Running time.
●Network status: Press to enter the sub menu for MAC address, IP setting information (DHCP/Static IP),
IPv4 address, IPv6 address, Subnet Mask, Gateway, DNS server.
●Network Statistics: Press to enter the sub menu for Network SSID, BSSID, IP address, Signal strength,
Connection speed, Channel, Frequency, Tx packets, Tx error packets, Tx error rate, Tx drop packets, Tx
drop rate, Rx packets, Rx error packets, Rx error rate, Rx drop packets, Rx drop rate.
Table 3: WP822 Technical Specifications
WP825
Table 4: WP825 Technical Specifications
GETTING STARTED
This chapter provides basic installation instructions including the list of the packaging contents and also information for
obtaining best performance with the WP810, WP822 and WP825.
Equipment Packaging
Contacts Display the list of the registered contacts and also the groups contacts with the ability of searching, adding or
editing the entries and also deleting the selected contacts.
Call History Display the call history:Missed Calls,Accepted Calls,Outgoing CallsorAll Calls. You can add contacts
toShared Contactsdirectly from call logs.
SMS SMSstands for Short Message Service and referred to as a “text message”. With aSMS, you can send a
message by pressing“New Message”of up to 160 characters to another device or check the received ones.
Voice Mail
Select:Play voice mail messages received.
Note: Voicemail ID needs to be configured, otherwise, “select” softkeys will open configuration settings.
Diagnostics
●LCD Test
●LCD off
●LED Test
●Keypad Test
●Audio Loopback
●Proximity Sensor
●Vibration
●Verify Certificate
Settings
●Account: Configure/View SIP accounts settings and account ringtone.
●Call settings:Configure the account auto answer, call forward, DND and speed dial settings.
●Network Settings:Configure the networks settings including Wi-Fi settings, and additional networks
settings.
●BasicSettings:Configure the basic settings including voice settings, display settings, Gestures and button
customization, language settings and date/time settings.
●Adv.Settings:Configure the advanced settings including system upgrade, PTT/Paging settings, system
security settings, syslog settings and factory reset / reboot.
Status
Displays account status, system info, Network status and network statistics
●Account status
●System Info:Press to enter the sub menu for Running memory, Storage status, MAC address, System
version, Recovery version, U-boot version, Kernel version, Hardware version, PN number, Country code
and Running time.
●Network status: Press to enter the sub menu for MAC address, IP setting information (DHCP/Static IP),
IPv4 address, IPv6 address, Subnet Mask, Gateway, DNS server.
●Network Statistics: Press to enter the sub menu for Network SSID, BSSID, IP address, Signal strength,
Connection speed, Channel, Frequency, Tx packets, Tx error packets, Tx error rate, Tx drop packets, Tx
drop rate, Rx packets, Rx error packets, Rx error rate, Rx drop packets, Rx drop rate.
Table 5: Equipment Packaging
Contacts Display the list of the registered contacts and also the groups contacts with the ability of searching, adding or
editing the entries and also deleting the selected contacts.
Call History Display the call history:Missed Calls,Accepted Calls,Outgoing CallsorAll Calls. You can add contacts
toShared Contactsdirectly from call logs.
SMS SMSstands for Short Message Service and referred to as a “text message”. With aSMS, you can send a
message by pressing“New Message”of up to 160 characters to another device or check the received ones.
Voice Mail
Select:Play voice mail messages received.
Note: Voicemail ID needs to be configured, otherwise, “select” softkeys will open configuration settings.
Diagnostics
●LCD Test
●LCD off
●LED Test
●Keypad Test
●Audio Loopback
●Proximity Sensor
●Vibration
●Verify Certificate
Settings
●Account: Configure/View SIP accounts settings and account ringtone.
●Call settings:Configure the account auto answer, call forward, DND and speed dial settings.
●Network Settings:Configure the networks settings including Wi-Fi settings, and additional networks
settings.
●BasicSettings:Configure the basic settings including voice settings, display settings, Gestures and button
customization, language settings and date/time settings.
●Adv.Settings:Configure the advanced settings including system upgrade, PTT/Paging settings, system
security settings, syslog settings and factory reset / reboot.
Status
Displays account status, system info, Network status and network statistics
●Account status
●System Info:Press to enter the sub menu for Running memory, Storage status, MAC address, System
version, Recovery version, U-boot version, Kernel version, Hardware version, PN number, Country code
and Running time.
●Network status: Press to enter the sub menu for MAC address, IP setting information (DHCP/Static IP),
IPv4 address, IPv6 address, Subnet Mask, Gateway, DNS server.
●Network Statistics: Press to enter the sub menu for Network SSID, BSSID, IP address, Signal strength,
Connection speed, Channel, Frequency, Tx packets, Tx error packets, Tx error rate, Tx drop packets, Tx
drop rate, Rx packets, Rx error packets, Rx error rate, Rx drop packets, Rx drop rate.
Figure 1: WP810 Package Content
WP822
Figure 2: WP822 Package Content
WP825
Figure 3: WP825 Package Content
Setting up the Phone
Charging Station
Plug the power adapter into a power source socket to start using the charging station.
Figure 4: Charging Station
Handset
Please refer to the following steps in order to setup your WP810/WP822/WP825 phone:
1. Open the battery cover.
2. Insert the battery with the electrodes in the bottom left corner.
3. Close the battery cover.
Important
Check the package before installation. If you find anything missing, contact your system administrator.
Note
Figure 5: Handset Setup
Battery Information
WP810
Technology: Rechargeable Li-ion Battery
Voltage: 3.8V (Nominal Voltage 3.8V / Limited charge Voltage: 4.35V)
Capacity: 1500mAh
Standby time: up to 120 hours
Talk time: up to 6 hours’ active talk time
WP822
Technology: Rechargeable Li-ion Battery
Voltage: 3.8V (Nominal Voltage 3.8V / Limited charge Voltage: 4.35V)
Capacity: 2000mAh
Standby time: up to 200 hours
Talk time: up to 8 hours’ active talk time
WP825
Technology: Rechargeable Li-ion Battery
Voltage: 3.8V (Nominal Voltage 3.8V / Limited charge Voltage: 4.35V)
Capacity: 2000mAh
Standby time: up to 200 hours
Talk time: up to 8 hours’ active talk time
In order to get the best performance of your WP810/WP822/WP825, we recommend using original battery provided in the
package. The specifications may differ depending on the age and capacity of the battery used.
Please charge the battery fully before using the handset for the first time. (For more information about the battery, please refer
to Battery Information.
Handset Keys Description
The WP810/WP822/WP825 Wireless IP phone enhances communication and combines usability and scalability in industries
such as warehousing, catering and retail as well as in factory settings. The following screenshot describe the the handsets LCD
screen and the main hardware components.
WP810
Figure 6: WP810 Description
The following table describe the WP810 keypad keys.
Key Description
1. Proximity sensor The proximity senor can detect and measure gravitational acceleration, tilt,
vibration, altitude changes, and static position.
2. Earphone Delivers audio output.
3,4 Volume up / Down Keys Configure the handset and ringtone volume.
5. PTT Key PTT (Push-to-Talk) button, to initiate PTT call.
6. * / Mute key Keep pressing on * in idle screen to mute/unmute the ringtone.
7. Arrow key combination (Up,
Down, Left, Right) Allows navigation of the cursor through the displayed menu options.
8. Off-hook / Dial key Enters dialing mode, or dials number entered.
Very Important
Be careful when inserting the battery into your handset to avoid any risk of short-circuit, which lead to damage your battery
and/or the handset itself. Do not use damaged batteries which can increase the risk of serious harm.
