Gram QUBIC ONE Manual de usuario
QUBIC ONE
EN
USER’S MANUAL
Start-up
With the equipment correctly installed, having followed the
assembly instructions included with this equipment, place it on
the optional work table or other equivalent, sufficiently robust so
that the equipment has sufficient rigidity and can work with the
necessary stability.
Plug in the connection cable to the 220V mains.
At the rear left of the display screen is the start switch. Swich on
to initialize the equipment.
The computer will initialize, starting with the Windows base
software, followed by the launch of the Qubic application. The
process, which can last a few minutes, should not be interfered
with.
The screen with the application will appear.

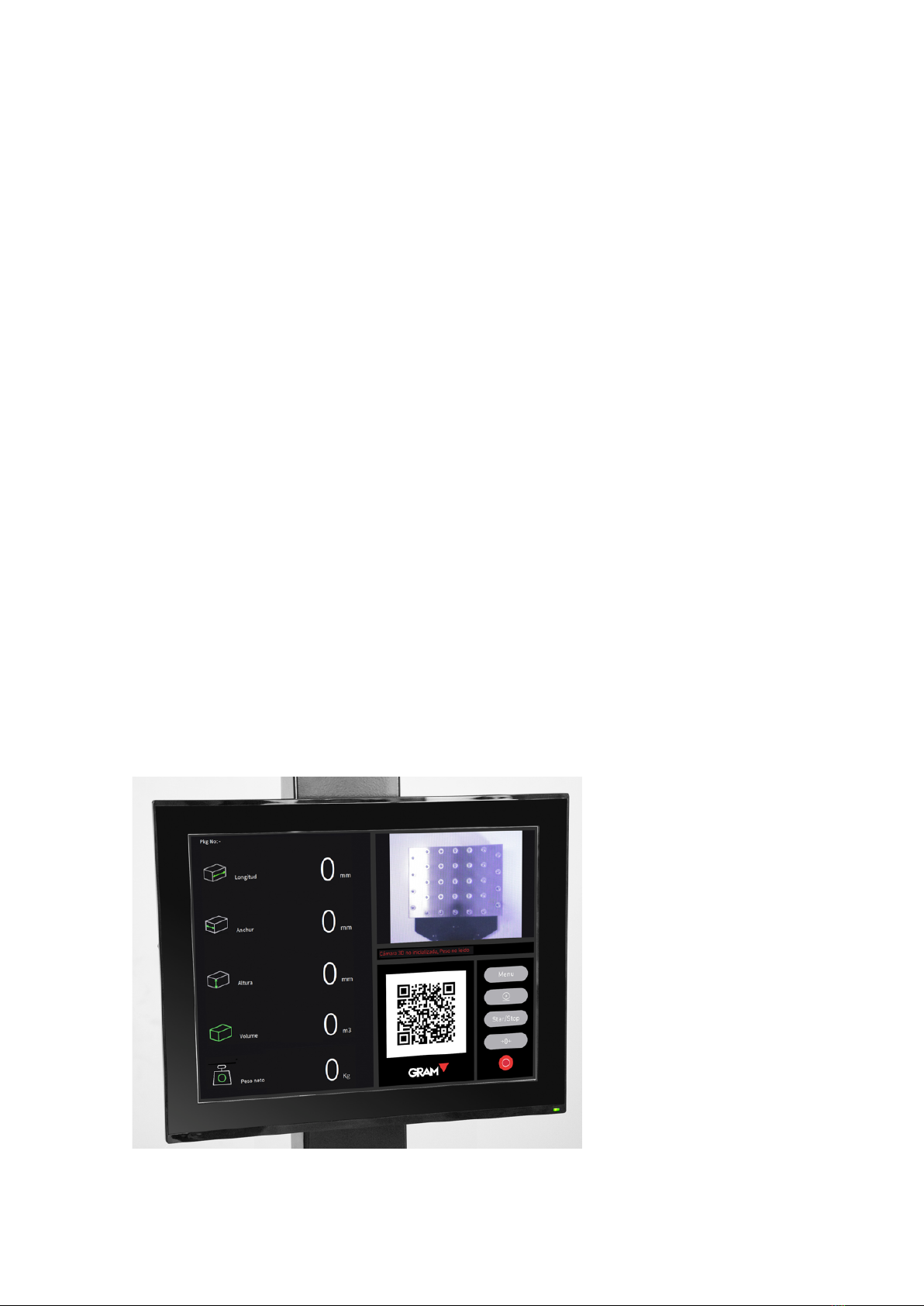

Description of the measurement screen
The following screen appears:
The upper right part shows the platform, where the package or
box to be checked should be placed.
The left area shows the longitudinal values of the package, total
volume and weight of the package.
The QR code shows the information of these values, so that they
can be easily exported to other equipment that is equipped with
a 2D scanner and adjusted to a minimum distance of 1 m, so as
not to interfere with the reading of the equipment's 3D and
infrared camera.

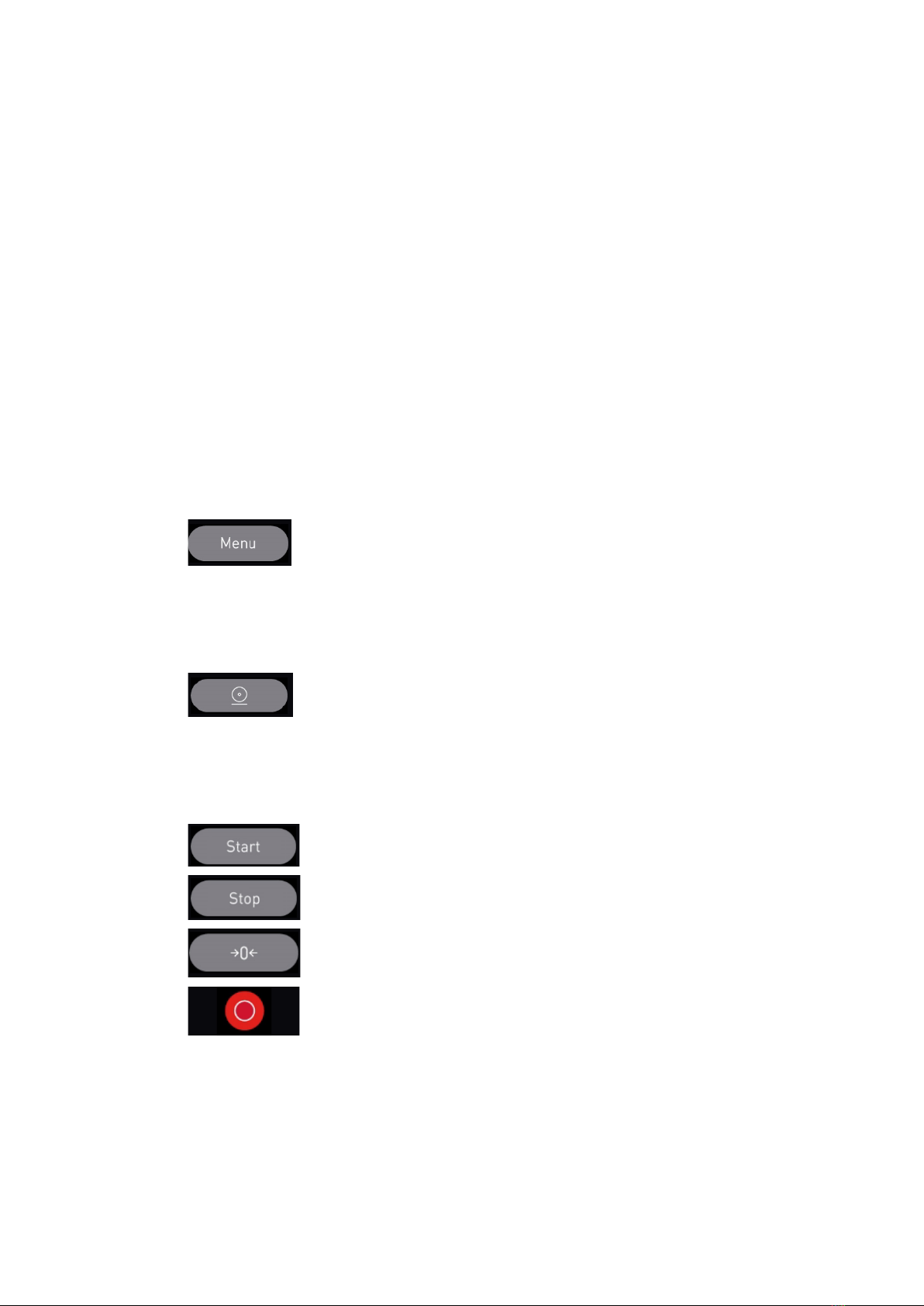

The lower right will display a keyboard with the following keys
when you touch that area of the screen:
• . Opens the Settings Configuration Menu, which
is protected with a password. It can only be used for
equipment maintenance by personnel duly authorized by
Gram Group.
• . Open the data screen. For this, the length of the
package label codes should have been properly configured.
It is an option that must be ordered from the factory to be
available.
• . Pressing it starts the application.
• . Pressing to stop the application.
• . Zero the scale.
• . End the application.
Basic use
With the equipment running (if not, press the key ),
place the package to be calculated on the platform, so that it is
centered and the green square is always within the upper part of
its upper face.
It is important that the green rectangle is always inside, to avoid
erroneous readings.
The reading of the equipment should not be interfered with by
other objects, arms or hands. The reading area must be
completely free.
The scanner of the equipment will immediately detect the edges
and height of the package, and will show in its left area its
dimensions in mm, volume in m3 and weight in kg.
All this data is also shown in the QR code, to facilitate its export
to another computer by a 2D scanner, with the following data
format:
LXXXXWXXXHXXXmmVXXXXWtXXXXkg, where X is the average
data, whose length varies depending on the reading of the
equipment. L indicates length, W indicates width, H indicates
height, V indicates volume, and Wt indicates weight.
Remove the package and place the next one. The equipment
displays its dimensions and weight in a few seconds, for a fast
and efficient reading flow.
The equipment should only be stopped by means of the key
to prevent you from displaying readings when it is
not running.
To turn off the equipment, press the key , and then
the Windows desktop screen will appear. Press near the bottom
of the screen to display the icon , press it, the icon will
appear over the previous one. Press it and select Shut down. The
equipment will shut down properly.
To restart it, press the start switch indicated in the Start-up
section of this manual.
Use with database
The equipment allows adding information on the carrier and the
tracking of the package by means of a scanner, but for this the
system must be configured by the Gram Group technicians. It is
an option with cost.
This data is stored in a csv file.

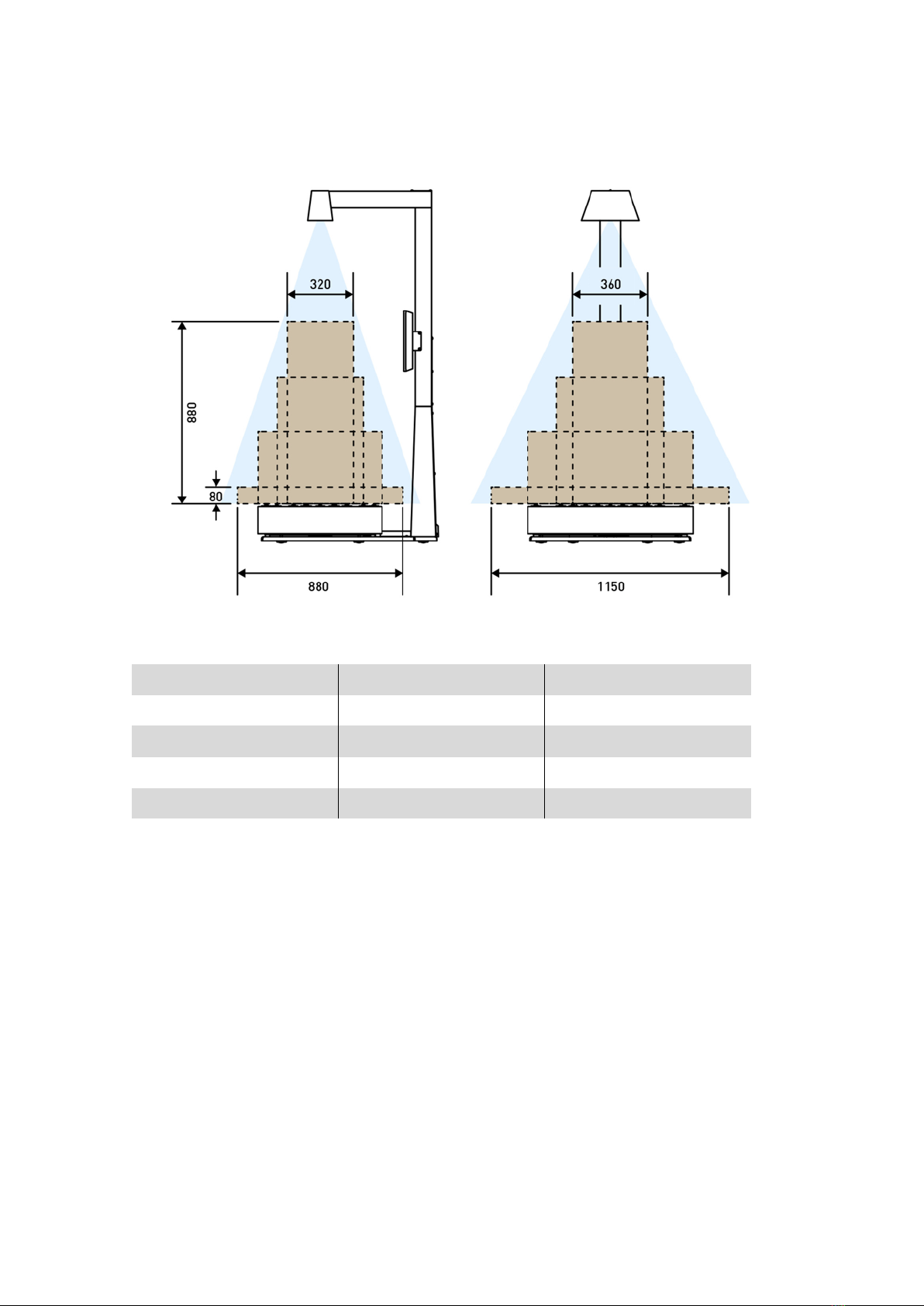

Cone of maximum dimensions of measurements
Large (mm)
Wide (mm)
High (mm)
1150
800
80 (min)
800
600
350
520
420
610
360
320
880 (max)

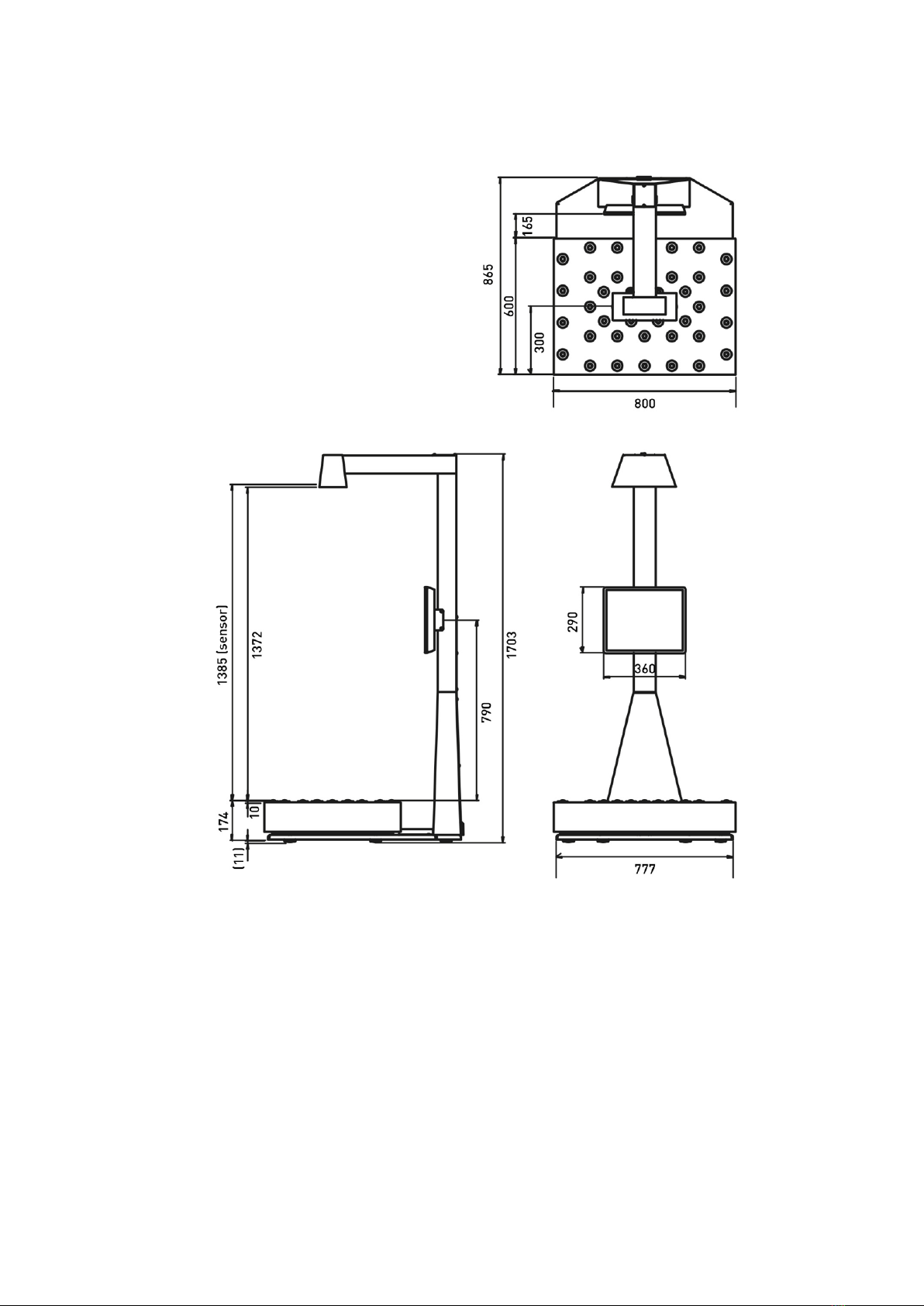

Equipment dimensions
01/02112021
