Dyna-Star® HP Vent

Valve Kit

Used with the Dyna-Star HP or HF Pump to reduce system pressure and allow injector to

reset. For professional use only.

Part No.: 77X540

Maximum Working Pressure: 3500 psi (241 bar, 24 MPa)

Important Safety Instructions

Read all warnings and instructions in this

manual and the Dyna-Star HP and HF Pump

instruction manual included with your unit. Save

all instructions.

332519J

Instructions

2 332519J

Instructions

Warnings

See the Dyna-Star HF and HP Pump Instruction manual

for additional warnings.

Installation

Pressure Relief

Follow the Pressure Relief Procedure whenever

you see this symbol.

To relieve pressure in the system, use two wrenches

working in opposite directions on pump outlet fitting to

slowly loosen fitting only until fitting is loose and no

more lubricant or air is leaking from fitting as shown in

FIG. 1.

SKIN INJECTION HAZARD

High-pressure fluid from dispense device, hose leaks,

or ruptured components will pierce skin. This may look

like just a cut, but it is a serious injury that can result in

amputation. Get immediate surgical treatment.

Follow Pressure Relief Procedure in this manual,

when you stop dispensing and before cleaning, check-

ing, or servicing equipment.

PRESSURIZED EQUIPMENT HAZARD

Over-pressurization can result in equipment rupture

and serious injury.

• A pressure relief valve is required at each pump

outlet.

• Follow Pressure Relief Procedure in this manual

before servicing.

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in

pressurized equipment can cause serious chemical

reaction and equipment rupture. Failure to follow this

warning can result in death, serious injury, or property

damage.

• Do not use 1,1,1-trichloroethane, methylene chlo-

ride, other halogenated hydrocarbon solvents or flu-

ids containing such solvents.

• Many other fluids may contain chemicals that can

react with aluminum. Contact your material supplier

for compatibility.

This equipment stays pressurized until pressure is

manually relieved. To help prevent serious injury

from pressurized fluid, such as skin injection,

splashing fluid and moving parts, follow the Pressure

Relief Procedure when you stop dispensing and

before cleaning, checking, or servicing the

equipment.

FIG. 1

Instructions

332519J 3

Vent Valve Installation

Reference numbers used in these instructions corre-

spond to Parts included in Kit and are provided on page

5. Parts identified with an alpha character are user pro-

vided or already installed components.

To ensure the correct pressure relief valve is used and

pressure settings are correct, always use new parts

included in your Vent Valve Kit for reassembly.

1. If unit has already been in service, relieve pressure

(see Pressure Relief procedure, page 2).

2. Disconnect Dyna-Star HP or HF pump from main

power source.

3. Remove outlet tubing from port marked “0” on the

pump adapter block (a) (FIG. 2).

4. Remove plug or inlet tubing from port marked “1” on

the pump adapter block (a) (FIG. 2).

5. Loosen, remove and discard the 3 socket head cap

screws (b) from the adapter block (a) (FIG. 3).

6. Remove adapter block (a) and o-rings (c) (FIG. 3).

Discard these parts according to state and local

codes for proper disposal. These parts will not be

used for reassembly.

7. Grease o-rings (8) and install o-rings in vent valve

block as shown in FIG. 4.

Clean surface of the Dyna-Star pump outlet with a

clean dry cloth. Inspect pump surface for scratches or

nicks. A scratched surface can result in fluid leakage.

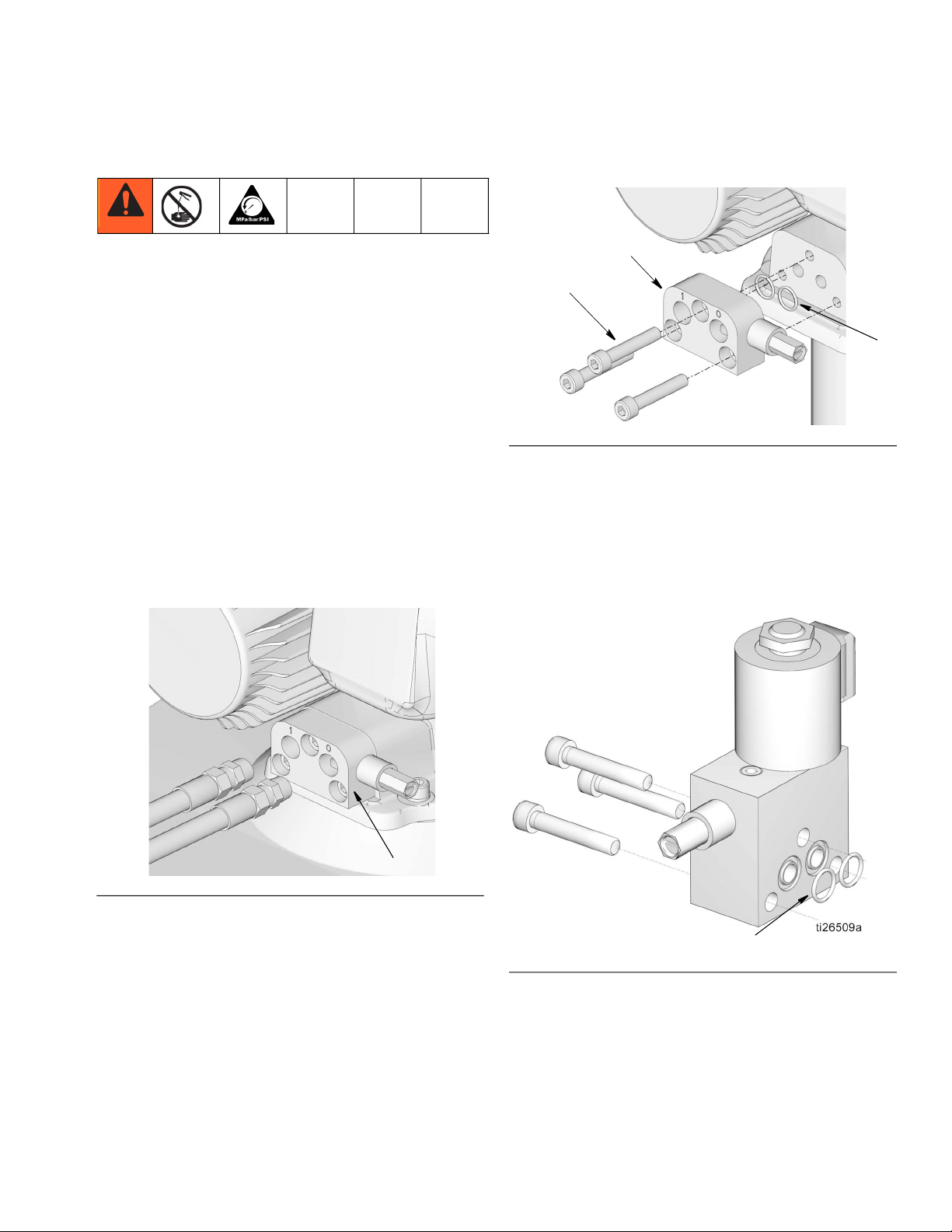

FIG. 2

FIG. 3

FIG. 4

Instructions

4 332519J

8. Install vent valve (1) to pump surface using the 3

cap screws (4) included in the kit (FIG. 5). Hold the

vent valve tight to the surface of the pump to ensure

o-rings stay in place during installation.Torque

screws to 17-19 ft-lbs (23-26 N.m).

9. Install lubrication line to vent valve pump outlet port

marked “0” (FIG. 6).

10. In the inlet port marked “1” (FIG. 6) install either:

• a plug (10).

• inlet plumbing necessary to attach a fill pump.

NOTE:

• For tube-in-tube pump models, the “1” inlet can

be used as a fill port.

• For models equipped with a follower plate, with-

out a tube-in-tube, the “1” inlet deposits grease

on top of the follower plate.

11. Connect cable (d) to valve cartridge (c) (FIG. 7).

12. Install other end of cable (d) to solenoid control

device.

NOTE:

• Cable (d) is available from Graco. See Accesso-

ries, page 5 for a list of available cables.

• Connector termination is a Deutsch DT-04-2P.

• Solenoid inputs are not polarity dependent. Volt-

age can be applied in either direction.

• Solenoid should be activated when the pump is

running. See wiring diagrams in pump manual

for more details.

13. Reconnect pump to main power supply.

14. Test system to ensure proper operation.

FIG. 5

FIG. 6

FIG. 7

Parts

332519J 5

Parts

Accessories

Technical Data

*Dyna-Star HP Pump Models are rated for 5000 psi (34.47 MPa, 344 bar) maximum working pressure, however, when a vent valve is installed on

the HP Pump, the maximum working pressure must be reduced to 3500 psi (24.1 MPa, 241 bar).

**Flow capability depends on viscosity, type of fluid, temperature, etc.

California Proposition 65

Ref Description Qty

1 MANIFOLD, electric vent valve 1

2 VALVE, cartridge, 24VDC 1

3 VALVE, pressure relief, 3500 psi 1

4 SCREW, cap, socket, M8 x 1.25 3

8 O-RING 2

9 PLUG, pipe, 1/8 in. npt 1

10 PLUG, 1/4 in. npt 1

Part No. Description

24N402 CABLE, 6 ft, vent valve, 2 pin for vent valve

control

77X546 CABLE, power extension, 15 ft (4.6m), Injec-

tor System

Vent Valve for Dyna-Star HP

US Metric

Maximum working pressure* 3500 psi 24.1 MPa, 241 bar

Inlet/Outlet Sizes

Outlet (marked “0”) 3/8 in. npt(f)

Inlet (refill - marked “1”) 3/8 in. npt(f)

Pressure Relief Valve

Factory Set Pressure 4000 psi + 250 psi 27 MPa, 275 bar + 10%

Reset Pressure 80% of set pressure

Relief Rate** 0.1 gallons/minute @3500 psi 0.4 liters/minute @24.1 MPa. 241 bar

Solenoid Valve

Flow** Up to gpm 0.2 gallons/minute,

40 in3/minute

0.65 liters/minute

Wetted materials Zinc plated steel, carbon steel, aluminum, fluoroelastomer, polyurethane

Weight 4.0 lbs 1.8 kg

IP Rating IP69K

Solenoid Coil Resistance (DC) (Ohms) @ 68°F (20°C) Initial Current Draw (Amps)

24 VDC 28.8 0.83

CALIFORNIA RESIDENTS

WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

For patent information, see www.graco.com/patents.

Original instructions. This manual contains English. MM 332519

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

www.graco.com

Revision J, June 2022
