Operating Instructions

Fibre Panel Heater with Thermostat

Model: GFP213

CAUTION: In order to avoid a hazard due to inadvertent resetting of the

thermal cut-out, this appliance must not be supplied through an external

switching device, such as a timer, or connected to a circuit that is regularly

switched on and off by the utility.

•This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities or lack of experience and

knowledge, unless they are supervised or have been given instruction

concerning the use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the

appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

WARNING: You must not cover this appliance. Covering this appliance

presents fire risk and will activate the safety fuse; permanently disabling the

unit.

WARNING: Do not use this appliance in small rooms when they are

occupied by persons not capable of leaving the room on their own, unless

constant supervision is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any

flammable material a minimum distance of 1 metre from the air outlet.

General Care and Safety Guide

•Use only the voltage specified on the rating label of the appliance.

•Keep all objects at least 1 metre from the front and sides of the appliance.

•This appliance is intended for household use only and not for commercial or

industrial use.

•Indoor use only.

•Use this appliance only as described in this manual. Any other use is not

recommended by the manufacturer and may cause fire, electric shock or

injury.

•Do not use the appliance if it has been dropped or damaged.

•The common cause of overheating is deposits of dust or fluff in the appliance.

Ensure these deposits are removed regularly by unplugging the appliance and

vacuum cleaning the air vents and grills.

YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE

INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

•Never use the appliance to dry clothes.

•Always unplug appliance when not in use.

•When the appliance has been unpacked, check it for transport damage and

ensure all parts have been delivered. If parts are missing or the appliance has

been damaged, contact the Customer Services Team.

•Do not use if there are visible signs of damage to the appliance.

•Do not connect the appliance to mains supply until completely assembled and

adjusted.

•Ensure hands are dry before handling the plug or main unit.

•Ensure appliance is on a flat, stable, heat-resistant surface.

•Do not operate with cord set coiled up as a heat build up is likely, which could

be sufficient to become a hazard.

•Carry out regular checks of the supply cord to ensure no damage is evident

•Do not operate this appliance with a damaged cord, plug or after the appliance

malfunctions or has been dropped or damaged in any manner. Take to a

qualified electrical person for examination, electrical service or repair.

•Do not twist, kink or wrap the cord around the appliance, as this may cause the

insulation to weaken and split. Always ensure that all cord has been removed

from any cord storage area and is unrolled before use.

•It is recommended that this appliance is plugged directly into the wall socket.

Power boards are not rated to supply power to high wattage appliances.

•A correctly specified, undamaged extension cord may be used with this

appliance provided it is used in a safe manner.

•Do not remove plug from power socket until the appliance has been switched

off.

•Do not remove plug from power socket by pulling cord; always grip plug.

•Don’t place appliance on bedding or on thick & long carpet where the openings

may get blocked.

•Switch off and use handle provided when moving

•Do not place appliance close to radiant heat source.

•Do not insert or allow foreign objects to enter any ventilation or exhaust

opening, as this may cause an electric shock, fire or damage to the appliance.

•Do not sit on the appliance.

•Do not use abrasive cleaning products on this appliance. Clean with a damp

cloth (not wet) rinsed in hot soapy water only. Always remove plug from the

mains supply before cleaning.

•Do not operate in areas where petrol, paint or other flammable liquids are used

or stored.

•Do not use this appliance in the immediate surrounds of a bath, a shower, or a

swimming pool or other liquids.

General Care and Safety Guide

•The appliance must not be immersed in any liquids.

•There are no user serviceable parts installed in the unit.

•Do not place the unit in wardrobes or other enclosed spaces as this may cause

fire hazards.

•This unit is not supposed to be used in or around locations where foodstuffs,

works of art or delicate articles of science, etc. are stored.

•If your appliance does not work, or is not working properly, contact the place of

purchase or the Customer Services Team.

General Care and Safety Guide

Heater x 1 Screw pack components

Drill bits x 2

(1 x 7mm for plasterboard or wooden walls,

1 x 8mm for masonry walls)

Mounting Plugs x 4

Screws x 4

Screw Caps x 4

Components

Wall Mounting & Position Instructions

Always choose a safe location for the heater, keeping in mind the safety precautions

outlined below. The heater needs to be mounted so that the power switch is in the top

right hand corner. Do not run the power cord behind the heater. This will determine where

you mount the heater in relation to where the power socket is located.

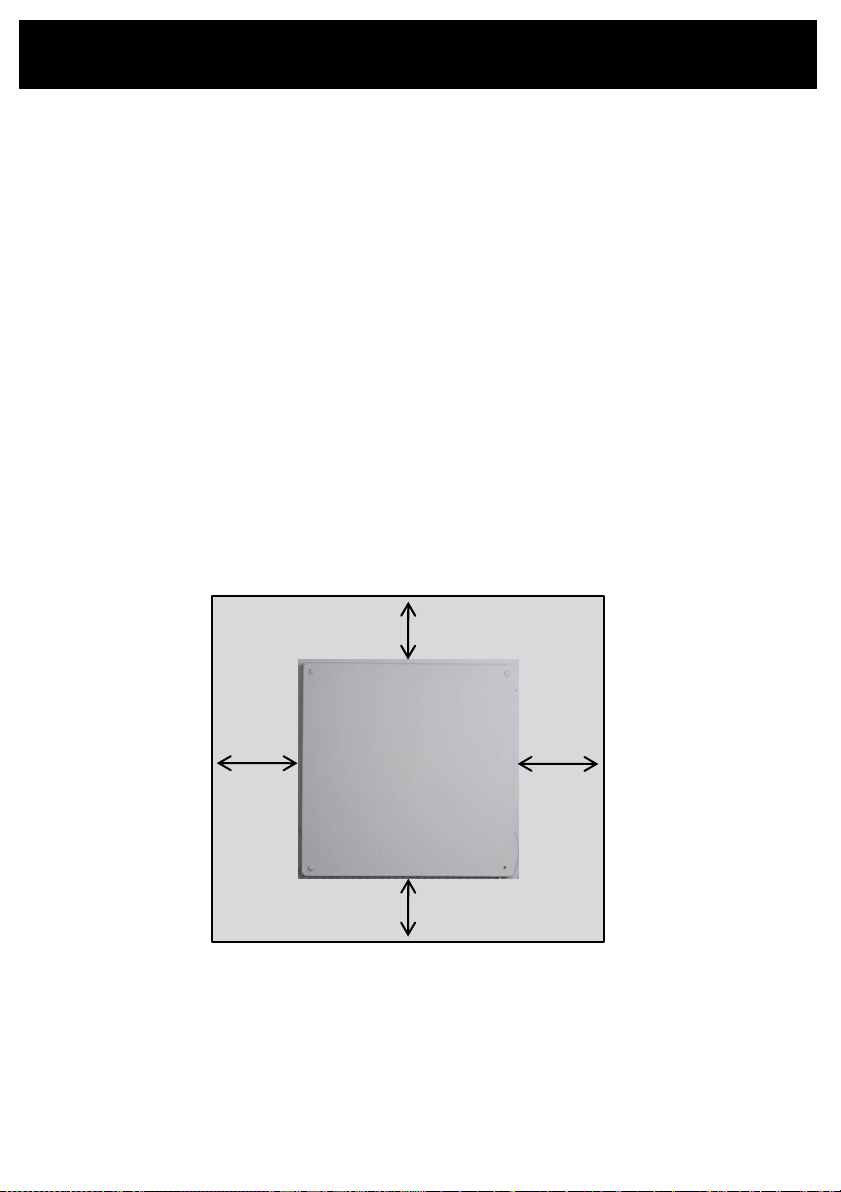

300mm

NOTE: Your Goldair EcoPanel Heater should be installed with at least 300mm

clearance from the floor and any other surrounding parts including other appliances,

side walls, ceilings, shelves and soft furnishings.

HEATER MUST NOT BE LOCATED IN FRONT OF A SOCKET OUTLET

DO NOT RUN THE POWER CORD BEHIND THE HEATER

WALL MOUNTED HEATERS ARE ONLY TO BE MOUNTED ON WALLS THAT COMPLY

WITH CURRENT AS/NZS SPECIFICATIONS & BUILDING REGULATIONS

MAKE SURE THE APPLIANCE IS UNPLUGGED AND POWER SWITCHES ARE OFF

Wall Mounting & Position Instructions cont.

The appliance must not be located immediately below a socket outlet.

The panel heater must be mounted on the wall with the power switch in the top right

hand position as shown below.

Note: Do not run power cord behind the heater.

THIS

WAY UP

Wall Mounting & Position Instructions cont.

1. Mark the positions of the four holes to be drilled on the wall. Ensure there

is a300mm clearance on all sides of the heater.

2. Drill holes with an appropriate drill bit for the wall surface you are

mounting the heater on to.

3. Insert the plastic wall plugs into the holes.

4. Install the panel heater onto the 4 wall plugs matching the 4 holes on the

heater.

5. Screw the 4 screws into the plastic wall plugs.

6. Put the caps onto the end of the screws. It is recommended to use some

normal glue to stick the caps onto the screw heads.

To remove the unit from the wall, simply remove the screw caps, unscrew the

screws and take the heater down.

NOTE: Your Panel Heater should be installed with at least 300mm

clearance from the floor and any other surrounding parts including

other appliances, side walls, ceilings, shelves and soft furnishings.

Operating Your Heater

Always choose a safe location for the heater, keeping in mind the safety

precautions outlined. Ensure all packaging has been removed from the unit

before use. Please follow the below instructions.

WARNING: In order to avoid overheating or fire, do not cover the heater.

WARNING: Keep all objects at least 1 metre from the front and 300mm

from the sides of the appliance.

WARNING: Do not use this heater with a programmer, separate timer,

remote-control system or any other device that switches the heater on

automatically, since a fire risk exists if the heater is covered or positioned

incorrectly.

WARNING:Never leave this heater unattended when in use.

WALL MOUNTED HEATERS ARE ONLY TO BE MOUNTED ON WALLS THAT

COMPLY WITH CURRENT AS/NZS SPECIFICATIONS & BUILDING REGULATIONS

Note: Do not run power cord behind the heater.

Once the heater is in a safe operating position and all switches are in the off

position, insert the power plug into the mains outlet and switch on.

CAUTION: Ensure the power cord is not tight because if pulled it may

partially pull the plug from the socket. A partially inserted plug will overheat

the plug and socket and could result in fire.

Operating Your Heater

Your Panel Heater will provide background warmth. This Panel Heater is designed to

take the chill off the room.

The surface of this Panel Heater can be painted with good quality paint (acrylic or

enamel).

Decorating tip: All wall mounted heaters may cause paint to discolour or

wallpaper to lift.

HEATER CONTROL

Use the On/Off switch on the top right hand side of the heater to turn your heater on

and off.

A.Power Switch

B.Control Panel

C.Screw Bolt Cap

D.Heater Body

E.Temperature Sensor

F.Digital Temperature Display

SETTING THE THERMOSTAT

IMPORTANT: The temperature sensor (E) needs to be pulled out approximately

35mm to better read the ambient temperature.

When you first turn the heater on, the digital display will default to number 06. Within

a few seconds it will switch to the number that is closest to the current ambient room

temperature.

The most effective way to set the temperature, is to press the ‘plus’ button until the

digital display reads 10. Within a few seconds the digital display will revert back to the

number that is closest to the current ambient room temperature. But the setting will

have been stored in the memory.

The heater will start to work and the digital display will start to increase from default

06 setting to 10 setting (max). Depending on other influences (open doors, size of

room, house insulation, outside temperature) this could take some time.

The temperature will continue to rise. When you are comfortable with the

temperature in your room, take note of the digital display reading (e.g. 07) and then

using the ‘minus’ button, reduce the thermostat to that number. The heater will now

cycle on and off to maintain the number you have set.

Note:If you turn the heater off the temperature will revert to the default (06) and you

may need to follow the process above again when you turn the heater back on.

SUPPORT AND TECHNICAL ADVICE

Goldair –New Zealand

Monday –Friday 8am-5pm

Phone +64 (0)9 917 4000

Phone 0800 232 633

[email protected]

Goldair –Australia

Monday –Friday 8am-5pm

Phone +61 (0)3 9365 5100

Phone 1300 465 324

[email protected]

Operating Your Heater

TECHNICAL SPECIFICATION

Model No: GFP213

Supply: 230-240VAC 50Hz

Wattage: 400-425W

SAFETY DEVICES

This appliance has two protection devices:

•Resettable Thermal Links - this will automatically disconnect the power to the

appliance at a pre-set overheat temperature. After cooling down it will reset and

power on again. If this occurs, investigate what is causing the appliance to

overheat.

•Thermal Fuse - this disconnects the appliance permanently in case of overheating.

(It is non resettable).

CAUTION: The appliance generates heat during use. Precautions must be

taken to prevent the risk of burns, scalds, fires or other damage to persons.

CARE AND CLEANING

•The heater requires regular cleaning to ensure trouble free operation:

•Unplug the heater from the mains supply before cleaning.

•Ensure that the heater has been allowed to cool down completely before cleaning.

•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and

dirt.

•Never use solutions such as petrol, thinners or polishing agents.

•Ensure the heater is dry before plugging back into the mains supply.

•Do not attempt to dismantle the heater.

•There are no user serviceable parts. For service or repair, contact an authorised

electrical service technician.

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase.

Tabla de contenidos

Otros manuales de Calentador de Goldair

Goldair

Goldair GFH220 Manual de usuario

Goldair

Goldair Select GSCH250R Manual de usuario

Goldair

Goldair PLATINUM GPPH770 Manual de usuario

Goldair

Goldair GGPH205 Manual de usuario

Goldair

Goldair GGPH224B Manual de usuario

Goldair

Goldair GCT325R Manual de usuario

Goldair

Goldair GFH350 Manual de usuario

Goldair

Goldair GCT250 Manual de usuario

Goldair

Goldair Platinum GPPH610 Instrucciones de instalación

Goldair

Goldair GSCV280 Manual de usuario

Goldair

Goldair GSCV18 Manual de usuario

Goldair

Goldair Platinum Series Manual de usuario

Goldair

Goldair FFH220 Manual de usuario

Goldair

Goldair GCT250 Manual de usuario

Goldair

Goldair GMH230 Manual de usuario

Goldair

Goldair PLATINUM GPCW100 Manual de usuario

Goldair

Goldair 3514TC Manual de usuario

Goldair

Goldair GCW300 Manual de usuario

Goldair

Goldair Platinum HeatSmart Series Manual de usuario

Goldair

Goldair GMH210 Manual de usuario

Goldair

Goldair Platinum GPPH620 Manual de usuario

Goldair

Goldair GCV290B Manual de usuario

Goldair

Goldair GSOC1118 Manual de usuario

Goldair

Goldair ecopanelGEPH203 Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
