Godox LR160 Manual de usuario
Instruction Manual | 说明手册Chinese English Bilingual | 中英文双语
705-LR1600-00
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423
邮箱/E-mail: [email protected]
http://www.godox.com
深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
Made In China
LED Ring Light
LED环形灯
LR160
- 05 - - 06 -
5、LCD显示
亮度显示：从10% - 100%。色温显示：从3300K到8000K。
电量显示(在电池供电的情况下)。
电池电量显示（电池供电） 意义/电量百分比
3格 100%
2格 75%
1格 50%
电池符 25%
电池符闪烁 电量用尽，1分钟后自动关机
七、产品参数
LED环形灯
锂电池供电
Dc电源供电
功率
色温
100%光照度(LUX)
调光范围
灯珠数量
工作环境温度
产品尺寸
净重
LR160
2*7.4V锂电池(NP-F970接口)(需另购)
16V/1.5A
约18W
3300K-8000K
小于400(1 米)
10%~100%
160个
-10~50度
49.2*59*4cm
1.21Kg
Foreword
Warning
Thank you for purchasing this Godox Product!
This LED Ring Light LR160 is a continuous light with black color or pink color. Suitable
for almost all shooting occasions, which can offer lighting for live, make up, portrait
shooting, video, wedding, children photography, etc.
Features:
● High light brightness which can be freely adjusted its color temperature from 3300K-
8000K
● Stepless light brightness adjustment from 10%-100%.
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be sent to
an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures of waterproof
in rainy or damp environment.
Do not use the light unit in the presence of flammable gases, chemicals and other
similar materials. In certain circumstance, these materials may be sensitive to the
strong light emitting from this light unit and fire or electromagnetic interference may
result.
As this product has built-in lithium battery, do not disassemble, impact, squeeze or
put it into fire. If serious bulge occurs, please do not use. Do not use or store the
product if the ambient temperature reads over 50℃. Please charge the product with
specialized charger and correctly operate it within the defined voltage and working
temperate according to the instruction manual.
Observe precautions when handling batteries the defined voltage and working
temperate according to the instruction manual.
- Do not put batteries into a fire or apply direct heat to them.
- Batteries are prone to leakage when fully discharged. To avoid damage to the
product, be sure to remove batteries when the product is not used for a long time or
when batteries run out of charge.
- Should liquid from the batteries come into contact with skin or clothing, rinse
immediately with fresh water.
- 08 -
主机
02
04
11
05
0603
08
07
09
10
12
01
Body
01. Main Body
02. Power Switch
03. Select Dial for Light Brightness
04. Select Dial for Color Temperature
05. LCD Panel
06. Lock Buttons of Lights
07. Lithium Battery Compartment
08. DC Power Jack
09. Mounting Bracket
10. Heat Dissipation Slot
11. Smartphone Holder/
Mirror Installation Slot
12. Mounting Hole for Camera
Bracket
Light Brightness
%
K
Battery Level Indicator
Color Temperature
LCD Panel
- 07 -
(1) (2) (4)(3)
Included Items
1. LED ring light 2. Mirror 3. Adapter 4.Smartphone holder
Note:
* When using lithium battery, the Battery Level Indicator is displayed on the LCD panel. When the
indicator blinks, the lithium battery power is low. Please recharge it or replace the battery
immediately before usage in order to avoid forceful auto off.
Power Management
1. Power Supply
Two power supply modes are available:
(1) Using lithium battery: install two SONY NP-F970 model lithium batteries
(purchased separately) in the battery compartment.
(2) Using DC power jack: This light can be powered by DC power supply. Use a
charger to connect the light with the DC power supply.
- 09 - - 10 -

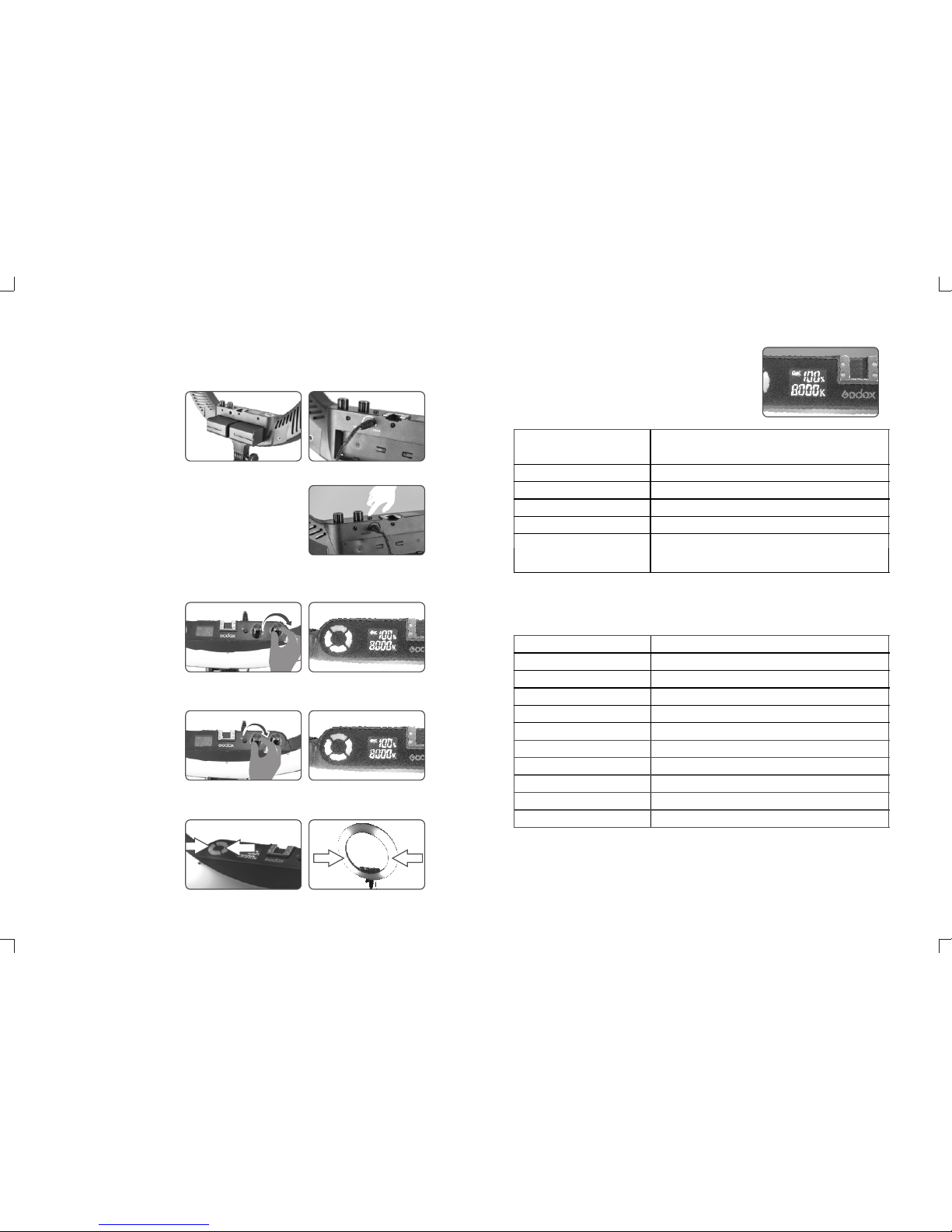

Operation
1. Before Usage
Insert the lithium batteries or connect the light with the DC power supply.
2. Power ON/OFF
Long press the power switch to power the LED ring light on or off.
3. Light Brightness/Color Temperature Adjustment
Adjusting Light Brightness
* Turn the Select Dial for Light Adjustment to adjust the light brightness from 10% to
100%.
Battery Level Indication
(using lithium batteries)
3 grids
2 grids
1 grid
Battery icon
Blinking
LED Ring Light
Lithium Battery
DC Power Supply
Power
Color Temperature
100% Brightness (LUX)
Light Brightness Range
LED Beads Quantity
Operation Temperature
Dimension
Net Weight
LR160
2*7.4V Lithium battery(NP-F970)(separately sold)
16V/1.5A
Approx. 18W
3300K-8000K
Below 400 (1 meter)
10%~100%
160
-10~50°C
49.2*59*4cm
1.21Kg
4. Lock Buttons of Lights
There are four lock buttons for the four lights of the LED ring light. When the ring light
is powered on, press the lock button, and the corresponding light will be lightened.
5. LED Display
Light Brightness: from 10% to 100%.
Color Temperature: from 3300K to 8000K.
Battery Level Indicator(using lithium batteries):
Meaning
100%
75%
50%
25%
The battery level is going to be used out immediately.
And the flash will auto power off in 1 minute.
Technical Data
Adjusting Color Temperature
*Turn the Select Dial for Color Temperature to adjust color temperature from 3300K
to 8000K.
- 11 - - 12 -
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
