INSTRUCTION MANUAL

LED

LED Video Light

Made in China



:2

:0755-29609320(8062):0755-25723423:godox@godox.com

godox.com

Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,

Shenzhen, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423

E-mail: [email protected]

GODOX Photo Equipment Co., Ltd.

705-LE1000-00





QCPASS

一、前言二、注意事项

感谢您购买神牛产品！

LED1000系列摄影灯灯珠数量多，光线均匀柔和，无热辐射，非常适用于影棚拍

摄、采访布光、静物拍摄以及视频拍摄等。此灯具有三种型号： LED1000W白光

版(5600K)、LED1000Y黄光版(3300K)、LED1000C变色版(3300K~5600K)配

备专用遥控器可无线分组调光无线调节亮度与色温功能丰富操作便捷。

产品具有以下特点：

请勿将摄影灯放置在高温、高湿的地方。

此机有温度保护功能，当温度过高时进入保护状态，当温度降低后恢复正常。

请勿用湿手接触产品，亦不可将产品浸入水中或暴露于雨中。

使用电池的注意事项：

● 切勿将电池投入火中或加热升温。

● 当电量用尽时，电池容易漏液。所以为了避免产品受损，请在长期不使用本产品

或电量用尽时取出电池。

● 如果受损电池中的液体接触到皮肤或衣服，请立即用大量清水冲洗。

1024颗优质灯珠亮度高，照幅广

白光版、黄光版、变色版三种型号可供选择

433MHz无线6组16频道分组控制

锂电池或DC供电，拍摄更省心

大液晶屏，参数自动保存

类型

白光版（色温5600K）

黄光版（色温3300K）

变色版（色温3300K~5600K）

型号

LED1000W

LED1000Y

LED1000C

三、部件

01. 1024粒灯珠

02. 色温片

03. 挡光板

04. ON/OFF开关

05 STOP/RUN按钮

06. 调节旋钮+SET按钮

07. CH/GRP按钮

08. DC电源插座

09. 锂电池插槽

10. 电源指示灯

11. LCD屏(蓝底白字)

12.旋钮A

13.旋钮B

14.旋钮C

15. 托架

16. 支架安装孔

17. 电源适配器

18. 电源线

17 18

电量符号

频道(16个) 组别(6个)

亮度

色温

LCD液晶显示屏

四、电源管理

1. 供电方式

LED1000摄影灯有2种供电方式

● 锂电池供电

请选择SONY 锂电池BP-L系列电池（需

自行购买），放置于锂电池插槽内。

注：

● 使用锂电池供电时，LCD显示当前剩余电量。当电量符号闪烁时，表示锂电池电量

极低。为了防止LED灯自动强行熄灭，请及时对锂电池充电后再使用。

● 直流电源供电

请选择13~16.8V电源适配器（标配），与

DC电源插座(08)连接。

040608

03 14

151112 130705

2、安装锂电

● 关闭电源开关(04)。

● 将锂电池带插孔端对准摄影灯锂电池

插槽正负极触点，并推进卡紧。

● 打开电源开关(04)即可。

● 使用完毕，请关闭电源开关(04)。

五、固定摄影灯

● 转动摄影灯的旋钮C(14)至最高点，

将灯架固定在支架安装孔(16)上。

● 扭紧旋钮C(16)。

六、操作说明

1、开始使用摄影灯(见图)

　 ● 插入锂电池或者DC电源。

　 ● 按ON/OFF开关，电源指示灯点亮，摄影灯

开始发光。

● 按STOP/RUN开关，控制摄影灯点亮和关闭。

　 ● LCD显示主机当前信息

2、亮度/色温调节

　亮度调节

　 ● 在常态时，旋转主机上的调节旋钮可对亮度进行调整；

　　不同色温对应不同亮度范围：

色温

3300K

5600K

3300K/5600K

3400K~5500K

亮度范围

10%~100%

25%~100%

型号

黄光版 LED1000Y

白光版 LED1000W

变色版 LED1000C

色温调节

● 在常态时，按旋钮上的SET按钮1次，此时色温值闪烁，旋转调节旋钮可对色温调整；

　色温显示范围：

白光版 LED1000W

5600K

黄光版 LED1000Y

3300K

变色版 LED1000C

3300K~5600K

注：恒温版无法调节色温，LCD显示3300K或者5600K。

3、无线远程控制(遥控器另购)

　本产品具备无线遥控功能，使用433MHz无线技术，无视角限制，距离远，可同时分别

控制6个LED灯。16组通道频率，抗干扰强。

　使用前请把LED主机和遥控器的频道与组别调至一致。

　主机频道/组别调整

　 ● 在常态时，按CH/GRP按钮，此时组别闪烁，旋转调节旋钮可选择组别(A~F)；

　 ● 在常态时，按CH/GRP按钮2次，此时频道闪烁，旋转调节旋钮可选择频道(1~16)；

　遥控器频道/组别调整

　 ● 在常态时，按CH/GRP按钮，此时组别闪烁，按 "-" "+" 按钮可选择组别(A~F)；

　 ● 在常态时，按CH/GRP按钮2次，此时频道闪烁，按 "-" "+" 按钮可选择频道(1~16)；

　遥控器亮度/色温参数调节

　 ● 在常态时，按 "-" "+" 按钮可对亮度调整；

　 ● 在常态时，按SET按钮1次，此时色温值闪烁，按 "-" "+" 按钮可对色温调整。

注：主机在开机状态下才可以接收无线信号。

其他操作说明

● 按遥控器的ON/OFF按键，可打开或者关闭所有组别的LED灯。

● 长按遥控器“SET”按钮2秒，可打开或者关闭当前组别的LED灯。

● 遥控器开机后4个小时无操作自动关机。

遥控器使用提示：

(1)使用白光版时，请把遥控器的色温值固定在5600K；

(2)使用黄光版时，请把遥控器的色温值固定在3300K；

(3)长时间不使用，请取出电池。

七、标配物品

包含物品

LED摄影灯

电源适配器

电源线

柔光片

黄色滤色片

蓝色滤色片

序号

LED1000W(5600K)

1个

1条

1个

LED1000C(3300K~5600K)

1个

1条

1个

无

LED1000Y(3300K)

1个

1条

1个

无

LED摄影灯

电源适配器

电源线

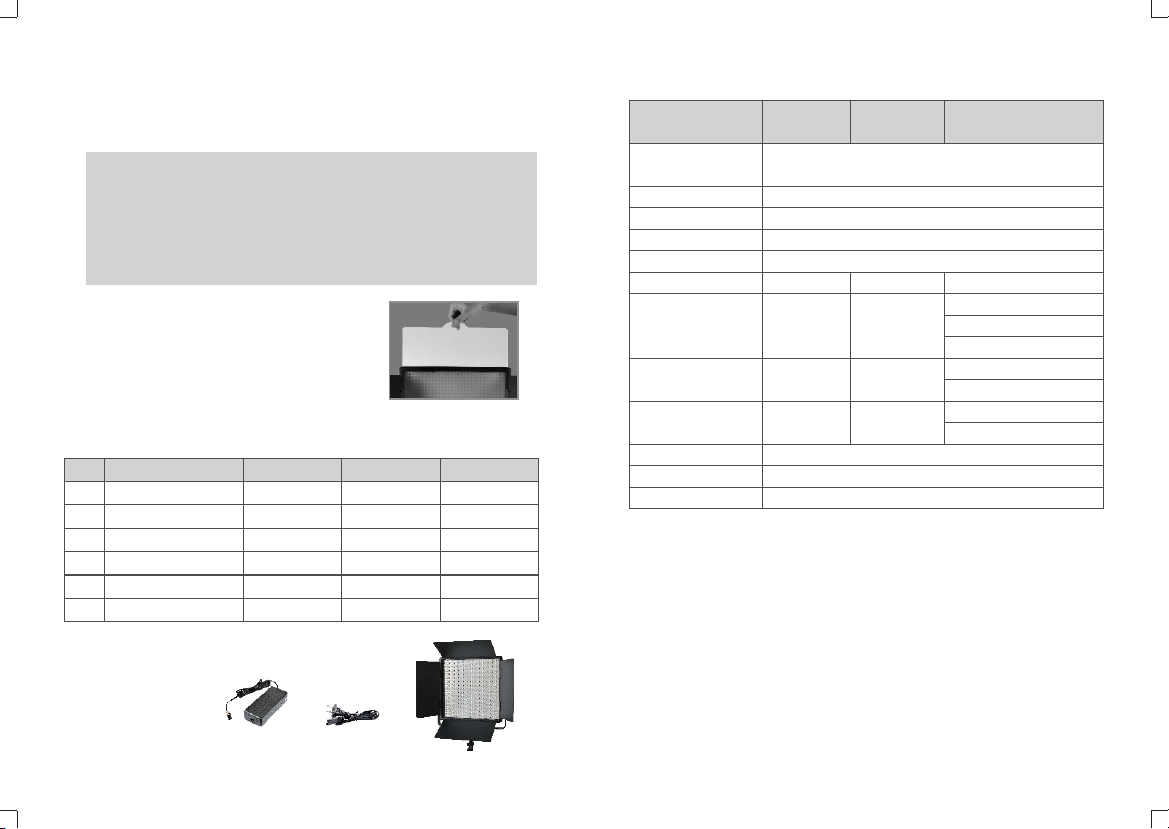

4、滤色片更换(见图)

　 ● 用手轻轻捏住色温片(02)向上拉出。

　 ● 将新色温片直接插入，向下推移，色温片

　　更换完毕。 LED灯

锂电池供电

DC电源供电

频道

组别

功率

色温

100%光照度

(LUX)

调光范围

灯珠数量

工作环境温度

产品尺寸

净重

白光版LED1000W

14.8V锂电池（BP-L接口）(需另购)

13~16.8V

16个

6组（A，B，C，D，E，F）

最大70W

5600K±300K

黄光版LED1000Y 变色版LED1000C

设计和规格如有变更，恕不另行通知。

八、产品参数

3300K±300K

4400(1米)

10%~100%

1024个

-10~50度

430*460*100mm

2.44kg

10%~100%

1024个

3300K~5600K ±300K

4400 (1米/4200K)

2200 (1米/3300K)

2200 (1米/5600K)

3300K/5600K :10%~100%

3400K~5500K :25%~100%

5600K512个

3300K512个

Foreword For your safety

Thank you for purchasing this Godox product!

This LED1000 video light is excellent for product shooting, photojournalistic and video

recording, etc. It provides a wide spectrum, beautifully soft and even illumination for

photography. Three models are available: LED1000W White Version (5600K),

LED1000Y Yellow Version (3300K), and LED1000C Changeable Version

(3300K~5600K).

Features:

● 1024-LED-bulbs panel is lithium-ion or DC powered

● Three versions to offer more choices

● Wirelessly adjust brightness or color temperature

● Wireless 433MHz grouping system (6 groups & 16 channels)

● Large-sized LCD panel. Settings auto saved.

Type

White Version(Color Temperature 5600K)

Yellow Version(Color Temperature 3300K)

Changeable Version(Color Temperature 3300K~5600K)

Model

LED1000W

LED1000Y

LED1000C

Do not place in high temperature or high humidity conditions.

If this product overheats, it will cease operation and resume working after cooling

down. This is due to the built-in overtemperature protection.

Do not handle with wet hands, immerse in water, or expose to rain.

Observe precautions when handling batteries:

● Do not mix new and used batteries or batteries of different types.

● Do not put batteries into a fire or apply direct heat to it.

● Batteries are prone to leakage when fully discharged. To avoid damage to the

product, be sure to remove batteries out when the product will not be used for a

long time or when batteries run out of charge.

● Should liquid from batteries come into contact with skin or clothing, rinse

immediately with fresh water.

Parts

01. 1024 LED Beads

02. Color Filters

03. Reflector

04. ON/OFF Power Switch

05. STOP/RUN Button

06. Select Dial + SET Button

07. CH/GRP Button

08. DC Power Jack

09. Lithium Battery

Compartment

10. Power Indicator

11. LCD Panel (White in Blue)

12. Knob A

13. Knob B

14. Knob C

15. Bracket

16. Bracket Mounting Hole

17. Power Adapter

18. Power Cord

17 18

Battery

Level Indicator

Channel (16)

Controllable

Group (6)

Light

Brightness

Color

Temperature

LCD Panel

040608

03 14

151112 130705

Power Management

1. Power Supply

Two power supply modes are available:

● Using lithium battery: This light uses

SONY BP-L model lithium battery

(purchased separately).

Note:

● When using lithium battery, the Battery Level Indicator is displayed on the LCD

panel. When the indicator blinks, the lithium battery power is low. Please recharge it

immediately before usage in order to avoid forceful auto off.

● Using DC power jack: This light can be

13~16.8V adapter (included) to

connect the light with the DC power

jack (08).

2. Installing Lithium Battery

● Turn the Power Switch (04) off.

● Target the socket of the lithium battery

towards the "+" "-" contacts of the Battery

Compartment (09). Push the battery in until

it locks.

● Power the light on.

● After using the light, please power it off.

Using the Video Light

● Screw the Knob C (14) to the highest

point and install the light stand onto the

Bracket Mounting Hole (16).

● Tighten the Knob C (14).

Operation

1. Before Usage

● Insert the lithium battery or connect the light

with the DC power supply.

● Switch the power on, the Power Indicator (10)

is on and the video light giving out light.

● Press the STOP/RUN Button to control the

video light on and off

● LCD panel shows the information.

2. Light Brightness/Color Temperature Adjustment

Adjusting Light Brightness

● Turn the select dial to adjust the light brightness.

The light brightness adjustable range changes at different color temperature with

different models.

Color Temperature

3300K

5600K

3300K/5600K

3400K~5500K

Model

LED1000Y

LED1000W

LED 1000C

White Version

LED1000W

5600K

Yellow Version

LED1000Y

3300K

Changeable Version

LED1000C

3300K~5600K

NOTE:Color temperature of LED1000W or LED1000Y is invariable.

The LCD panel only shows 5600K or 3300K.

3. Wireless Remote Control

With 433 MHz wireless system, this product has remote grouping and control function.

Up to 6 groups of LED light can be controlled. 16 channels are available with strong

anti-interference capability.

Please set the channels and groups of LED video light to the same as those of remote

control before usage.

Light Brightness Range

10%~100%

25%~100%

Adjusting Color Temperature

● Press the SET button once and the color temperature icon blinks.

Turn the select dial to adjust color temperature.

Color temperature range:

Adjusting Channel/Group of the LED Video Light

● Press the CH/GRP button and the group icon blinks. Turn the select dial to choose

a group ID (A to F).

● Press the CH/GRP button twice and the channel icon blinks. Turn the select dial to

choose a channel ID (1 to 16).

Adjusting Channel/Group of the Remote Control

● Press the CH/GRP button and the group icon blinks. Press the “+” “-” button to choose

a group ID (A to F).

● Press the CH/GRP button twice and the channel icon blinks. Press the “+” “-” button to

choose a channel ID (1 to 16).

Adjusting Light Brightness/Color Temperature with the Remote Control

● Press the“+””-“button to adjust the light brightness.

● Press the SET button of the remote control once and the color temperature icon blinks.

Press the “+” “-” button to adjust the color temperature.

Note: The wireless signal can be received only when the LED light is power on.

Remote control purchased separately.

Other Operation Tips:

● Pressing the ON/OFF button on the remote control can turn on/off all the LED groups.

● Pressing the “SET” button on the remote control for 2 seconds can turn on/off the

current LED group.

● The remote control will auto power off after four hours of idle operation.

Tips of Using Remote Control:

(1)When using the White Version LED1000W, please set the color temperature of

the remote control as 5600K constantly;

(2)When using the Yellow Version LED1000Y, please set the color temperature of

the remote control as 3300K constantly;

(3)Please remove the battery if the light will not be used for an extended period

of time.of time.

4. Replacing A Color Filter

● Pinch the edge of the color filter (02) and pull it

out upwardly.

● Insert a new color filter in and push it downwardly.

Then the color filter is securely in position.

What’s in the Box of LED1000?

Included Item

LED Video Light

Power Adapter

Power Cord

Diffusion Filter

Yellow Filter

Blue Filter

NO.

LED1000W

1 PC

LED 1000C

1 PC

LED1000Y

1 PC

LED Video LightPower Adapter Power Cord

* Product design and specifications are subject to change without notice.

Technical Data

LED1000

Video Light

Lithium Battery

DC Power Supply

Channel

Group

Power

Color Temperature

Brightness(LUX)

Light Brightness

Range

LED Beads Quantity

Operation Temperature

Dimension

Net Weight

White Version

LED1000W

14.8V Lithium Battery(SONY BP-L model lithium battery)

(sold separately)

13~16.8V

6 groups(A,B,C,D,E,F)

Max. 70W

5600K±300K

4400(1m)

10%~100%

1024

-10~50 °C

430*460*100mm

2.44kg

Changeable Version

LED1000C

3300K~5600K ±300K

4400 (1m/4200K)

2200 (1m/3300K)

2200 (1m/5600K)

3300K/5600K :10%~100%

3400K~5500K :25%~100%

5600K512

3300K512

Yellow Version

LED1000Y

3300K±300K

4400(1m)

10%~100%

1024

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

























































()







 0755-29609320-8062







  



  



















()

()







Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de iluminación de Godox

Godox

Godox LDX50 Bi Manual de usuario

Godox

Godox LED500W Manual de usuario

Godox

Godox AD300Pro Manual de usuario

Godox

Godox LR180 Manual de usuario

Godox

Godox VL150 Manual de usuario

Godox

Godox LED 36 Manual de usuario

Godox

Godox LDX100 Bi Manual de usuario

Godox

Godox TL-5 Manual de usuario

Godox

Godox TL30 Manual de usuario

Godox

Godox LED500 Manual de usuario

Godox

Godox UL150II Manual de usuario

Godox

Godox MG2400Bi Manual de usuario

Godox

Godox LEDP120C Manual de usuario

Godox

Godox ML-150 II Manual de usuario

Godox

Godox 2ABYN004 Manual de usuario

Godox

Godox VL150 Manual de usuario

Godox

Godox WITSTRO+ AR400 Manual de usuario

Godox

Godox ML60Bi Manual de usuario

Godox

Godox LED1000D II Manual de usuario

Godox

Godox DS300II Manual de usuario

Godox

Godox SZ150R Manual de usuario

Godox

Godox LR160 Manual de usuario

Godox

Godox S30 Manual de usuario

Godox

Godox TL30 Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
