Foreword
Warning
Thank you for purchasing this Godox Product!
This Bi-color LED Video Light ML60Bi is a light that is easy to fill. It has high
brightness, wireless adjustable, and color temperature adjustable functions.
Suitable for almost all shooting occasions e.g. live, camping, make up, portrait
shooting, make up, video, wedding, children photography, etc. It’s portable and easy
to be operated.
Features:
● Freely switch LED bi-color mode and 21 Light effects modes
● 0% to 100% Precisely adjust light brightness
● 16 Groups and 32 channels wireless remote control
● Switch silent mode to light without interference
● Compact and lightweight, easy to be held in hand
● Freely adjust color temperature
● Combined control by smartphone APP/2.4G wireless
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be
sent to an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures of
waterproof in rainy or damp environment.
Do not use the flash unit in the presence of flammable gases, chemicals and
other similar materials. In certain circumstance, these materials may be
sensitive to the strong light emitting from this flash unit and fire or
electromagnetic interference may result.
Parts
01. Body
02. Power Switch
03. DC Power Socket
04. Control Panel
05. CCT/SET Select Dial
06. DIM Select Dial
07. Display
08. Thermovent
09. Fixing Socket for Handle
10. Accessory Locking Ring
11. LED Light Beads
12. Radiator
- 13 - - 14 -
6500K
6500K
6500K
Foreword
Warning
Thank you for purchasing this Godox Product!
This Bi-color LED Video Light ML60Bi is a light that is easy to fill. It has high
brightness, wireless adjustable, and color temperature adjustable functions.
Suitable for almost all shooting occasions e.g. live, camping, make up, portrait
shooting, make up, video, wedding, children photography, etc. It’s portable and easy
to be operated.
Features:
● Freely switch LED bi-color mode and 21 Light effects modes
● 0% to 100% Precisely adjust light brightness
● 16 Groups and 32 channels wireless remote control
● Switch silent mode to light without interference
● Compact and lightweight, easy to be held in hand
● Freely adjust color temperature
● Combined control by smartphone APP/2.4G wireless
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be
sent to an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures of
waterproof in rainy or damp environment.
Do not use the flash unit in the presence of flammable gases, chemicals and
other similar materials. In certain circumstance, these materials may be
sensitive to the strong light emitting from this flash unit and fire or
electromagnetic interference may result.
Parts
01. Body
02. Power Switch
03. DC Power Socket
04. Control Panel
05. CCT/SET Select Dial
06. DIM Select Dial
07. Display
08. Thermovent
09. Fixing Socket for Handle
10. Accessory Locking Ring
11. LED Light Beads
12. Radiator
- 13 - - 14 -
6500K
6500K
Light Body ML60Bi
*1
Handle *1 Battery Case
BC60 *1
Adapter *1
Reflector *1 Protect Cover *1 5m AC Power Cable
*1
1.5m DC Power Cable
*1
0.2m DC Power Cable *1 Portable Bag *1 Instruction Manual *1
● Handle
13. Handle Bracket
14. Direction Adjusting Ring
15. Fixing Screw for Light Head
16. Fixing Screw for Light Stand
17. Fixing Buckle for Battery Case
● Battery Case
18. Clip
19. Fixing Hole for Battery Case
20. Locking Ring for Battery Case
21. Battery Compartment 1 and 2
22. Battery Level Display Button/
Battery Locking Ring
23. Battery Level Indicator
24. Battery Case Leg
25. Battery Power Output Port
Power Management
1. Power Supply
Adapter power supply: input: 100-240V~50/60Hz 2A, output: 16.8V 4.2A.
External battery power supply: install two NP-F970 batteries into the battery
compartment. Then, use DC power line to connect the battery case with the light
body to achieve power supply.
The battery case can only offer battery discharging instead of charging. When powered
by battery box, two batteries shall be used simultaneously. Please do not use one
battery individually.
What's in the Box
Adapter Holder *1
RC-A6 remote control
Optional Accessory
- 15 - - 16 -
Light Body ML60Bi
*1
Handle *1 Battery Case
BC60 *1
Adapter *1
Reflector *1 Protect Cover *1 5m AC Power Cable
*1
1.5m DC Power Cable
*1
0.2m DC Power Cable *1 Portable Bag *1 Instruction Manual *1
● Handle
13. Handle Bracket
14. Direction Adjusting Ring
15. Fixing Screw for Light Head
16. Fixing Screw for Light Stand
17. Fixing Buckle for Battery Case
● Battery Case
18. Clip
19. Fixing Hole for Battery Case
20. Locking Ring for Battery Case
21. Battery Compartment 1 and 2
22. Battery Level Display Button/
Battery Locking Ring
23. Battery Level Indicator
24. Battery Case Leg
25. Battery Power Output Port
Power Management
1. Power Supply
Adapter power supply: input: 100-240V~50/60Hz 2A, output: 16.8V 4.2A.
External battery power supply: install two NP-F970 batteries into the battery
compartment. Then, use DC power line to connect the battery case with the light
body to achieve power supply.
The battery case can only offer battery discharging instead of charging. When powered
by battery box, two batteries shall be used simultaneously. Please do not use one
battery individually.
What's in the Box
Adapter Holder *1
RC-A6 remote control
Optional Accessory
- 15 - - 16 -
Operation
1. Power On
Press the power switch to control the on/off of the light, and the OLED display will
show the current information.
3. 2.4G Wireless setting
ML60Bi has 2.4G wireless receiving function, and the remote control RC-A6 can
be purchased separately for wireless remote control. Using 2.4G wireless
technology function, it can control 16 Groups, 32 channels, and 99 wireless IDs at
the same time, with strong anti-interference.
Note: Before use, please set the channel (CH), group (GR) and ID of the remote control
and the LED light to be the same. The LED light can only receive wireless signals when
it is turned on.
Turn on/off 2.4G wireless: press CCT/SET button to enter the menu. Turn the
CCT/SET select dial until the wireless icon is displayed. Then, turn the DIM select
dial to turn on or off 2.4G wireless.
Channel CH Setting: press CCT/SET button to enter the menu. Turn the
CCT/SET select dial until the CH is displayed. Then, turn the DIM select dial to
choose channel from 1 to 32.
Group GR Setting: press CCT/SET button to enter the menu. Turn the CCT/SET
select dial until the GR is displayed. Then, turn the DIM select dial to choose
group from A to E and 0 to 9.
ID setting: press CCT/SET button to enter the menu. Turn the CCT/SET select
dial until the ID is displayed. Then, turn the DIM select dial to choose 99 IDs from
1 to 99.
Special Effects Situation Display
Fx1
FX2
FX3
FX4
FX5
FX6
FX7
Flash
Discontinuous
Discontinuous
Slow speed
Intermittently
Wood fire
Short
Press conference
Frequent
Frequent
Medium speed
Frequent
Bonfire
Continuous
Paparazzi
Continuous
Continuous
Quick speed
Continuous
Fire
Performance
Display IIIDisplay II
Flash
lightning
Broken bulb
TV
Candle
Fire
Fireworks
2.2 Light effect mode:There are seven types and 21 kinds of light effect modes.
Color temperature mode: the main interface is the color temperature mode
2.1.1 Color temperature adjustment: Rotate the CCT/SET knob on the main
interface to adjust the color temperature (2800~6500K). Normally rotate 100 unit
values, and quickly rotate 500 unit values.
2.1.2 Brightness Adjustment: Select the DIM dial to adjust brightness from
0% to 100%.
Display
Tip: Rotate DIM dial to select light efficiency type, and then press DIM dial to realize
speed switching.
- 17 - - 18 -
2. Mode Selection: Bi-color mode/FX Special Effects Mode
6500K
Operation
1. Power On
Press the power switch to control the on/off of the light, and the OLED display will
show the current information.
3. 2.4G Wireless setting
ML60Bi has 2.4G wireless receiving function, and the remote control RC-A6 can
be purchased separately for wireless remote control. Using 2.4G wireless
technology function, it can control 16 Groups, 32 channels, and 99 wireless IDs at
the same time, with strong anti-interference.
Note: Before use, please set the channel (CH), group (GR) and ID of the remote control
and the LED light to be the same. The LED light can only receive wireless signals when
it is turned on.
Turn on/off 2.4G wireless: press CCT/SET button to enter the menu. Turn the
CCT/SET select dial until the wireless icon is displayed. Then, turn the DIM select
dial to turn on or off 2.4G wireless.
Channel CH Setting: press CCT/SET button to enter the menu. Turn the
CCT/SET select dial until the CH is displayed. Then, turn the DIM select dial to
choose channel from 1 to 32.
Group GR Setting: press CCT/SET button to enter the menu. Turn the CCT/SET
select dial until the GR is displayed. Then, turn the DIM select dial to choose
group from A to E and 0 to 9.
ID setting: press CCT/SET button to enter the menu. Turn the CCT/SET select
dial until the ID is displayed. Then, turn the DIM select dial to choose 99 IDs from
1 to 99.
Special Effects Situation Display
Fx1
FX2
FX3
FX4
FX5
FX6
FX7
Flash
Discontinuous
Discontinuous
Slow speed
Intermittently
Wood fire
Short
Press conference
Frequent
Frequent
Medium speed
Frequent
Bonfire
Continuous
Paparazzi
Continuous
Continuous
Quick speed
Continuous
Fire
Performance
Display IIIDisplay II
Flash
lightning
Broken bulb
TV
Candle
Fire
Fireworks
2.2 Light effect mode:There are seven types and 21 kinds of light effect modes.
Color temperature mode: the main interface is the color temperature mode
2.1.1 Color temperature adjustment: Rotate the CCT/SET knob on the main
interface to adjust the color temperature (2800~6500K). Normally rotate 100 unit
values, and quickly rotate 500 unit values.
2.1.2 Brightness Adjustment: Select the DIM dial to adjust brightness from
0% to 100%.
Display
Tip: Rotate DIM dial to select light efficiency type, and then press DIM dial to realize
speed switching.
- 17 - - 18 -
2. Mode Selection: Bi-color mode/FX Special Effects Mode
6500K

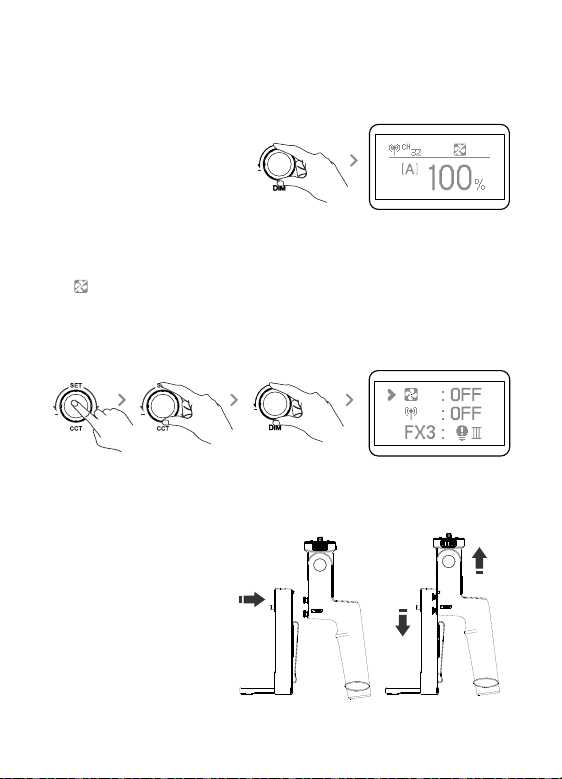

4. Brightness adjustment: Rotate DIM to adjust brightness, normally
rotate 1 unit value, and quickly rotate 10 unit value.
5. Silent mode:
When is displayed, the silent mode is turned on.
Turn on the silent mode: press CCT/SET button to enter the menu. Then, screw
the DIM select dial to turn on or off the fan. Set it to on to enter non-silent mode
while set it to off to enter silent mode. In silent mode, the brightness adjustment
range is from 0% to 50%.
6.2 Detach battery case: push the battery case’
locking ring and push the battery case upwards
to take it out.
6. Install and detach battery case
6.1 Install battery case: Aim the handle’s
fixing buckles into the battery case’s fixing
holes, pull the batter case downwards until
being tightened.
6.3 Connect the battery case with light head:
Insert one end of the power cord into the battery
box and the other end into the DC socket of the
lamp cap.
6.4 Insert two FP970 batteries, and the LED light
can be put into usage.
Note: Press the DIM select dial to
turn off brightness, and then press
dim to restore the brightness of the
last time it was turned off.
- 19 - - 20 -
6500K
6500K
4. Brightness adjustment: Rotate DIM to adjust brightness, normally
rotate 1 unit value, and quickly rotate 10 unit value.
5. Silent mode:
When is displayed, the silent mode is turned on.
Turn on the silent mode: press CCT/SET button to enter the menu. Then, screw
the DIM select dial to turn on or off the fan. Set it to on to enter non-silent mode
while set it to off to enter silent mode. In silent mode, the brightness adjustment
range is from 0% to 50%.
6.2 Detach battery case: push the battery case’
locking ring and push the battery case upwards
to take it out.
6. Install and detach battery case
6.1 Install battery case: Aim the handle’s
fixing buckles into the battery case’s fixing
holes, pull the batter case downwards until
being tightened.
6.3 Connect the battery case with light head:
Insert one end of the power cord into the battery
box and the other end into the DC socket of the
lamp cap.
6.4 Insert two FP970 batteries, and the LED light
can be put into usage.
Note: Press the DIM select dial to
turn off brightness, and then press
dim to restore the brightness of the
last time it was turned off.
- 19 - - 20 -
6500K
6500K
7. Low Battery Indication
When the battery is below one grid, the low battery
indicator will pop out.
8. Locking Function
In power on state, long press the CCT/SET button
for 2 seconds and the locking icon will appear on the
display. Long press the button for 2 seconds again to
unlock.
10. Bluetooth Control
10.1 Press the CCT/SET button to enter the menu,
turn the CCT/SET knob to the Bluetooth symbol ,
turn the DIM knob (OFF/Bluetooth MAC code/Reset
cycle selection), select OFF when the Bluetooth is
turned off; When the Bluetooth MAC code (For
example: CE8C) is selected, Bluetooth is turned on
and the Bluetooth symbol appears on the main
interface; select Reset and then press the DIM button
to perform the Bluetooth reset function.
Note: The first mobile device (mobile phone or tablet) can
directly use the APP to control the light body. When
replacing other mobile devices (mobile phones or tablets),
the lamp body can be connected normally after Bluetooth
reset.
10.2 Scan the QR code to download the "Godox Light"
mobile app. (It can be used on both Android
and Apple systems) (QR code diagram) . For specific
operations, please refer to the "Help" manual of the
mobile APP, which contains detailed tutorials.
6500K
CE8C
Note: The locking function only locks the control panel function,
the 2.4G wireless remote control and Bluetooth control are not affected.
9. High Temperature Alarm Function
9.1 When the LED Light bead temperature is too high, the display screen will
display the high temperature alarm symbol .
9.2 When the LED Light temperature returns to normal, the lamp will automatically
release the alarm. At this time, the DIM dial can be rotated to change the
brightness.
9.3 When the temperature sensor failure symbol appears on the display, it
means that the high temperature alarm function of the machine has failed.
- 21 - - 22 -
Errl
Otros manuales para ML60Bi
1
Tabla de contenidos
Otros manuales de Equipo de iluminación de Godox
Godox
Godox LED500W Manual de usuario
Godox
Godox AD200 Pro Manual de usuario
Godox
Godox Knowled M600D Manual de usuario
Godox
Godox TL-5 Manual de usuario
Godox
Godox Knowled MG1200BI Manual de usuario
Godox
Godox LC500R Manual de usuario
Godox
Godox M1 Manual de usuario
Godox
Godox FL150S Manual de usuario
Godox
Godox SL150IIBi Manual de usuario
Godox
Godox WITSTRO+ AR400 Manual de usuario
Godox
Godox LED1000 Manual de usuario
Godox
Godox SZ150R Manual de usuario
Godox
Godox SL150II Manual de usuario
Godox
Godox LED1000D II Manual de usuario
Godox
Godox LED 36 Manual de usuario
Godox
Godox TL60 Manual de usuario
Godox
Godox LEDM150 Manual de usuario
Godox
Godox AD300Pro Manual de usuario
Godox
Godox SZ200 Bi Manual de usuario
Godox
Godox ML60Bi Manual de usuario
Manuales populares de Equipo de iluminación de otras marcas
Qazqa
Qazqa Suplux SL 3 Black 103062 Manual de usuario
Commercial Electric
Commercial Electric 54568141 Manual de usuario
CREE LIGHTING
CREE LIGHTING 304 Series Manual de usuario
Goobay
Goobay 49867 Manual de usuario
ECOMAN ITALIA
ECOMAN ITALIA LED T8 Manual de usuario
Alkalite
Alkalite Krypton KT-81 Manual de usuario
