Godex EZ-1100Plus Manual de usuario

User’sManual

EZ-1000Plus

P/N. 920-012411-03

Rev. A, 08.2009

FCC COMPLIANCE STATEMENT

FOR AMERICAN USERS

This equipment has been tested and found to comply with the limits for a CLASS A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at own expense.

EMS AND EMI COMPLIANCE STATEMENT

FOR EUROPEAN USERS

This equipment has been tested and passed with the requirements relating to electromagnetic

compatibility based on the standards EN 55022:1998+A1:2000+A2:2003, CISPR 22 , Class A

EN 55024:1998+A1:2001+A2:2003, IEC 61000- 4 Series EN 61000-3-2 / 2000 & EN 61000-3-3 /

1995. The equipment also tested and passed in accordance with the European Standard

EN55022 for the both Radiated and Conducted emissions limits.

EZ PLUS SERIES

TO WHICH THIS DECLARATION RELATES

IS IN CONFORMITY WITH THE FOLLOWING STANDARDS

EN55022 : 1998,CLSPR 22, Class A / EN55024 : 1998IEC 61000-4 Serial / EN61000-3-2 : 2000

/ EN 6100-3-3 : 1995 / CFR 47, Part 15/CISPR 22 3rd Edition : 1997, Class A / ANSI C63.4 :

2001 / CNS 13438 / IEC60950-1 : 2001 / GB4943 : 2001 / GB9254 : 1998 / GB17625.1 : 2003

/EN60950-1 : 2001

CAUTION

Danger of explosion if battery is incorrectly replaced

Replace only with the equivalent type recommended by the manufacture.

Dispose of used batteries according to the manufacturer’s instructions.

Specifications are subject to change without notice.

EZ-1000Plus User’s Manual

Safety Instructions

Bitte die Sicherheitshinweise sorgfältig lesen und für später aufheben.

1. Die Geräte nicht der Feuchtigkeit aussetzen.

2. Bevor Sie die Geräte ans Stromnetz anschließen, vergewissern Sie Sich, dass die

Spannung des Geräts mit der Netzspannung übereinstimmt.

3. Nehmen Sie das Gerät bei Überspannungen (Gewitter) vom Netz. Das Gerät könnte

sonst Schaden nehmen.

4. Sollte versehentlich Flüssigkeit in das Gerät gelangen, so ziehen sofort den

Netzstecker. Anderenfalls besteht die Gefahr eines lebensgefährlichen elektrischen

Schlags.

5. Wartungs- und Reparaturarbeiten dürfen aus Sicherheitsgründen nur von

autorisierten Personen durchgeführt werden.

6. Bei Wartungs- und Reparaturarbeiten müssen die Sicherheitsvorschriften der

zuständigen Berufsverbände und Behörden unbedingt eingehalten werden.

7. Bei Verletzungen unbedingt den Arzt aufsuchen und die gegebenenfalls die

zuständigen Stellen benachrichtigen. Unterlassung kann zum Verlust der

Versicherungsleistungen führen.

EZ-1000Plus User’s Manual

Safety Instructions

Please read the following instructions seriously.

1. Keep the equipment away from humidity.

2. Before you connect the equipment to the power outlet, please check the voltage of the

power source.

3. Disconnect the equipment from the voltage of the power source to prevent possible

transient over voltage damage.

4. Don’t pour any liquid to the equipment to avoid electrical shock.

5. ONLY qualified service personnel for safety reason should open equipment.

6. Don’t repair or adjust energized equipment alone under any circumstances. Someone

capable of providing first aid must always be present for your safety

7. Always obtain first aid or medical attention immediately after an injury. Never neglect

an injury, no matter how slight it seems.

EZ-1000Plus User’s Manual

1. BARCODE PRINTER................................................................... 5

1-1. Printer Accessories.........................................................................................................5

1-2. General Specifications....................................................................................................5

1-3. Communication Interface................................................................................................7

1-4. Printer Parts....................................................................................................................9

2. PRINTER INSTALLATION......................................................... 11

2-1. Ribbon Installation ........................................................................................................11

2-2. Label Installation...........................................................................................................13

2-3. Label Roll Core Installation Instruction.........................................................................14

2-4. Card / Hang tags Installation ........................................................................................15

2-5. PC Connection..............................................................................................................15

2-6. Driver Installation..........................................................................................................16

3. ACCESSORY............................................................................. 18

3-1. Stripper Module Installation..........................................................................................18

3-2. Cutter Module Installation.............................................................................................21

3-3. Ethernet Module Installation.........................................................................................23

3-4. WLAN Module Installation.............................................................................................25

3-5. CF Card Adapter Installation.........................................................................................28

3-6. CF Card Instruction.......................................................................................................29

4. PRINTER SETTING ................................................................... 30

4-1. FEED Key.....................................................................................................................30

4-2. LED Status....................................................................................................................30

4-3. Auto Sensing.................................................................................................................30

4-5. Error Messages.............................................................................................................32

5. MAINTENANCE AND ADJUSTMENT....................................... 33

5-1. Thermal Print Head Cleaning .......................................................................................33

5-2. Thermal Print Head Balance Adjustment......................................................................33

5-3. Print Line Adjustment....................................................................................................34

5-4. Adjust the cutter............................................................................................................34

5-5. Troubleshooting............................................................................................................35

APPENDIX ..................................................................................... 36

Certifications.........................................................................................................................36

EZ-1000Plus User’s Manual

1. Barcode Printer

1-1. Printer Accessories

After unpacking, please check the accessories that come with the package, and store

appropriately.

Barcode printer

Power cord

Switching Power

USB Cable

Label

Ribbon

Empty Ribbon Roll

Quick Start Guide

CD (includes label editing software QLabel / Manual)

1-2. General Specifications

Model EZ-1100Plus EZ-1200Plus EZ-1300Plus

Print Method Thermal Transfer / Direct Thermal

Resolution 203 dpi (8 dot/mm) 300 dpi (12 dot/mm)

Print Speed 4 IPS (100 mm/s) 6 IPS (150 mm/s) 4 IPS (100 mm/s)

Print Width 4.25” (108 mm) 4.16” (105.7 mm)

Print Length Min. 0.39” (10 mm);

Max. 68” (1727 mm) Min. 0.39” (10 mm);

Max. 30” (762 mm)

Memory 4MB Flash (2MB for user storage) ; 8MB SDRAM

Sensor Type Adjustable reflective sensor. Fixed transmissive sensor, central aligned

Media

Types: Continuous form, gap labels, black mark sensing, and punched hole;

label length set by auto sensing or programming

Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max.

Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max.

Label roll diameter: Max. 5” (127 mm)

Core diameter: 1”, 1.5”, 3” (25.4 mm, 38.1 mm, 76.2 mm)

Ribbon

Types: Wax, wax/resin, resin

Length: 981’ (300 m)

Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max

Ribbon roll diameter.: 2.67“ (68 mm)

Core diameter: 1” (25.4 mm)

Printer Language EZPL, GEPL (Godex Eltron® Printer Language)

Software Label design software: QLabel-IV (for EZPL only)

Driver & DLL: Windows 2000, XP and Vista

Resident Fonts

Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B

Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270°

rotatable

Bitmap fonts 8 times expandable in horizontal and vertical directions

Scalable fonts 90°, 180°, 270° rotatable

Download Fonts

Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270°

rotatable

sian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and

vertical directions

Scalable fonts 90°, 180°, 270° rotatable

EZ-1000Plus User’s Manual

1-D Bar codes:

Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart,

UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer

Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC,

MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128

and GS1 DataBar

Barcodes

2-D Bar codes:

PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code

Code Pages

CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869,

737

WINDOWS 1250, 1251, 1252, 1253, 1254, 1255

Unicode (UTF8, UTF16)

Graphics Resident graphic file types are BMP and PCX, other graphic formats are

downloadable from the software

Interfaces Serial port: RS-232 (DB-9)

USB port (default on)

Parallel port: Centronics 36-pin

Control Panel Two bi-color status-LEDs: Ready, Status

Control key: FEED

Power Auto Switching 100-240VAC, 50-60Hz

Environment Operation temperature: 41°F to 104°F (5°C to 40°C)

Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity Operation: 30-85%, non-condensing.

Storage: 10-90%, non-condensing.

Agency

Approvals CE(EMC), FCC Class A, CB, cUL, CCC

Dimension Length: 11.2” (285 mm)

Height: 6.8” (171 mm)

Width: 8.9” (226 mm)

Weight 6 lbs (2.72Kg) ,excluding consumables

Options

Rotary Cutter

Label Stripper

External label roll holder for 10” (250 mm) O.D. label rolls

External label rewinder

CF card adapter with real time clock (max. 1GB CF card)

Ethernet 10/100Mbps print server (default off; disables USB when in use)

802.11 b/g wireless print server (default off; disables USB when in use)

Specifications are subject to change without notice. All company and/or product names are

trademarks and/or registered trademarks of their respective owners.

EZ-1000Plus User’s Manual

1-3. Communication Interface

Parallel Interface

Handshake : DSTB connects to the printer, BUSY connects to the host

Interface cable : Parallel cable compatible to IBM PC

Pin out : See below

PIN NO. FUNCTION TRANSMITTER

2-9

19-30

34-35

/Strobe

Data 0-7

/Acknowledge

Busy

/Paper empty

/Select

/Auto-Linefeed

N/C

Signal Gnd

Chasis Gnd

+5V,max 500mA

Signal Gnd

/Initialize

/Error

Signal Ground

N/C

/Select-in

host / printer

host

printer

host / printer

host

host / printer

printer

host / printer

Serial Interface

Serial Default

Setting : 9600 baud rate､no parity､8 data bits､1 stop bit､XON/XOFF protocol and

RTS/CTS。

RS232 HOUSING (9-pin to 9-pin)

DB9 SOCKET DB9 PLUG

--- 1 1 +5V,max 500mA

RXD 2 2 TXD

TXD 3 3 RXD

DTR 4 4 N/C

GND 5 5 GND

DSR 6 6 RTS

RTS 7 7 CTS

CTS 8 8 RTS

RI 9 9 N/C

PC PRINTER

【

Note

】

The total current output from parallel port and serial port altogether can not exceed

500mA.

USB Interface

Connector Type : Type B

PIN NO. 1 2 3 4

FUNCTION VBUS D- D+ GND

EZ-1000Plus User’s Manual

Internal Interface

UART1 wafer Ethernet module

N.C 1 1N.C

TXD 2 2RXD

RXD 3 3TXD

CTS 4 4RTS

GND 5 5GND

RTS 6 6CTS

E_MD 7 7E_MD

RTS 8 8CTS

E_RST 99 E_RST

+5V 10 10 +5V

GND 11 11 GND

+5V 12 12 +5V

UART2 wafer Expansion module

+5V 1 1+5V

CTS 2 2RTS

TXD 3 3RXD

RTS 4 4CTS

RXD 5 5TXD

GND 6 6GND

EZ-1000Plus User’s Manual

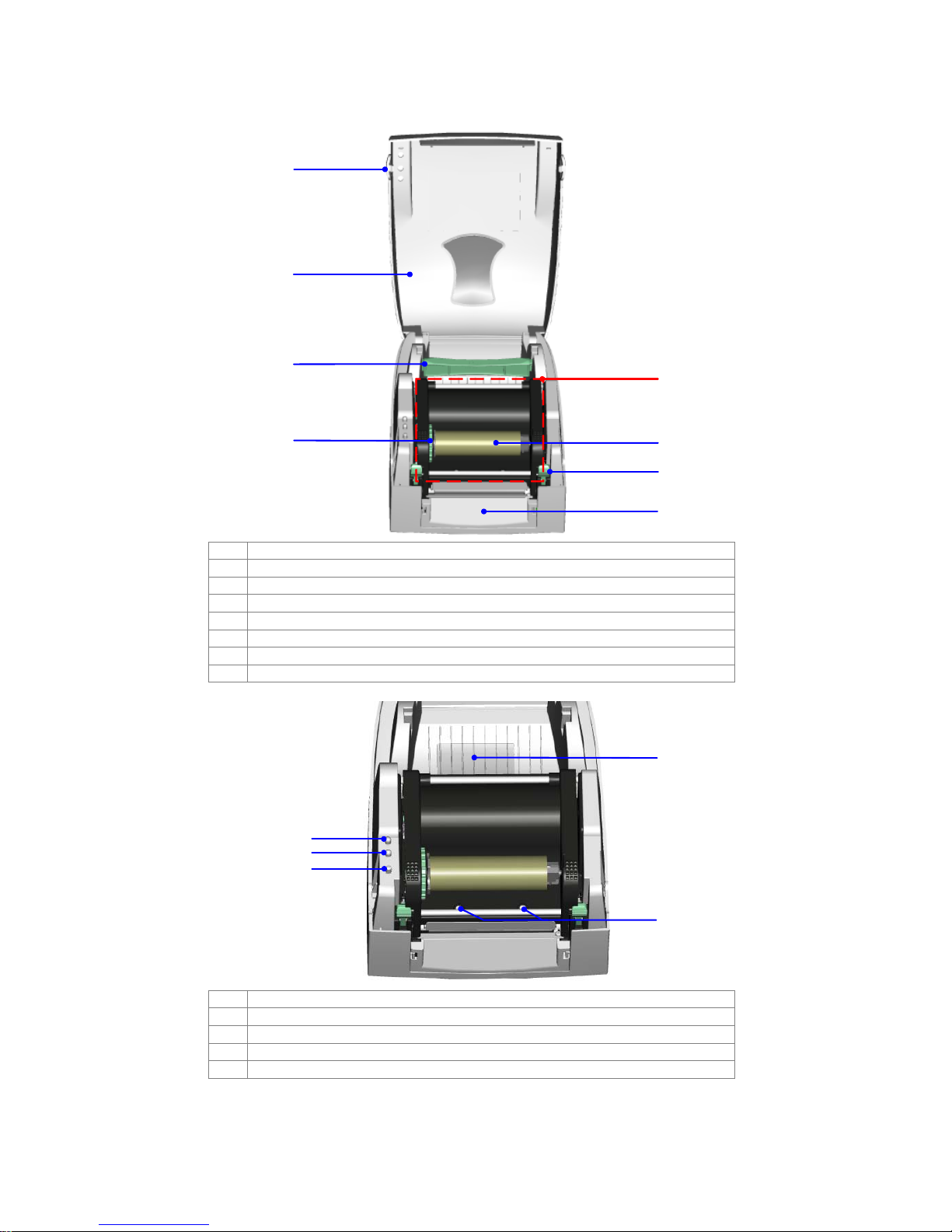

1-4. Printer Parts

1. Cover Open Button

2. Top Cover

3. Label Roll Core

4. Ribbon Rewind Wheel

5. Print Mechanism

6. Ribbon Rewind Shaft + Empty Ribbon Roll

7. Locking Tenon (left/right)

8. Front Cover Piece

1. LED Light (Ready)

2. LED Light (Status)

3. FEED Key

4. CF Card Slot Cover

5. Print Head Pressure Adjustment Screw (left/right)

EZ-1000Plus User’s Manual

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lector de código de barras de Godex

Godex

Godex EZ-1000 Plus Manual de usuario

Godex

Godex GS500 Instrucciones de funcionamiento y mantenimiento

Godex

Godex G500 Manual de usuario

Godex

Godex RT200i Manual de usuario

Godex

Godex EZ-1105 Manual de usuario

Godex

Godex GS200 Manual de usuario

Godex

Godex GS550 Manual de usuario

Godex

Godex G525 Manual de usuario

Godex

Godex RT700i Manual de usuario

Godex

Godex 5VDC Manual de usuario

Godex

Godex DT2 Manual de usuario

Godex

Godex BP300 Manual de usuario

Godex

Godex EZ-2000 PLUS Manual de usuario

Godex

Godex HD90 Manual de usuario

Godex

Godex GS220 Manual de usuario

Godex

Godex RT700 SERIES Manual de usuario

Godex

Godex RT800i Series Manual de usuario

Godex

Godex EZPi1000 Series Manual de usuario

Godex

Godex RT200 Manual de usuario

Godex

Godex GS220 Manual de usuario

Godex

Godex RT700i Manual de usuario

Godex

Godex EZ2250i Manual de usuario

Godex

Godex G300 Manual de usuario

Godex

Godex ZX1200i Manual de usuario

Manuales populares de Lector de código de barras de otras marcas

POSMicro

POSMicro Datalogic PowerScan D7100 Manual de usuario

Marson

Marson MT780 Guía de configuración rápida

NCR

NCR RealPOS Manual de usuario

Motorola

Motorola SE3300 Guía de configuración rápida

Element

Element P130BT Manual de usuario

Motorola

Motorola Symbol LS3008 Manual de instalación y operación

Meec tools

Meec tools OBD-II / VAG Manual de usuario

SICK

SICK CLP 100 Manual de usuario

Royal Tag SA

Royal Tag SA I-Read Manual de usuario

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manual de usuario

Meteor

Meteor 8310 Manual de usuario

Denso

Denso BHT-500B Manual de usuario

Datalogic

Datalogic Heron HD3130 Manual de usuario

Motorola

Motorola MP6000 Instrucciones de montaje

Newland

Newland NLS-HR15-BT Manual de usuario

ARTDEV

ARTDEV AS-1310 Manual de usuario

Aopos

Aopos AS290 Manual de usuario

ENS

ENS 367-5455 Manual de usuario
